Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10

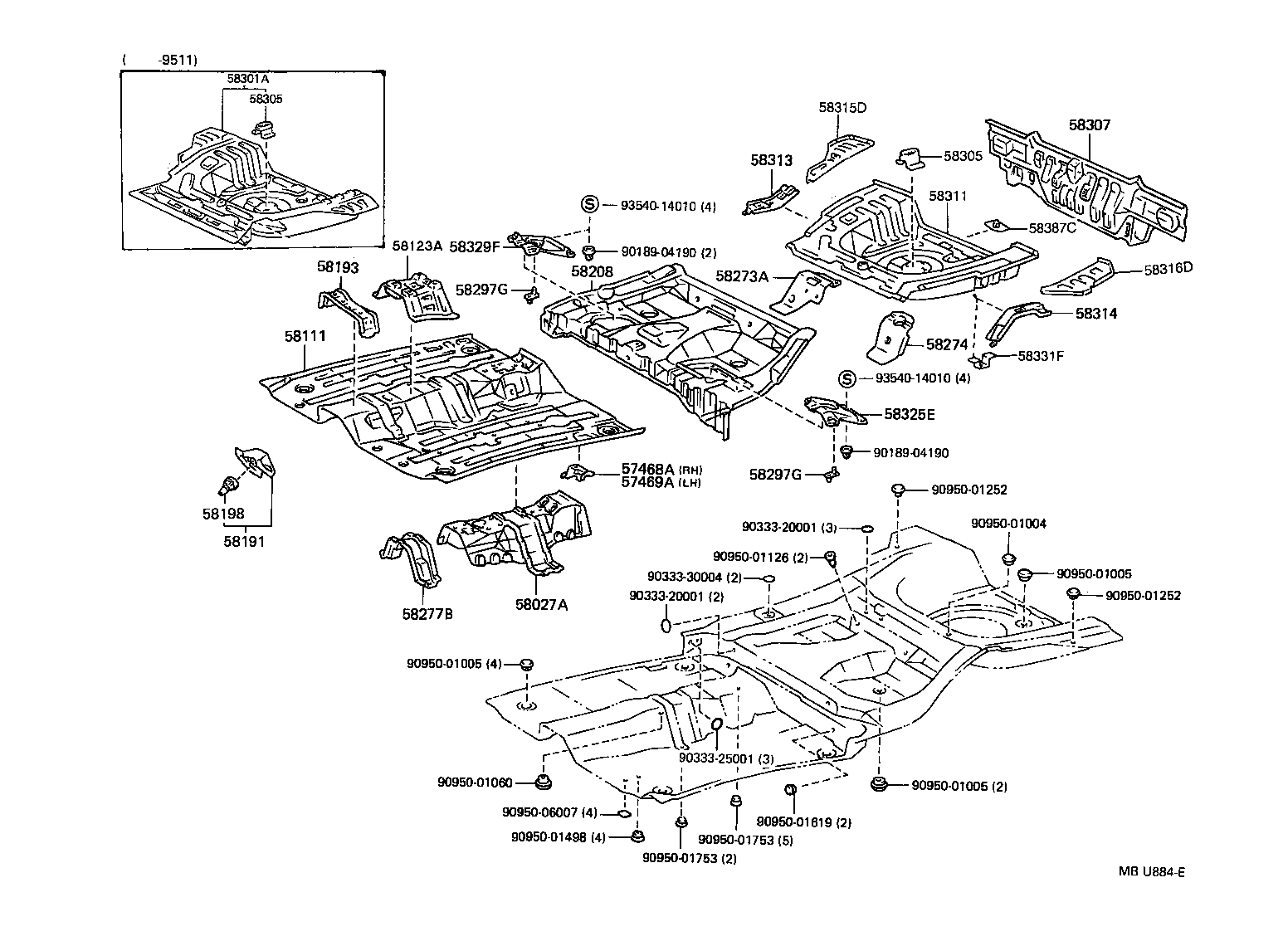

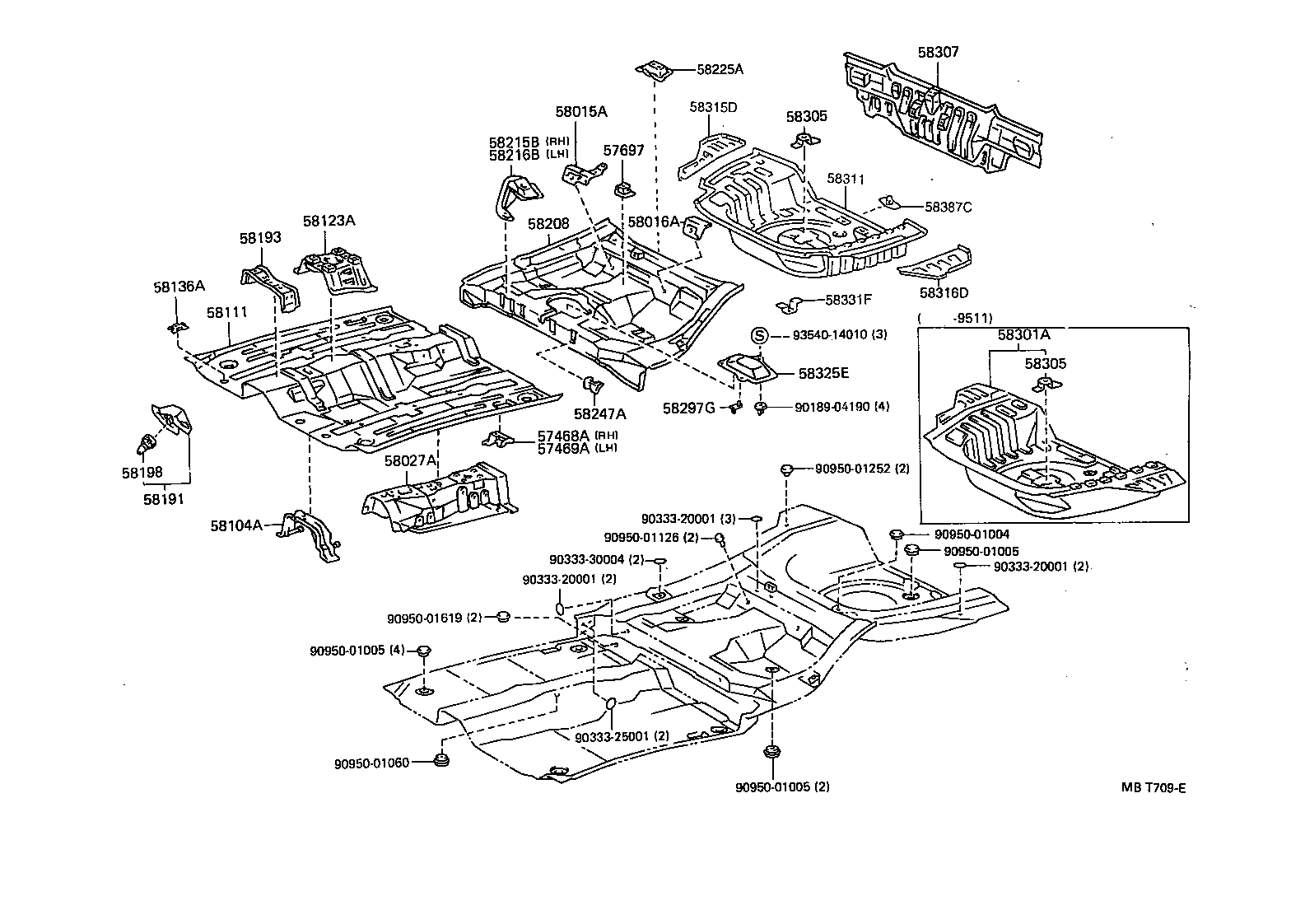

Floor Pan & Lower Back Panel

34 part groups · 2 illustrations

PNC	Description
57468A	Bracket, Front Seat, Outside, Rear RH
57469A	Bracket, Front Seat, Outside, Rear LH
57697	Retainer, Rear Seat Cushion
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A	Reinforce Sub-assy, Belt Anchor, NO.3 LH
58027A	Reinforce Sub-assy, Seat Belt Anchor
58104A	Bracket Sub-assy, Catalytic Converter Support
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136A	Cover, Front Floor Service Hole
58191	Footrest, Front Floor
58193	Bracket, Instrument Panel Brace Mounting
58198	Clip, Footrest
58208	Pan, Center Floor
58215B	Bracket, Rear Seat Mounting, RH
58216B	Bracket, Rear Seat Mounting, LH
58225A	Bracket, Center Mounting
58247A	Reinforcement, Rear Seat Cushion Hinge, RH
58273A	Reinforcement, Belt Anchor TO Center Floor, RH
58274	Reinforcement, Belt Anchor TO Center Floor, NO.1
58277B	Reinforcement, Drive Shaft Center Support
58297G	Retainer, Floor Clamp
58301A	Panel Sub-assy, Rear Floor
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58315D	Extension, Rear Floor Pan, RH
58316D	Extension, Rear Floor Pan, LH
58325E	Cover, Rear Floor Service Hole
58329F	Cover, Rear Floor Service Hole, NO.2
58331F	Bracket, Rear Floor Heat Insulator, NO.3
58387C	Plate, Rear Floor Finish

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
