Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan
Discontinued model
Data version 1996-10

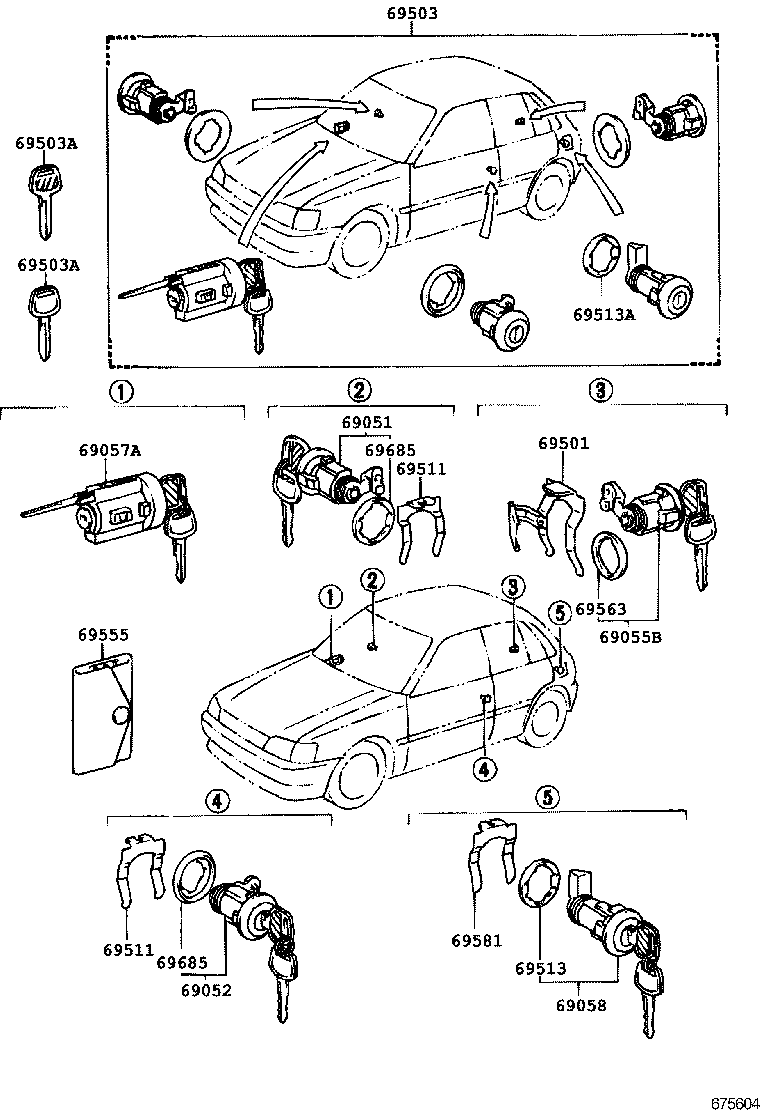

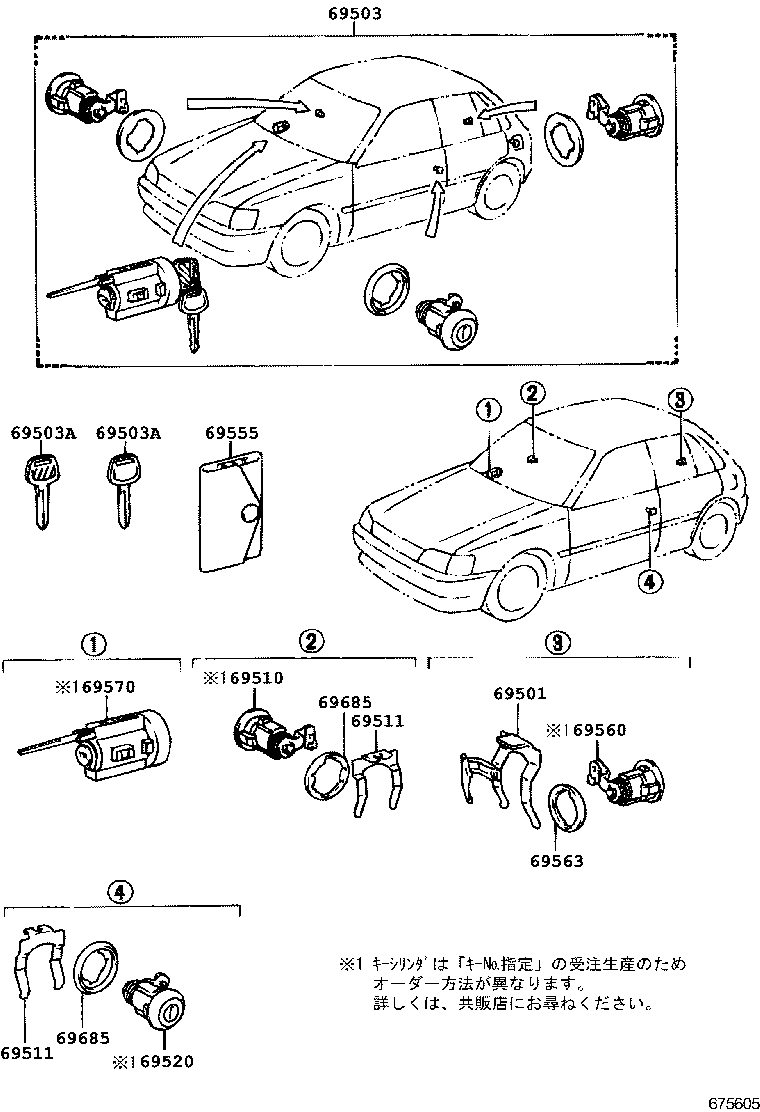

Lock Cylinder Set
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055B | Cylinder & Key Set, Back Door Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69501 | Retainer Sub-assy, Back Door Cylinder |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69511 | Retainer, Front Door Lock Cylinder |
| 69513 | Pad, Fuel Filler Lid Lock Cylinder |
| 69513A | Pad, Door Cylinder |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69555 | Cover, Key |
| 69560 | Cylinder Assy, Back Door Lock |
| 69563 | Pad, Back Door Lock Cylinder |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69581 | Retainer, Fuel Filler Lid Cylinder |
| 69685 | Pad, Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
