Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan
Discontinued model
Data version 1996-10

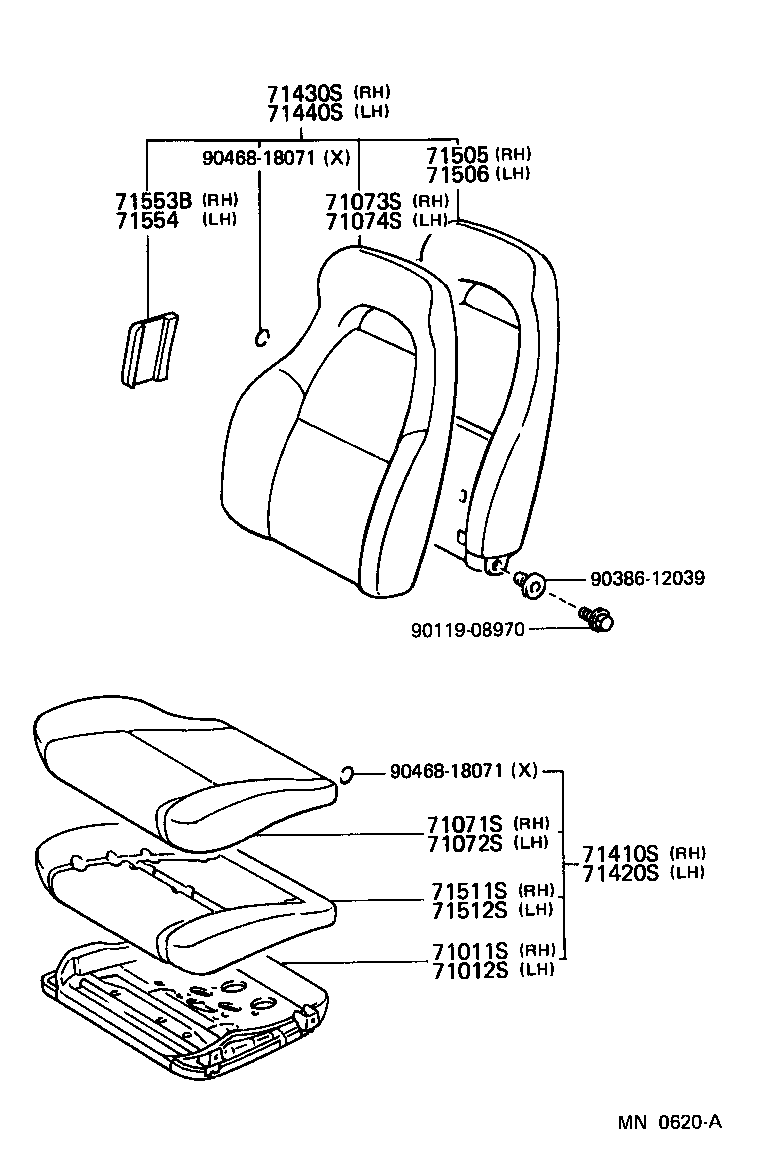

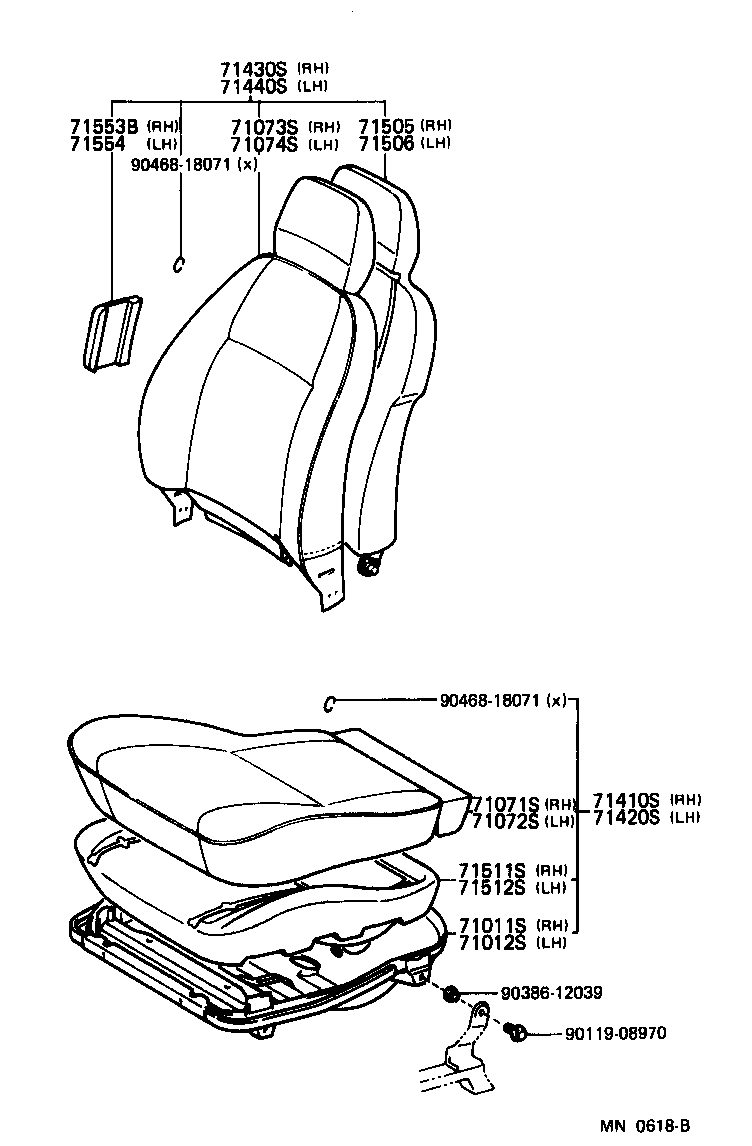

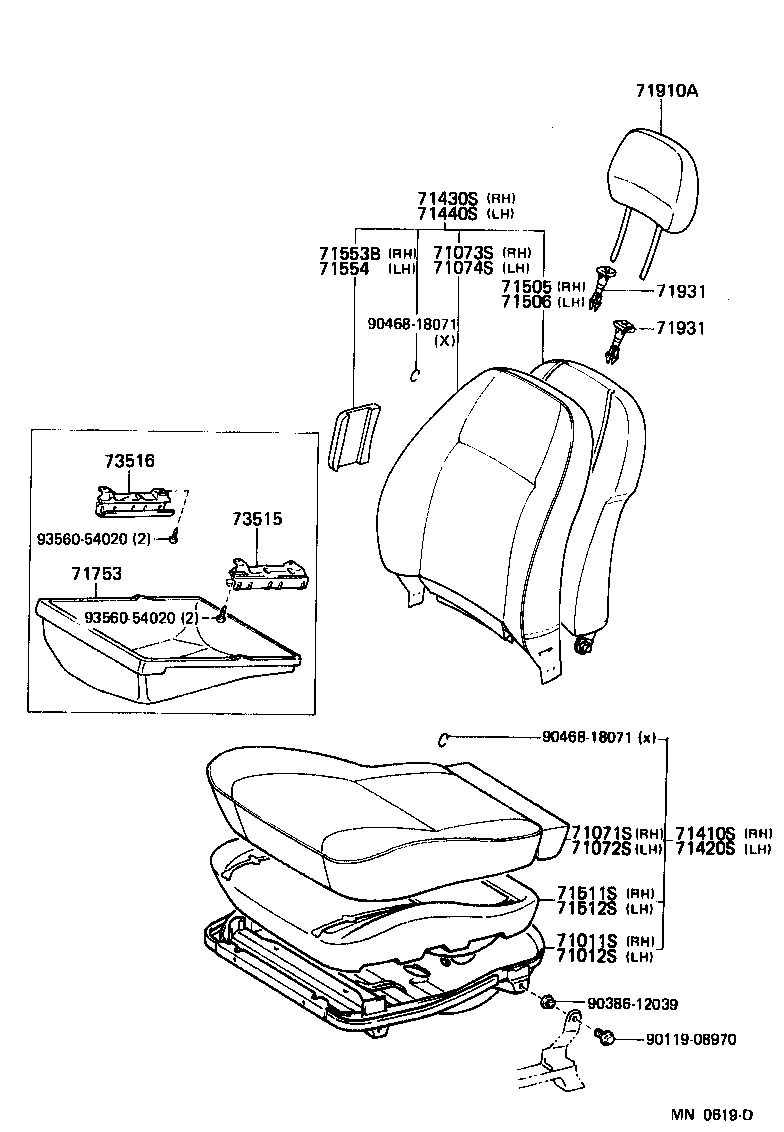

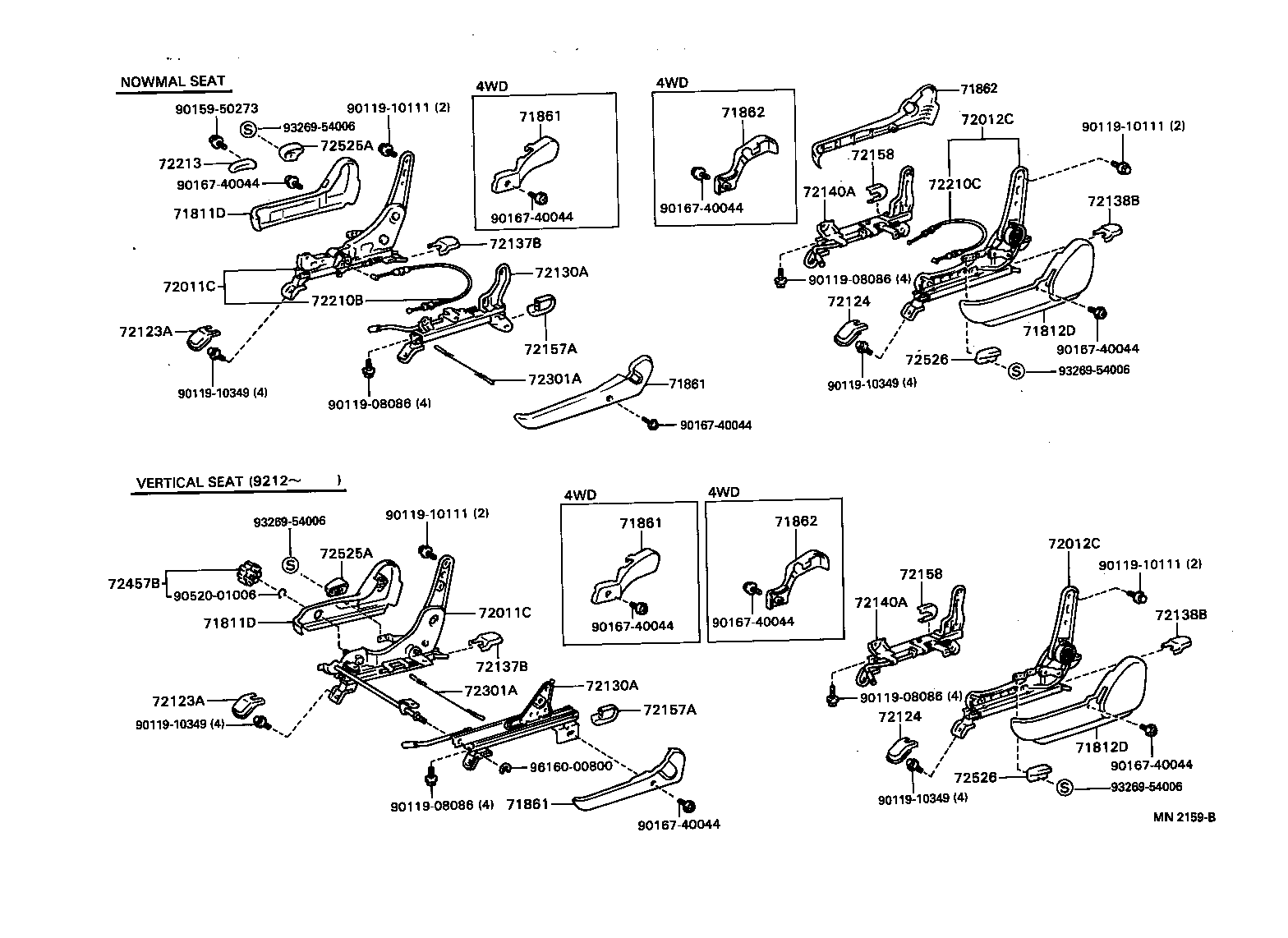

Front Seat & Seat Track
65 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71121 | Bracket, Front Seat Cushion, RH |
| 71122 | Bracket, Front Seat Cushion, LH |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71505 | Pad Sub-assy, Front Seatback W/Frame, RH |
| 71506 | Pad Sub-assy, Front Seatback W/Frame, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71553B | Pad, Front Seatback, B |
| 71554 | Pad, Front Seatback, C |
| 71598 | Plate, Seat Cover |
| 71753 | Tray, Front Seat Under |
| 71811C | Cover, Reclining Adjuster, RH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011C | Adjuster Sub-assy, Front Seat, RH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72133 | Bracket, Front Inner Seat Track Upper Rail, RH |
| 72134 | Bracket, Front Inner Seat Track Upper Rail, LH |
| 72137B | Cover, Seat Track, RH |
| 72138B | Cover, Seat Track, LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72210B | Cable Assy, Seat Track Control, RH |
| 72210C | Cable Assy, Seat Track Control, LH |
| 72213 | Knob, Seat Track Adjusting Handle |
| 72257 | Striker, Front Seat Lock |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72457B | Knob, Vertical Seat Adjuster, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525B | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72568 | Plate, Reclining Bolt Lock |
| 72591A | Lever, Reclining Remote Control |
| 72593 | Knob, Reclining Remote Control Lever |
| 72597 | Bezel, Reclining Remote Control |
| 72795 | Pad, Lumbar Support |
| 73515 | Rail, Front Seat Under Tray, NO.1 |
| 73516 | Rail, Front Seat Under Tray, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
