Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 3 illustrations

Illustrations

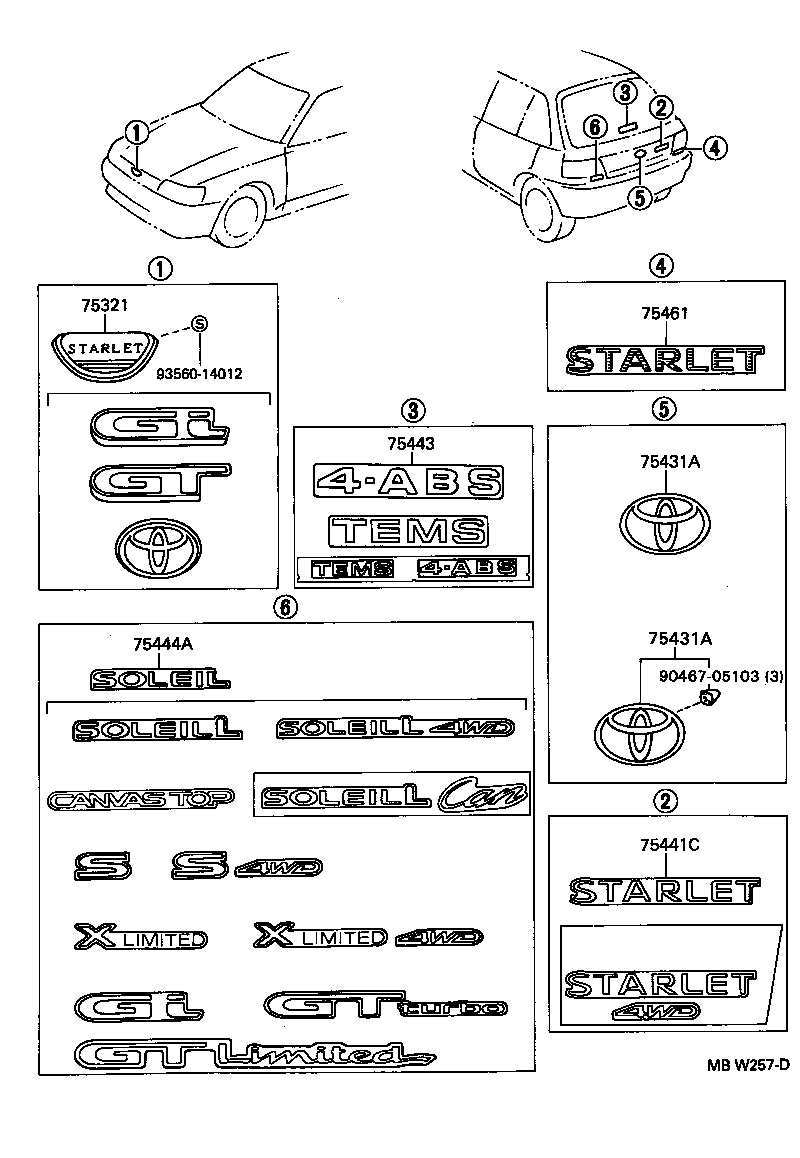

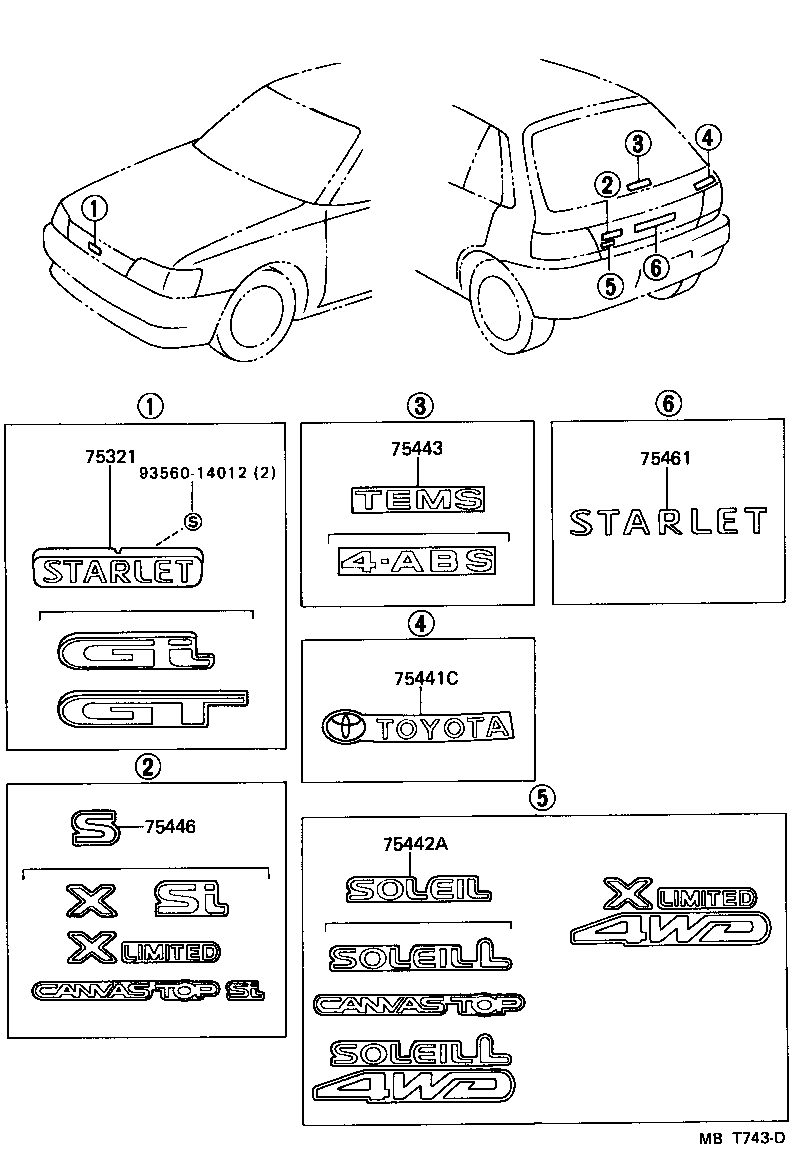

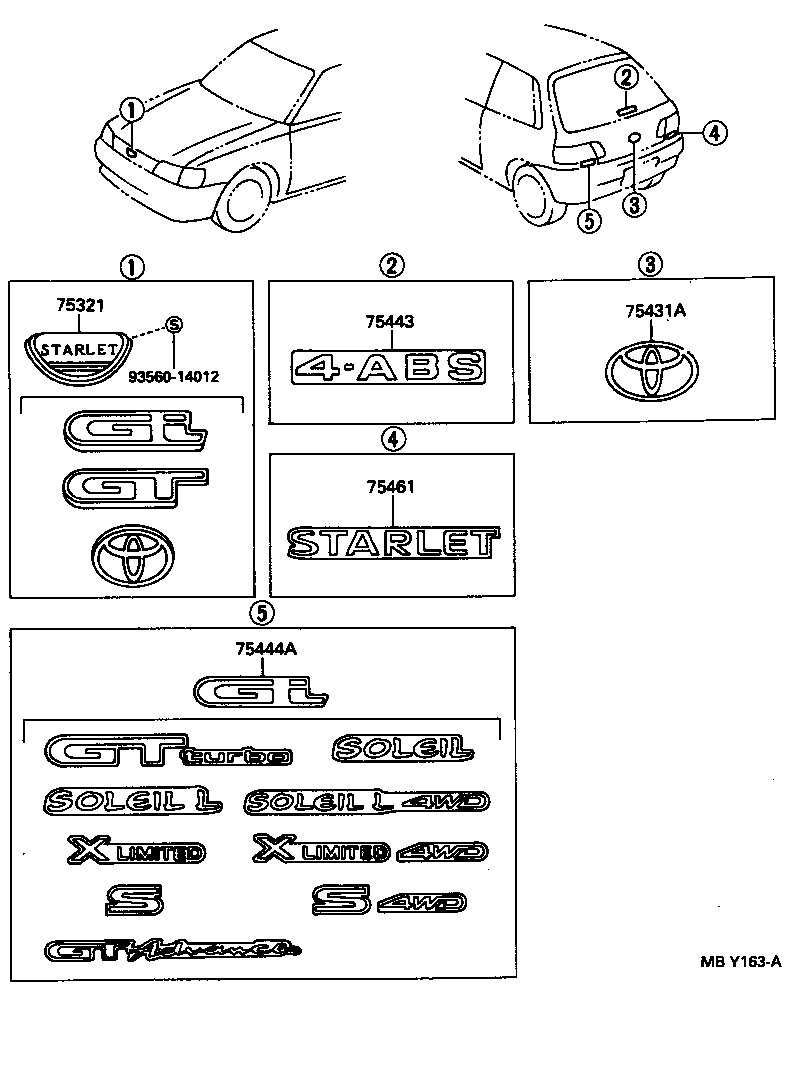

Figure MBT743D MBT743D 1989-12 → 1992-01 Figure MBW257D MBW257D 1992-01 → 1994-05 Figure MBY163A MBY163A 1994-05 → —

Part groups

PNCDescription
75321 Plate, Radiator Grille OR Front Panel Name
75431A Emblem, Back Door, NO.1
75441C Plate, Back Door Name
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75444A Plate, Back Door Name, NO.4
75446 Plate, Luggage Compartment Door Name, NO.6
75461 Plate, Rear Name, NO.2 (MODEL MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
