Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

5 part groups · 3 illustrations

Illustrations

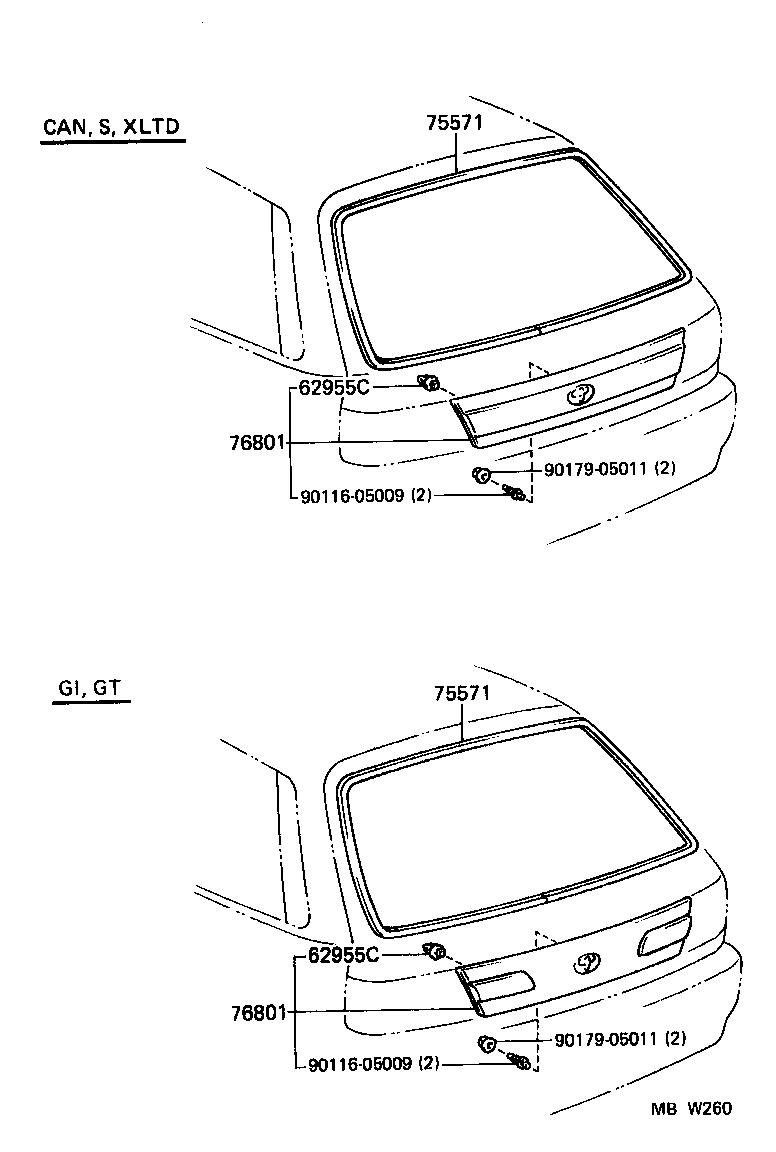

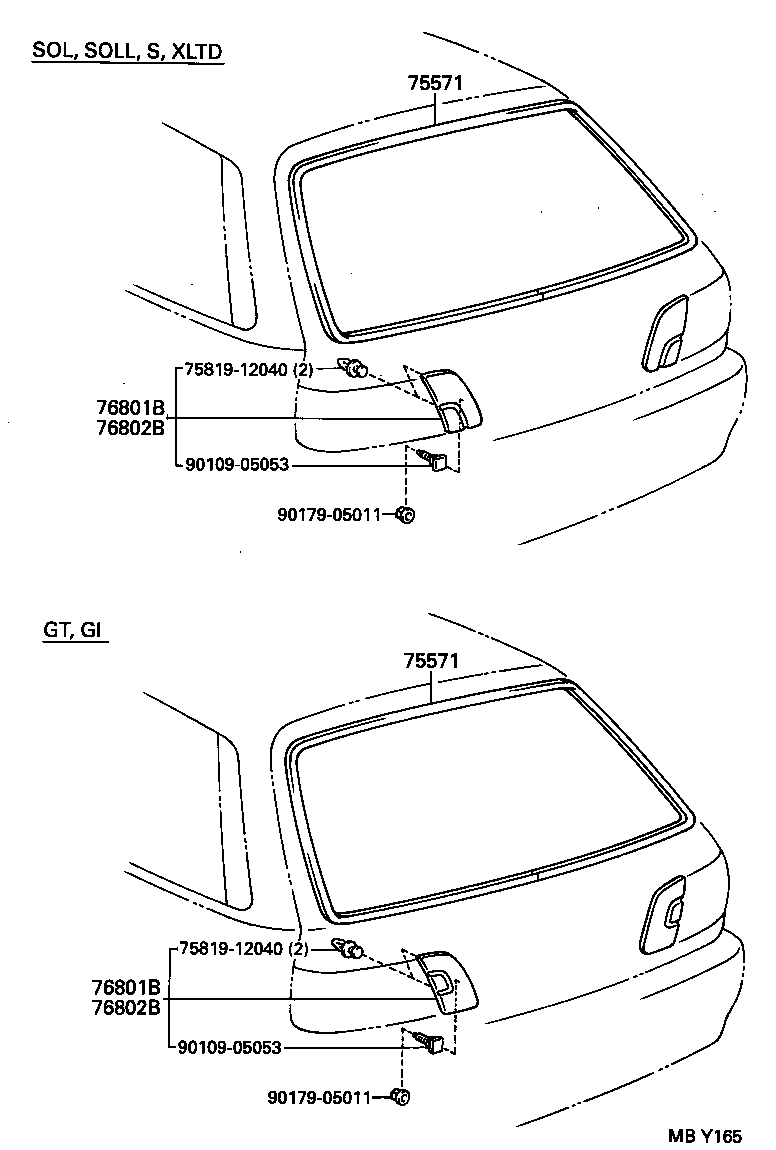

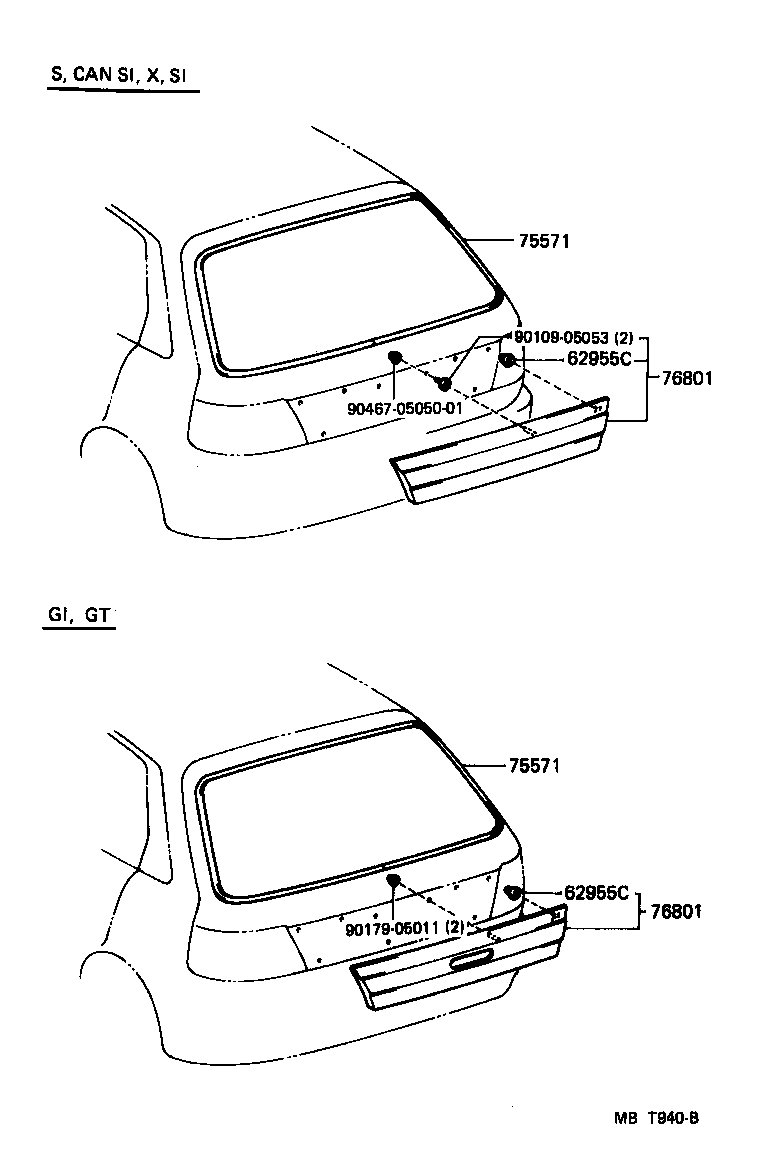

Figure MBT940B MBT940B 1989-12 → 1992-01 Figure MBW260 MBW260 1992-01 → 1994-05 Figure MBY165 MBY165 1994-05 → —

Part groups

PNCDescription
62955C Retainer, Back Door Moulding
75571 Moulding, Back Window, Outside Upper
76801 Garnish Sub-assy, Back Door, Outside
76801B Garnish Sub-assy, Back Door, Outside RH
76802B Garnish Sub-assy, Back Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
