Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

12 part groups · 2 illustrations

Illustrations

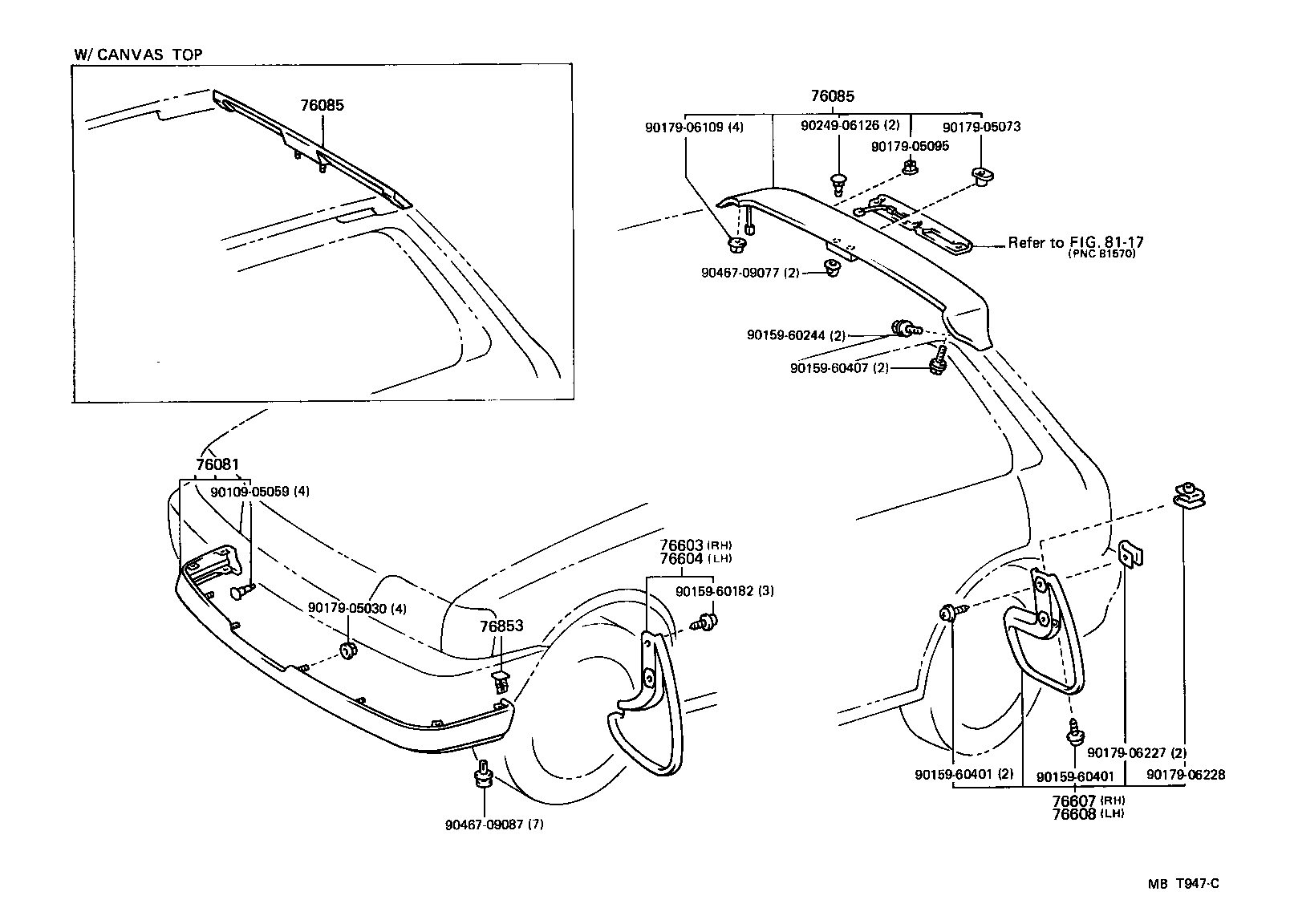

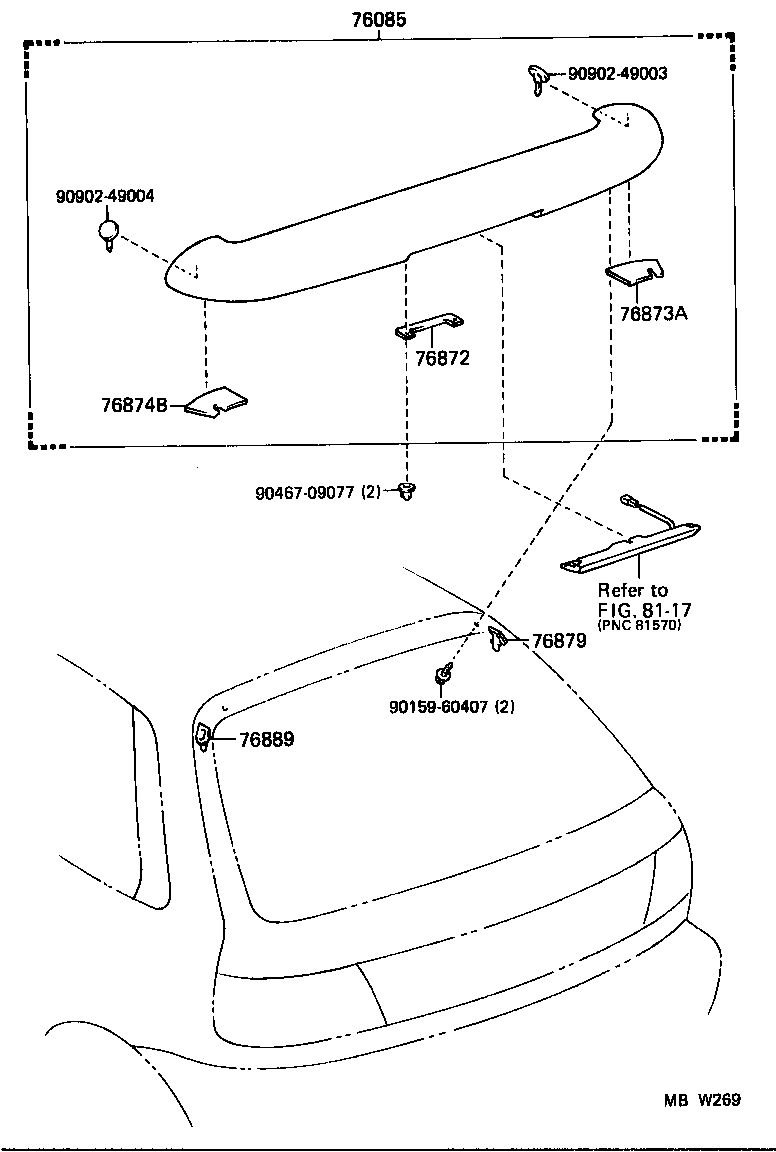

Figure MBT947C MBT947C 1989-12 → — Figure MBW269 MBW269 1992-01 → —

Part groups

PNCDescription
76081 Spoiler Sub-assy, Front
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76853 Retainer, Front Spoiler, Upper RH
76872 Protector, Rear Spoiler, NO.1
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76879 Clip, Rear Spoiler, NO.1
76889 Clip, Rear Spoiler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
