Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 6 illustrations

Illustrations

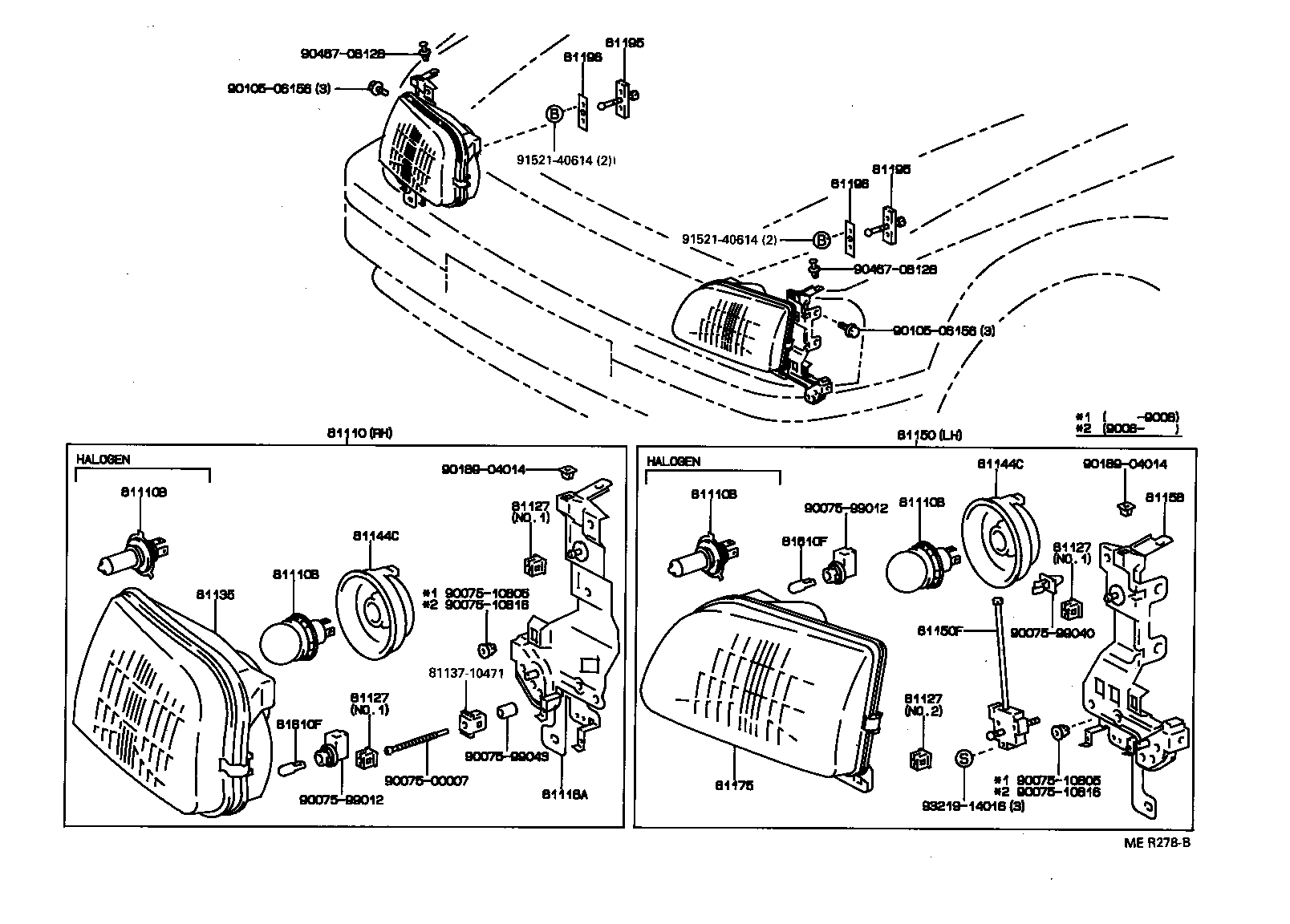

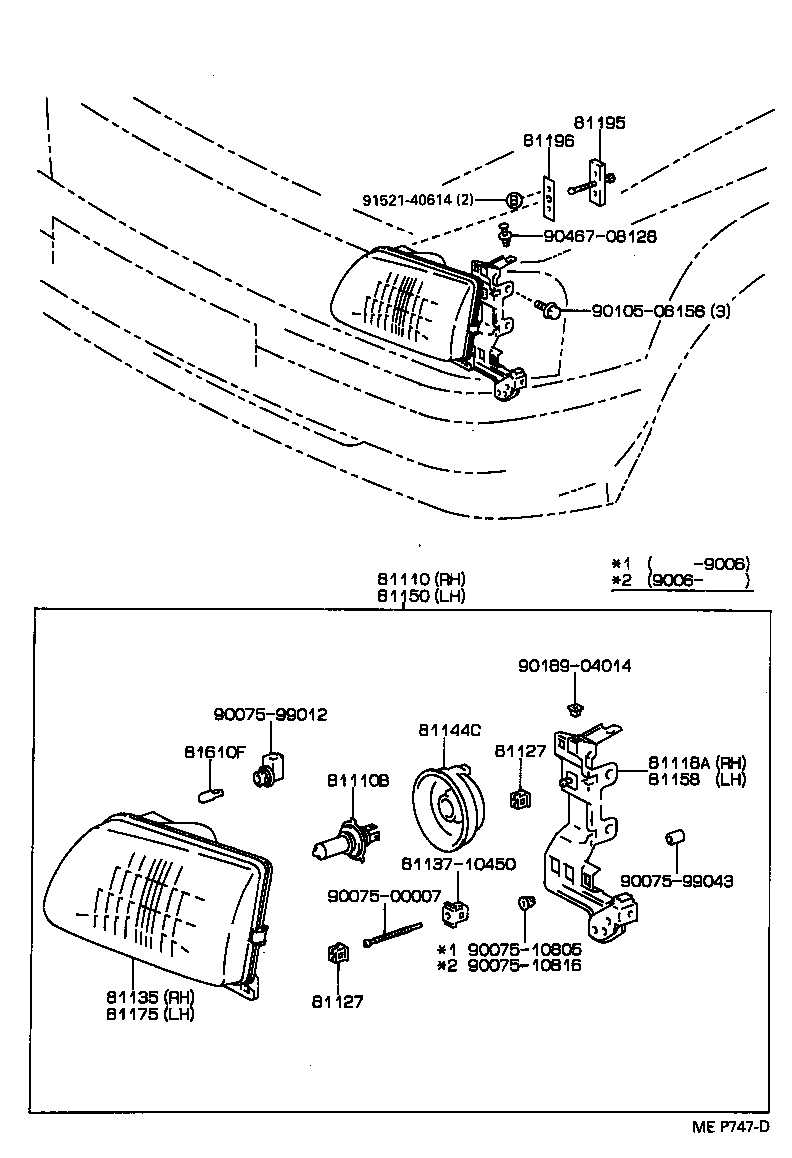

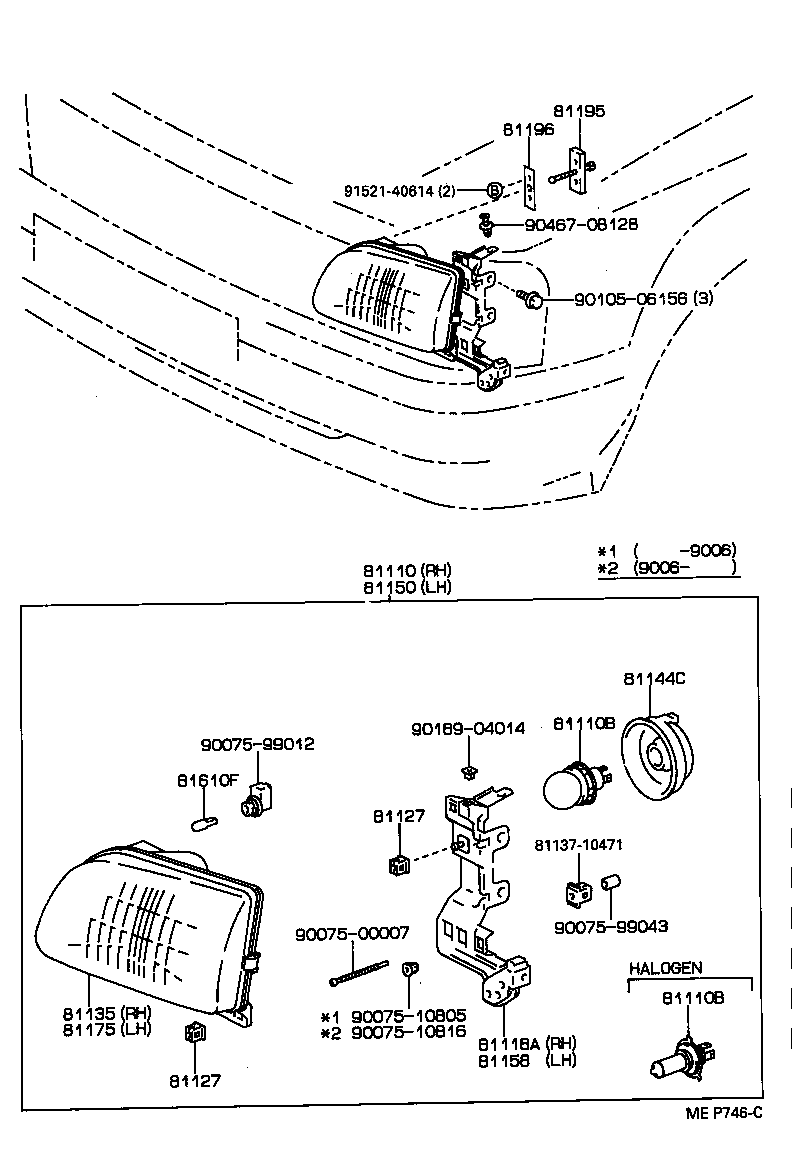

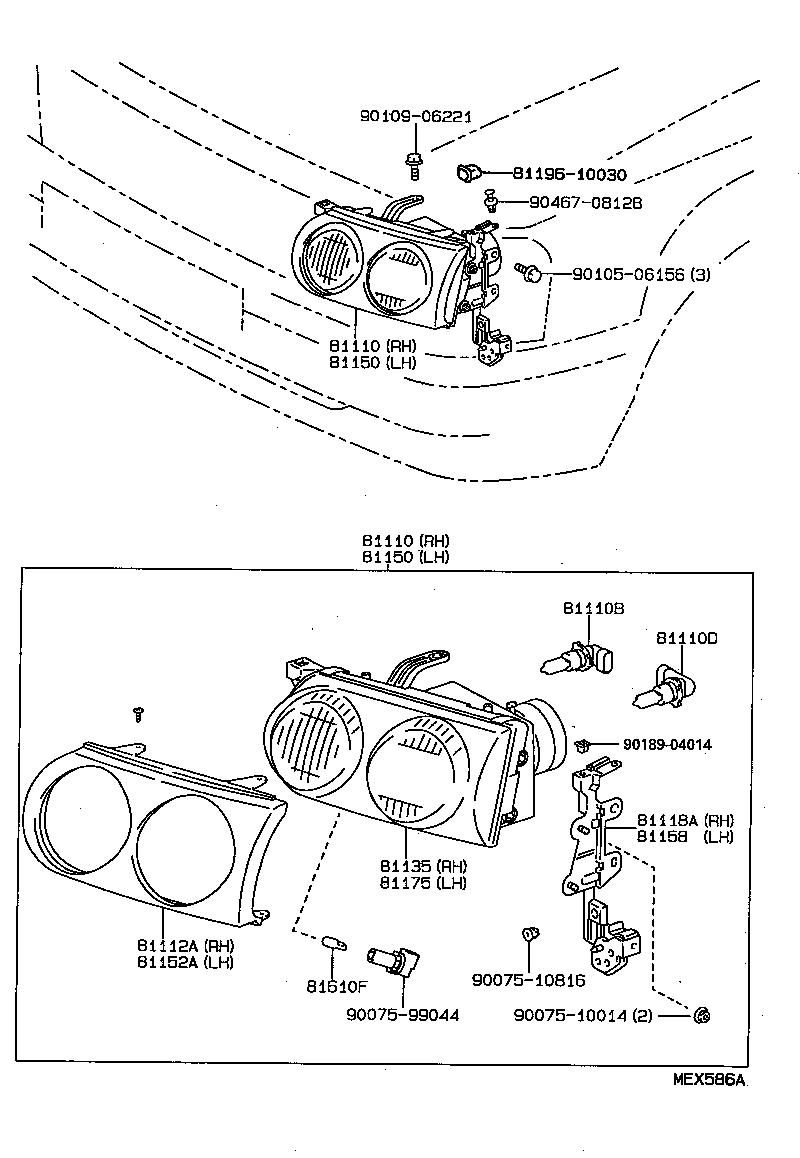

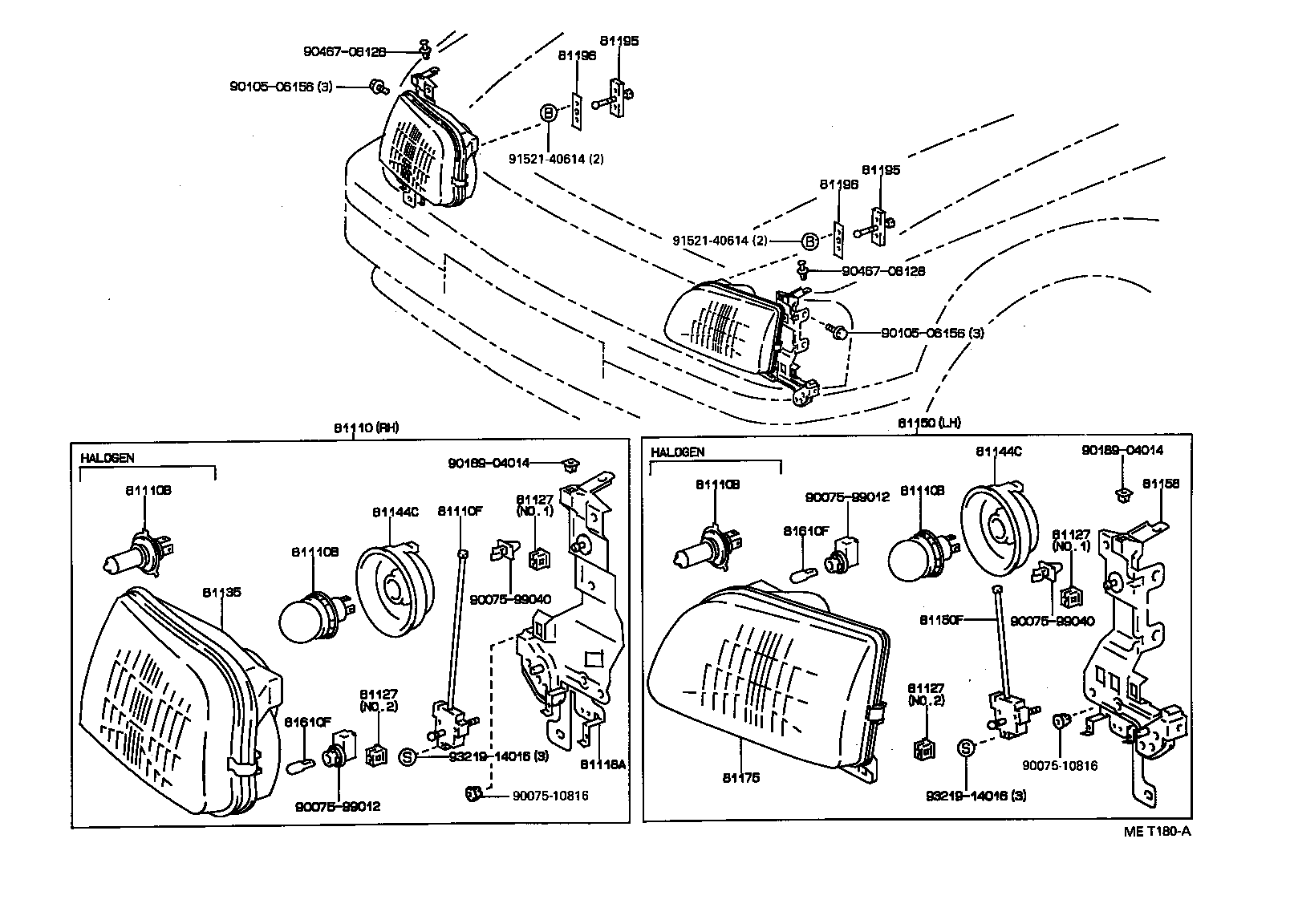

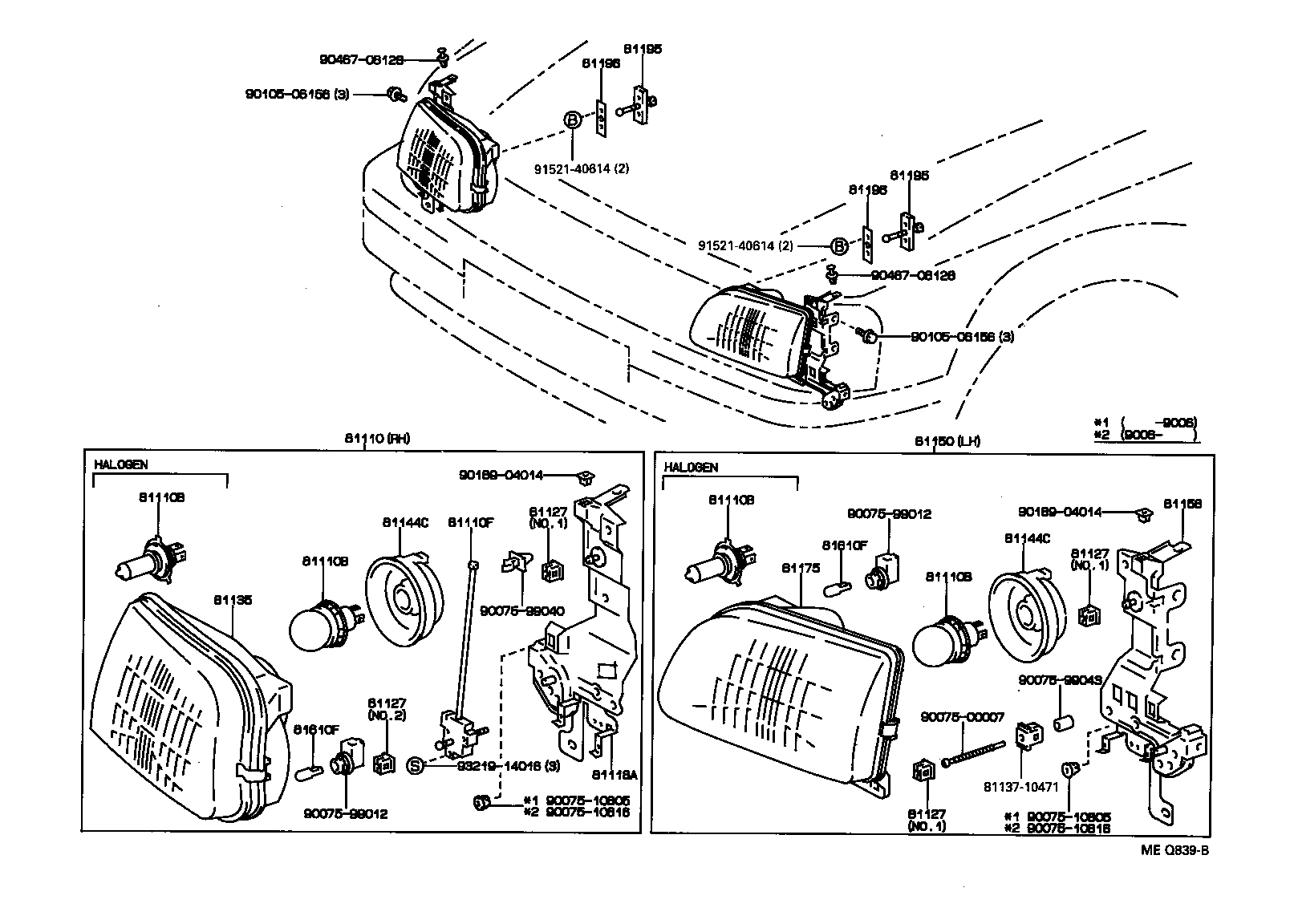

Figure MEP746C MEP746C 1989-12 → 1996-01 Figure MEP747D MEP747D 1989-12 → 1994-05 Figure MEX586A MEX586A 1994-05 → 1996-01 Figure MEQ839B MEQ839B 1989-12 → 1996-01 Figure MER278B MER278B 1989-12 → 1996-01 Figure MET180A MET180A 1992-01 → 1996-01

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110F Gear Unit Assy, RH NO.1
81112A Rim, Headlamp, RH
81118A Bracket, Headlamp, RH
81127 Bearing, Headlamp, NO.1
81135 Unit Assy, Headlamp, RH
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
81150F Gear Unit Assy, LH NO.1
81152A Rim, Headlamp, LH
81158 Bracket, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81195 Screw, Headlamp
81196 Retainer, Headlamp
81610F Bulb(FOR CLEARANCE LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
