Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

22 part groups · 14 illustrations

Illustrations

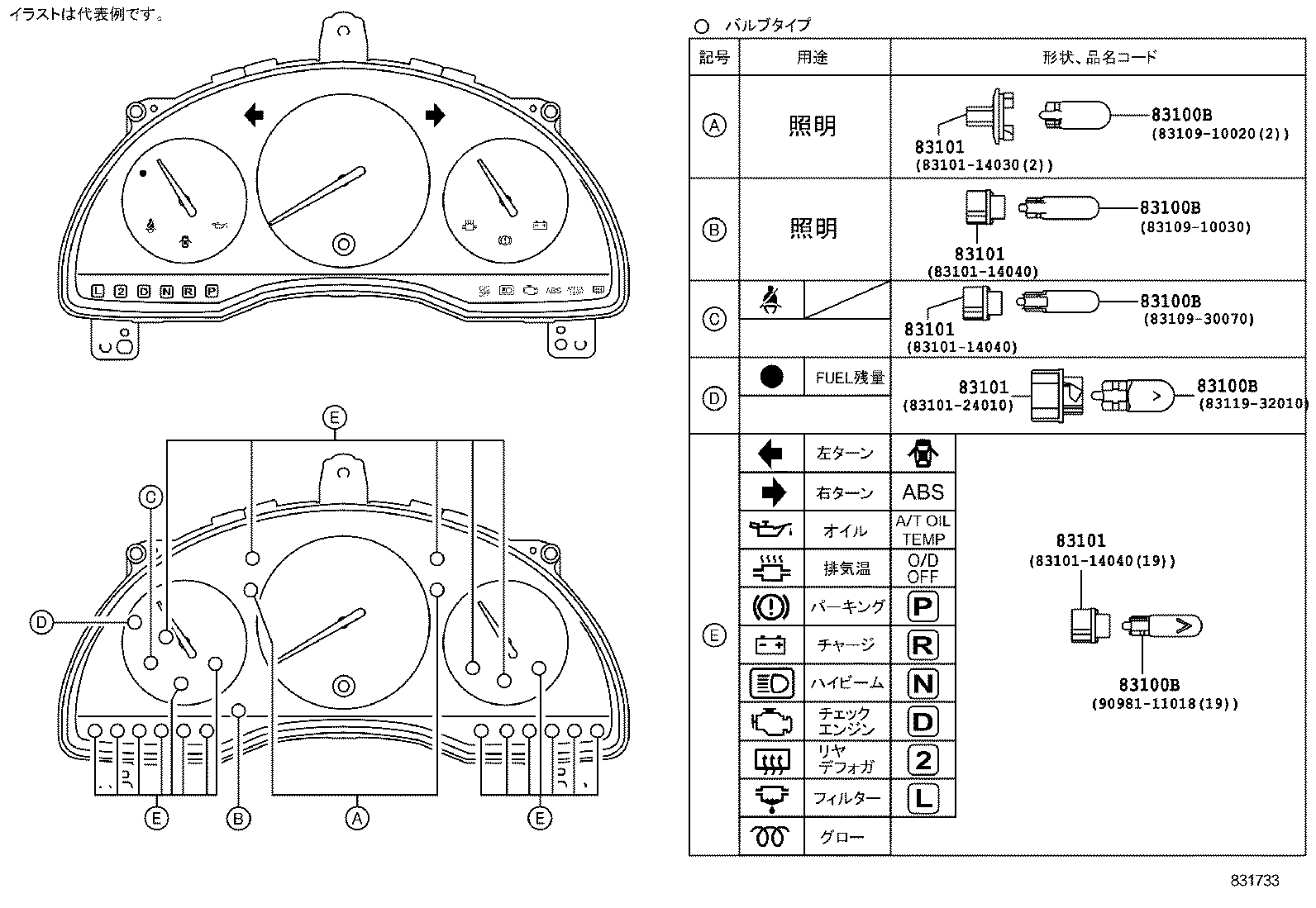

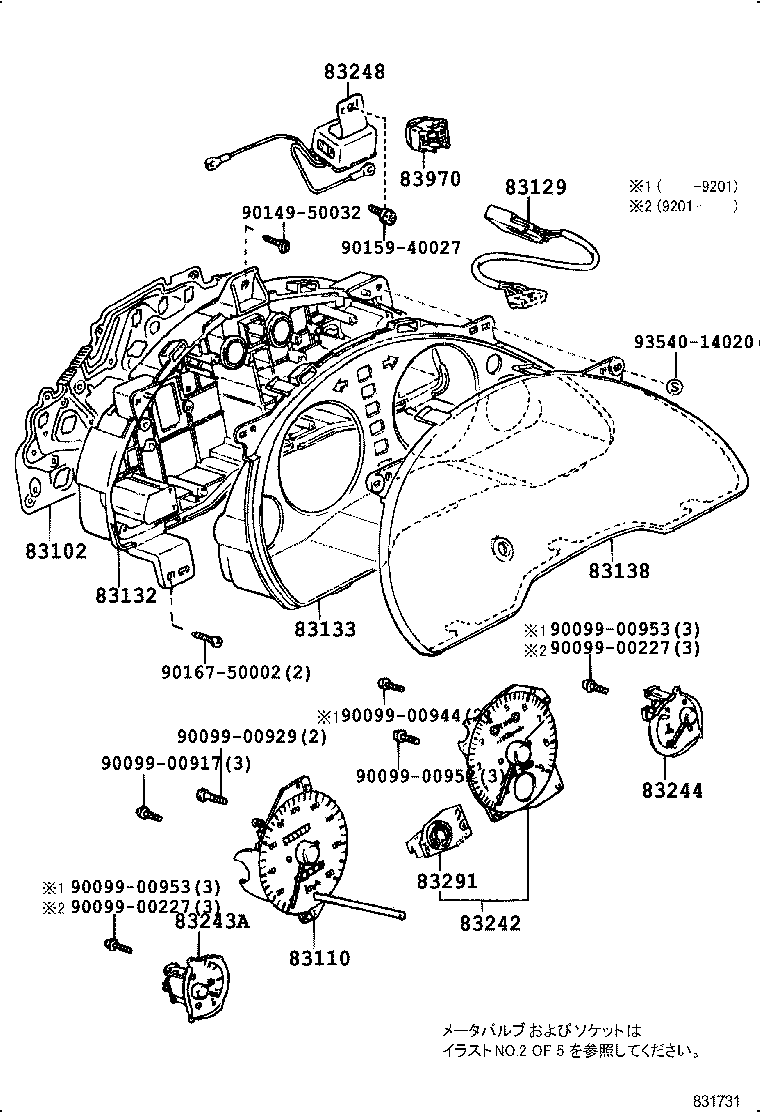

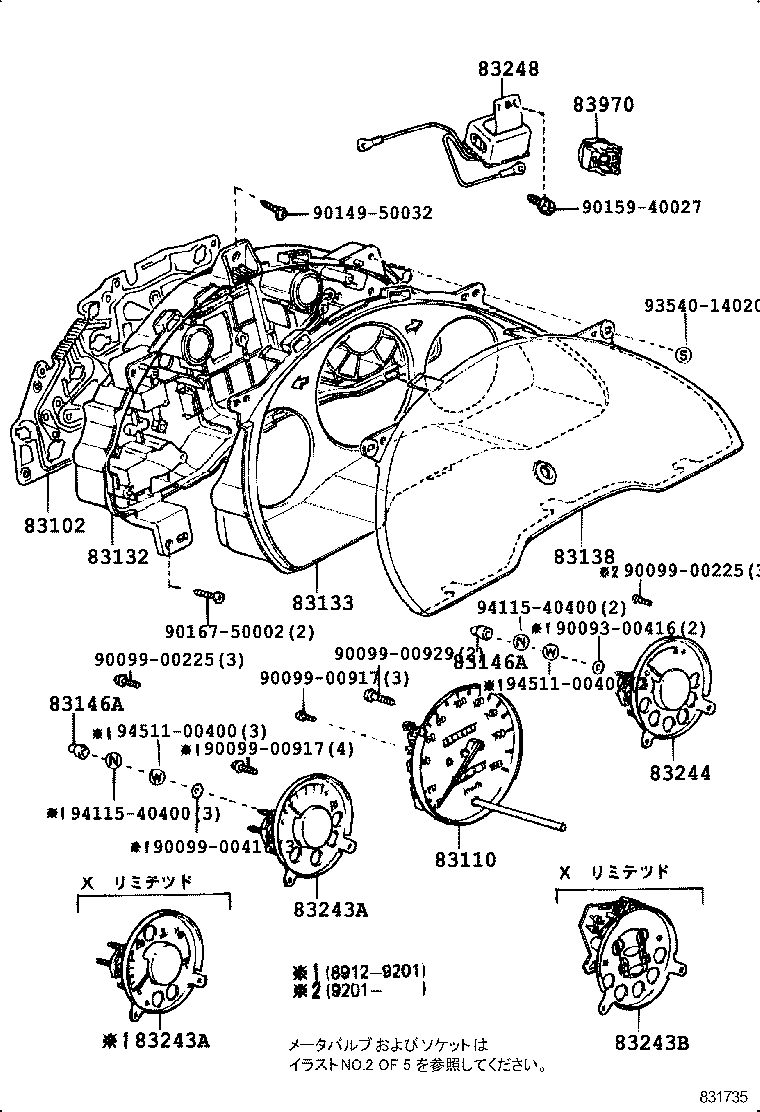

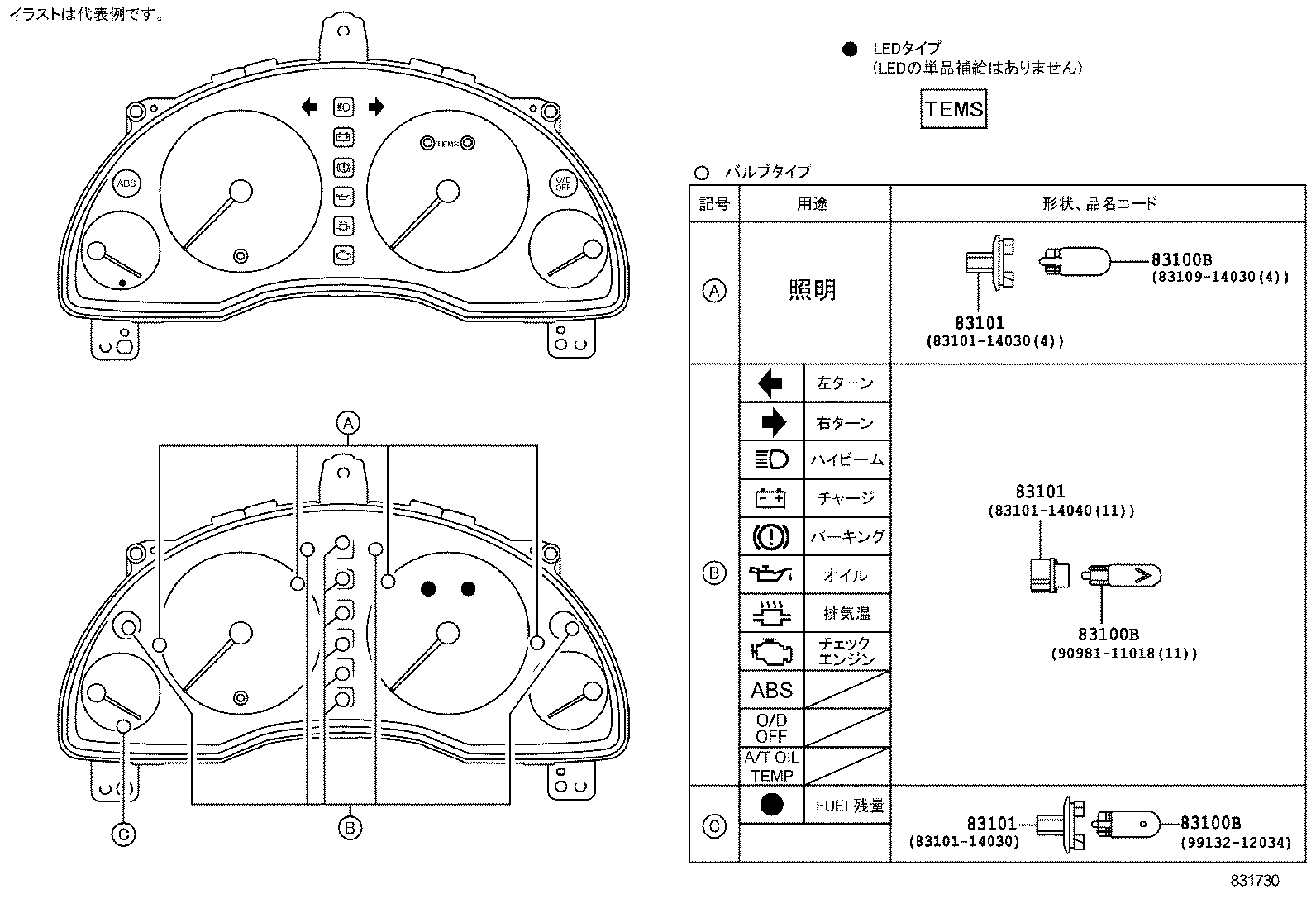

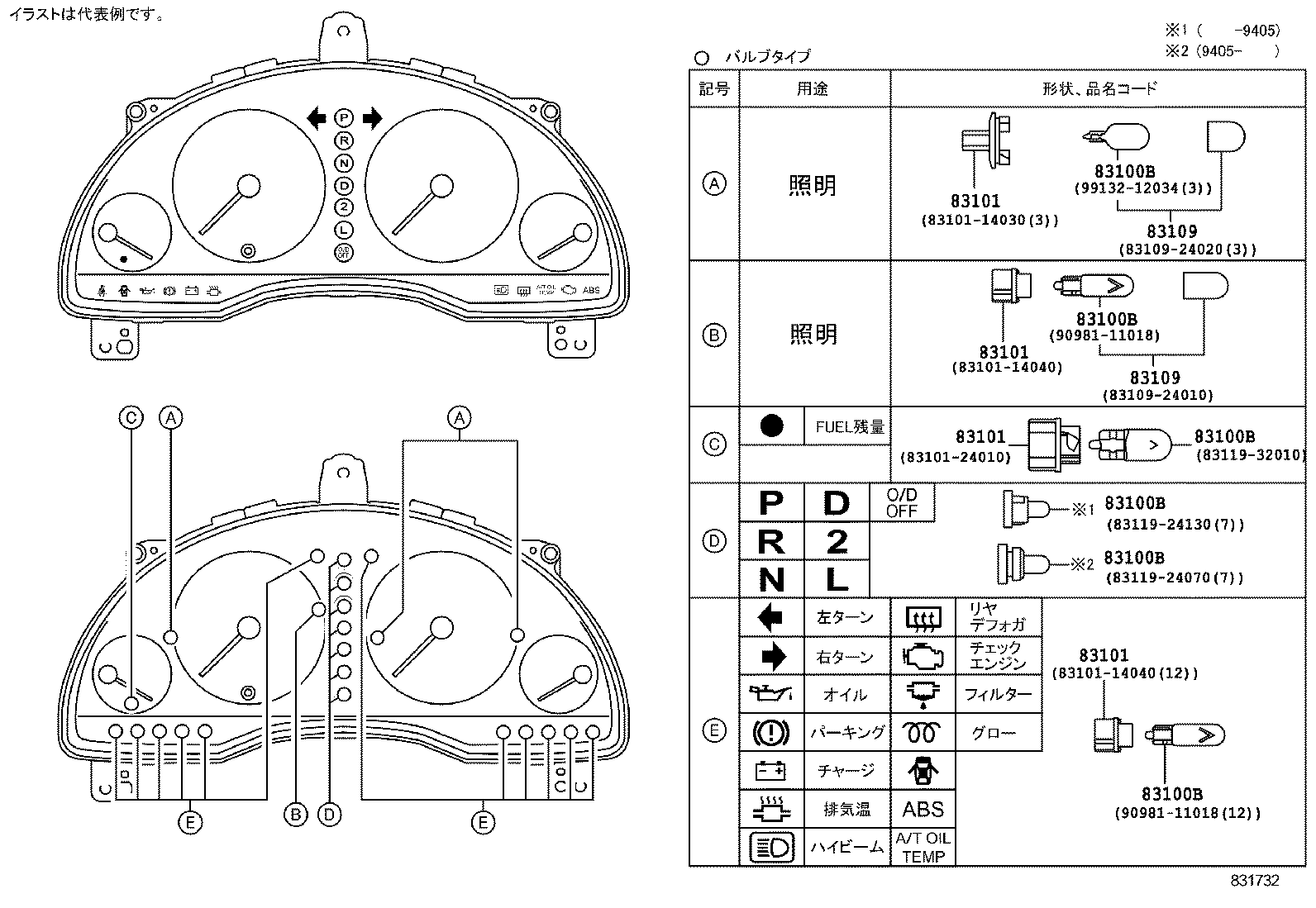

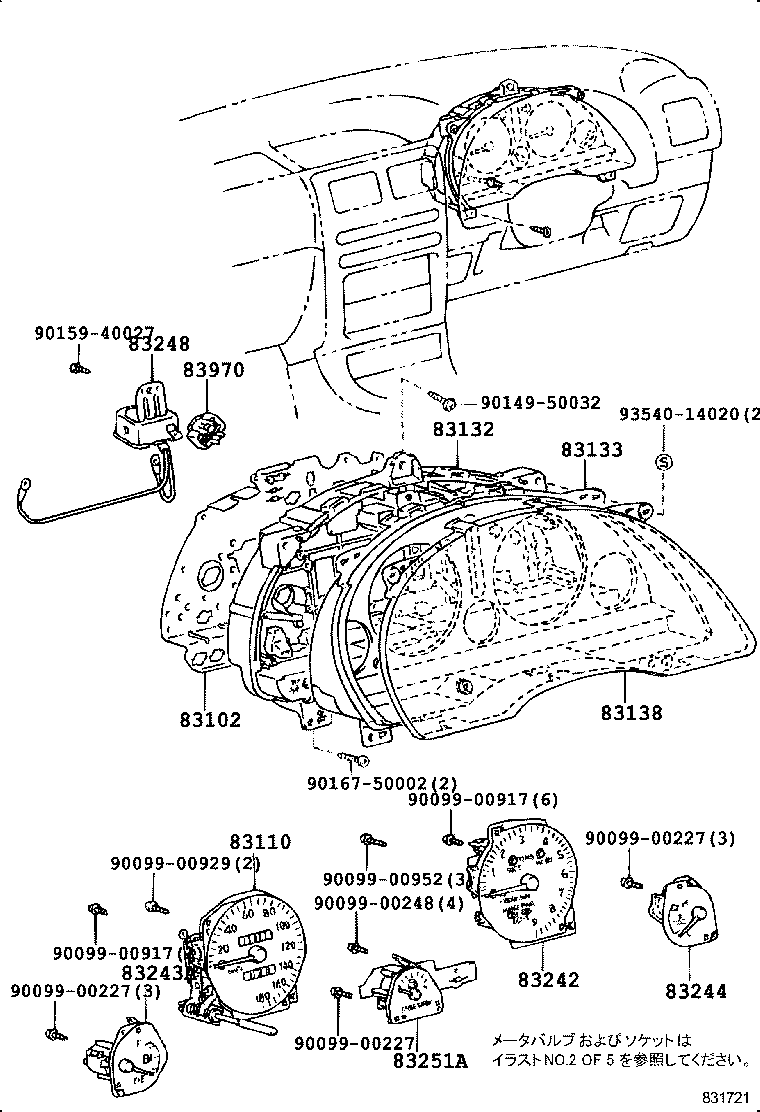

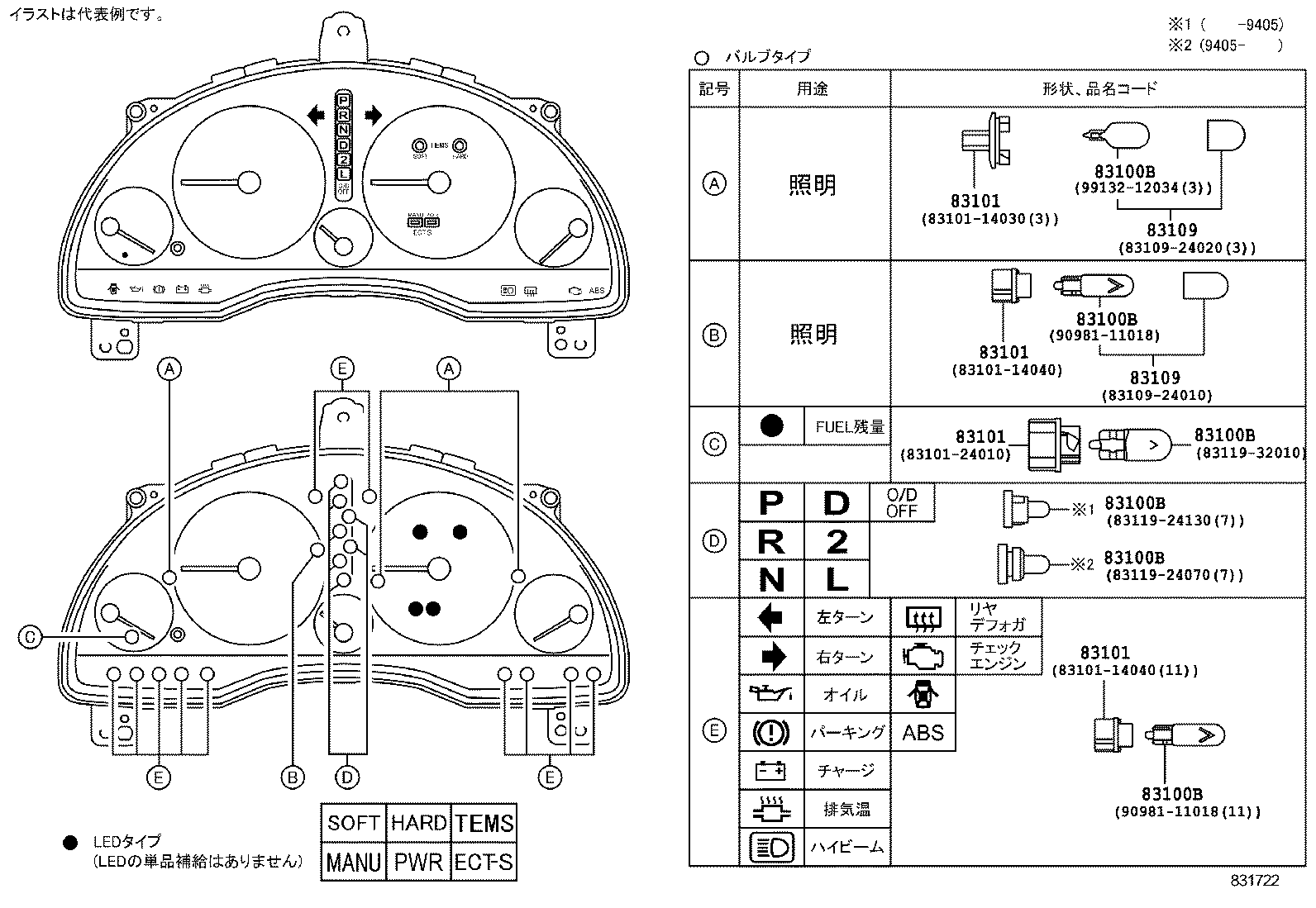

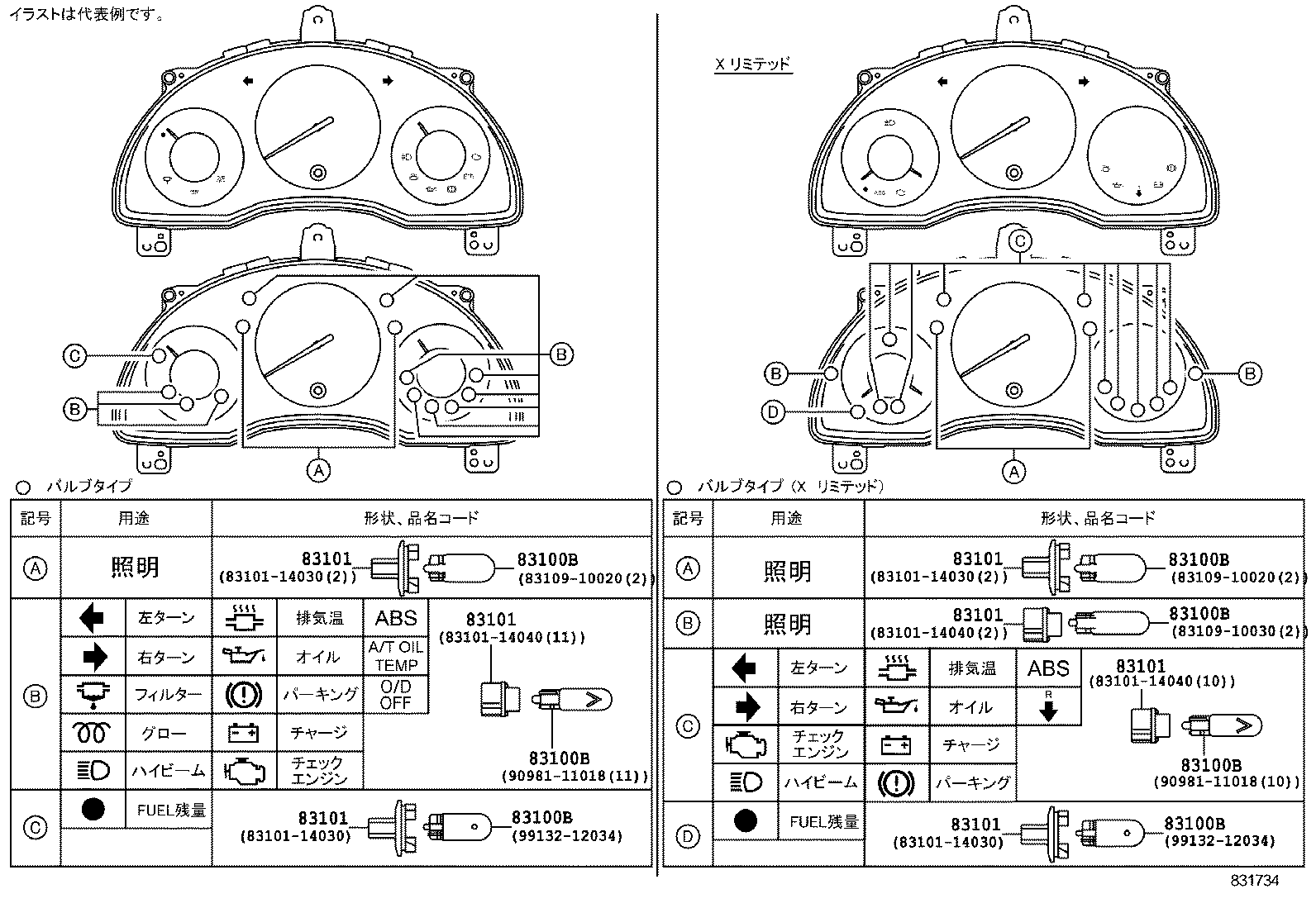

Figure 831735 831735 1989-12 → 1992-01 Figure 831735 831735 1989-12 → 1996-01 Figure 831735 831735 1990-08 → 1996-01 Figure 831731 831731 1989-12 → 1992-01 Figure 831731 831731 1992-01 → 1996-01 Figure 831721 831721 1992-01 → 1996-01 Figure 831734 831734 1989-12 → 1992-01 Figure 831733 831733 1992-01 → 1996-01 Figure 831730 831730 1989-12 → 1992-01 Figure 831732 831732 1992-01 → 1996-01 Figure 831722 831722 1992-01 → 1996-01 Figure MET249 MET249 1989-12 → 1996-01 Figure MEP709 MEP709 1989-12 → 1996-01 Figure MEJ104 MEJ104 1989-12 → 1996-01

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83129 Wire, Meter
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83146A Cover, Speedmeter
83180 Detector Assy, Revolution
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83243B Gauge Assy, Combination
83244 Gauge Sub-assy, Water Temperature Receiver
83248 Chime, Speed Warning
83251A Pressure Meter, Turbo
83291 Computer, Combination Meter
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83910 Clock Assy
83970 Buzzer Assy, Reverse Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
