Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 3 illustrations

Illustrations

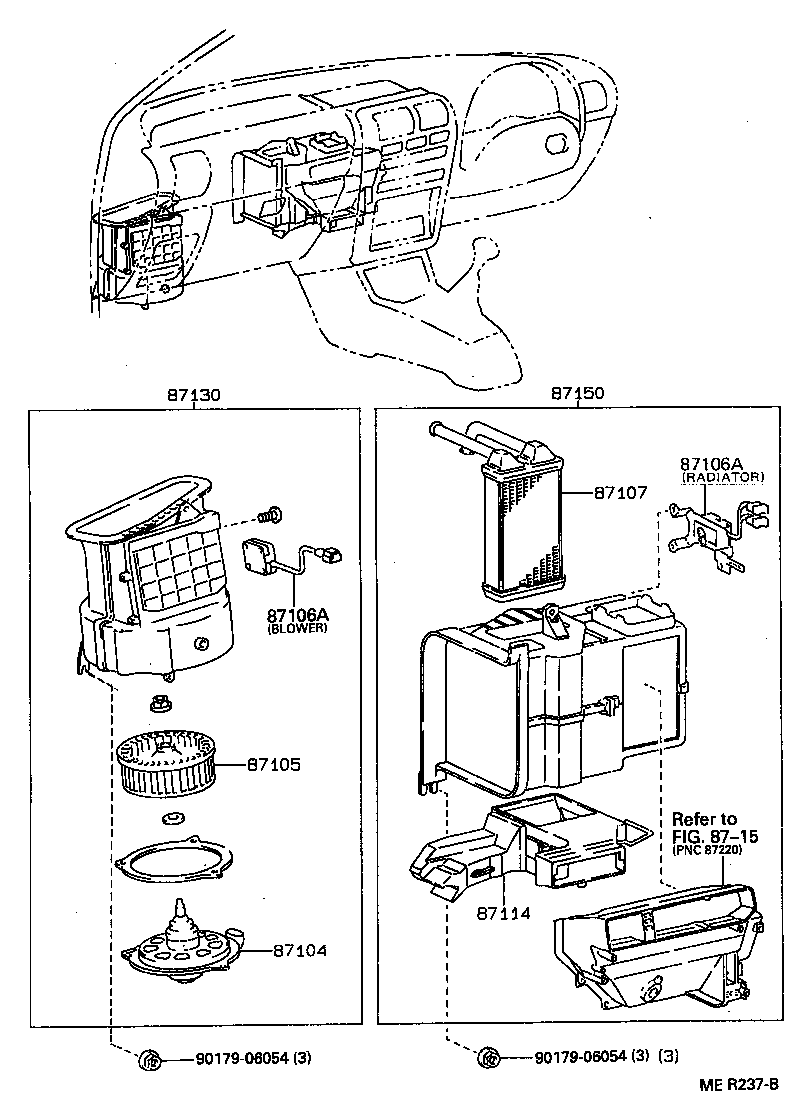

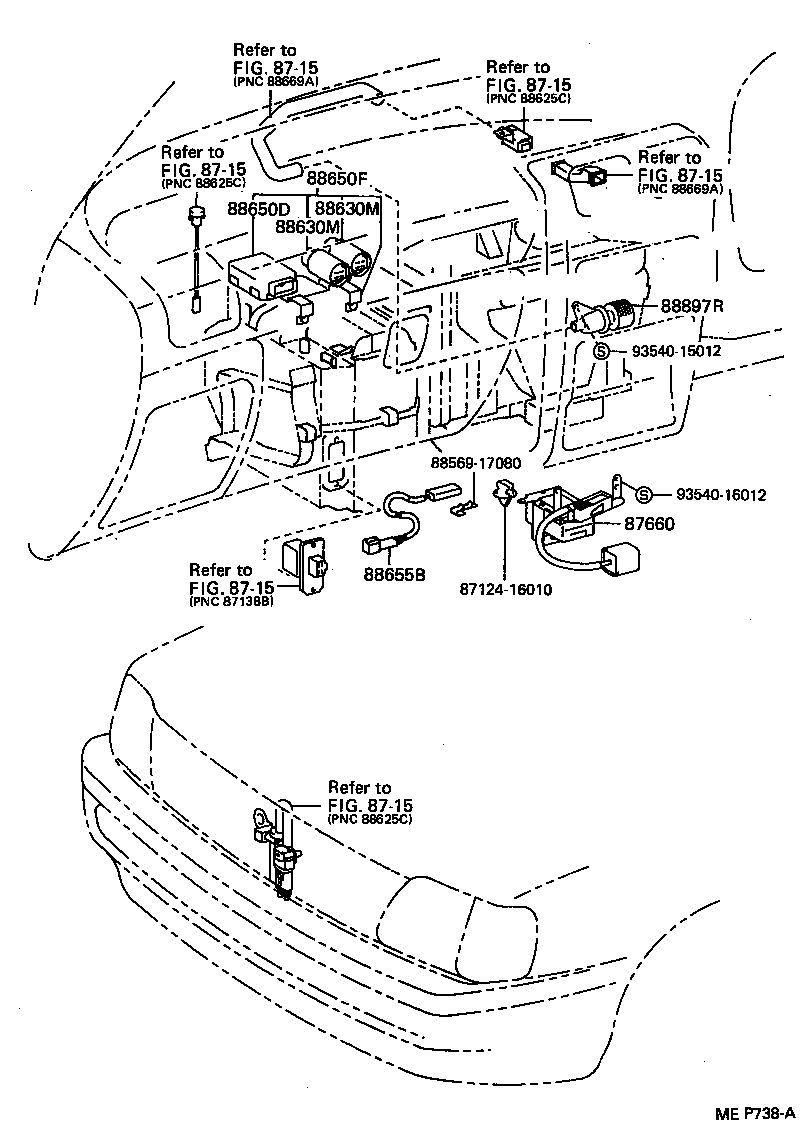

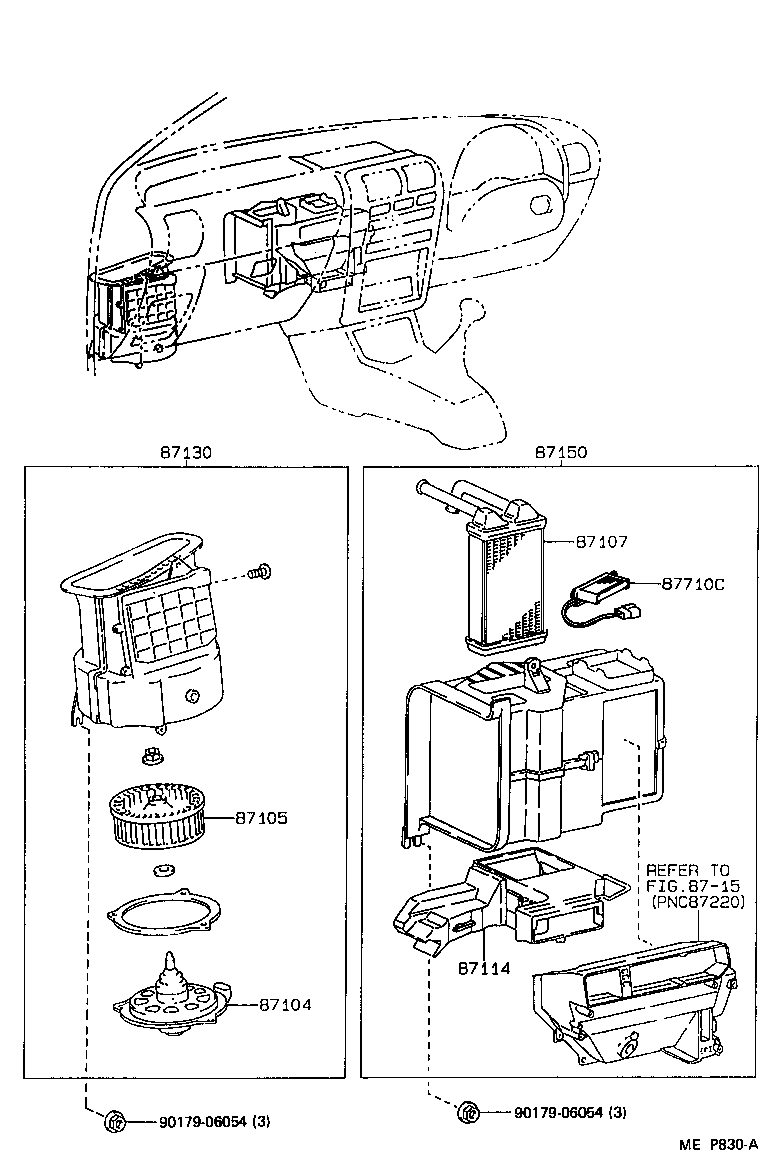

Figure MEP830A MEP830A 1989-12 → 1996-01 Figure MER237B MER237B 1989-12 → 1996-01 Figure MEP738A MEP738A 1989-12 → 1996-01

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87114 Cover, Heater
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87660 Servo Assy, Air Conditioner
87710C Heater Assy, Quick
88630M Relay Assy, Cooler
88650D Amplifier Assy
88650F Amplifire & Accessory Assy, Air Conditioner
88655B Switch, Water Temperature
88897R Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
