Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 4 illustrations

Illustrations

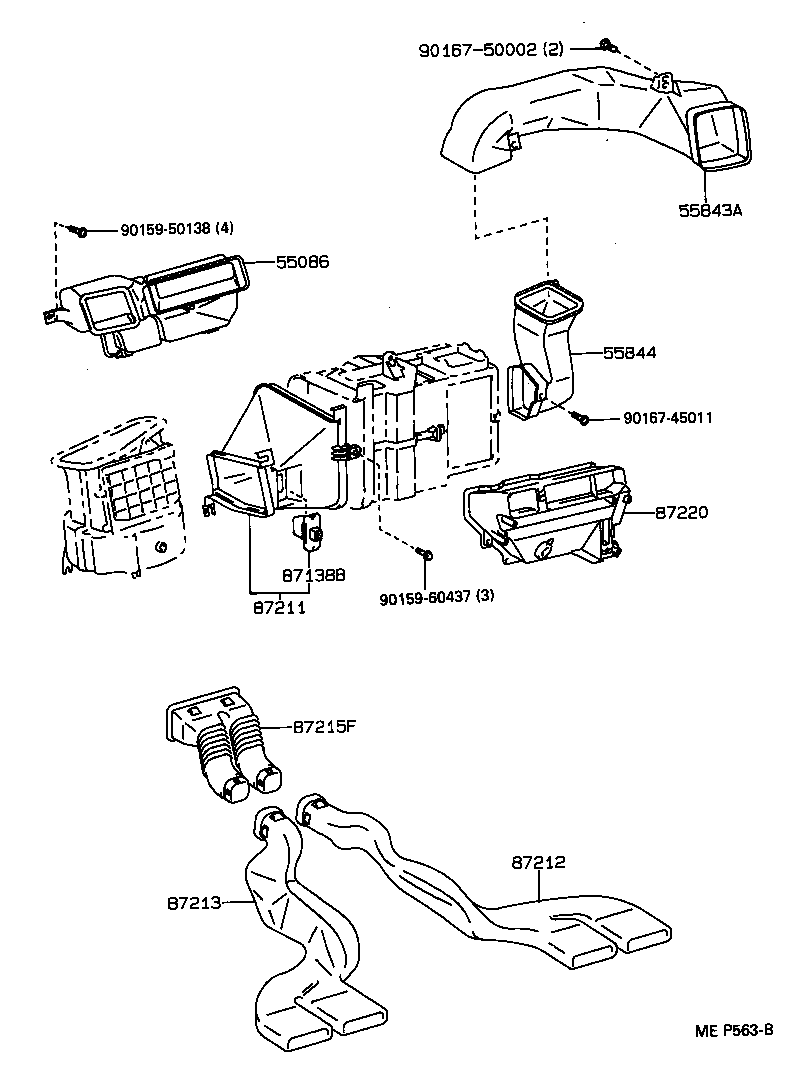

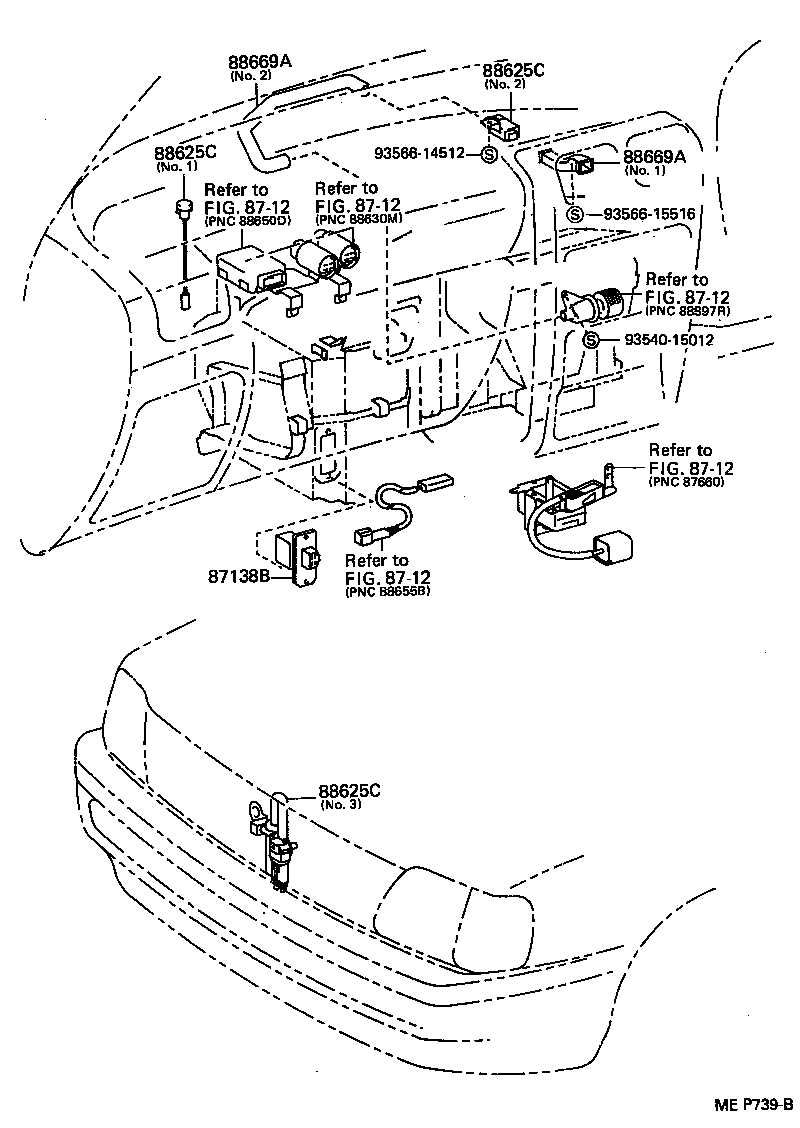

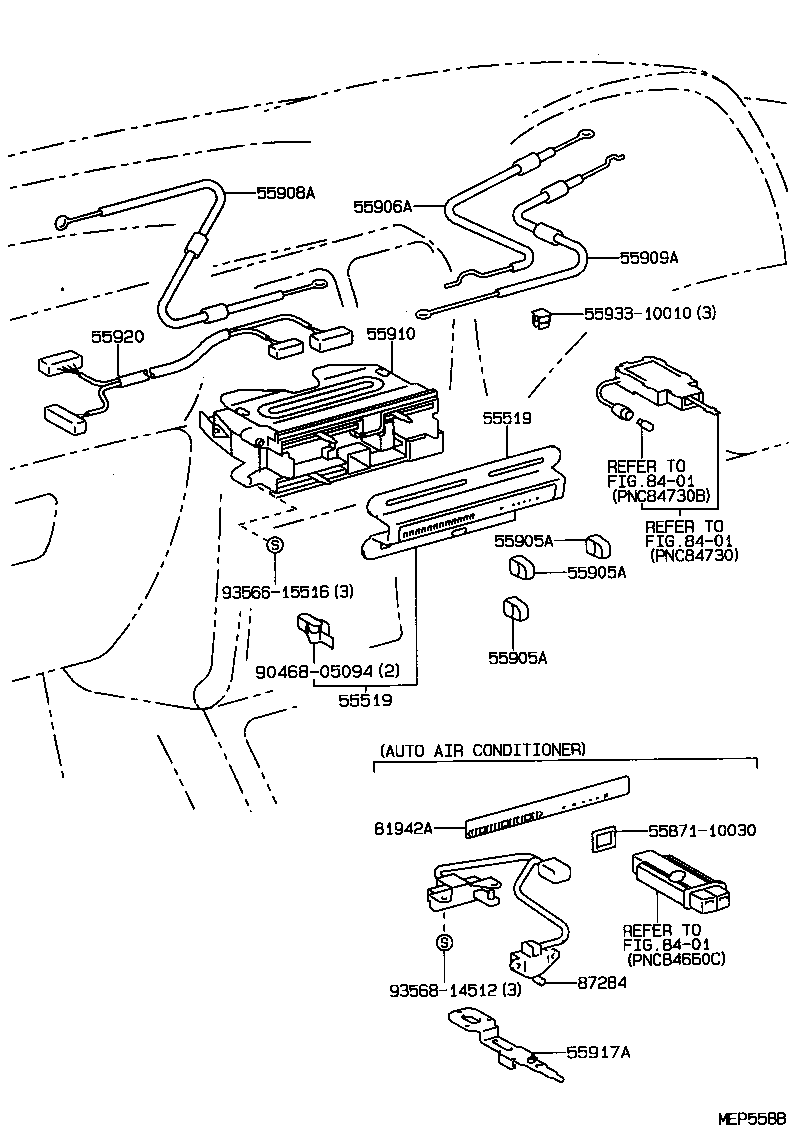

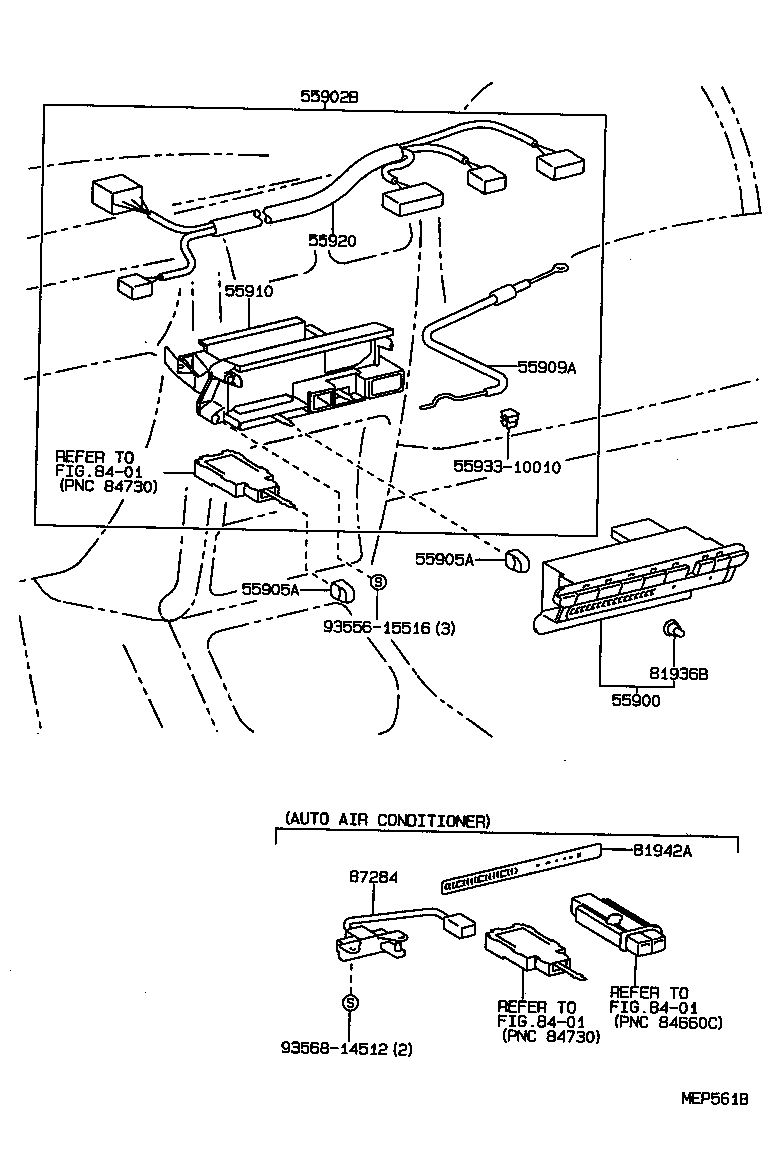

Figure MEP558B MEP558B 1989-12 → 1996-01 Figure MEP561B MEP561B 1989-12 → 1996-01 Figure MEP563B MEP563B 1989-12 → 1996-01 Figure MEP739B MEP739B 1989-12 → 1996-01

Part groups

PNCDescription
55086 Duct Sub-assy, Heater TO Register, NO.3
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55917A Lever, Temperature Damper Control
55920 Harness Assy, Heater Control Sub Wire
81936B Bulb Assy, Cooler Control
81942A Sheet, Heater Control Name, NO.1
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
88625C Thermistor, Cooler
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
