Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

2 part groups · 1 illustrations

Illustrations

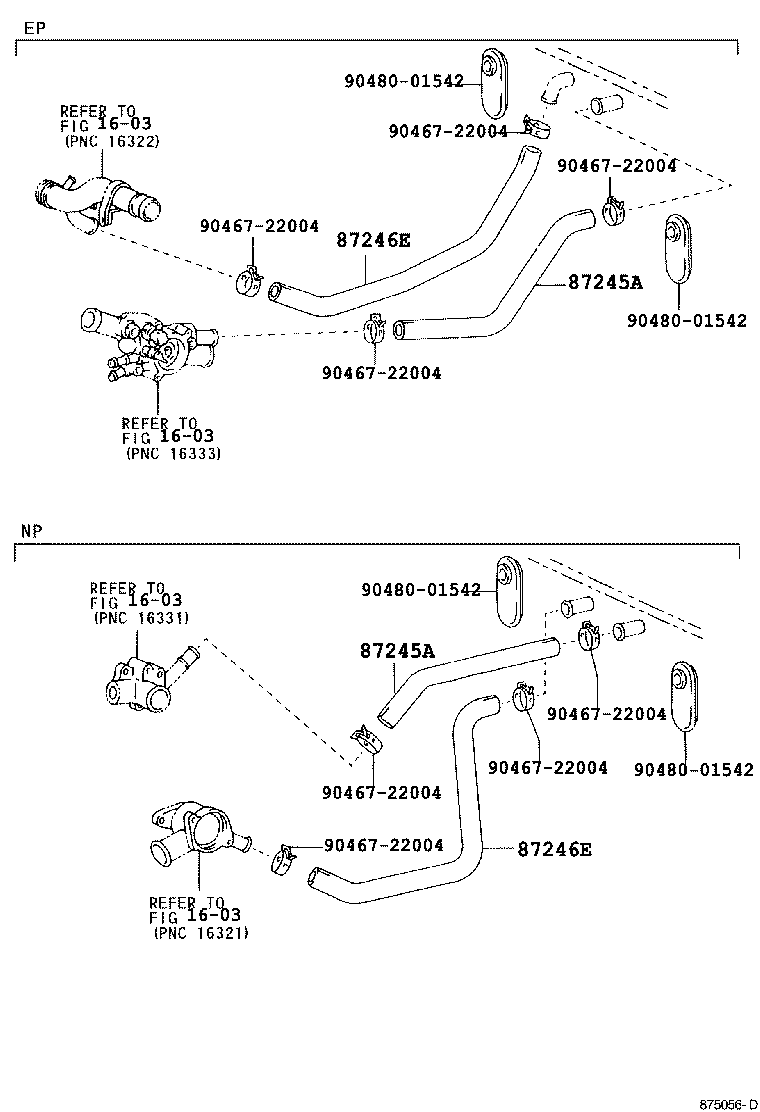

Figure 875056D 875056D 1989-12 → 1996-01

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87246E Hose, Heater Water, Outlet E
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
