Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121140 · Japan

Discontinued model Data version 1996-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

10 part groups · 5 illustrations

Illustrations

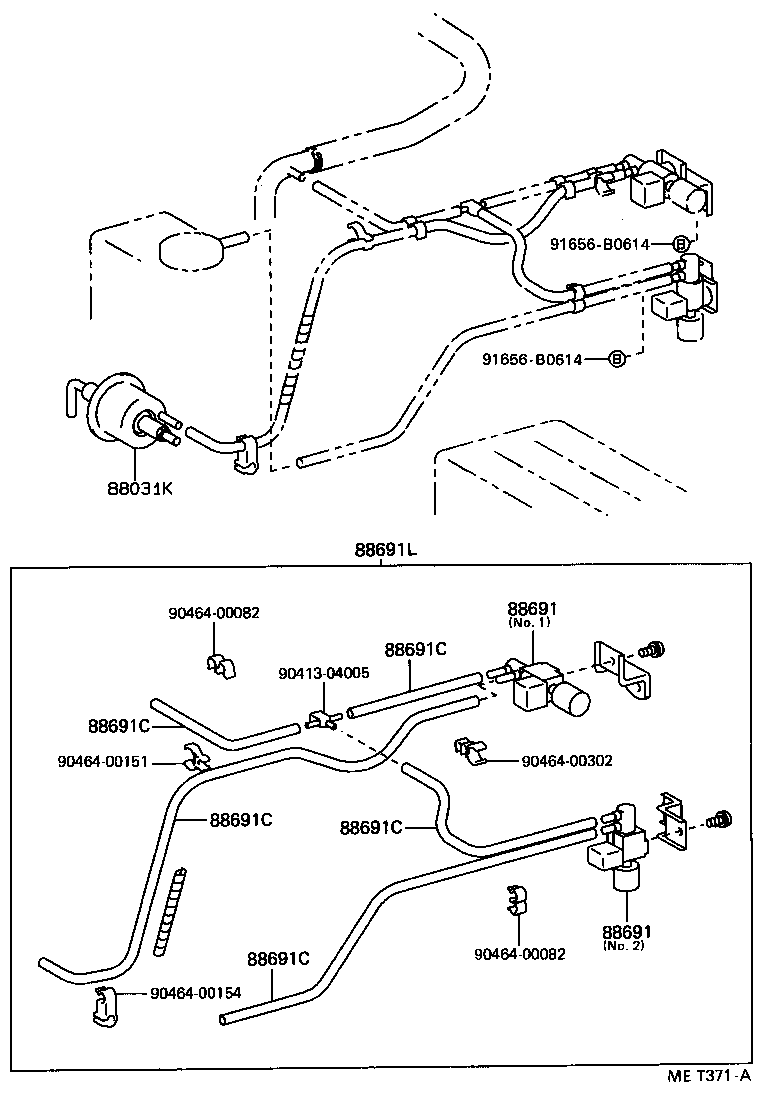

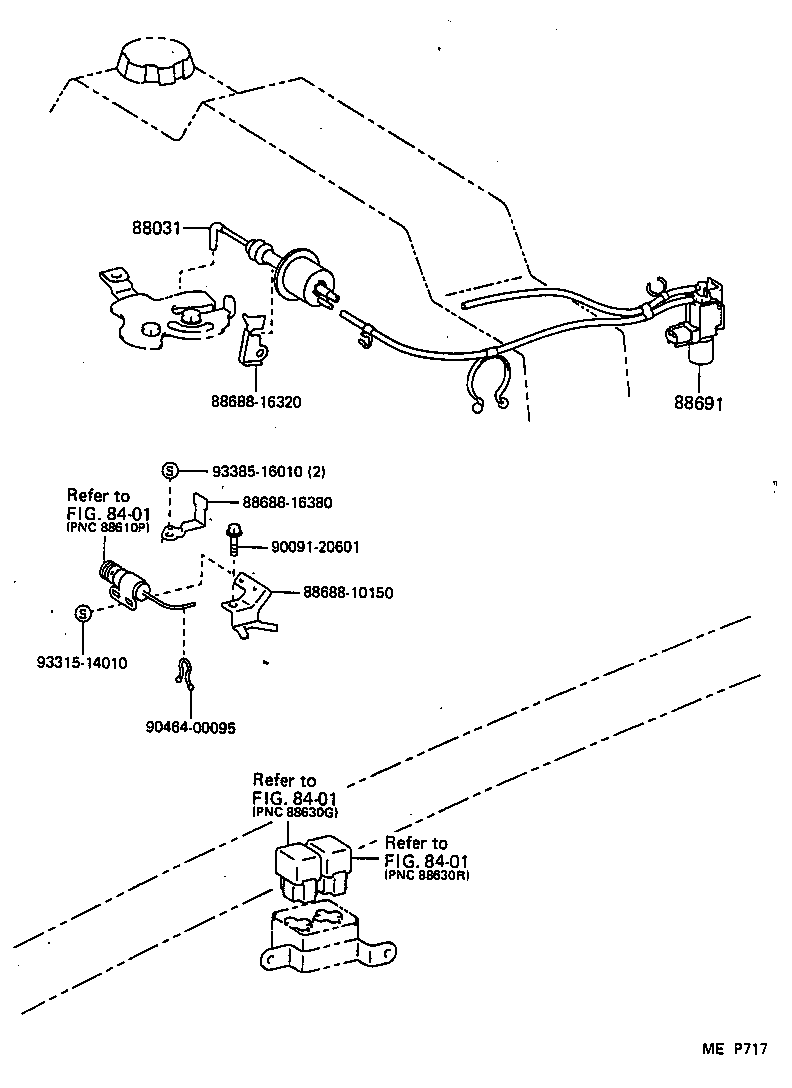

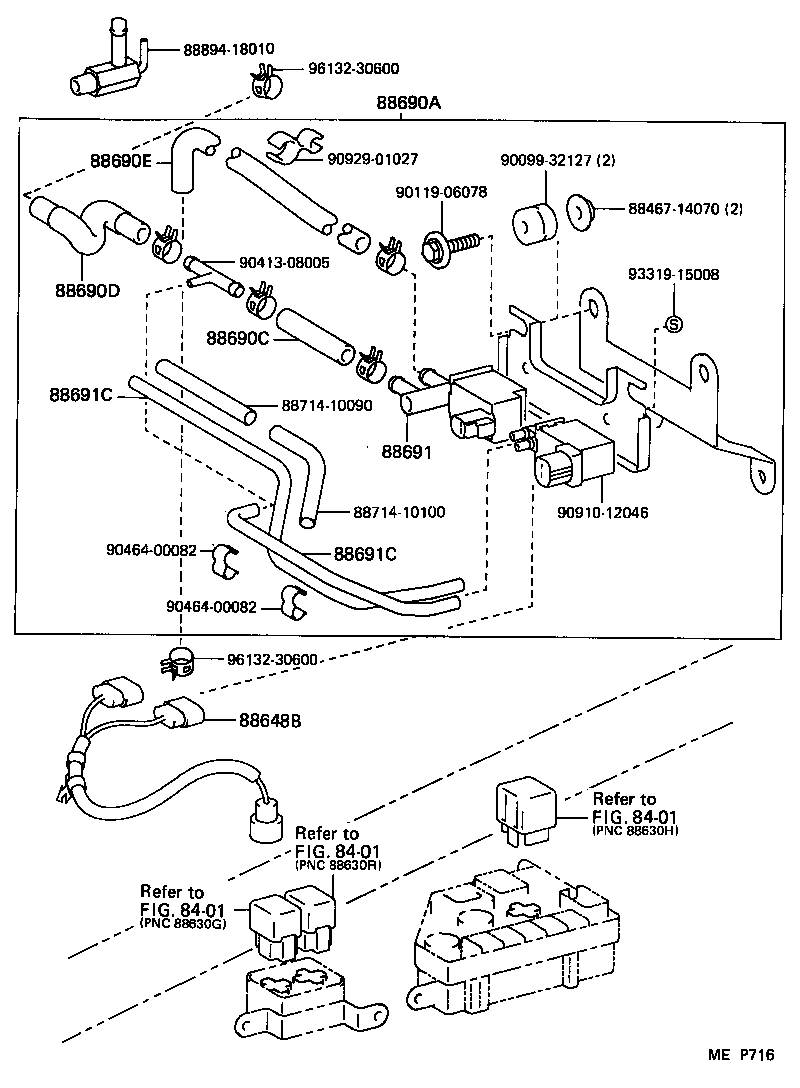

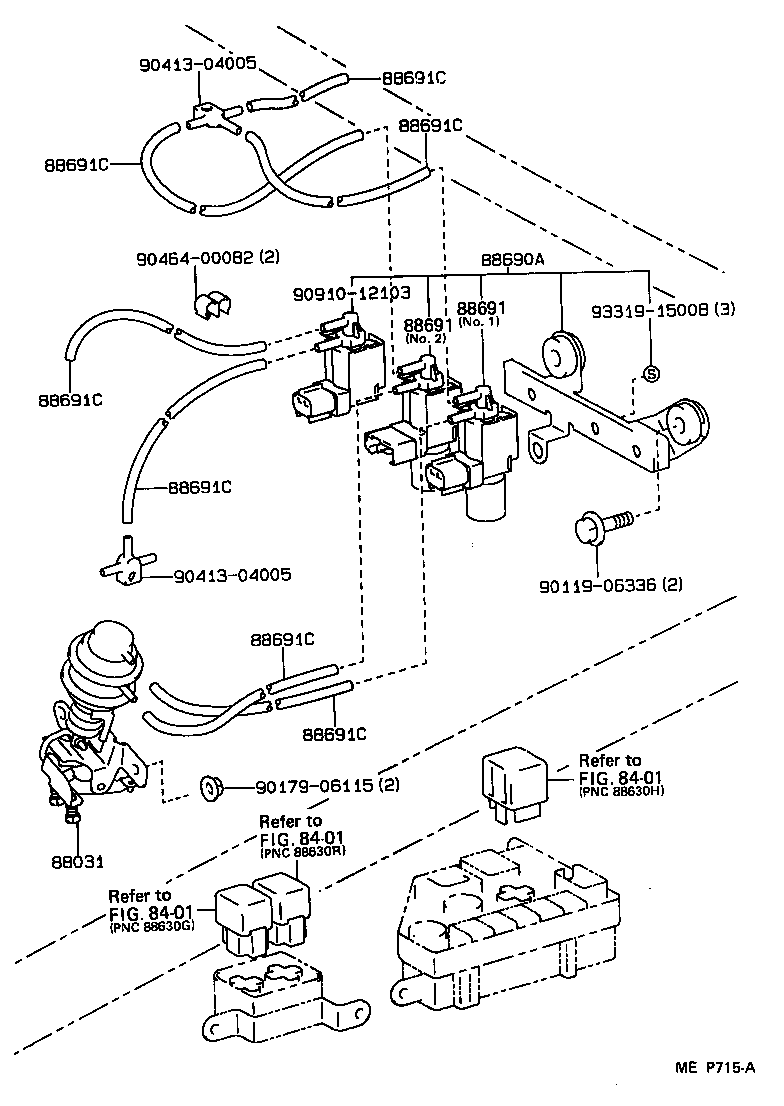

Figure MET371A MET371A 1989-12 → 1996-01 Figure MET372A MET372A 1989-12 → 1996-01 Figure MEP715A MEP715A 1989-12 → 1996-01 Figure MEP716 MEP716 1989-12 → 1996-01 Figure MEP717 MEP717 1989-12 → 1996-01

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031K Actuator Set, Idle-up
88648B Wiring, Cooler, NO.1
88690A Valve Assy, Combination
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88690E Hose, Vacuum, NO.3 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691L Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
