Toyota Starlet
1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan
Discontinued model
Data version 2000-02

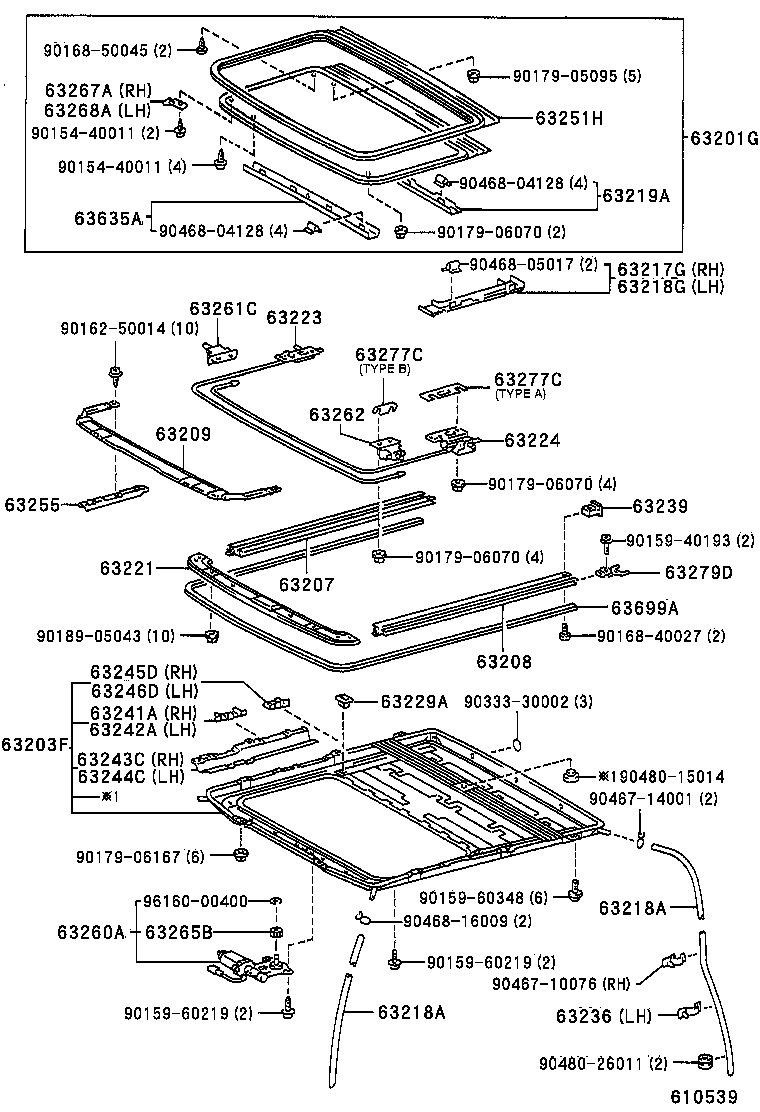

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-10060 note |
Glass Sub-assy, Sliding Roof
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥120,000 | |
| 63203F — Housing Sub-assy, Sliding Roof | ||||
| 63203-10070 |
Housing Sub-assy, Sliding Roof
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥37,100 | |
| 63207 — Rail Sub-assy, Sliding Roof Guide, RH | ||||
| 63207-10050 |
Rail Sub-assy, Sliding Roof Guide, RH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥9,200 | |
| 63208 — Rail Sub-assy, Sliding Roof Guide, LH | ||||
| 63208-10050 |
Rail Sub-assy, Sliding Roof Guide, LH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥9,200 | |
| 63209 — Panel Sub-assy, Roof Wind Deflector | ||||
| 63209-10060 |
Panel Sub-assy, Roof Wind Deflector
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥18,400 | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-10020 |
Garnish, Sliding Roof Side, RH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥2,030 | |
| 63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-16150 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥1,400 | |
| 63249-17030 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥1,490 | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63218-10020 |
Garnish, Sliding Roof Side, LH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥2,030 | |
| 63219A — Garnish, Sliding Roof, Rear | ||||
| 63219-10030 |
Garnish, Sliding Roof, Rear
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥3,610 | |
| 63221 — Casing, Sliding Roof Cable Guide | ||||
| 63221-10020 |
Casing, Sliding Roof Cable Guide
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥12,200 | |
| 63223 — Cable, Sliding Roof Drive, RH | ||||
| 63223-10022 |
Cable, Sliding Roof Drive, RH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥9,400 | |
| 63224 — Cable, Sliding Roof Drive, LH | ||||
| 63224-10022 |
Cable, Sliding Roof Drive, LH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥9,400 | |
| 63229A — Stopper, Sliding Roof Sunshade | ||||
| 63229-10020 |
Stopper, Sliding Roof Sunshade
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥270 | |
| 63236 — Clamp, Sliding Roof OR Removable Roof Drain Hose | ||||
| 63236-13020 |
Clamp, Sliding Roof OR Removable Roof Drain Hose
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥140 | |
| 63239 — Stopper, Sliding Roof Panel | ||||
| 63239-50010 |
Stopper, Sliding Roof Panel
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥620 | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63643-10010 |
Bracket, Sliding Roof Housing Front Mounting, RH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥890 | |
| 63242A — Bracket, Sliding Roof Housing Front Mounting, LH | ||||
| 63643-10010 |
Bracket, Sliding Roof Housing Front Mounting, LH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥890 | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-10030 |
Bracket, Sliding Roof Housing Center Mounting, RH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥4,280 | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-10030 |
Bracket, Sliding Roof Housing Center Mounting, LH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥4,280 | |
| 63245D — Bracket, Sliding Roof Housing Rear Mounting, RH | ||||
| 63644-10010 |
Bracket, Sliding Roof Housing Rear Mounting, RH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥890 | |
| 63246D — Bracket, Sliding Roof Housing Rear Mounting, LH | ||||
| 63645-10010 |
Bracket, Sliding Roof Housing Rear Mounting, LH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥890 | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-10050 |
Weatherstrip, Sliding Roof
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥5,300 | |
| 63255 — Cover, Sliding Roof Guide Rail, RH | ||||
| 63255-10020 |
Cover, Sliding Roof Guide Rail, RH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥1,340 | |
| 63260A — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-10050 |
Gear Sub-assy, Sliding Roof Drive
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥46,900 | |
| 63261C — Shoe, Sliding Roof, Front RH | ||||
| 63261-10030 |
Shoe, Sliding Roof, Front RH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥1,220 | |
| 63262 — Shoe, Sliding Roof, Front LH | ||||
| 63262-10020 |
Shoe, Sliding Roof, Front LH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥1,220 | |
| 63265B — Gear, Sliding Roof Drive | ||||
| 63265-20010 |
Gear, Sliding Roof Drive
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥1,600 | |
| 63267A — Protector, Sliding Roof Weatherstrip, RH | ||||
| 63267-30040 |
Protector, Sliding Roof Weatherstrip, RH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥260 | |
| 63268A — Protector, Sliding Roof Weatherstrip, LH | ||||
| 63268-30040 |
Protector, Sliding Roof Weatherstrip, LH
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥260 | |
| 63277C — Shim, Sliding Roof Panel | ||||
| 63277-24010 note |
Shim, Sliding Roof Panel
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥760 | |
| 63277-30020 note |
Shim, Sliding Roof Panel
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥220 | |
| 63279D — Stopper, Sliding Roof Guide Rail | ||||
| 63279-13010 |
Stopper, Sliding Roof Guide Rail
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥540 | |
| 63635A — Garnish, Sliding Roof, Front | ||||
| 63635-10010 |
Garnish, Sliding Roof, Front
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥4,530 | |
| 63699A — Seal, Sliding Roof Guide Rail | ||||
| 63699-32020 |
Seal, Sliding Roof Guide Rail
1996-01 → —
|
EP9# 3D (GLZS,GLZV,RFLX) | ¥1,680 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
