Toyota Starlet
1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan
Discontinued model
Data version 2000-02

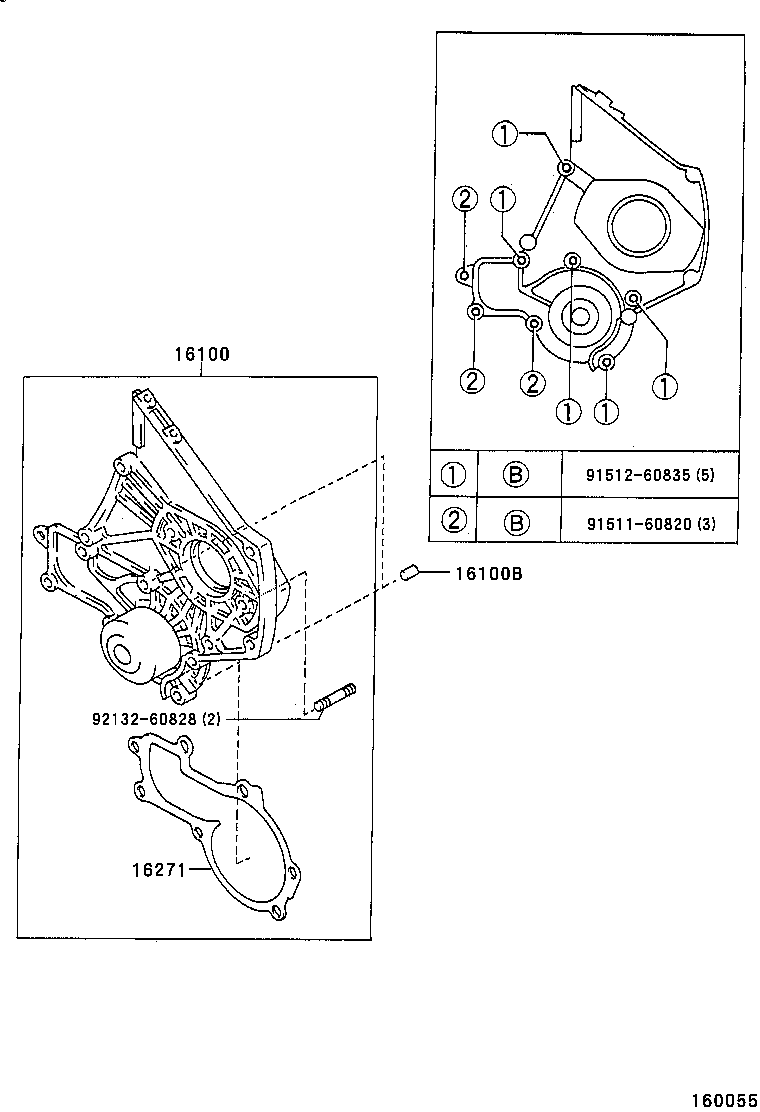

Water Pump
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04161 | Pump Kit, Water |
| 16100 | Pump Assy, Engine Water |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16104 | Seal Set, Water Pump |
| 16110 | Pump Assy, Water, W/O Coupling |
| 16124 | Gasket, Water Pump Cover |
| 16131 | Rotor, Water Pump |
| 16131A | Bearing, Water Pump |
| 16173 | Pulley, Water Pump |
| 16271 | Gasket, Water Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
