Toyota Starlet
1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan
Discontinued model
Data version 2000-02

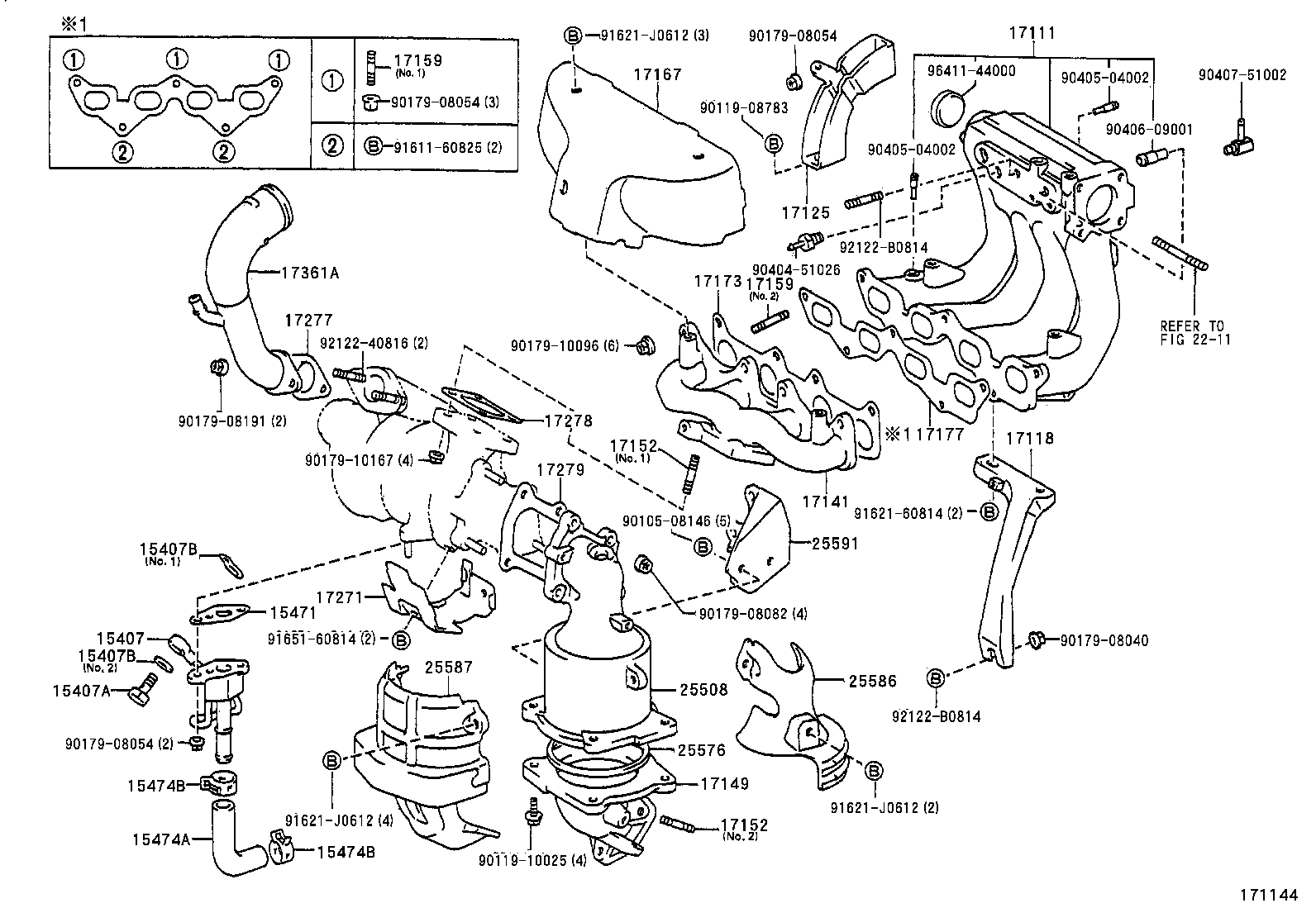

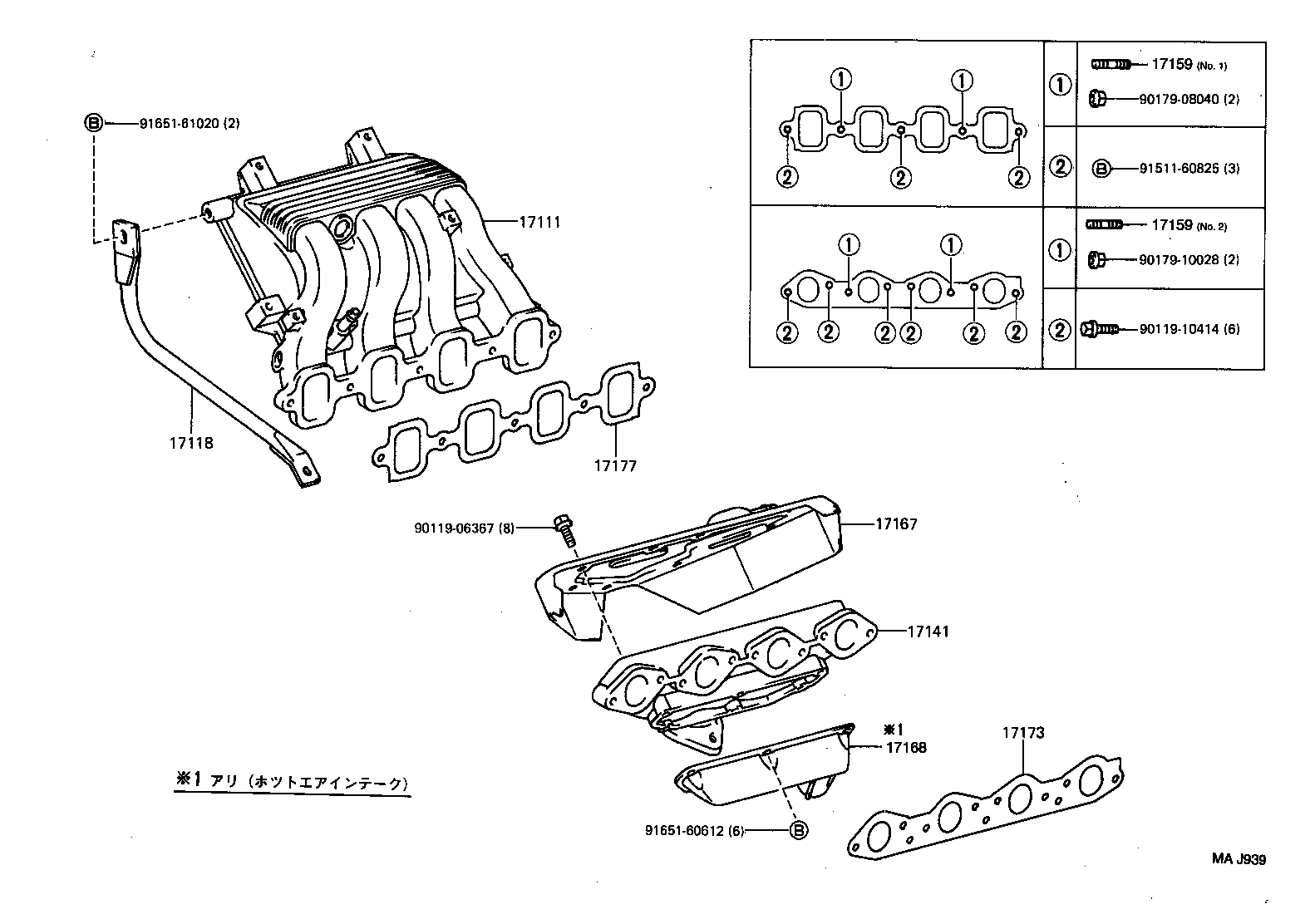

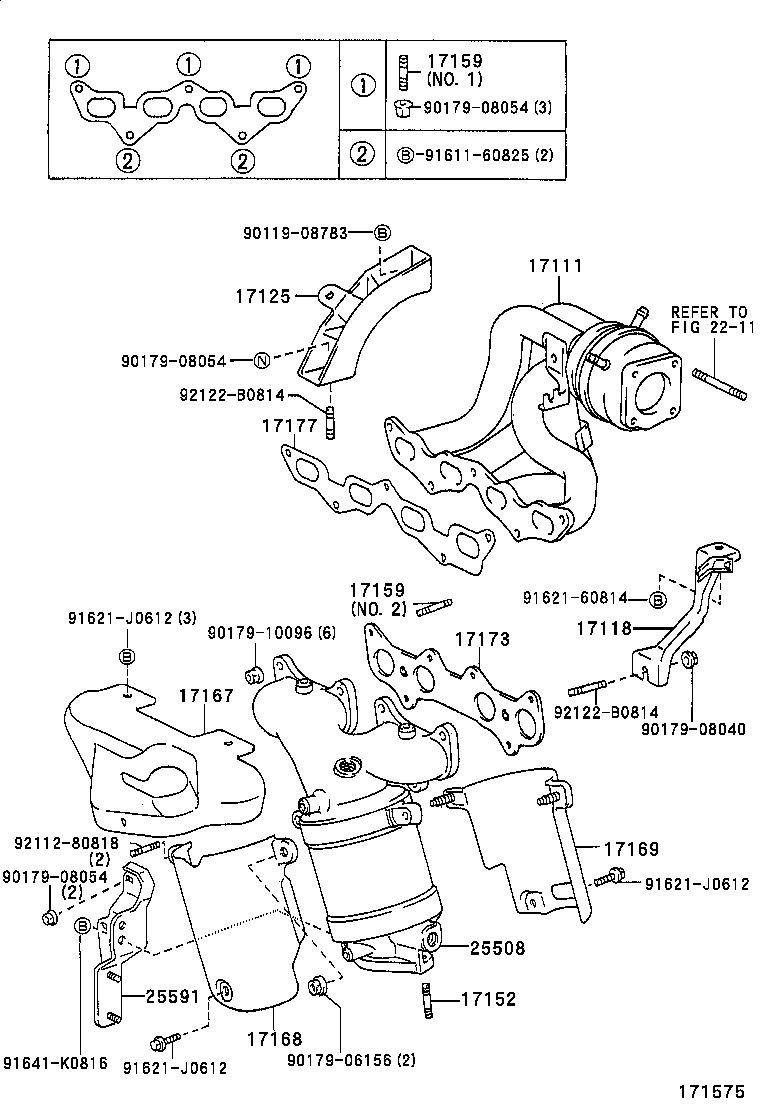

Manifold
43 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 04176 | Seal Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15471 | Gasket, Turbo Oil Inlet |
| 15474A | Hose, Turbo Oil Outlet |
| 15474B | Clamp OR Clip(FOR TURBO OIL OUTLET HOSE) |
| 16347 | Gasket, Water By-pass |
| 17021 | Housing Sub-assy, Bearing |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17021C | Ring, Hole Snap(FOR BEARING HOUSING) |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17111 | Manifold, Intake |
| 17118 | Stay, Manifold |
| 17125 | Stay, Surge Tank, NO.1 |
| 17141 | Manifold, Exhaust |
| 17149 | Extension, Exhaust Manifold |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |

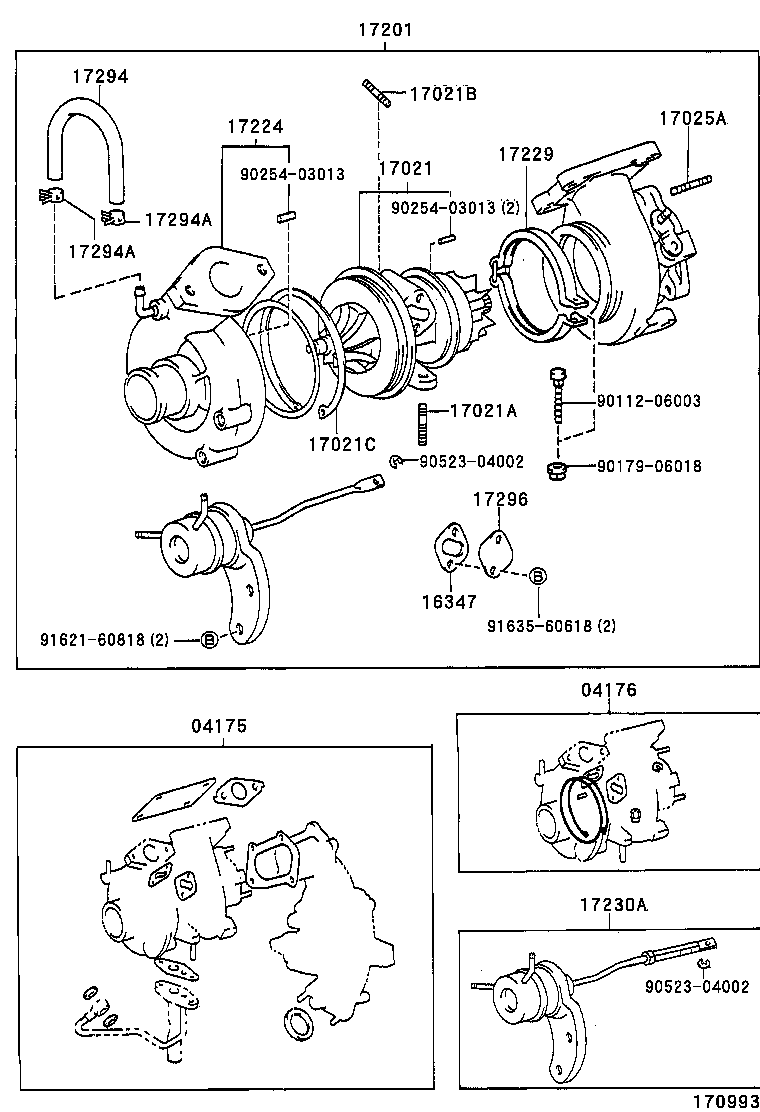

| 17201 | Turbocharger Sub-assy |
| 17224 | Housing, Compressor |
| 17229 | Band, V |
| 17230A | Repair Actuaor Assy, W/Bracket |
| 17271 | Insulator, Turbo, NO.1 |
| 17277 | Gasket, Compressor Outlet |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 17361A | Tube, Air(FOR EFI) |
| 25508 | Converter Sub-assy, Manifold |
| 25576 | Gasket, Manifold Converter |
| 25586 | Insulator, Manifold Converter, NO.1 |
| 25587 | Insulator, Manifold Converter, NO.2 |
| 25591 | Bracket, Manifold Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
