Toyota Starlet
1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan
Discontinued model
Data version 2000-02

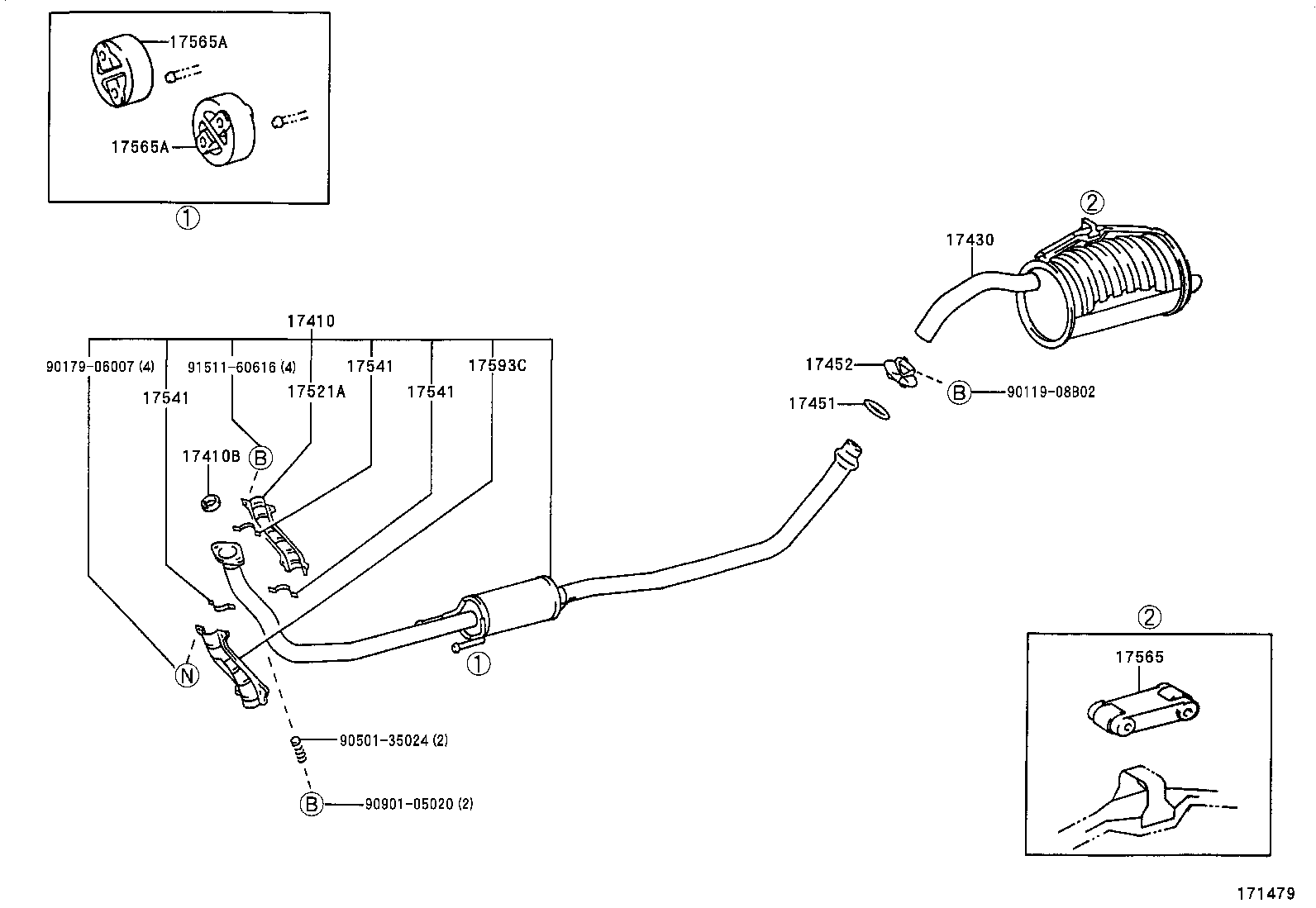

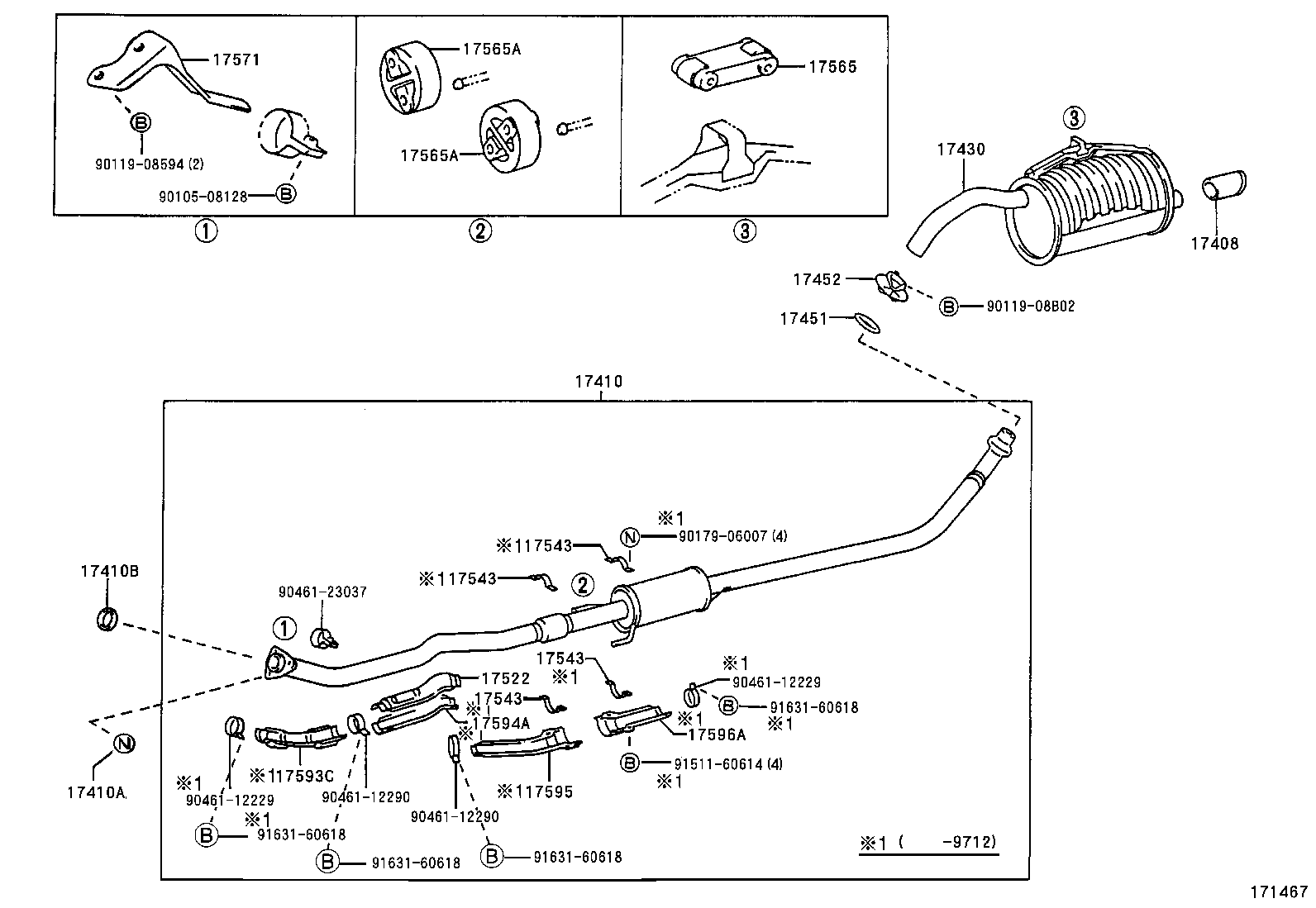

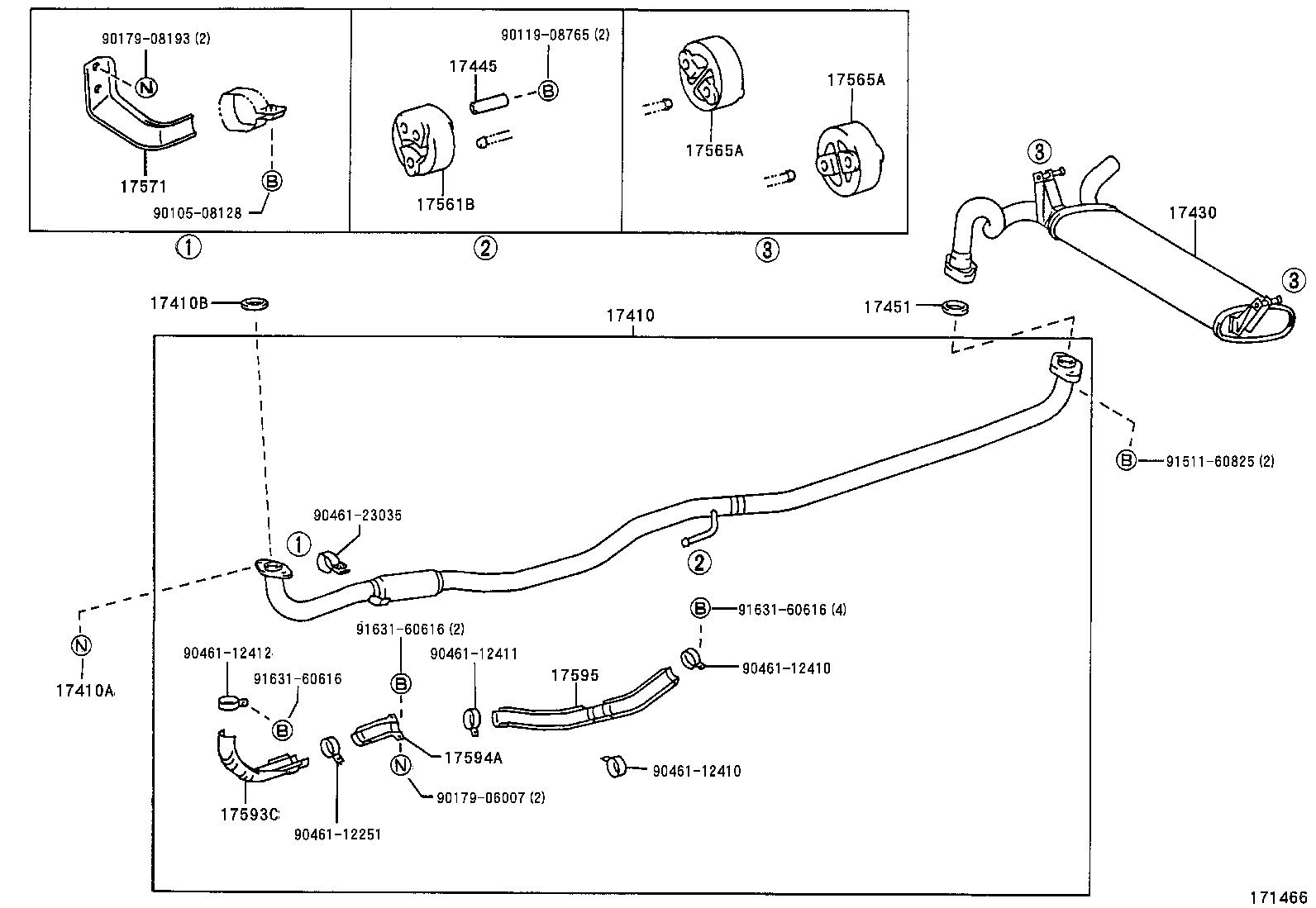

Exhaust Pipe
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17408 | Baffle Sub Assy, Exhaust Tailpipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17445 | Collar, Exhaust Pipe |
| 17451 | Gasket, Exhaust Pipe |
| 17452 | Clamp, Exhaust Pipe |
| 17521A | Protector, Exhaust Pipe, Upper NO.1 |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17523 | Protector, Exhaust Pipe, Upper NO.3 |
| 17541 | Stay, Exhust Pipe Protector, NO.1 |
| 17543 | Stay, Exhaust Pipe Protector, NO.3 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17587A | Clamp Exhaust Pipe Hanger |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17594A | Protector, Exhaust Pipe, Lower NO.2 |
| 17595 | Protector, Exhaust Pipe, Lower NO.3 |
| 17596A | Protector, Exhaust Pipe, Lower NO.4 |
| 18435A | Protector, Monolithic Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
