Toyota Starlet
1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan
Discontinued model
Data version 2000-02

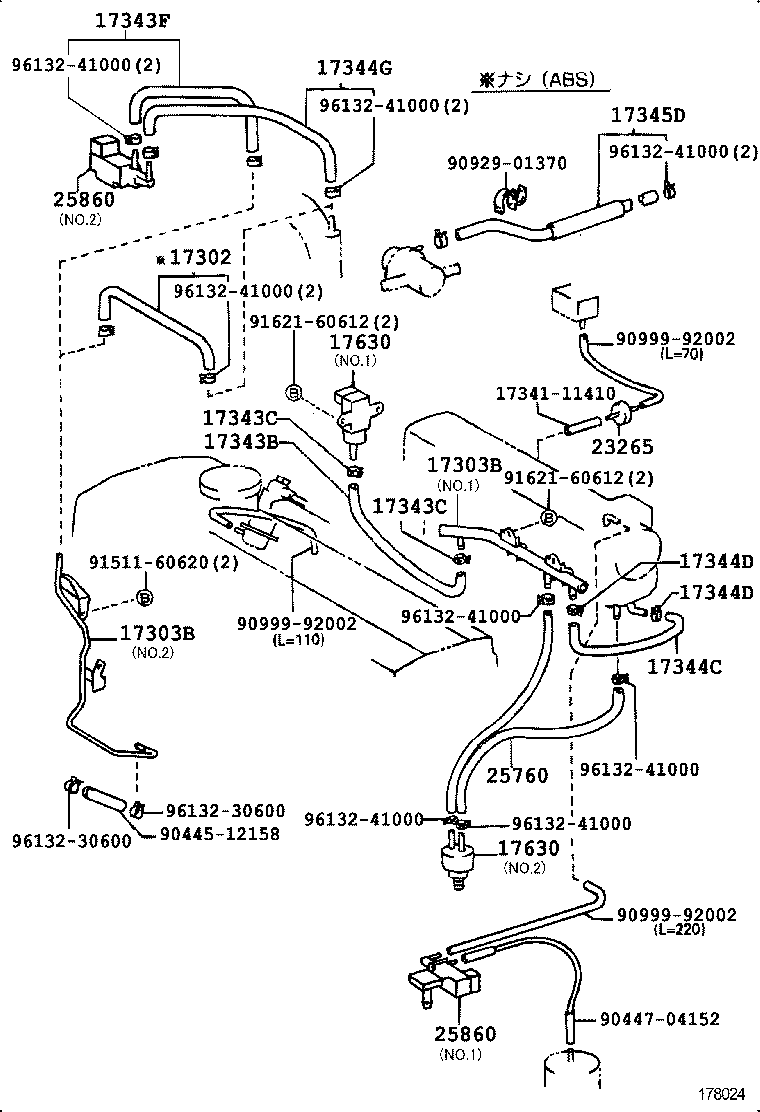

Vacuum Piping
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17341P | Hose, Air |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17343C | Clip, NO.3(FOR IDLE-UP HOSE) |
| 17343F | Hose, Air, NO.3 |
| 17344C | Hose, NO.4(FOR IDLE-UP) |
| 17344D | Clip, NO.4(FOR IDLE-UP HOSE) |
| 17344G | Hose, Air, NO.4 |
| 17345D | Hose, Air, NO.5 |
| 17630 | Valve Assy, Air Control |
| 23265 | Filter, Gas, NO.1 |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
