Toyota Starlet

1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

21 part groups · 2 illustrations

Illustrations

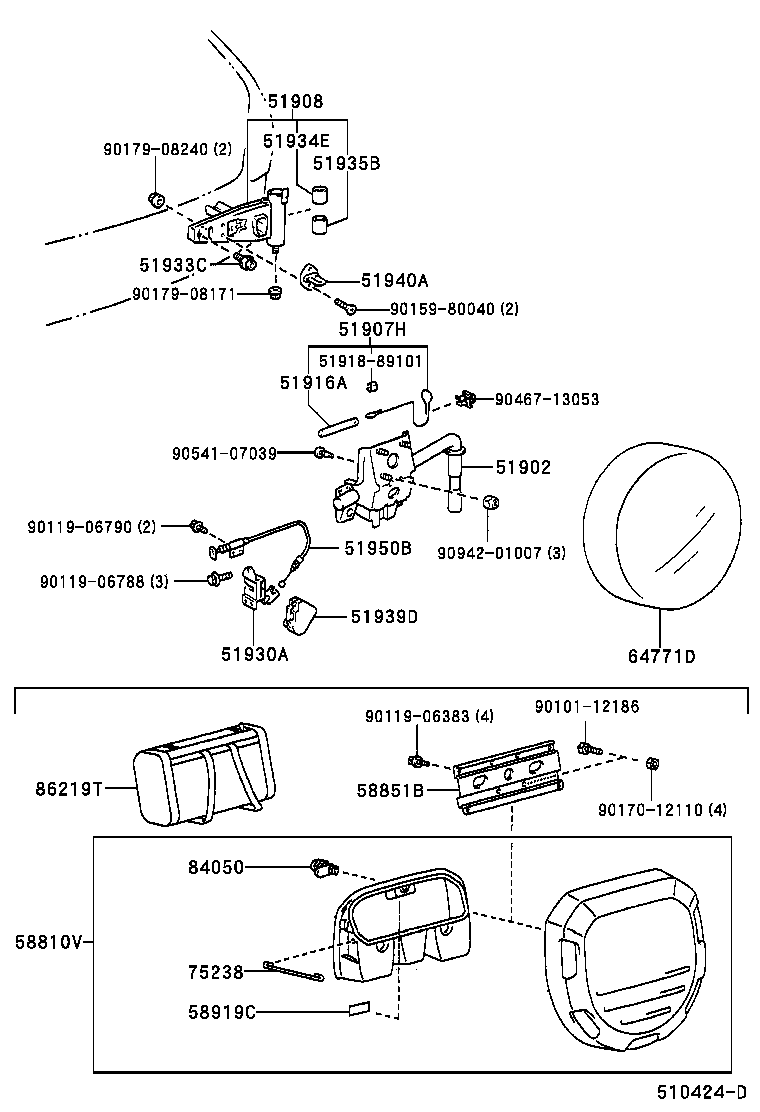

Figure 510230 510230 1996-01 → — Figure 510424D 510424D 1998-10 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51902 Carrier Sub-assy, Spare Wheel
51907E Retainer Sub-assy, Spare Tire Carrier
51907H Stopper Sub-assy, Spare Wheel Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51916A Pin, Spare Wheel Carrier Stopper
51930A Lock Assy, Spare Wheel Carrier
51933C Stopper, Spare Wheel
51934E Retainer, Spare Wheel Carrier, NO.1
51935B Retainer, Spare Wheel Carrier, NO.2
51939D Cover, Spare Wheel Carrier Lock
51940A Striker Assy, Spare Wheel Carrier Lock
51950B Cable Assy, Spare Wheel Carrier Lock Control
58810V Box Assy, Console
58851B Bracket, Equipment Set Mounting
58919C Plate, Console Box
64771D Cover, Spare Wheel
64777E Clamp, Spare Wheel Cover
75238 Stopper, Back Door Box Lid
84050 Key Set
86219T Hanger, Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
