Toyota Starlet

1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

12 part groups · 2 illustrations

Illustrations

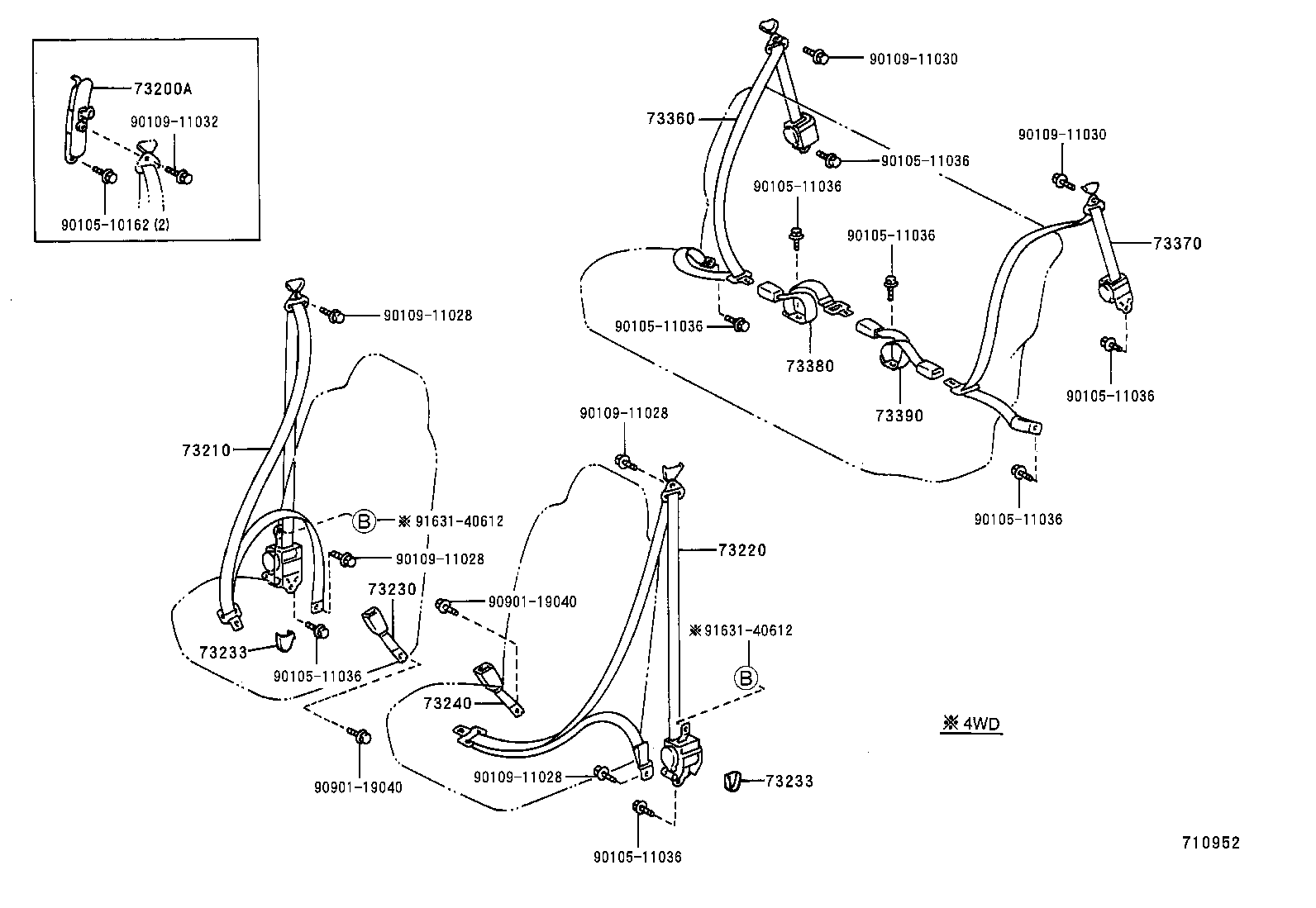

Figure 710951 710951 1996-01 → — Figure 710952 710952 1996-01 → —

Part groups

PNCDescription
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
