Toyota Starlet

1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

20 part groups · 2 illustrations

Illustrations

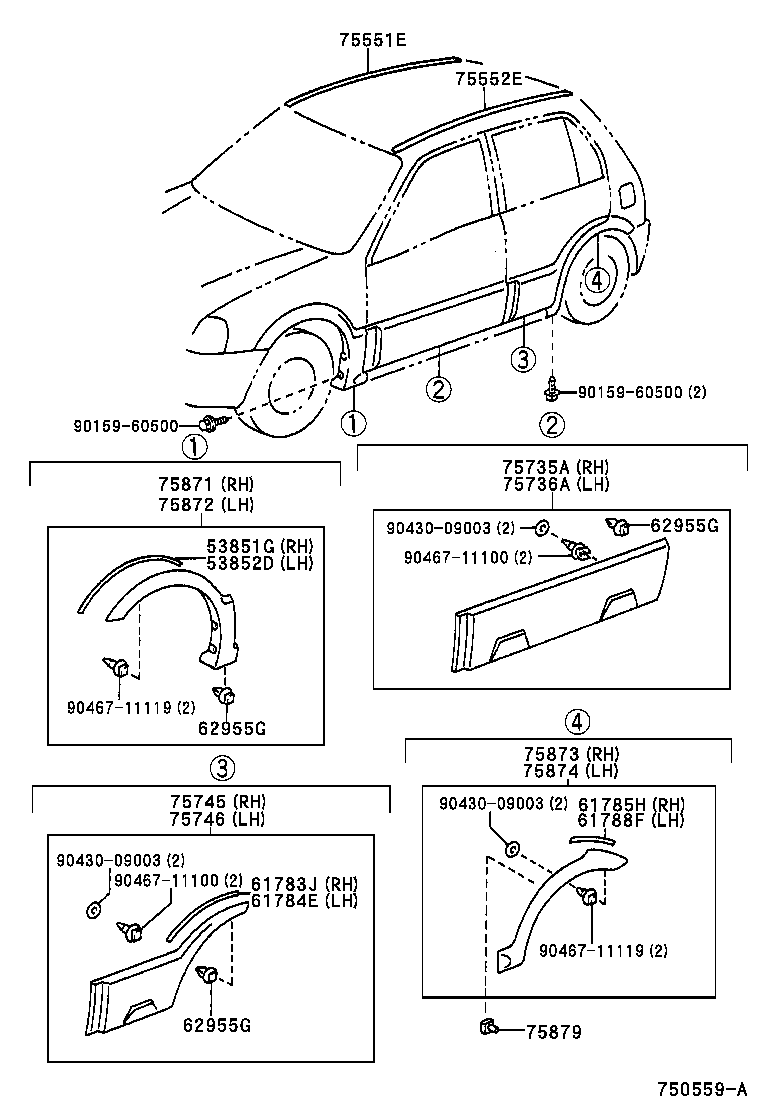

Figure NB1483A NB1483A 1996-01 → — Figure 750559A 750559A 1998-10 → —

Part groups

PNCDescription
53851G Pad, Front Wheel Opening Extension, RH
53852D Pad, Front Wheel Opening Extension, LH
61783J Pad, Rear Wheel Opening Extension, NO.2
61784E Pad, Rear Wheel Opening Extension, NO.2
61785H Pad, Rear Wheel Opening Extension, NO.3
61788F Pad, Rear Wheel Opening Extension, NO.4
62955G Retainer, Quarter Vent Louver
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75735A Moulding, Front Door Outside, Lower RH
75736A Moulding, Front Door Outside, Lower LH
75745 Moulding, Rear Door Outside, Lower RH
75746 Moulding, Rear Door Outside, Lower LH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75871 Moulding, Front Fender Wheel Opening, RH
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
75879 Retainer, Quarter Opening
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
