Toyota Starlet
1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan
Discontinued model
Data version 2000-02

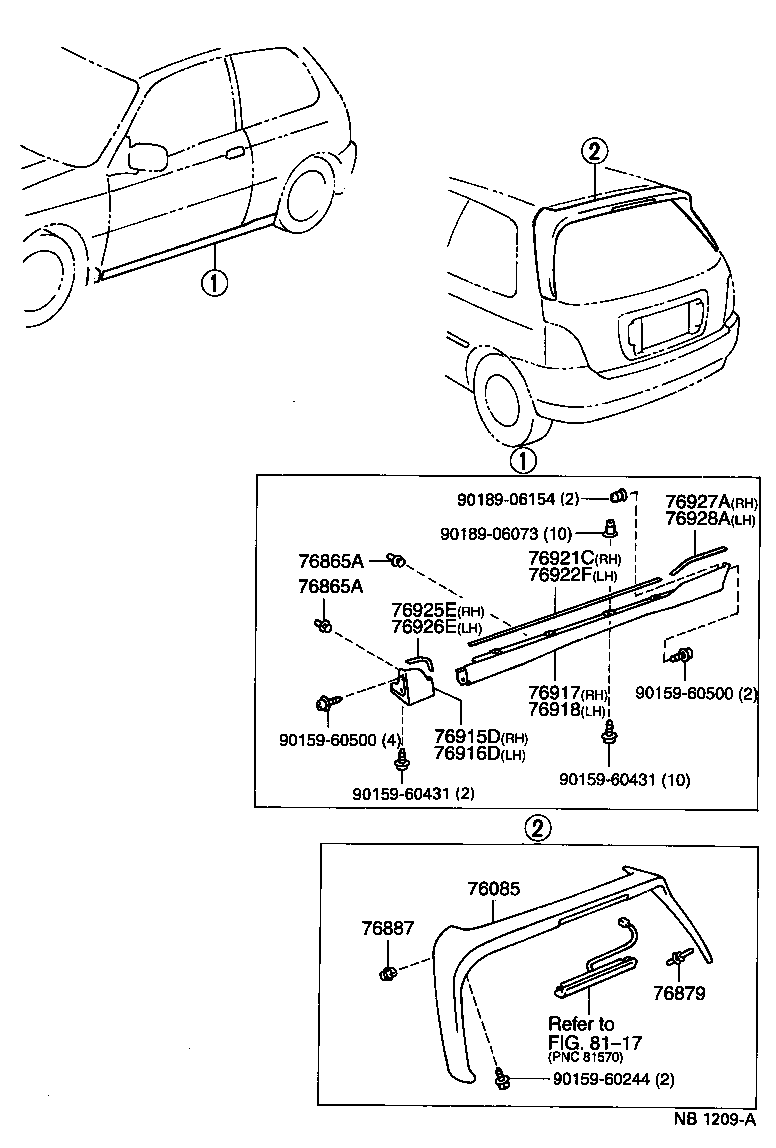

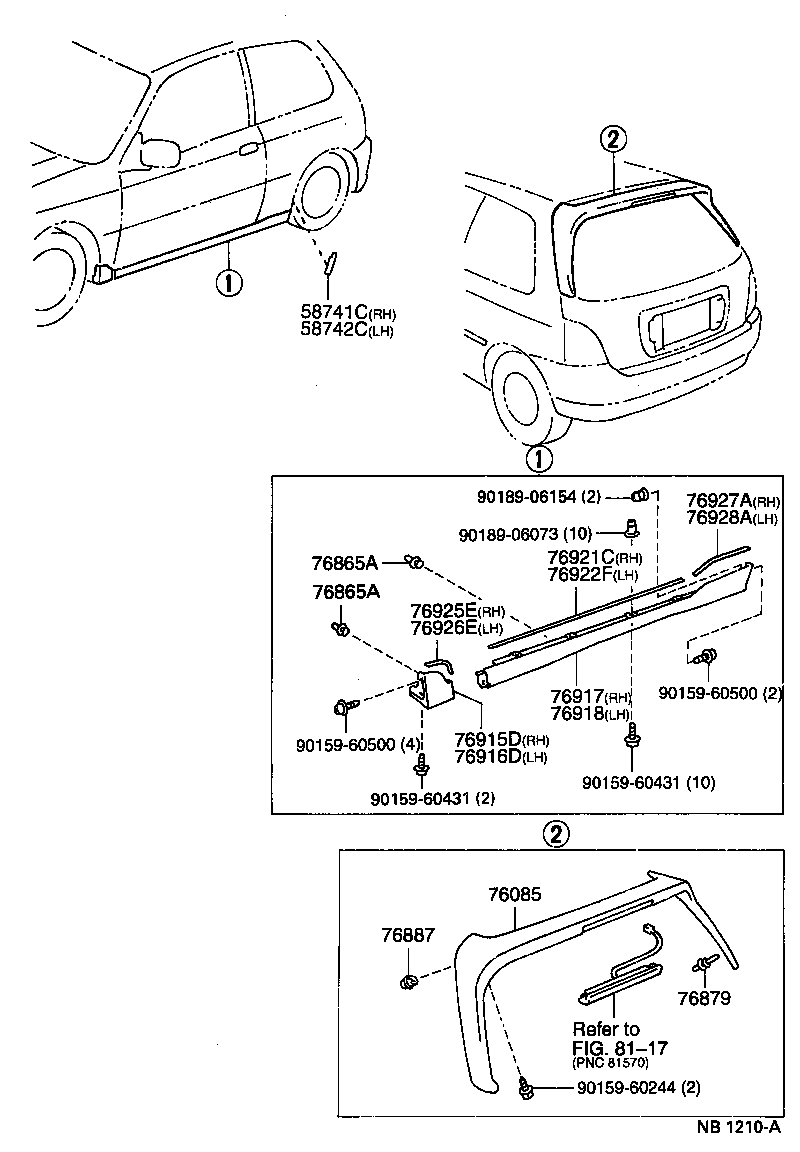

Mudguard & Spoiler
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58741C | Protector, Quarter Panel, RH |
| 58742C | Protector, Quarter Panel, LH |
| 67857H | Protector, Rear Door Panel, RH |
| 67858D | Protector, Rear Door Panel, LH |
| 76085 | Spoiler Sub-assy, Rear |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
| 76865A | Retainer, Side Mudguard |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76887 | Seal, Rear Spoiler |
| 76915D | Mudguard, Side, Front RH |
| 76916D | Mudguard, Side, Front LH |
| 76917 | Mudguard, Side, Rear RH |
| 76918 | Mudguard, Side, Rear LH |
| 76921C | Protector, Side Mudguard, RH |
| 76922F | Protector, Side Mudguard, LH |
| 76925E | Protector, Side Mudguard, Front RH |
| 76926E | Protector, Side Mudguard, Front LH |
| 76927A | Protector, Side Mudguard, Rear RH |
| 76928A | Protector, Side Mudguard, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
