Toyota Starlet
1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan
Discontinued model
Data version 2000-02
Meter
16 part groups · 5 illustrations
Part groups

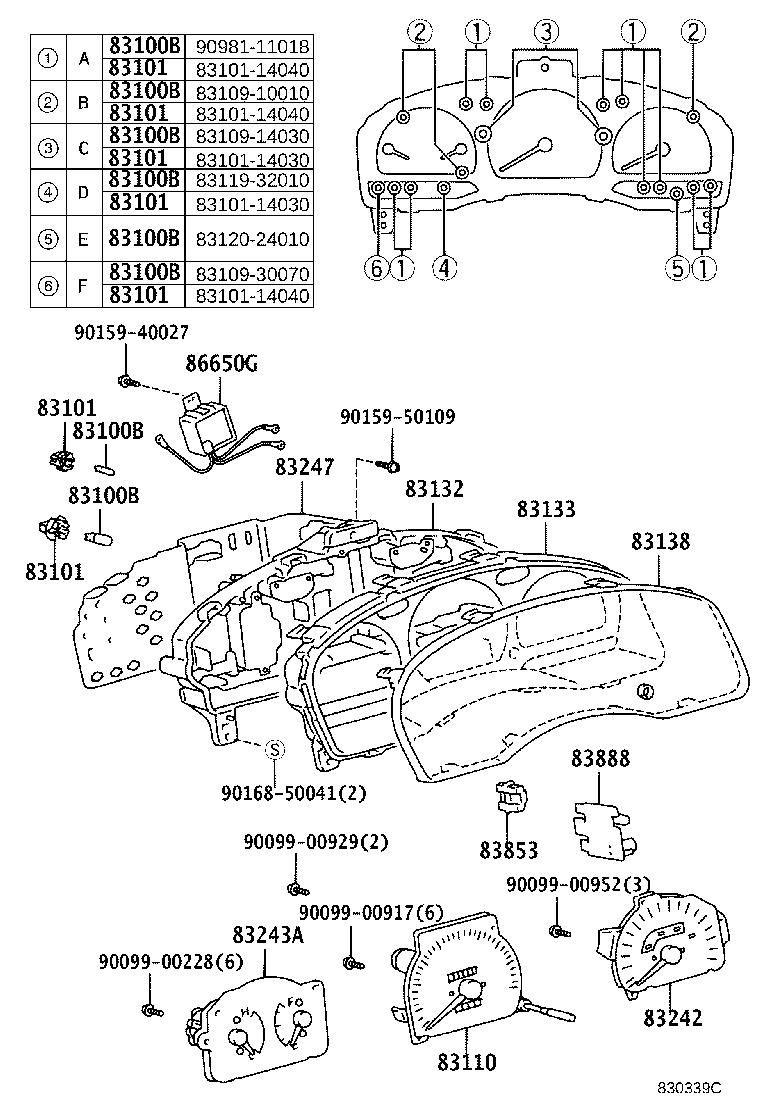

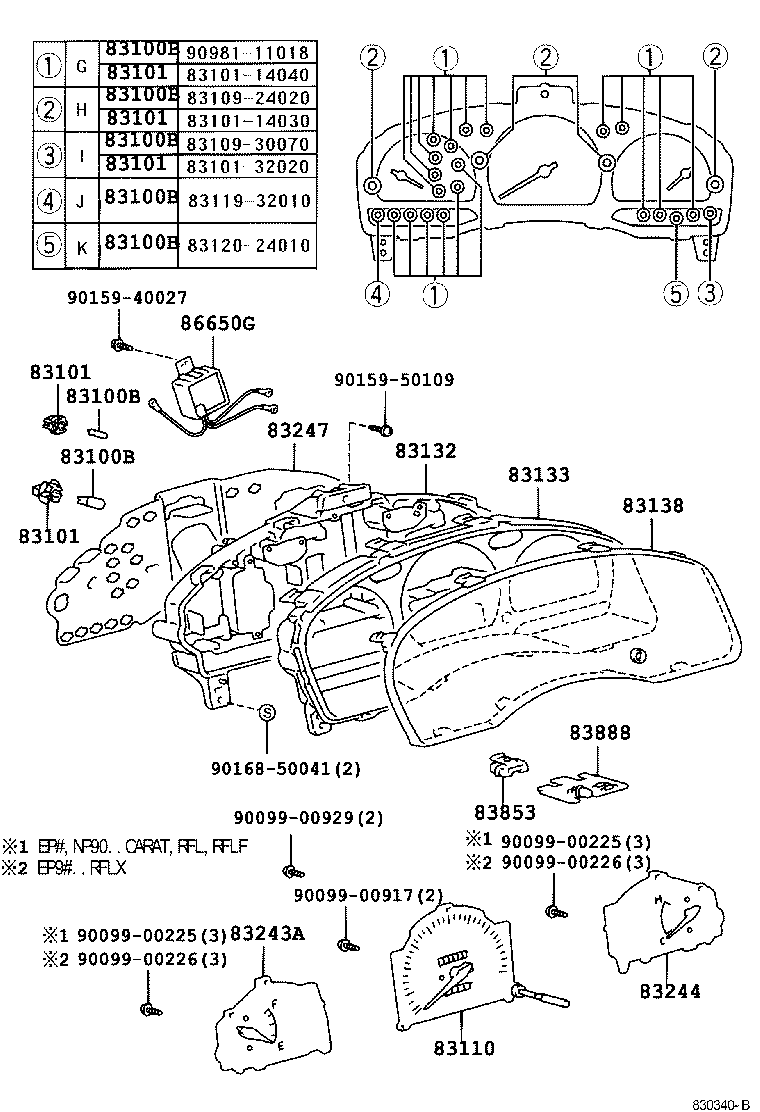

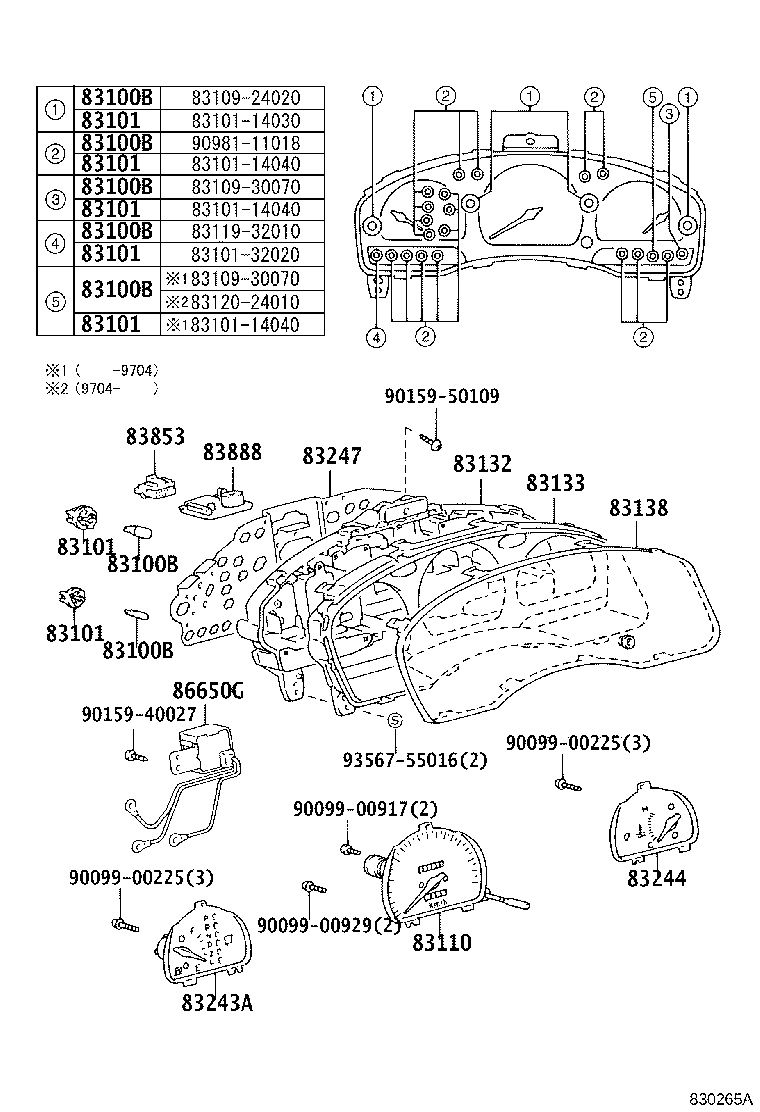

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83853 | Joint Connector (FOR ALARMER) |
| 83888 | Alarmer, Combination Meter |
| 83910 | Clock Assy |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
