Toyota Starlet
1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan
Discontinued model
Data version 2000-02
Switch & Relay & Computer
90 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82683 | Plate, Fuse Block Caution |
| 82683A | Plate, Fuse Block Caution |

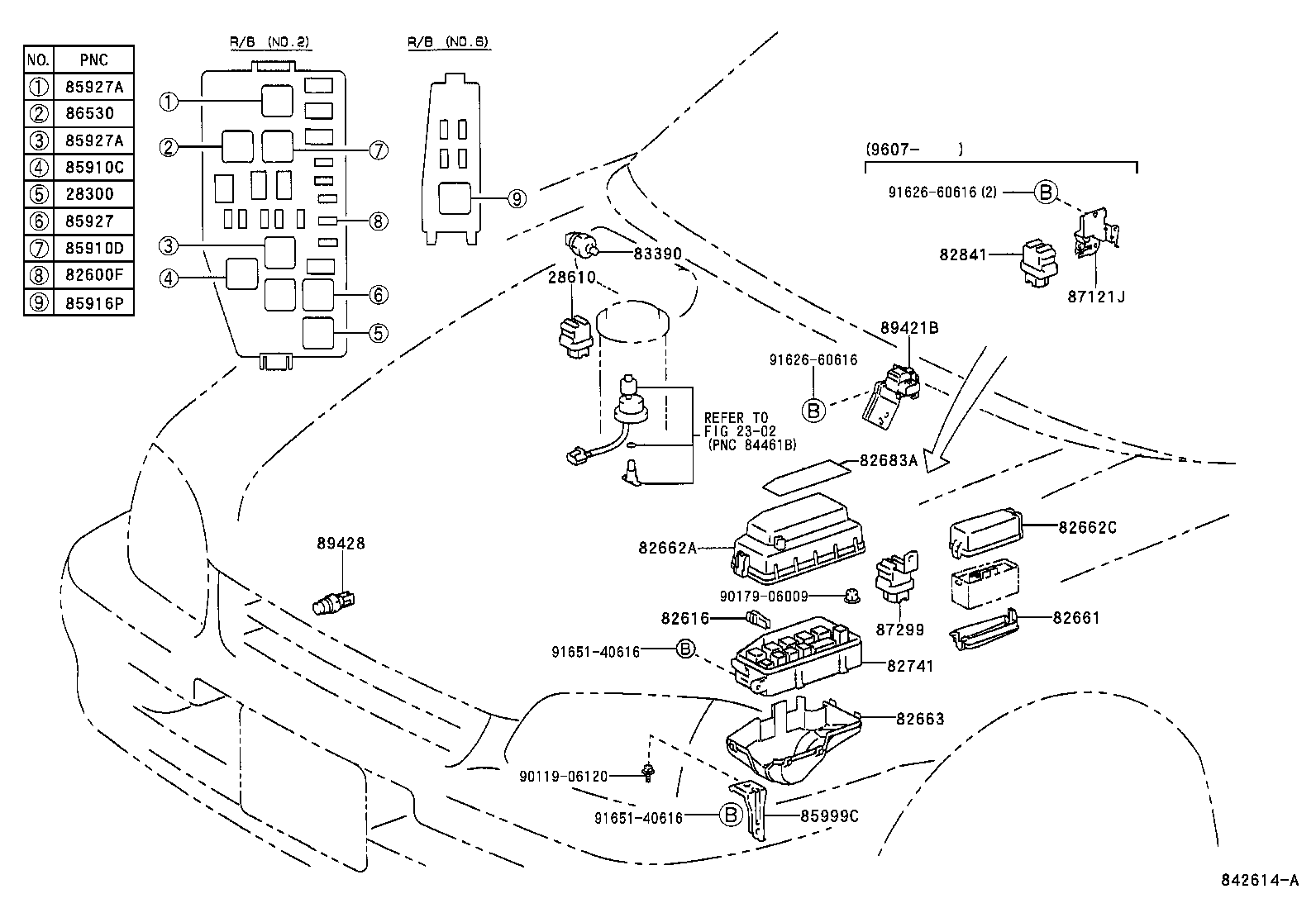

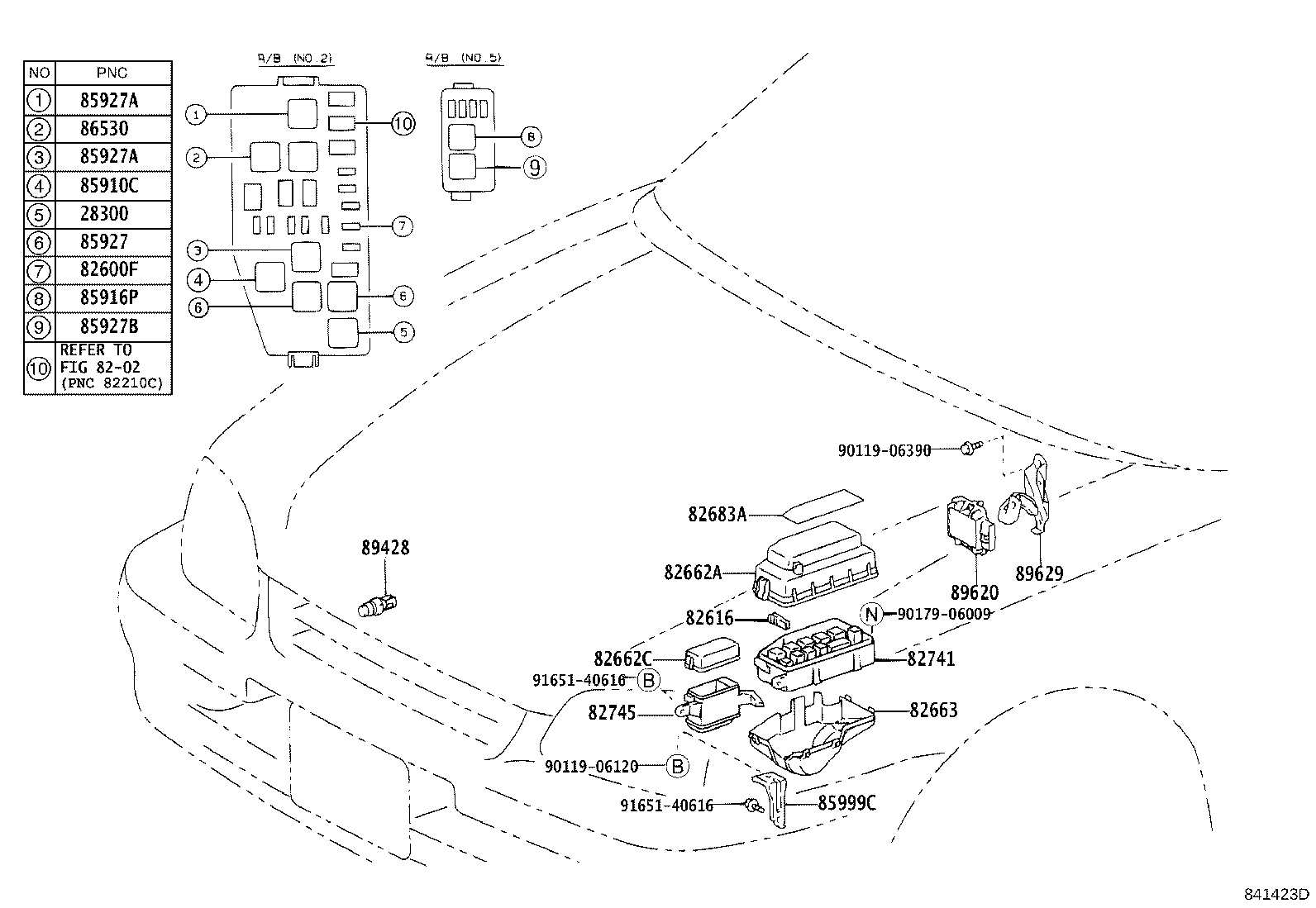

| 82741 | Block, Engine Room Relay |
| 82745 | Block, Engine Room Relay, NO.5 |
| 82841 | Relay, Running Light Voltage Control |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84052 | Switch Assy, Un-lock Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84162 | Switch, Front Fog Lamp |
| 84210 | Switch Assy, Back-up Lamp |
| 84231D | Switch, Courtesy Lamp (FOR TIRE CARRIER) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84306 | Cable Sub-assy, Spiral |

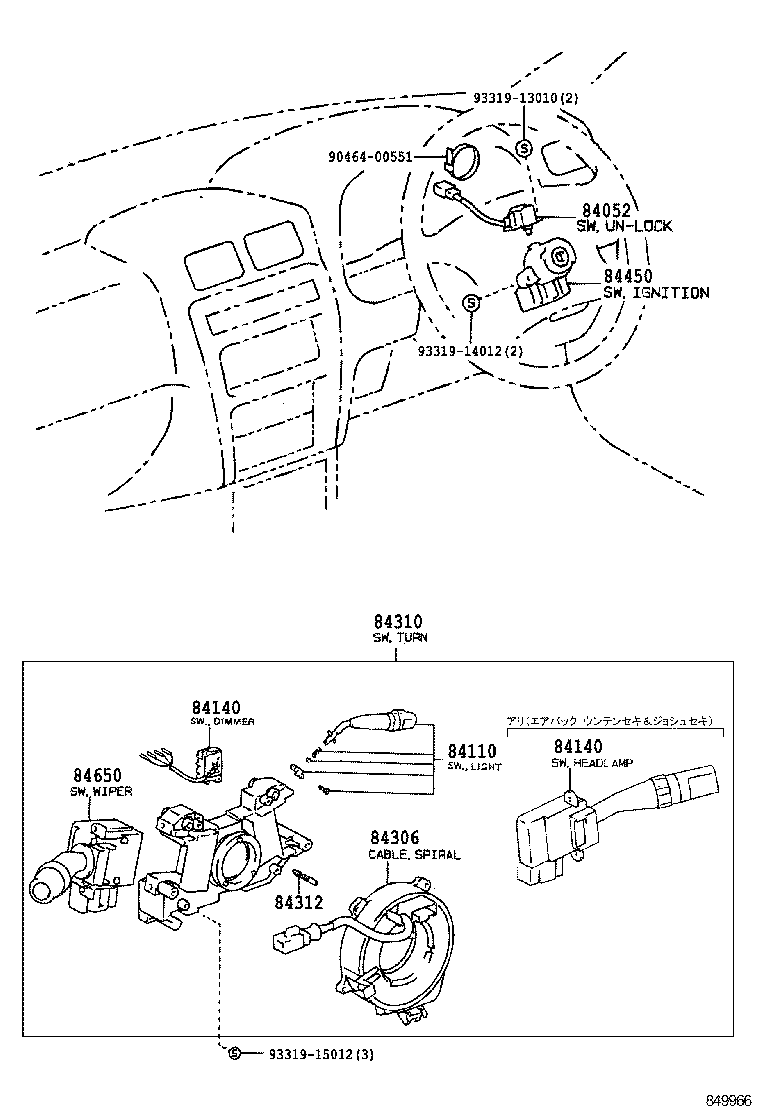

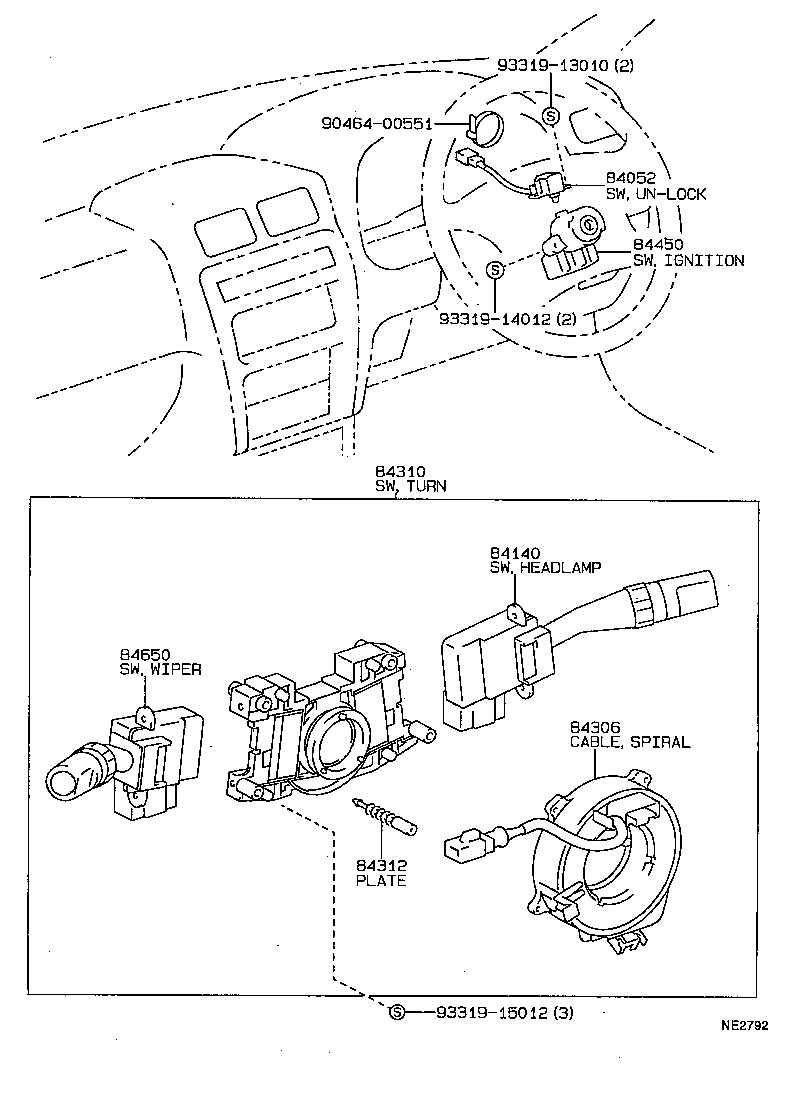

| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84720A | Switch Assy, Pattern Select, NO.1 |
| 84720B | Bulb (FOR PATTERN SELECT SWITCH) |
| 84727 | Switch, Shift Lock Control |
| 84730B | Bulb, Heater Blower Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |

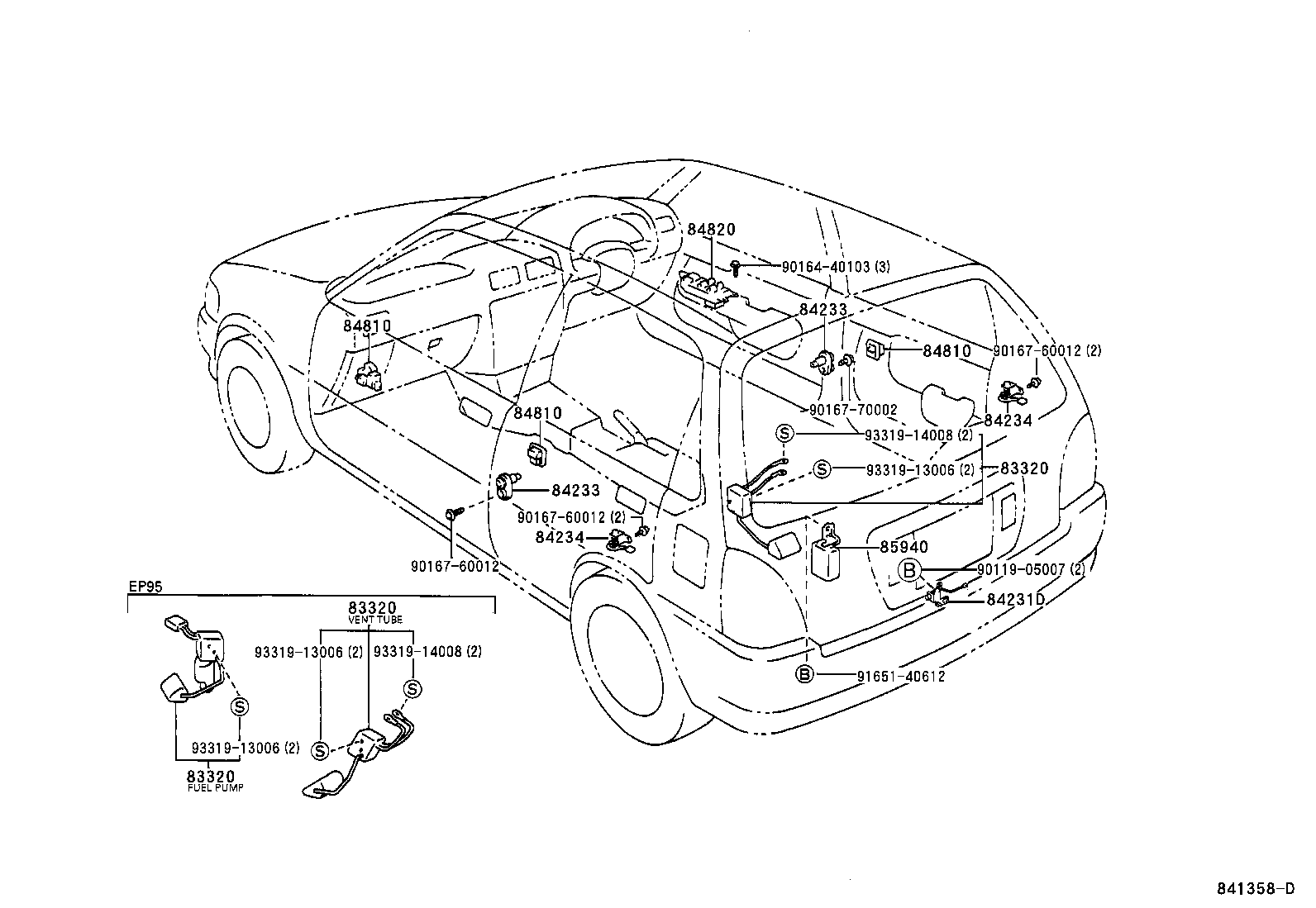

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |

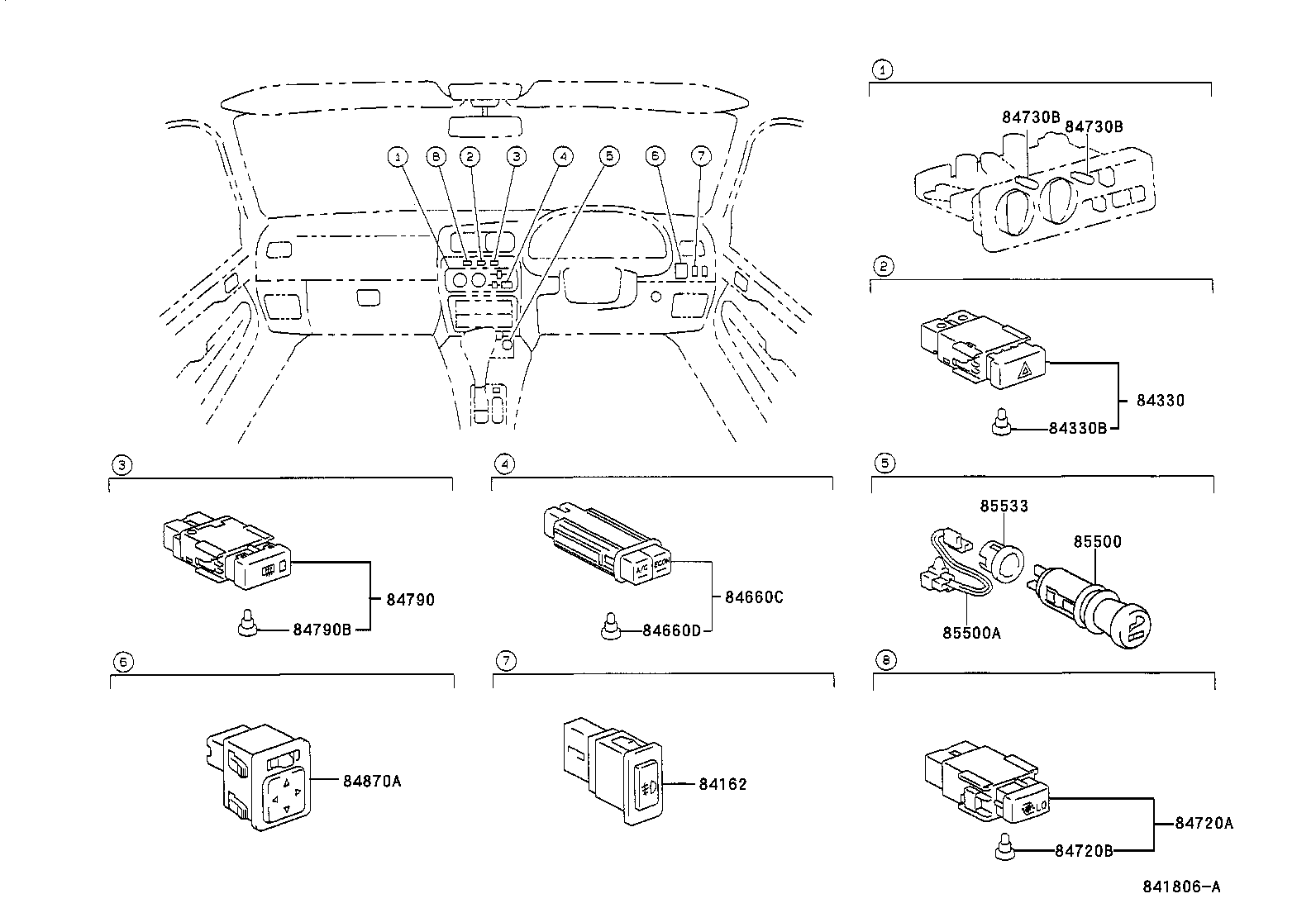

| 85500 | Lighter Assy, Cigarette |
| 85500A | Wire, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910D | Relay (FOR HEATER IDLE UP) |
| 85915 | Relay, Main |
| 85915E | Relay |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85930F | Relay, Tire Carrier Courtesy Switch |
| 85940 | Relay Assy, Windshield Wiper |
| 85980 | Relay Assy, Door Control |
| 85999A | Bracket, Relay, NO.2 |
| 85999C | Bracket, Relay, NO.3 |
| 86530 | Relay Assy, Horn |
| 87121J | Bracket, Heater |
| 87299 | Relay, Heater |
| 88610P | Switch Assy, Control |
| 88620C | Thermo Switch Assy |
| 88648M | Wire Air Conditioner NO.1 |
| 89421B | Sensor, Vacuum |

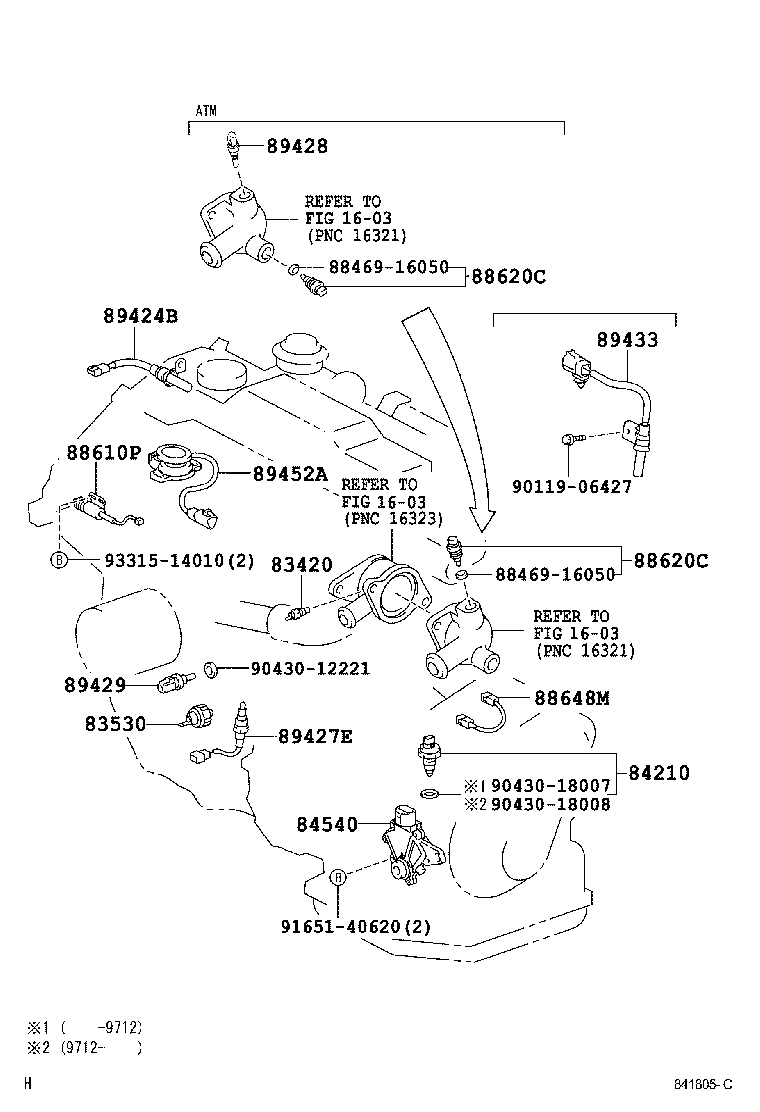

| 89424B | Switch, Inlet Air Temperature |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89427E | Switch, Temperature (FOR HEATER IDLE UP) |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89428E | Switch, Temperature, NO.2 (FOR TRANSMISSION) |
| 89429 | Sensor, Oil Temperature |
| 89433 | Switch, Air Temperature |
| 89452A | Sensor, Throttle Position |
| 89465 | Sensor, Oxygen |

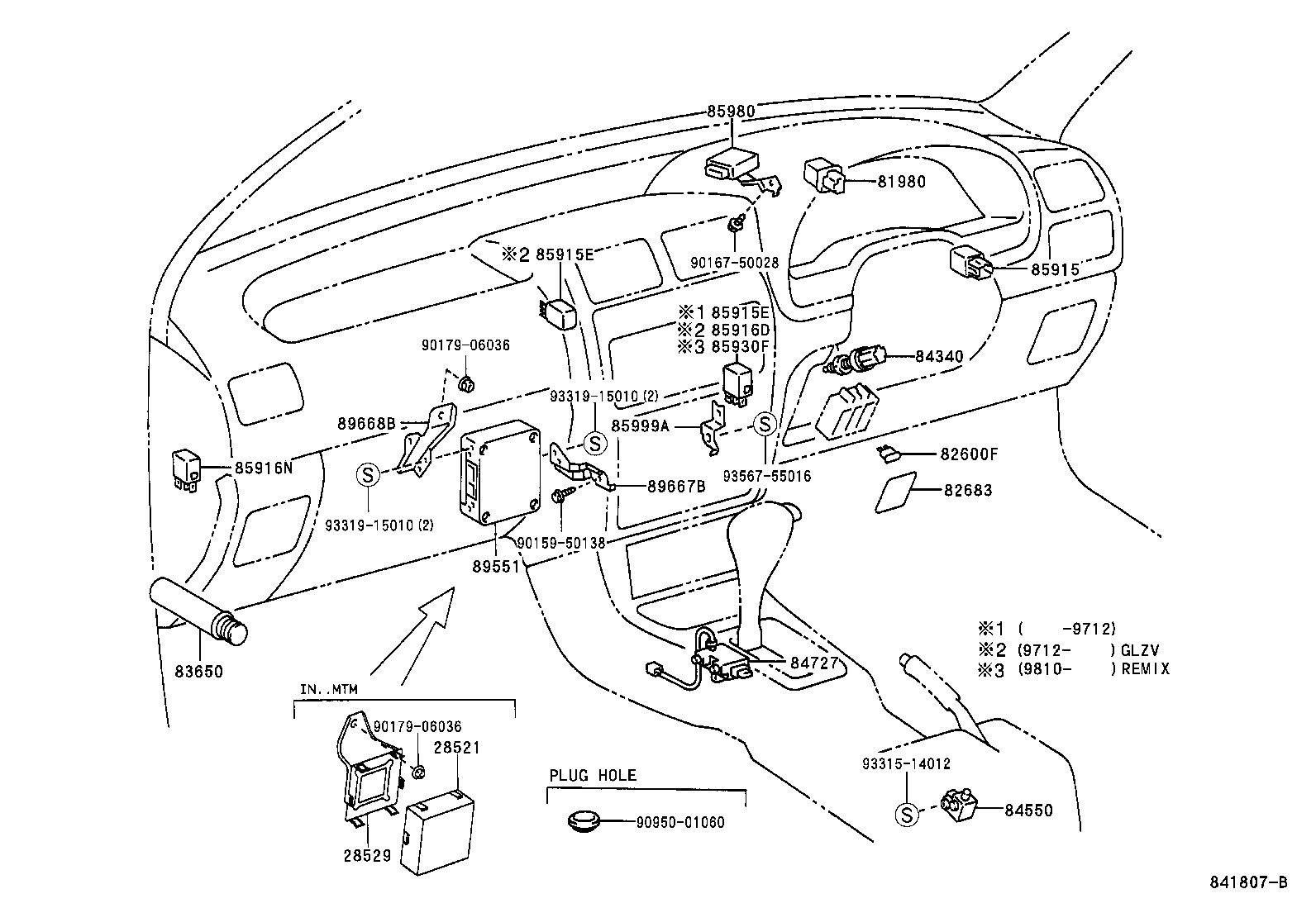

| 89551 | Computer, Emission Control |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
| 89667B | Bracket, Engine Control Computer, NO.1 |
| 89668B | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
