Toyota Starlet

1996-01 → 1999-07 · chassis EP9#,NP90 · catalogue 121150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

21 part groups · 6 illustrations

Illustrations

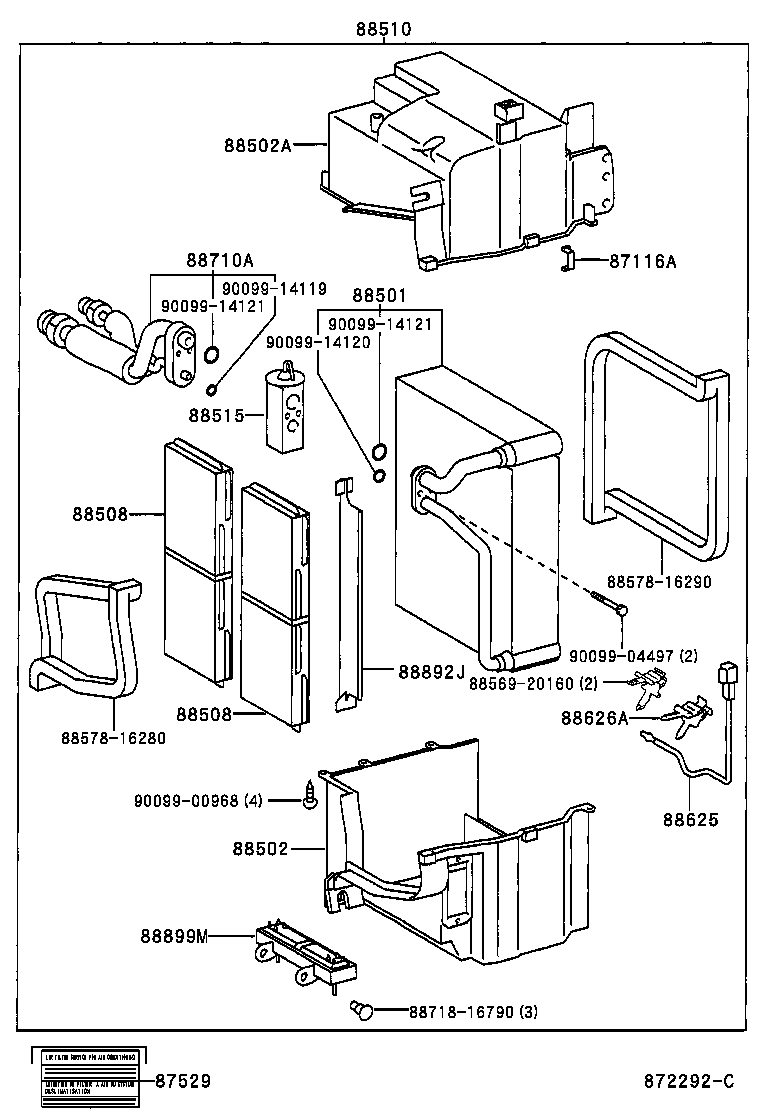

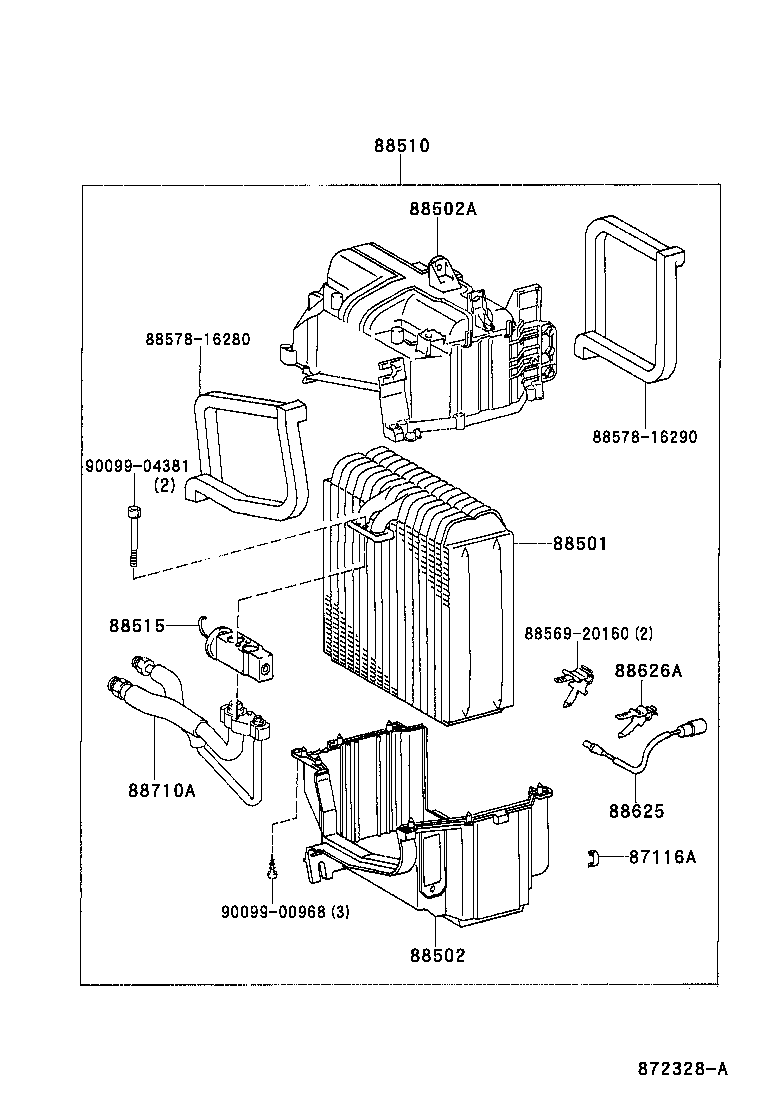

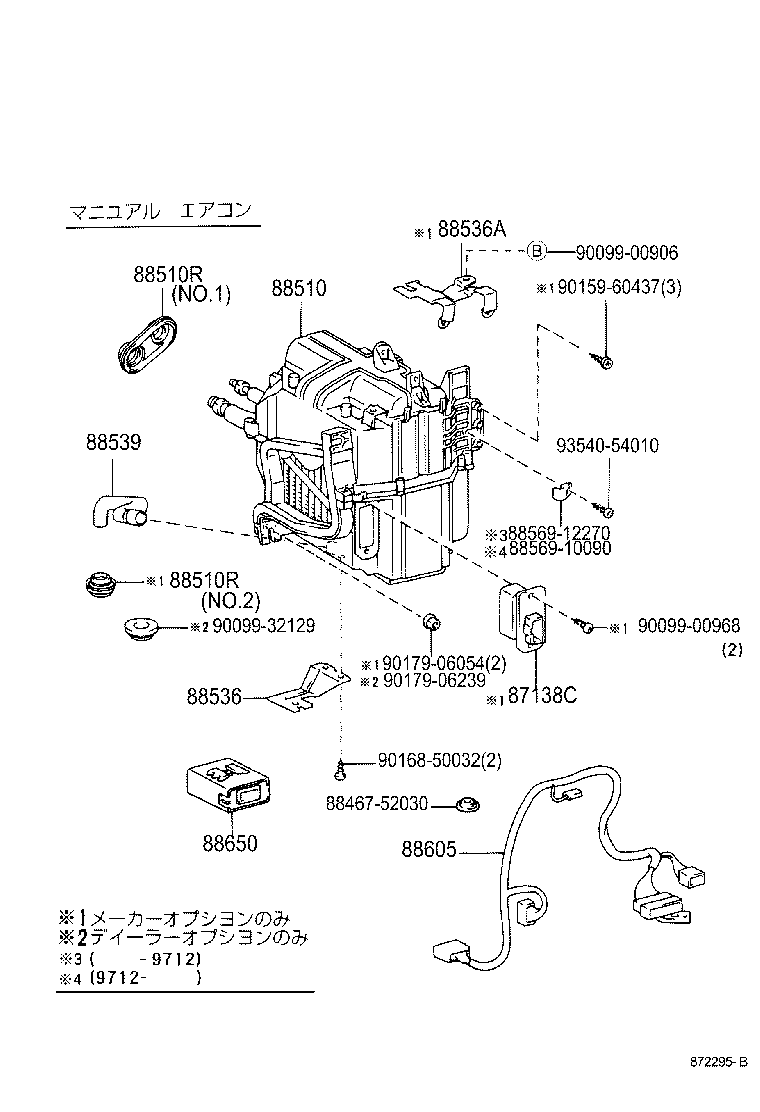

Figure 872294B 872294B 1996-01 → — Figure 872295B 872295B 1996-01 → — Figure 872328A 872328A 1996-01 → 1997-12 Figure 872328A 872328A 1997-12 → — Figure 872292C 872292C 1997-12 → — Figure MEX571 MEX571 1996-01 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
87529 Plate, Air Filter Caution
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88508 Filter Sub-assy, Clean Air
88510 Unit Assy, Cooler
88510R Grommet (FOR COOLER UNIT)
88515 Valve, Cooler Expansion
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88539 Hose, Cooler Unit Drain, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
88892J Cover Sub-assy
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
