Toyota Sera

1990-03 → 1995-12 · chassis EXY10 · catalogue 122140 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

8 part groups · 2 illustrations

Illustrations

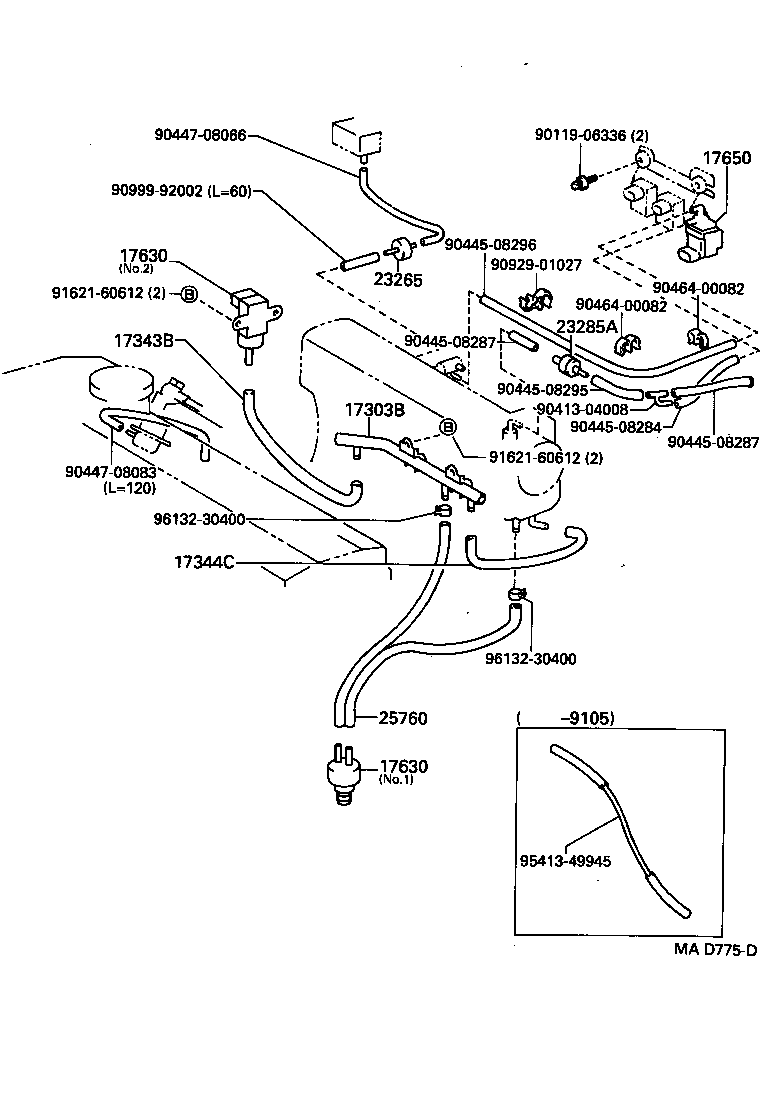

Figure MA9503A MA9503A 1990-03 → — Figure MAD775D MAD775D 1990-03 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17343B Hose, NO.3(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
25760 Hose Assy, Vacuum Transmitting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
