Toyota Sera
1990-03 → 1995-12 · chassis EXY10 · catalogue 122140 · Japan
Discontinued model
Data version 1996-11

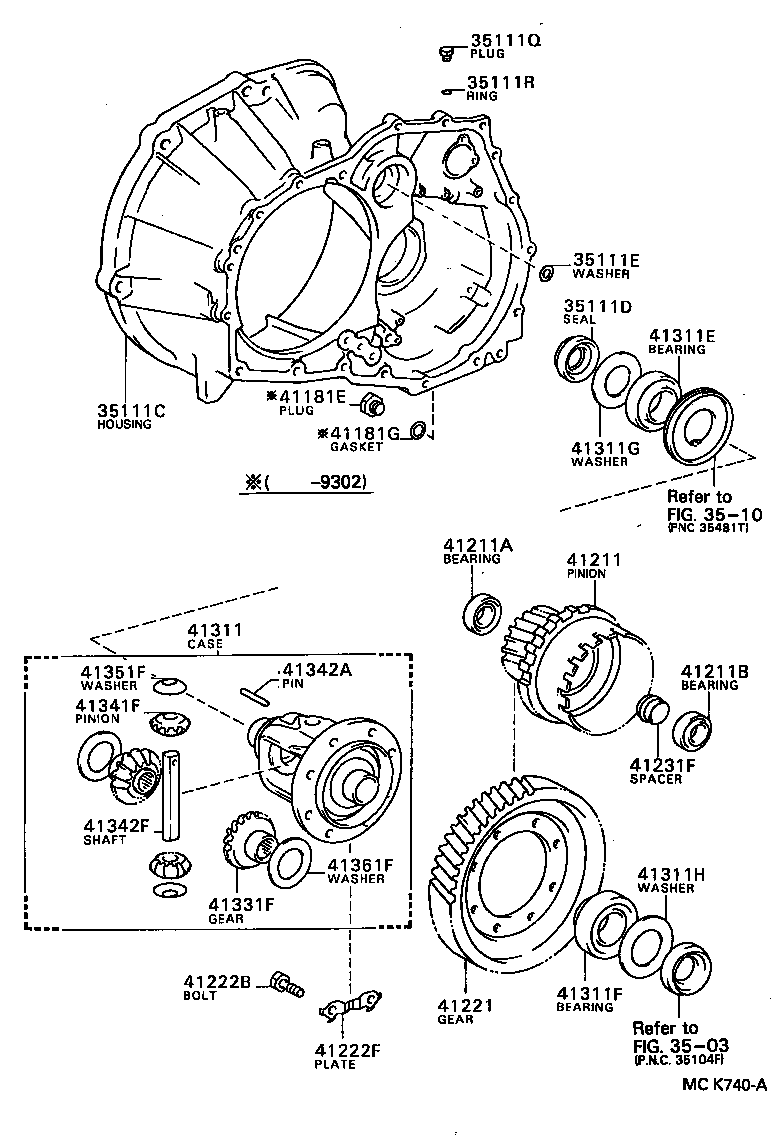

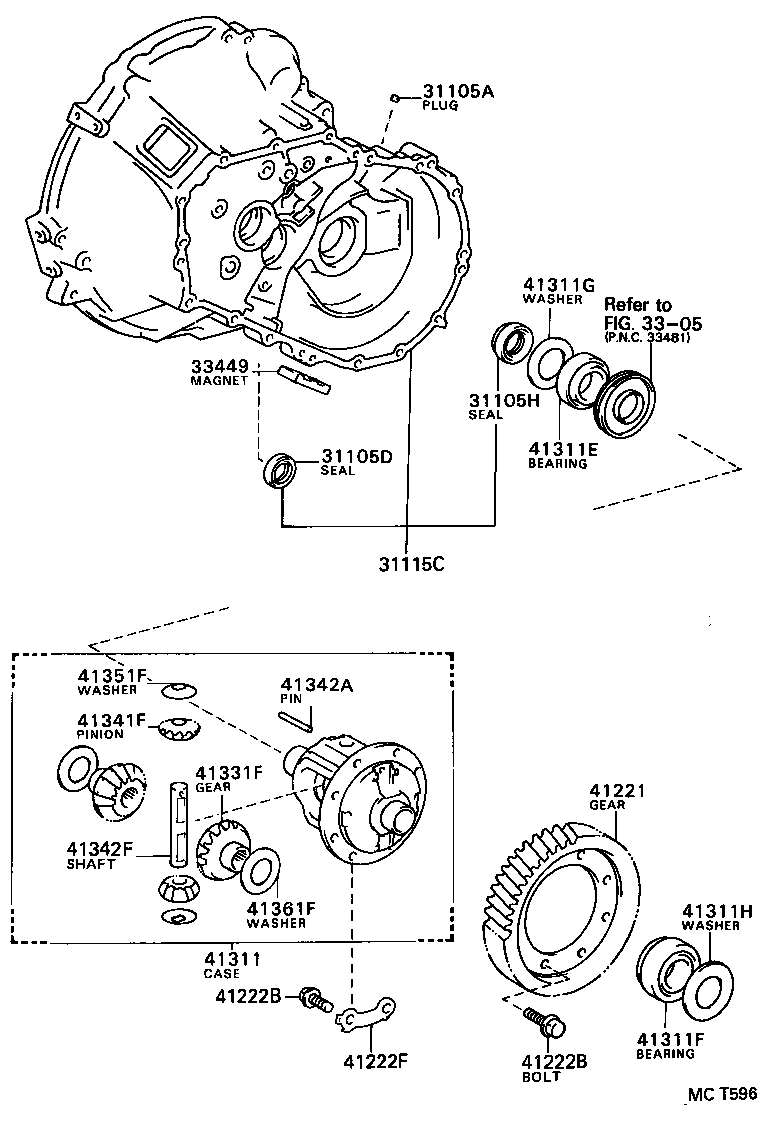

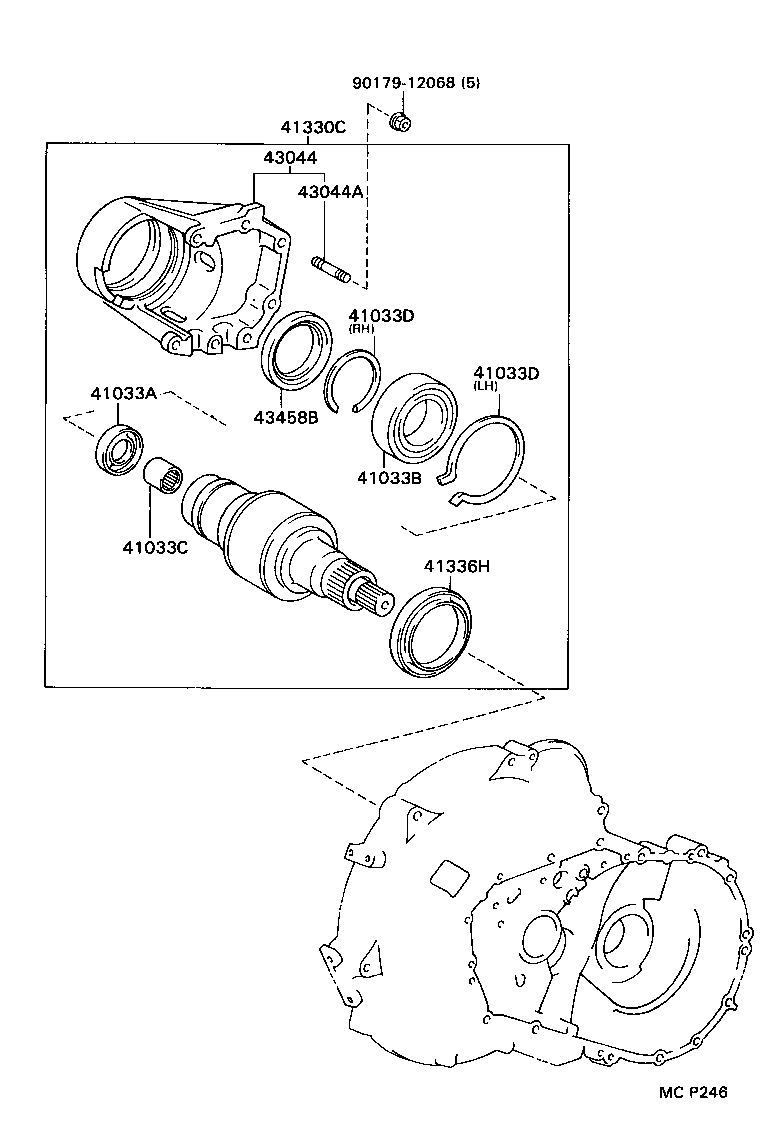

Front Axle Housing & Differential
39 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105A | Plug, Tight(FOR FRONT TRANSAXLE CASE) |
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 31105H | Seal, Oil, NO.2(FOR TRANSAXLE CASE) |
| 31115C | Case, Front Transaxle(MTM) |
| 33449 | Magnet, Transmission |
| 35111C | Housing, Transaxle |
| 35111D | Seal, Oil (FOR TRANSAXLE HOUSING) |
| 35111E | Washer, Seal (FOR FRONT TRANSAXLE HOUSING) |
| 35111Q | Plug, NO.2 (FOR TRANSAXLE HOUSING) |
| 35111R | Ring, O (FOR TRANSAXLE HOUSING PLUG NO.2) |
| 41033A | Seal, Oil (FOR FRONT DIFFERENTIAL CONTROL COUPLING) |
| 41033B | Bearing (FOR FRONT DIFFERENTIAL CONTROL COUPLING) |
| 41033C | Bearing, Needle Roller (For Front Differential Control (O |
| 41033D | Ring,Snap(For Front Differential Control Coupling Bearing |
| 41181E | Plug (FOR FRONT DIFFERENTIAL DRAIN) |
| 41181G | Gasket (FOR FRONT DIFFERENTIAL DRAIN PLUG) |
| 41211 | Pinion, Differential Drive |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41311 | Case, Front Differential |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311G | Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311H | Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41330C | Coupling Assy, Front Differential Control |
| 41331F | Gear, Front Differential Side |
| 41336H | Cover, Front Differential Control Coupling Dust |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 43044 | Bracket Sub-assy, Front Drive Shaft Bearing |
| 43044A | Bolt, Stud(FOR FRONT DRIVE SHAFT BEARING BRACKET) |
| 43458B | Cover, Front Drive Shaft Dust |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
