Toyota Sera

1990-03 → 1995-12 · chassis EXY10 · catalogue 122140 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

20 part groups · 2 illustrations

Illustrations

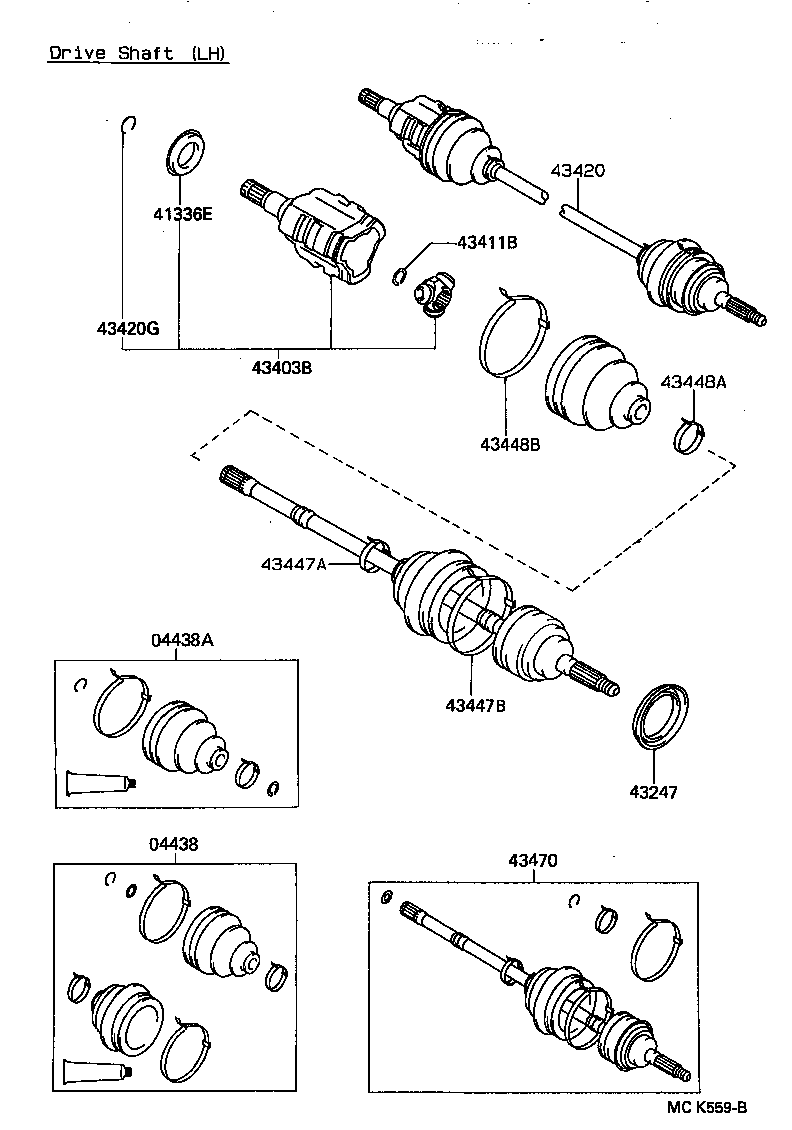

Figure MCK741A MCK741A 1990-03 → — Figure MCK559B MCK559B 1990-03 → —

Part groups

PNCDescription
04438 Boot Kit, Front Drive Shaft
04438A Boot Kit, Front Drive Shaft Inboard Joint
41336D Cover, Front Drive Shaft Dust, RH
41336E Cover, Front Drive Shaft Dust, LH
43247 Deflector, Front Wheel Bearing Dust, NO.2
43403 Joint Set, Front Axle Inboard, RH
43403B Joint Set, Front Axle Inboard, LH
43410 Shaft Assy, Front Drive, RH
43410N Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43411B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
43420 Shaft Assy, Front Drive, LH
43420G Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43447A Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447B Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448A Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448B Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
43474 Damper, Drive Shaft
43474A Clamp (FOR DRIVE SHAFT DAMPER SETTING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
