Toyota Sera

1990-03 → 1995-12 · chassis EXY10 · catalogue 122140 · Japan

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

40 part groups · 3 illustrations

Illustrations

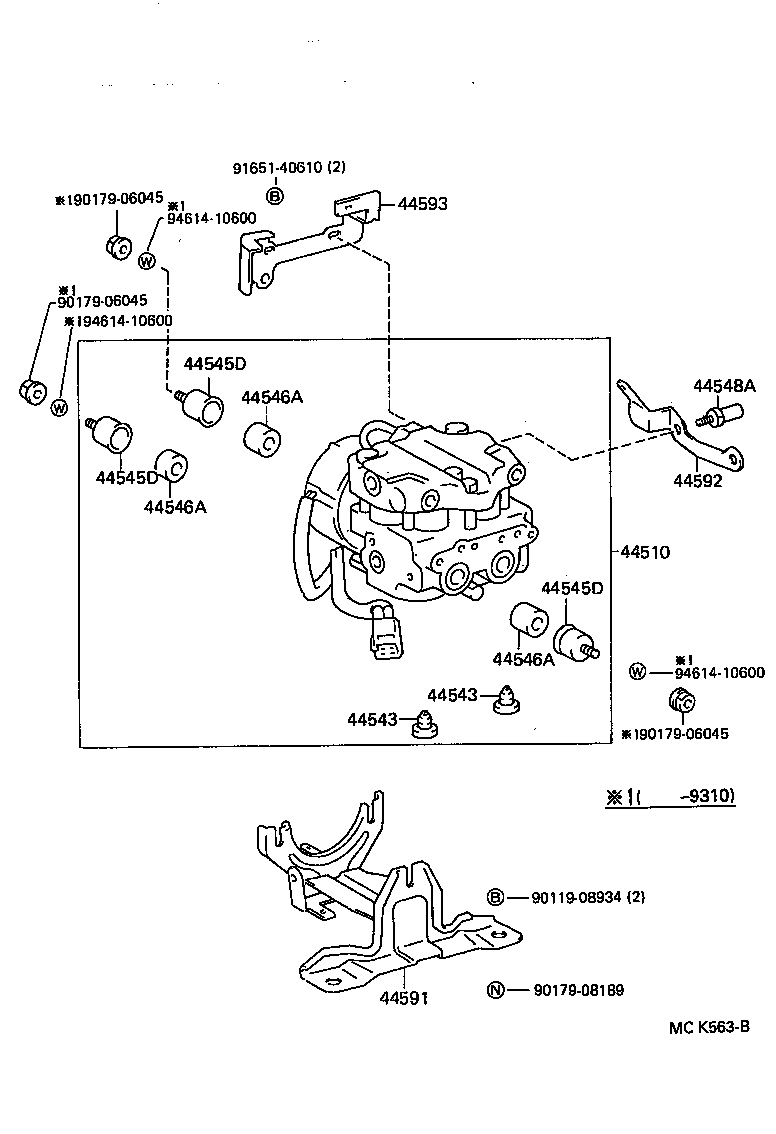

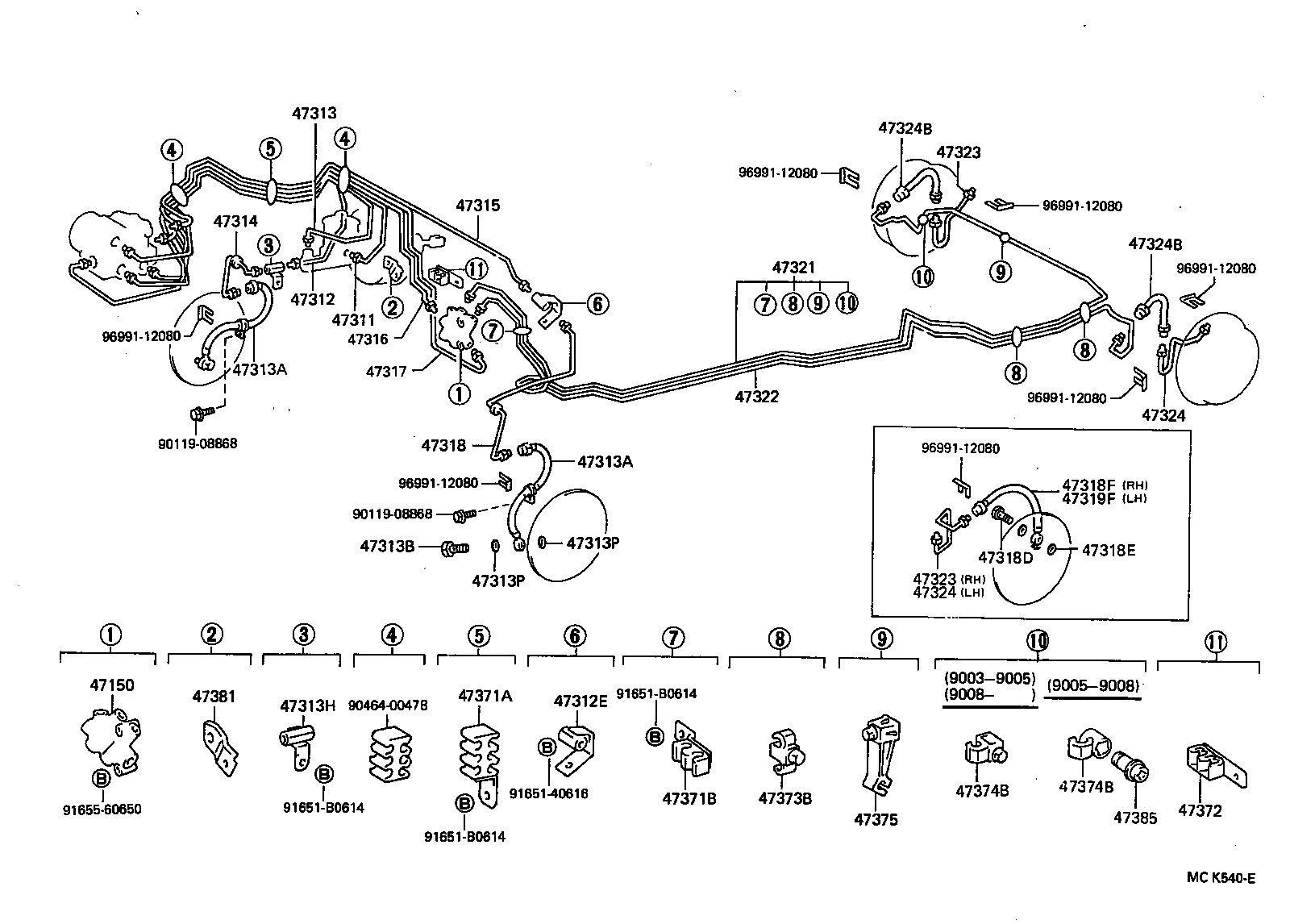

Figure MCK539D MCK539D 1990-03 → — Figure MCK540E MCK540E 1990-03 → — Figure MCK563B MCK563B 1990-03 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44543 Cap, Rubber
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44548A Bolt, Brake Actuator Protector
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
44593 Bracket, Brake Actuator, NO.3
47150 Valve Assy, Proportioning
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47324B Hose, Flexible(FOR REAR BRAKE TUBE, NO.2)
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47381 Bracket, Brake Tube Clamp NO.1
47385 Nut, Brake Tube Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
