Toyota Sera
1990-03 → 1995-12 · chassis EXY10 · catalogue 122140 · Japan
Discontinued model
Data version 1996-11
Fuel Tank & Tube

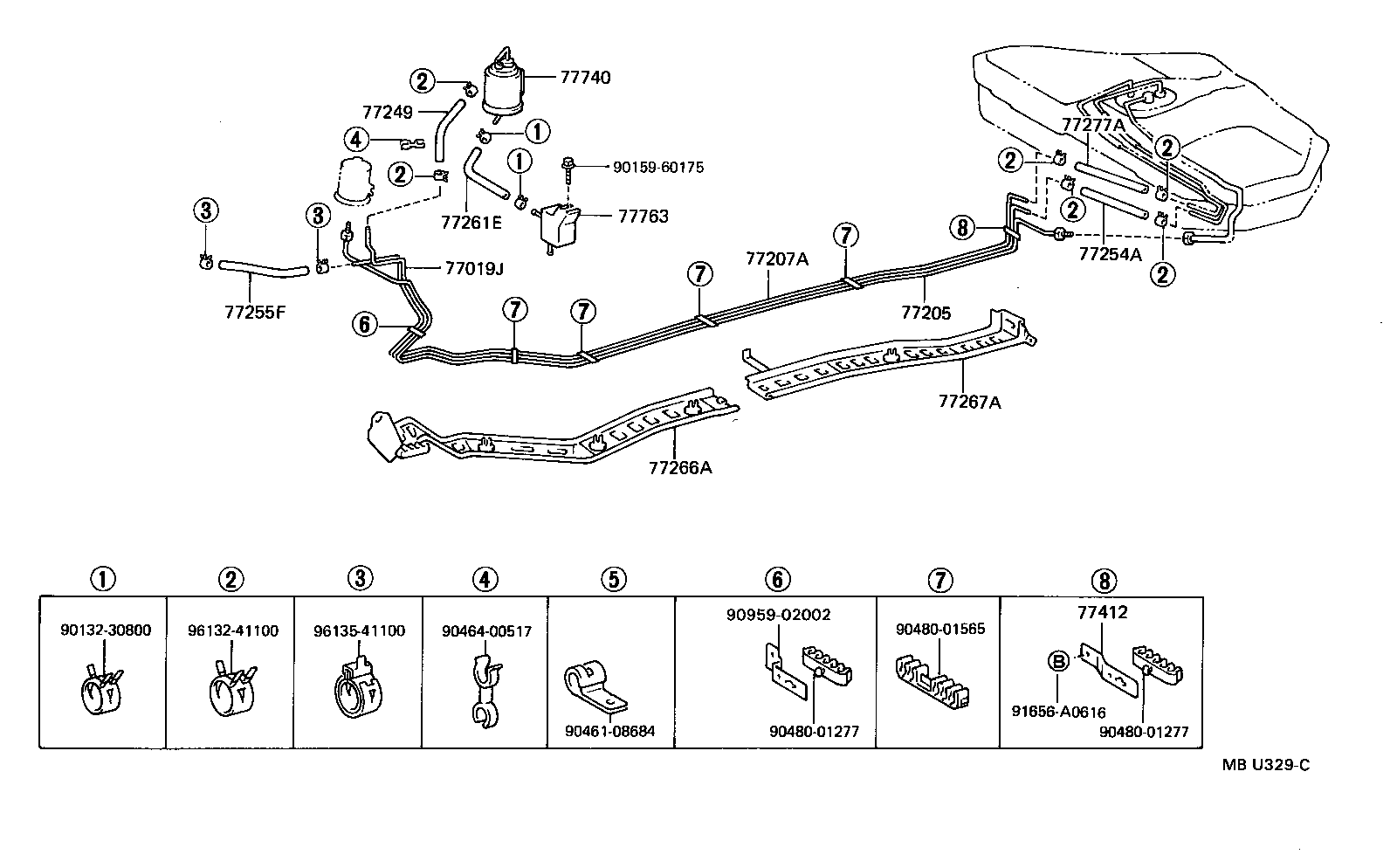

30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77019J | Tube Sub-assy, Fuel Tank TO Canister |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77205 | Tube Sub-assy, Fuel Main |
| 77207A | Tube Sub-assy, Fuel Return |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77249 | Hose, Fuel Emission |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77412 | Support, Fuel Tube Grommet, NO.2 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77740 | Canister Assy, Charcoal |
| 77763 | Case, Charcoal Canister Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
