Toyota Sera
1990-03 → 1995-12 · chassis EXY10 · catalogue 122140 · Japan
Discontinued model
Data version 1996-11
Heating & Air Conditioning - Control & Air Duct
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

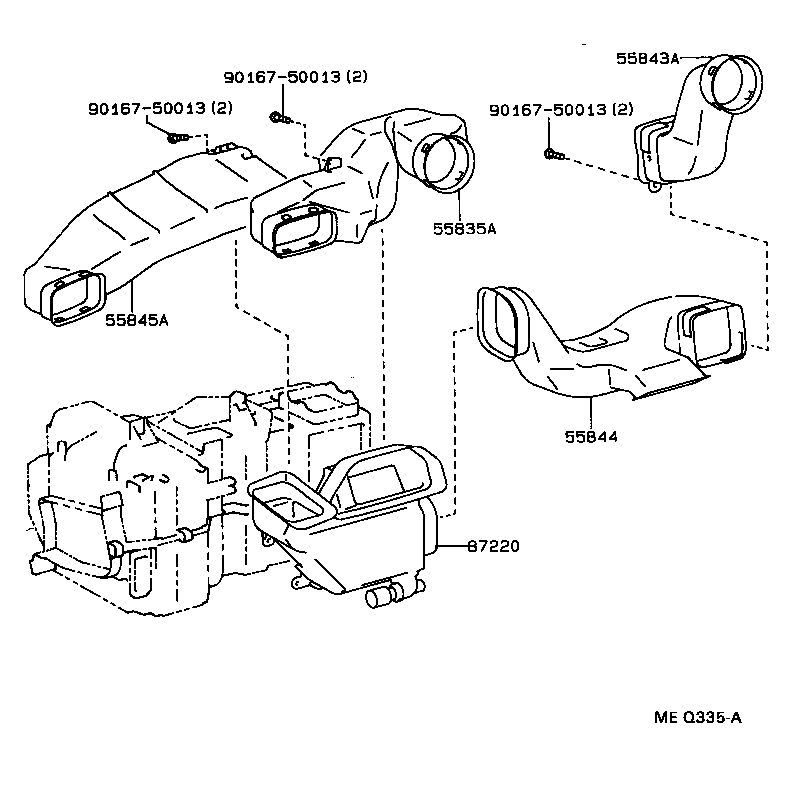

| 55835A | Duct, Heater TO Register, Center |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55900 | Control Assy, Air Conditioner |
| 55902B | Control Sub-assy, Heater |
| 55905A | Knob, Heater Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 81936B | Bulb Assy, Cooler Control |
| 87220 | Duct Assy, Air |
| 87284 | Resistor Sub-assy, Variable |

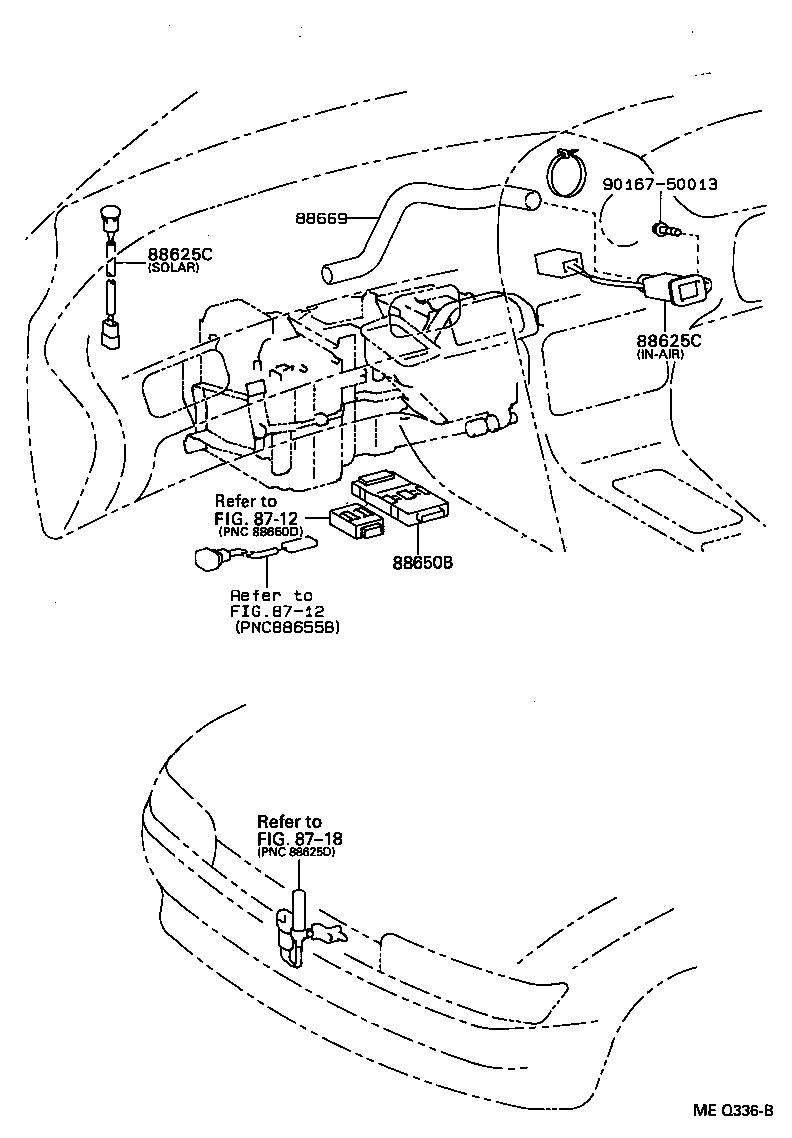

| 88625C | Thermistor, Cooler |
| 88650B | Amplifier Assy, Airconditioner |
| 88669 | Hose, Cooler Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
