Toyota Porte
2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan
Supported model
Data version 2012-07

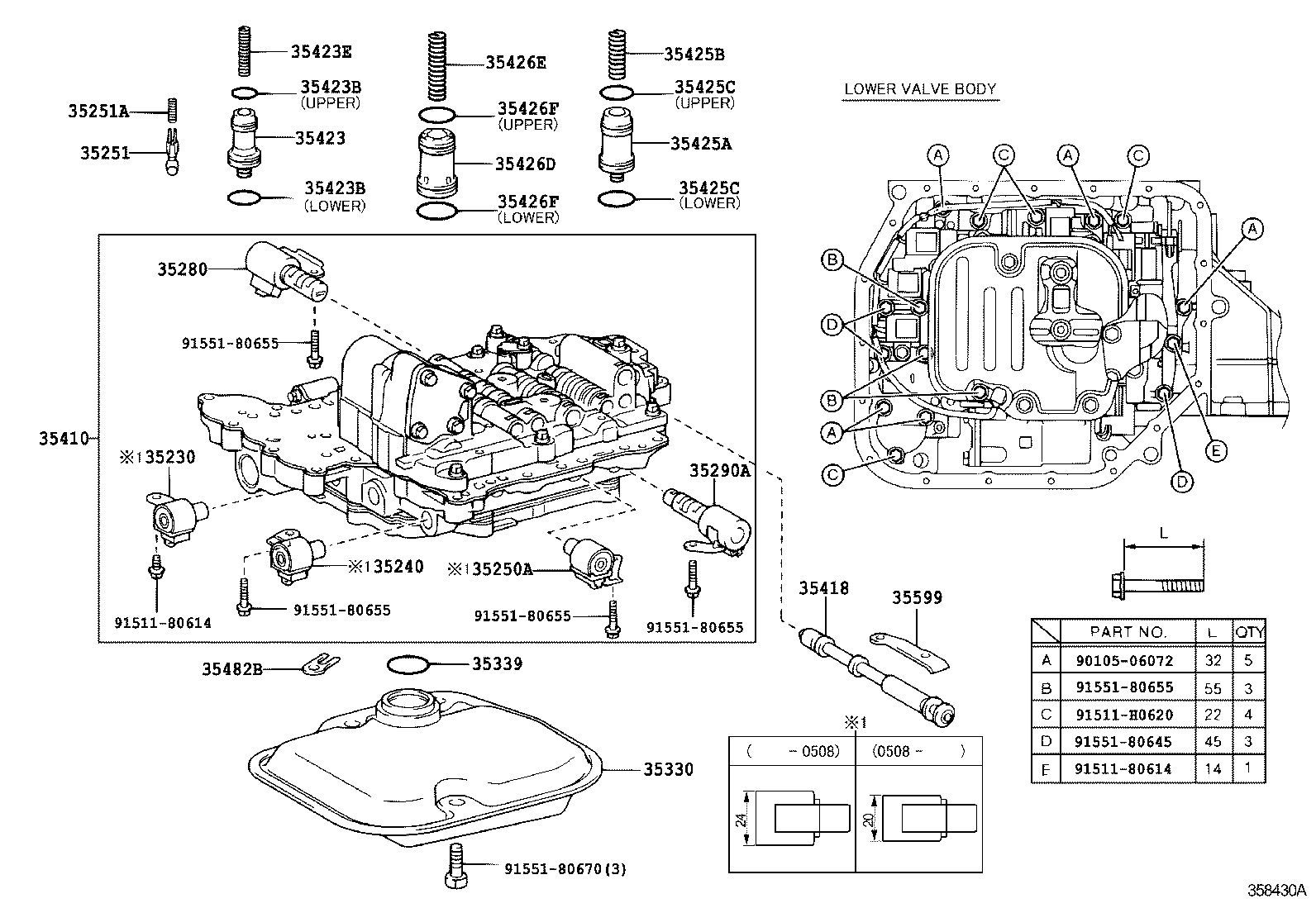

Valve Body & Oil Strainer (ATM)
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35195A | Clamp, Transaxle Apply Tube, NO.1 |
| 35206 | Spring Sub-assy, C-1 Accumulator |
| 35209 | Spring Sub-assy, C-2 Accumulator |
| 35209A | Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING) |
| 35230 | Solenoid Assy, Transmission 3Way, NO.2 |
| 35240 | Solenoid Assy, Automatic Transmission 3Way |
| 35250A | Solenoid Assy, Transmission, NO.3 |
| 35251 | Body, Check Ball |
| 35251A | Spring, Compression (FOR CHECK BALL BODY) |
| 35251B | Spring, Compression(FOR CHECK BALL BODY) |
| 35280 | Solenoid Assy, Lock UP Control |
| 35290 | Solenoid Assy, Line Pressure Control |
| 35290A | Solenoid Assy, Line Pressure Control |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339 | Gasket, Oil Strainer |
| 35410 | Body Assy, Transmission Valve |
| 35418 | Valve, Manual |
| 35423 | Piston, B-2 Accumulator |
| 35423B | Ring, O (FOR B-2 ACCUMULATOR PISTON) |
| 35423E | Spring, Compression (FOR B-2 ACCMULATOR PISTON) |
| 35424C | Piston, C-1 Accumulator |
| 35424D | Spring, Compression (FOR C-1 ACCUMULATOR PISTON) |
| 35424E | Ring, O (FOR C-1 ACCUMULATOR PISTON) |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35426D | Piston, C-3 Accumulator |
| 35426E | Spring, Compression (FOR C-3 ACCUMULATOR PISTON) |
| 35426F | Ring, O (FOR C-3 ACCUMULATOR PISTON) |
| 35427P | Spring, Compression, NO.1(FOR B-1 ACCUMULATOR PISTON) |
| 35427Q | Spring Compression, NO.2(FOR B1 ACCUMULATOR PISTON) |
| 35427R | Piston B-1 Accumulator |
| 35427S | Ring, O(FOR B-1 ACCUMULATOR PISTON) |
| 35482B | Clamp, Temperature Sensor |
| 35599 | Cover, Manual Detent Spring |
| 35847 | Tube, Transmission Lube Apply |
| 35882A | Tube, Differential Gear Lube Apply |
| 85420K | Solenoid Assy, Transmission |
| 85420L | Ring, O(FOR TRANSMISSION SOLENOID) |
| 85420N | Solenoid Assy, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
