Toyota Porte

2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan

Supported model Data version 2012-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

4 part groups · 2 illustrations

Illustrations

Figure 453223D

453223D 2004-07 → —

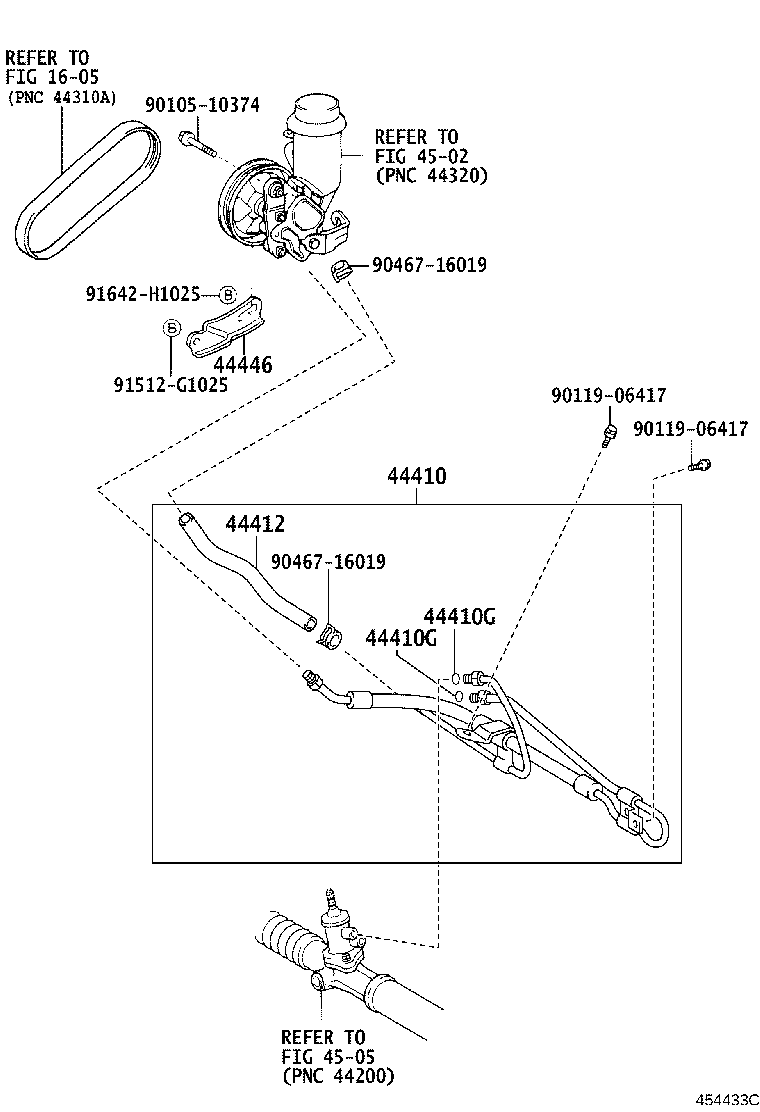

Figure 454433C

454433C 2006-01 → —

Part groups

PNC	Description
44410	Tube Assy, Pressure Feed
44410G	Ring, O(FOR PRESSURE FEED TUBE)
44412	Hose, Return
44446	Strut, Adjusting

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
