Toyota Porte

2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

12 part groups · 2 illustrations

Illustrations

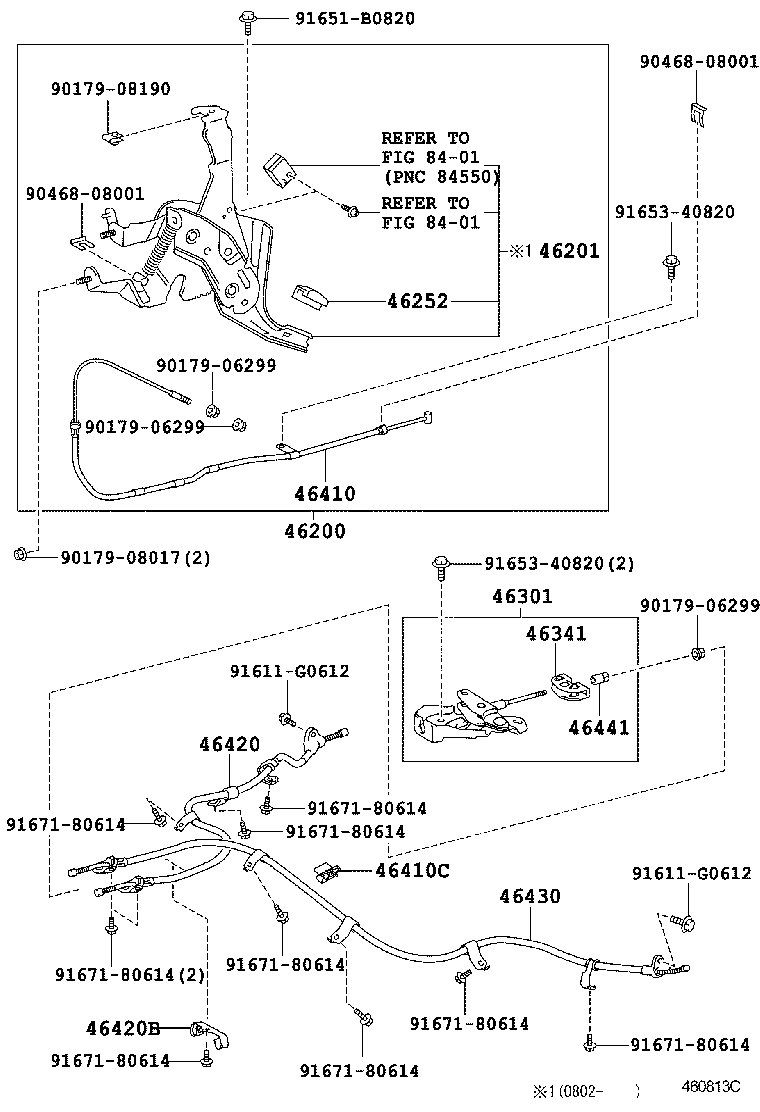

Figure 460722F 460722F 2004-07 → — Figure 460813C 460813C 2006-01 → —

Part groups

PNCDescription
46200 Pedal Assy, Parking Brake Control
46201 Pedal Sub-assy, Parking Brake
46252 Pad, Parking Pedal
46301 Lever Sub-assy, Parking Brake Intermediate
46341 Equalizer, Parking Brake
46361 Rod, Parking Brake Pull
46410 Cable Assy, Parking Brake, NO.1
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
