Toyota Porte

2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 2 illustrations

Illustrations

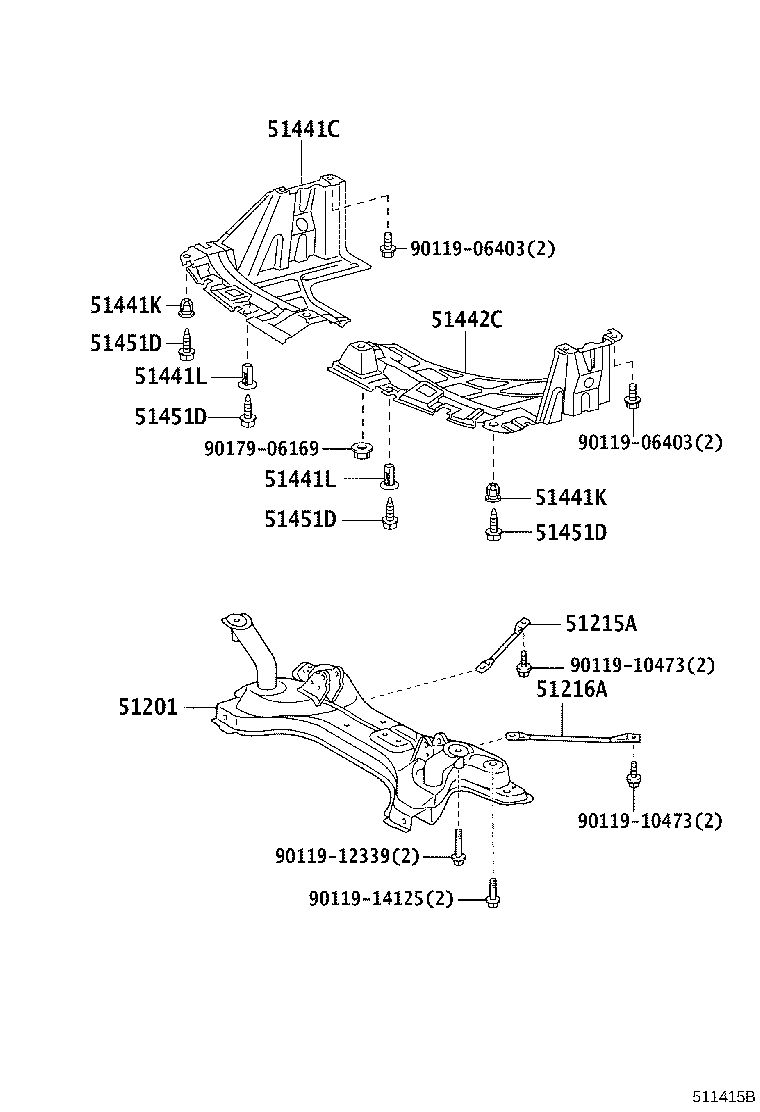

Figure 511242C 511242C 2004-07 → — Figure 511415B 511415B 2006-01 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51215A Reinforcement, Front Suspension Member, RH
51216A Reinforcement, Front Suspension Member, LH
51227 Weight, Front Suspension Member Damper
51441C Cover, Engine Under, RH
51441K Grommet(FOR ENGINE UNDER COVER)
51441L Grommet, NO.2(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
