Toyota Porte

2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

8 part groups · 2 illustrations

Illustrations

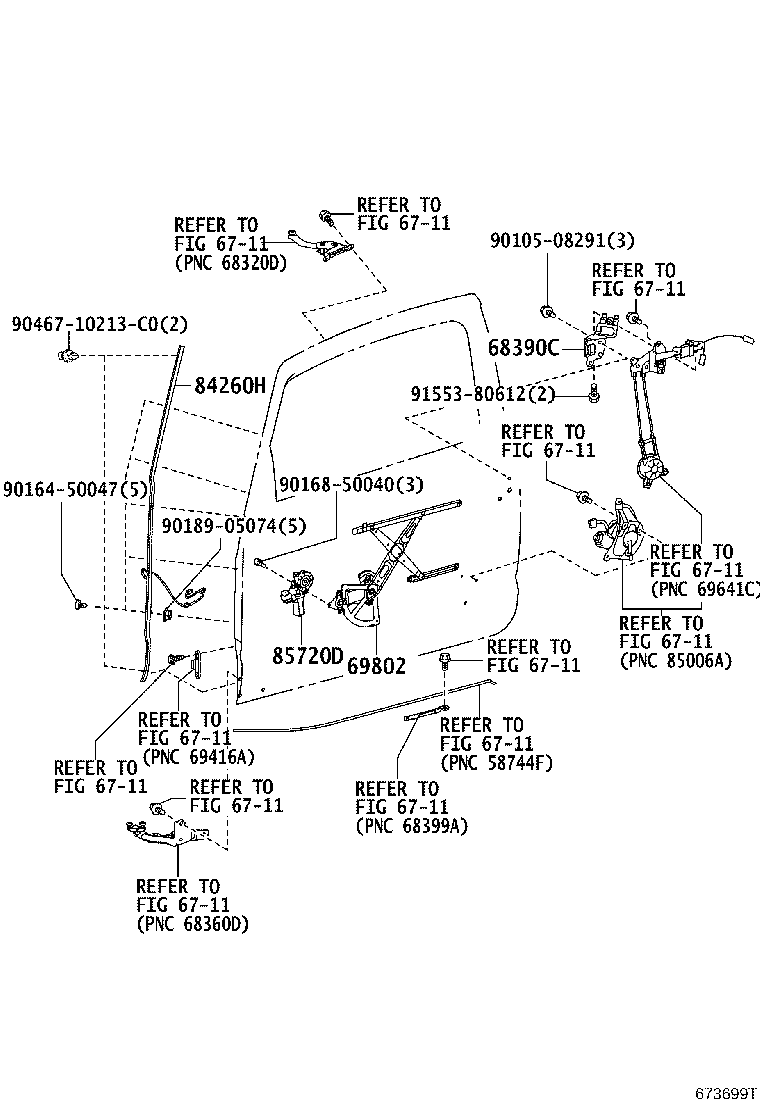

Figure 673698B 673698B 2004-07 → — Figure 673699T 673699T 2004-07 → —

Part groups

PNCDescription
68390C Hinge Assy, Slide Door, Center LH
68710 Hinge Assy, Front Door, Upper RH
68730 Hinge Assy, Front Door, Lower RH
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
84260H Sensor Assy, Power Slide Door, LH
85710E Motor Assy, Power Window Regulator, RH
85720D Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
