Toyota Porte

2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 2 illustrations

Illustrations

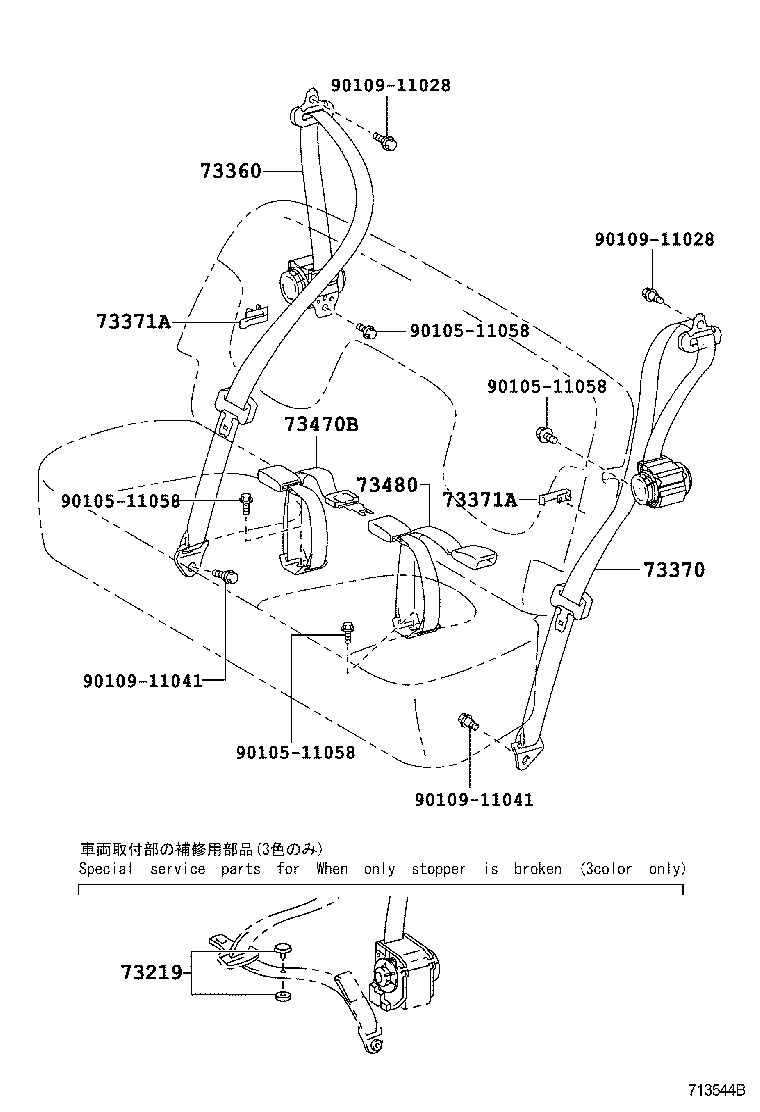

Figure 713507D 713507D 2004-07 → — Figure 713544B 713544B 2004-07 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73174 Cover, Front Seat Belt Hole, LH
73178A Cap, Seat Belt Anchor Cover
73187 Guide, Front Seat Shoulder Belt
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73375 Cover, Rear Seat Shoulder Belt, LH
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
