Toyota Porte
2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan
Supported model
Data version 2012-07
Armrest & Visor

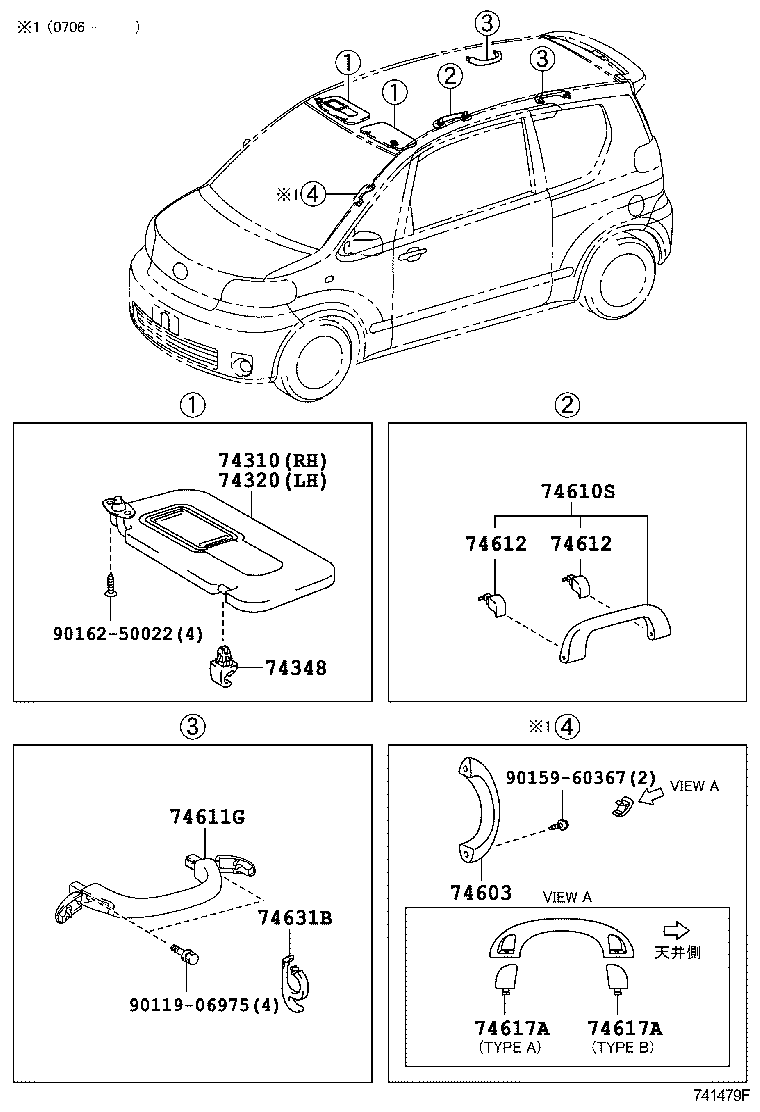

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74610S | Grip Assy, Assist |
| 74611G | Grip, Assist, NO.2 |
| 74612 | Cover, Assist Grip |
| 74617A | Plug, Assist Grip |
| 74631B | Hook, Coat |
| 74811B | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
