Toyota Porte

2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 7 illustrations

Illustrations

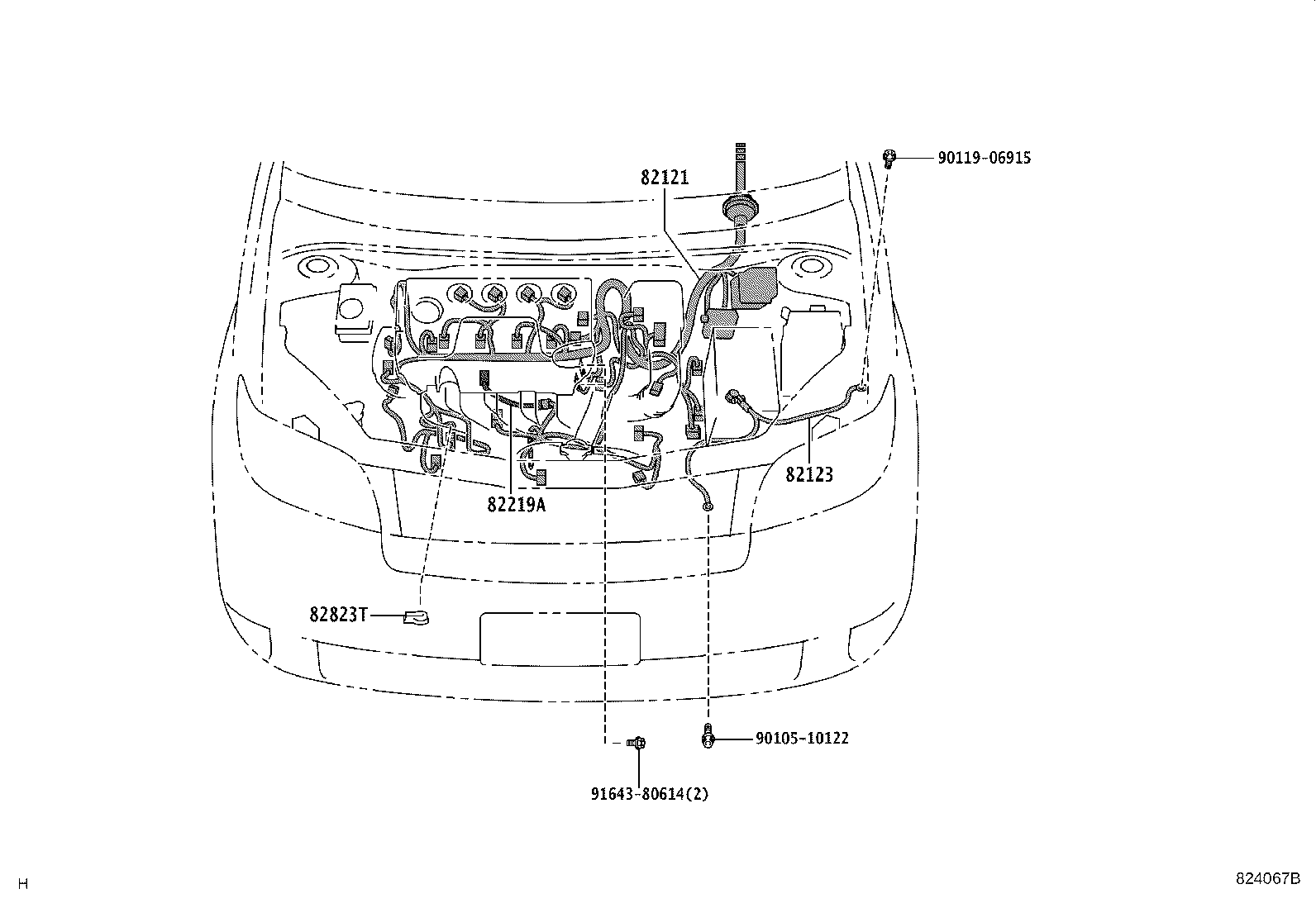

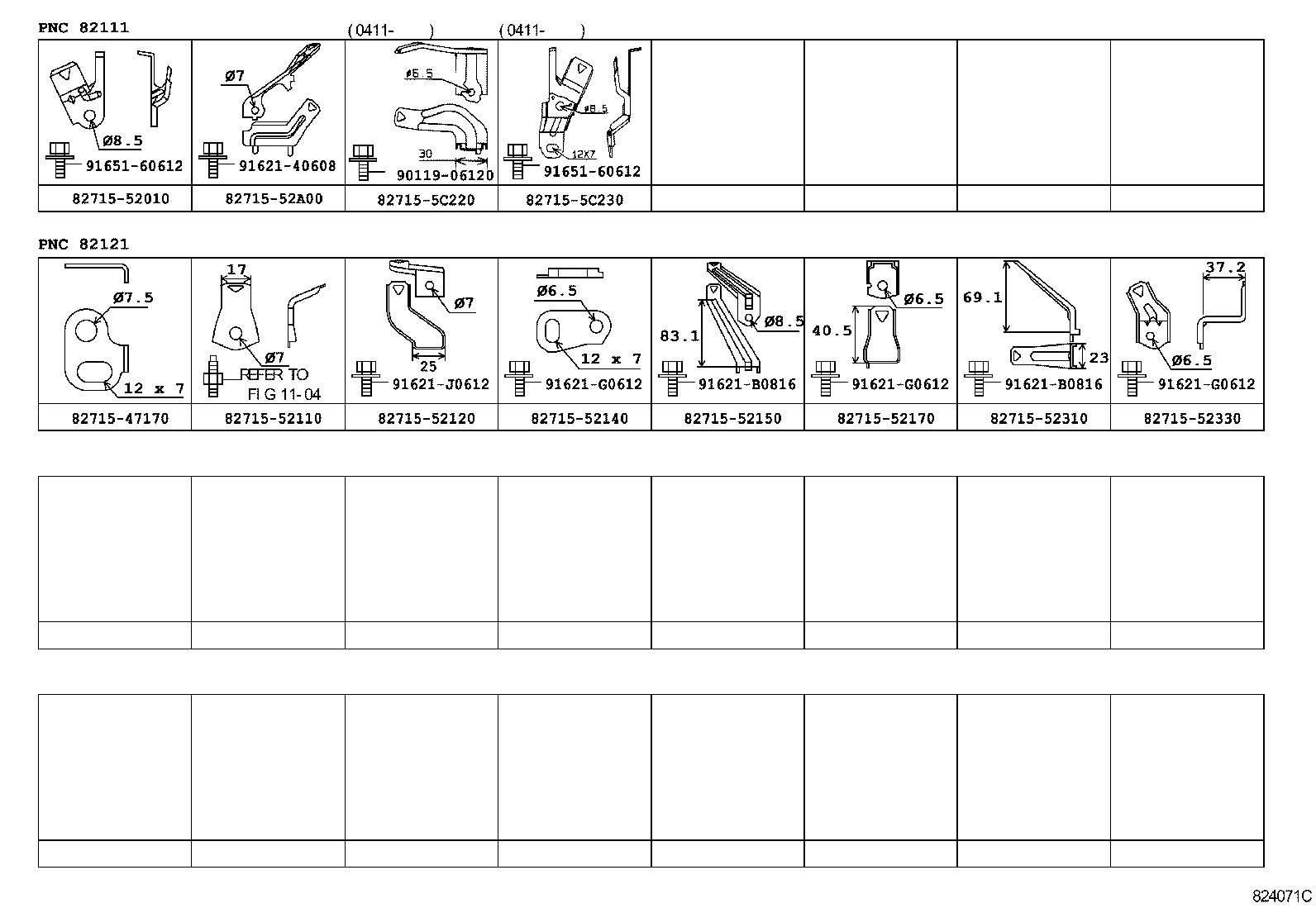

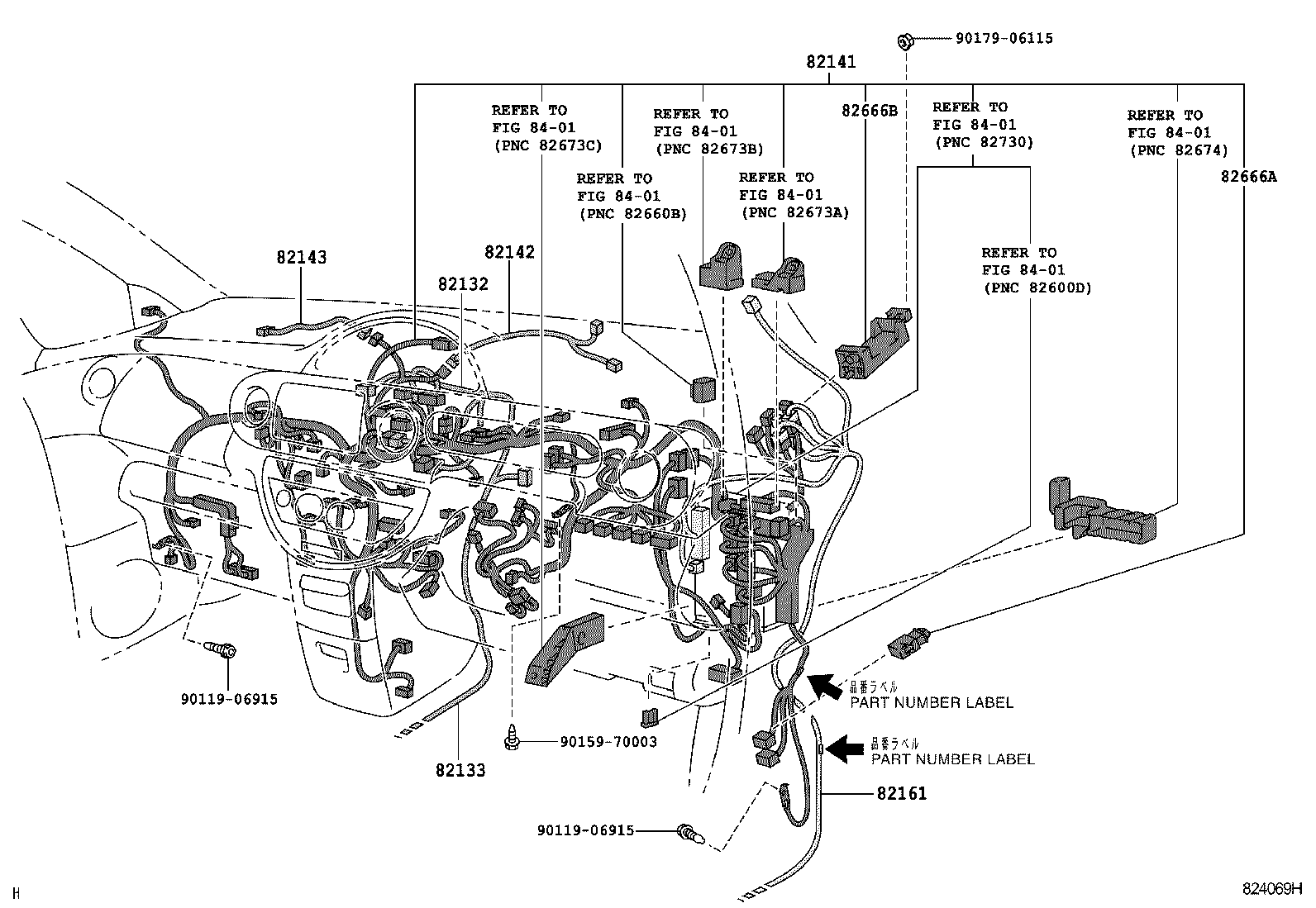

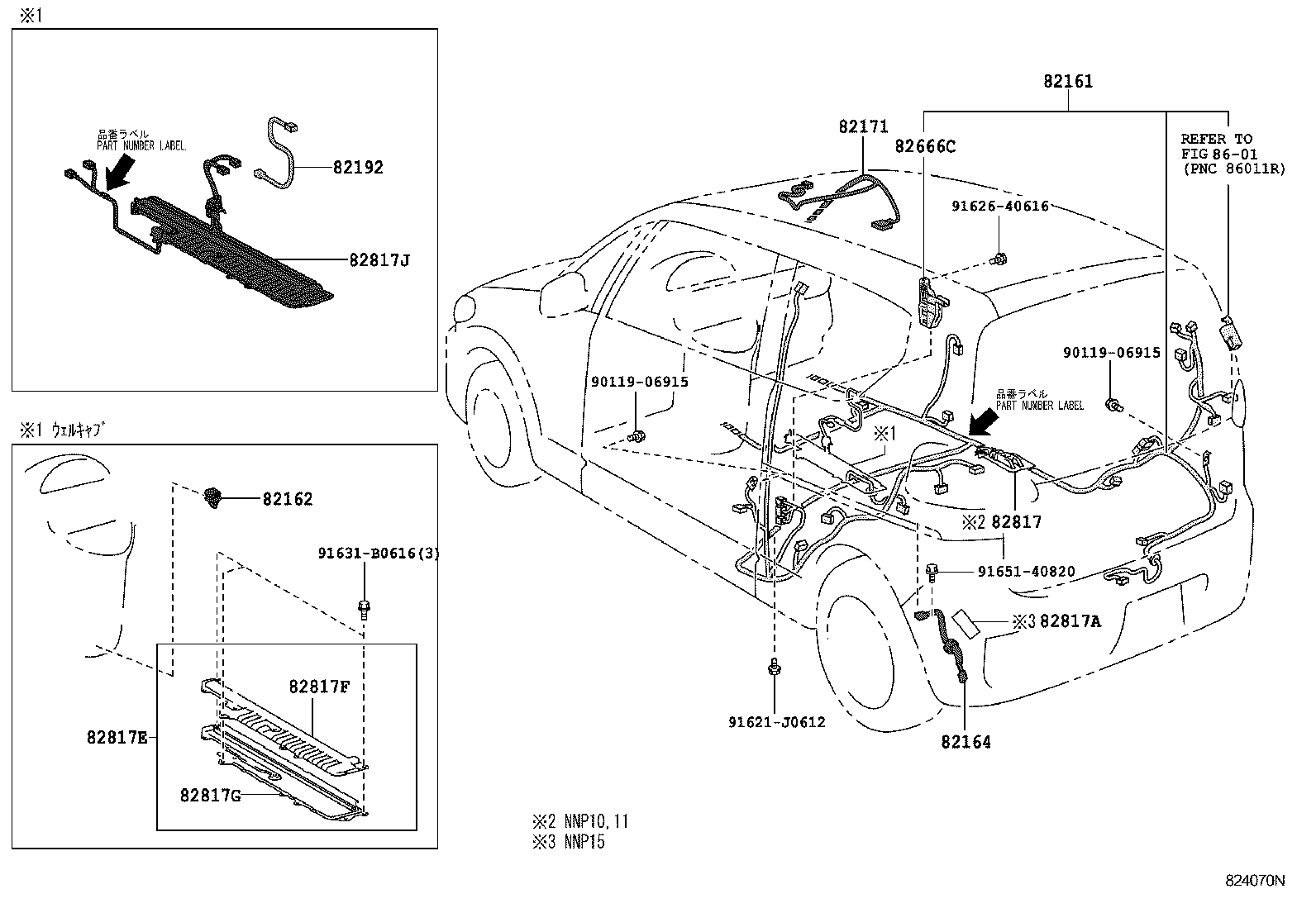

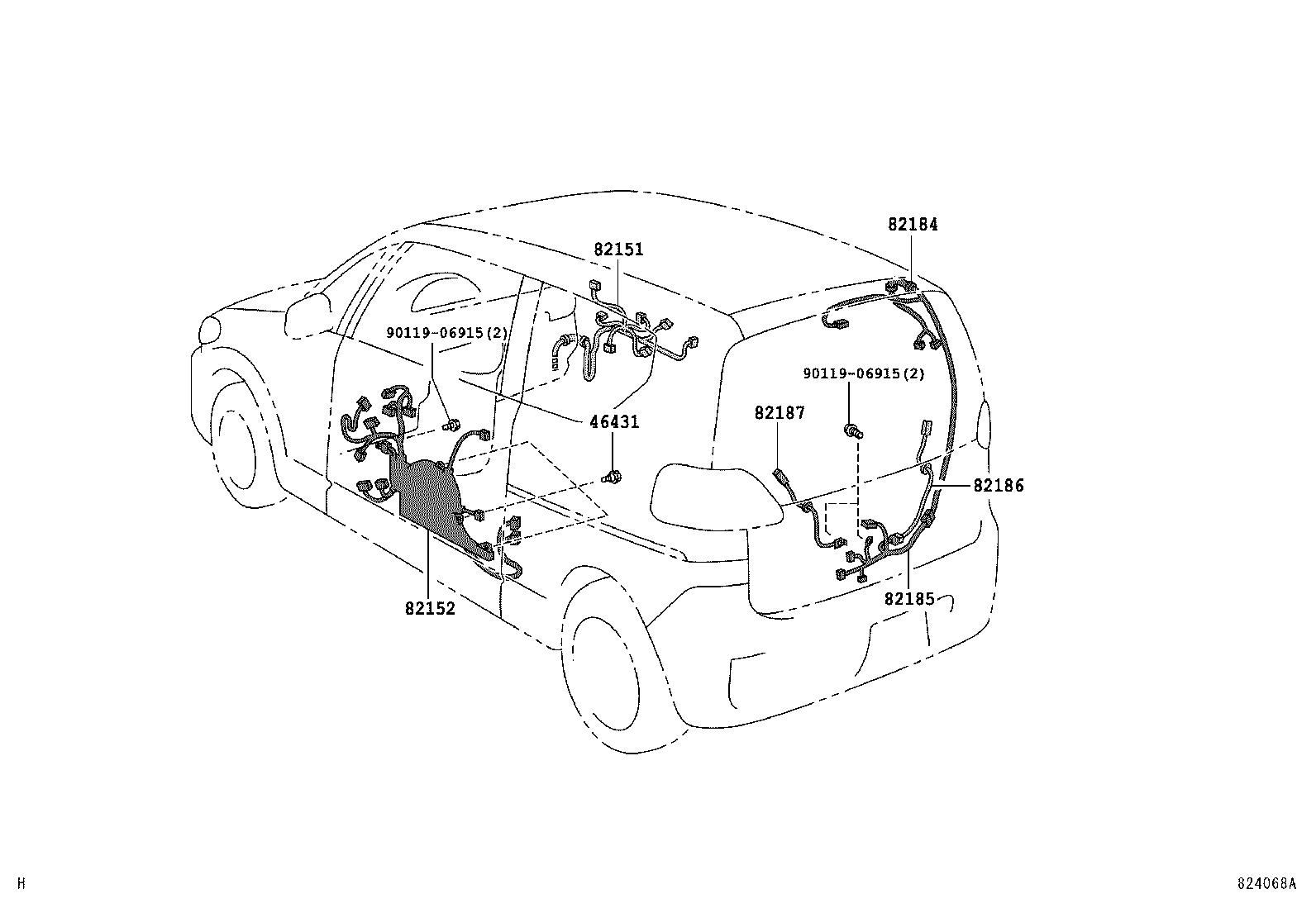

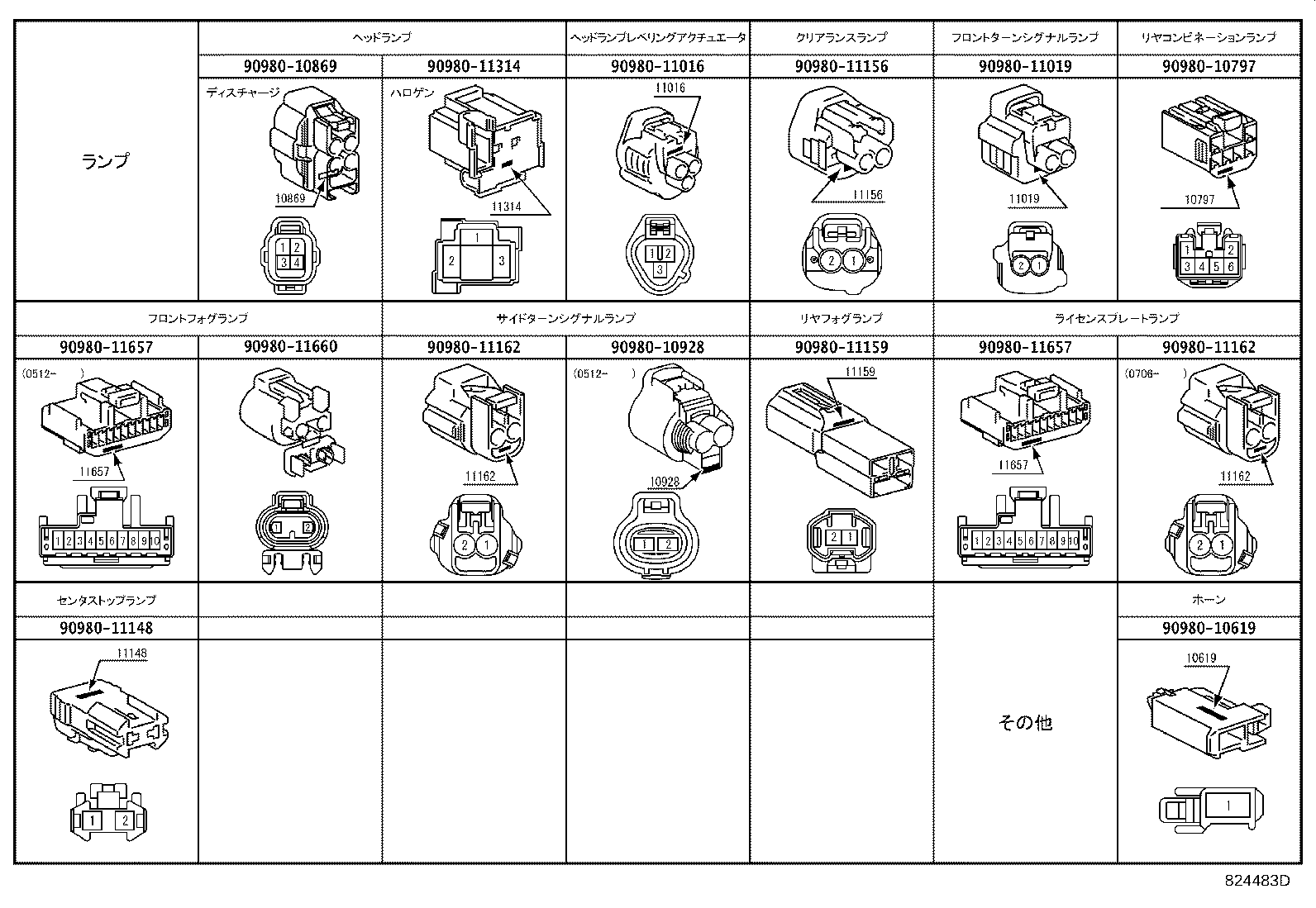

Figure 824066E 824066E 2004-07 → — Figure 824067B 824067B 2004-07 → — Figure 824069I 824069I 2004-07 → — Figure 824068A 824068A 2004-07 → — Figure 824070N 824070N 2004-07 → — Figure 824071D 824071D 2004-07 → — Figure 824483D 824483D 2004-07 → —

Part groups

PNCDescription
46431 Bolt, Wire
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
