Toyota Porte

2004-07 → 2012-06 · chassis NNP1# · catalogue 123110 · Japan

Supported model Data version 2012-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

32 part groups · 5 illustrations

Illustrations

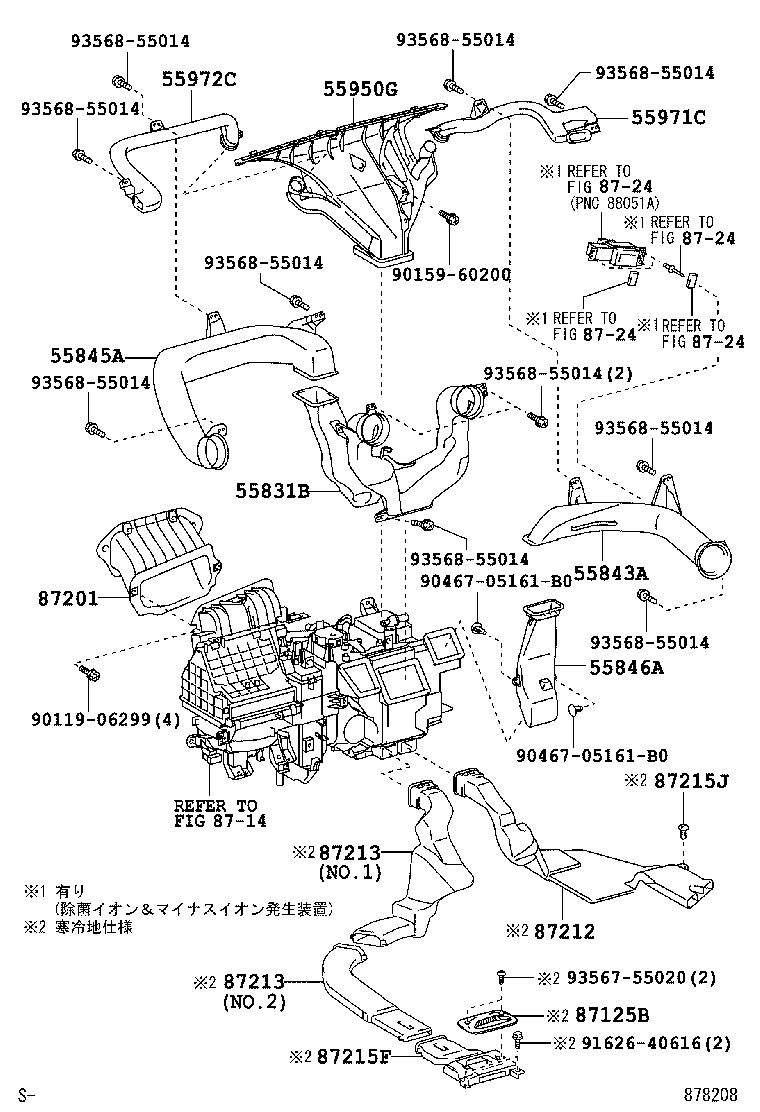

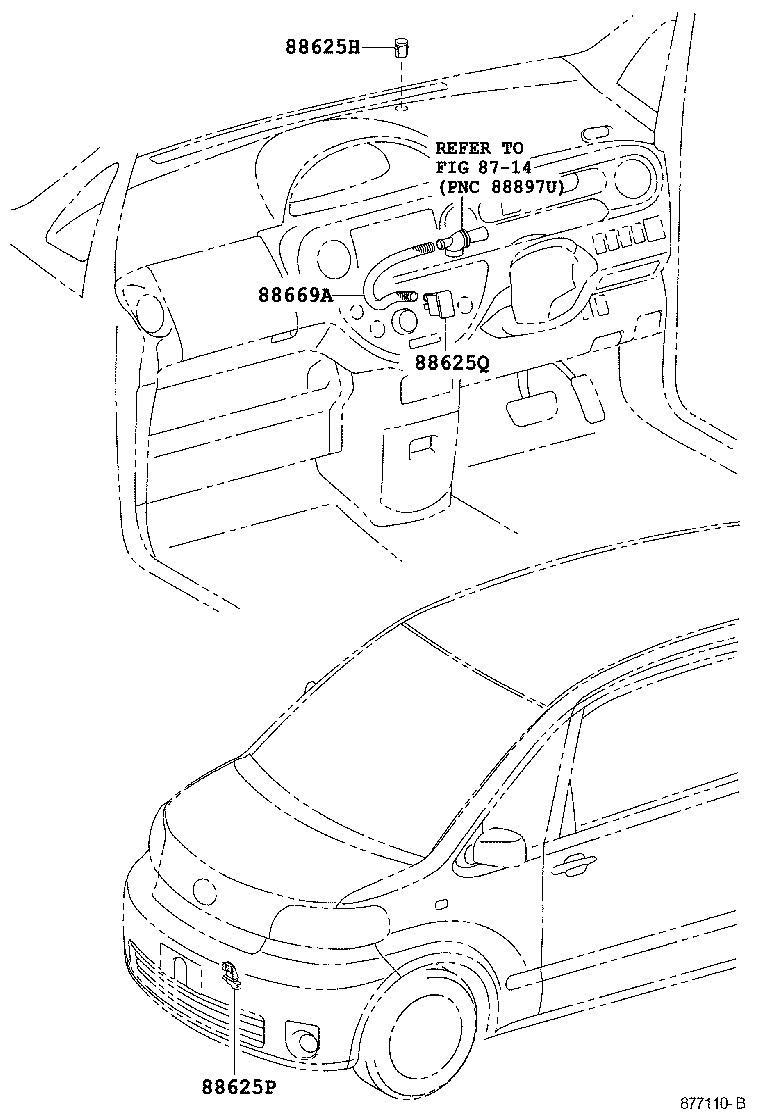

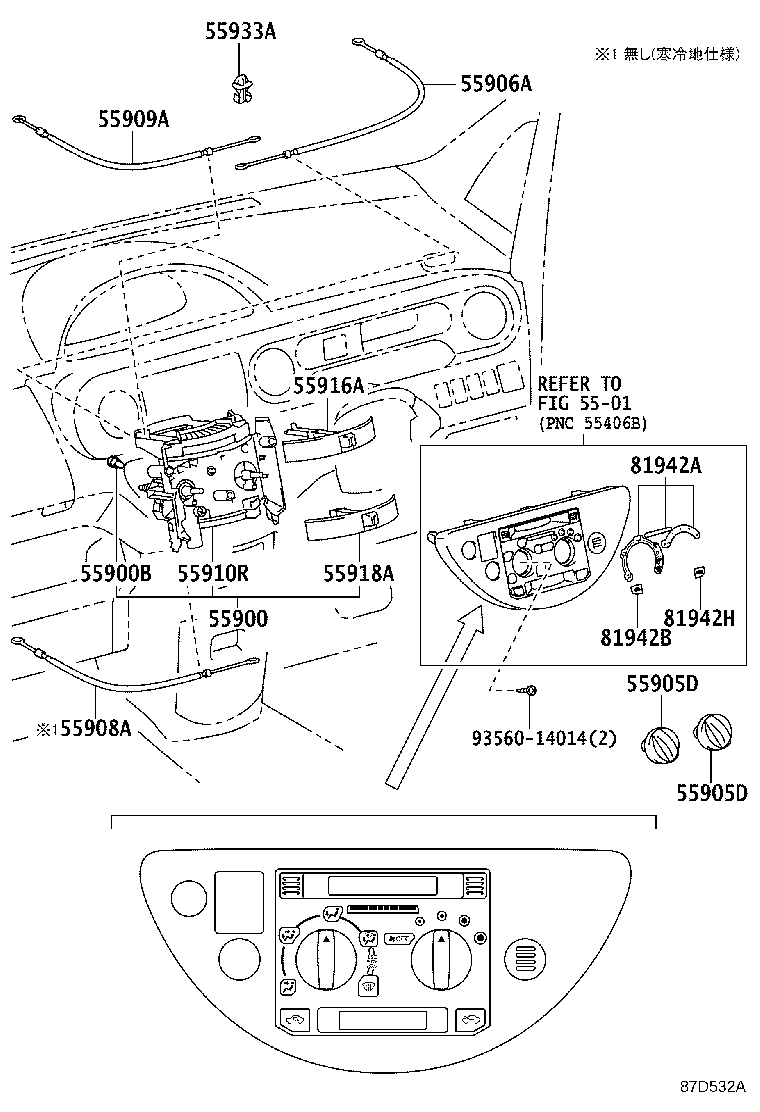

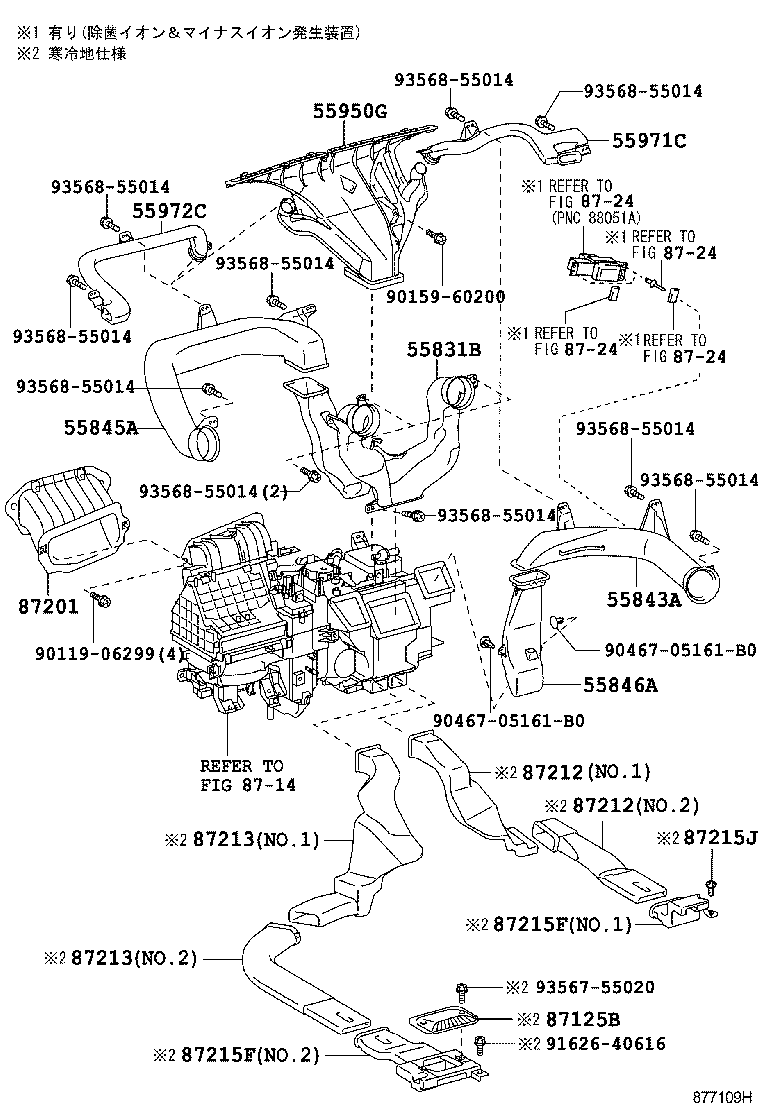

Figure 87D531A 87D531A 2004-07 → — Figure 87D532A 87D532A 2004-07 → — Figure 877109H 877109H 2004-07 → — Figure 878208 878208 2006-01 → — Figure 877110B 877110B 2004-07 → —

Part groups

PNCDescription
55412F Panel, Instrument Cluster Finish, Center
55831B Connector, Instrument Panel Register, RH
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905D Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910R Control Assy, Heater
55916A Lever, Cooler Control
55918A Lever, Air Inlet Damper Control
55933A Clamp, Heater Control Cable
55936B Switch, Center Cluster Module
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
87125B Grille, Heater Air Outlet
87201 Duct Sub-assy, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87215J Clip (FOR AIR REAR DUCT)
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
