Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

5 part groups · 2 illustrations

Illustrations

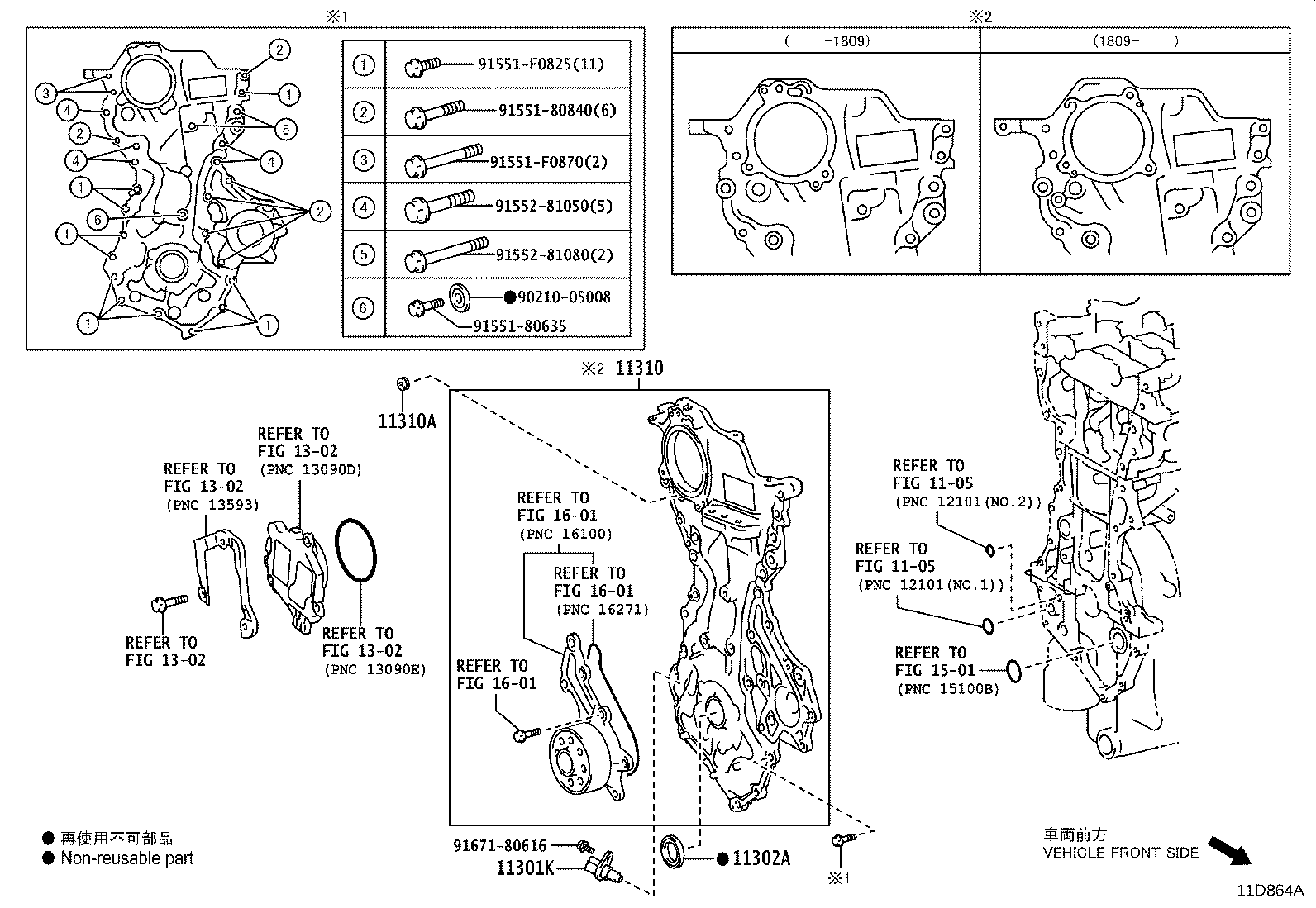

Figure 117600E 117600E 2012-07 → — Figure 11D864A 11D864A 2015-07 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11310 Cover Assy, Timing Chain
11310A Plug, Taper Screw(FOR TIMING CHAIN COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
