Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 4 illustrations

Illustrations

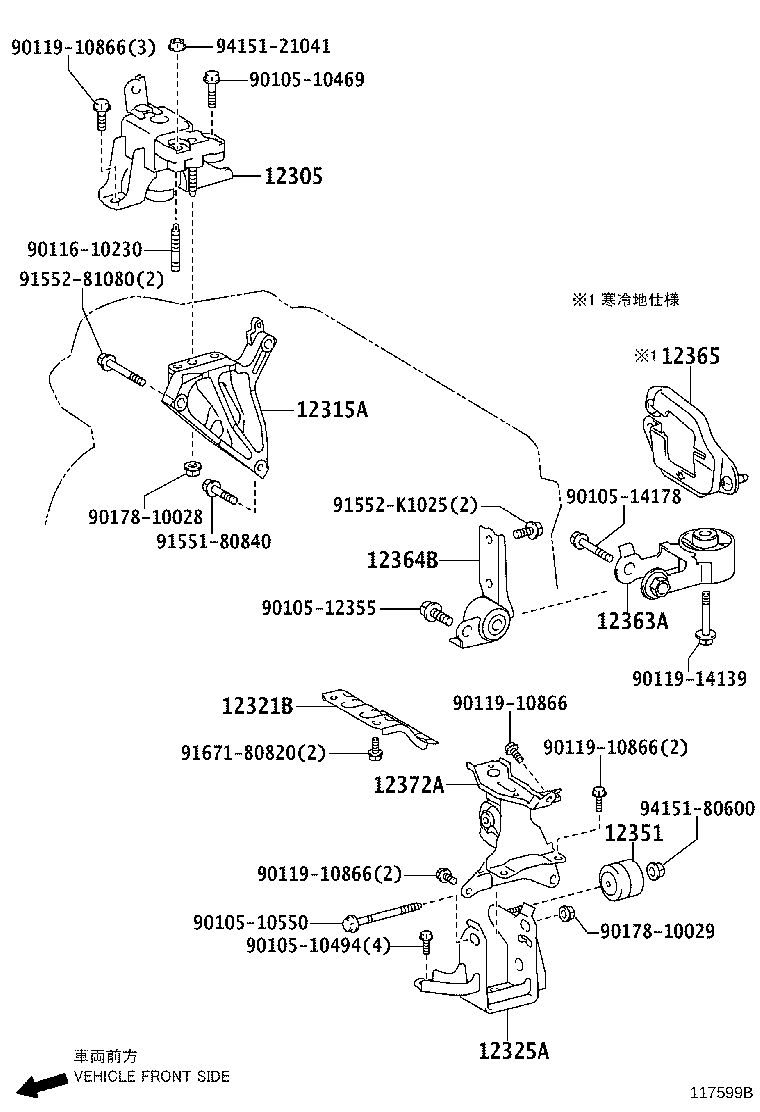

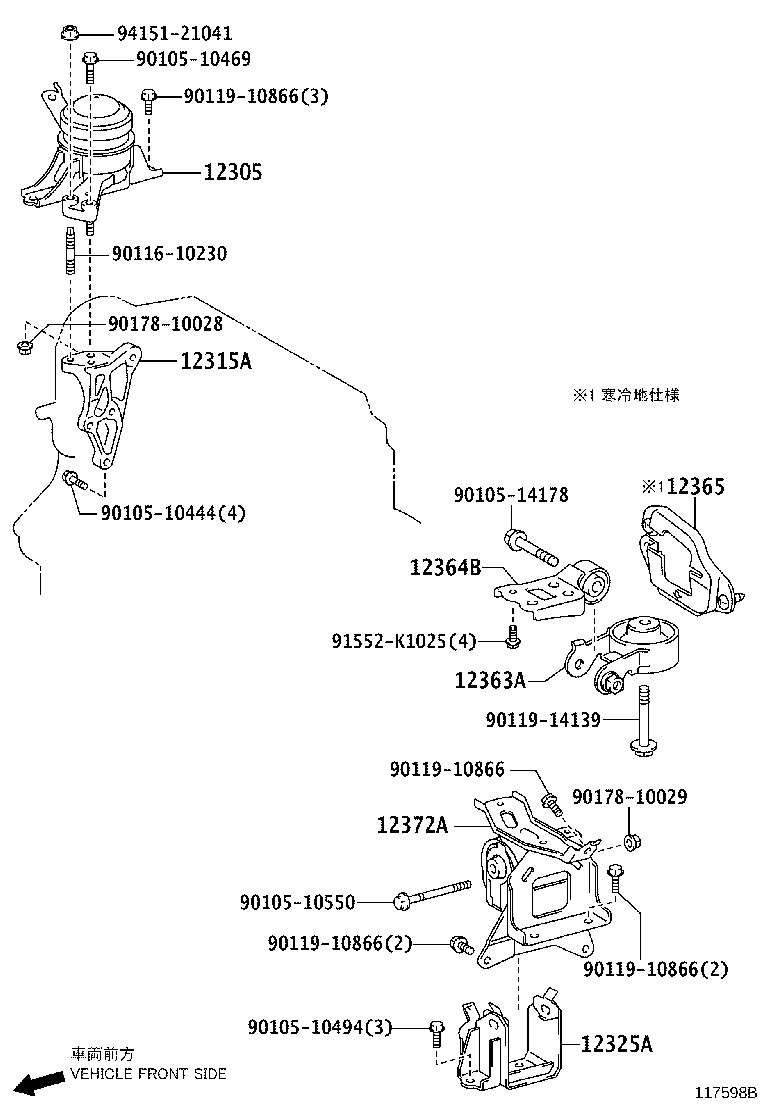

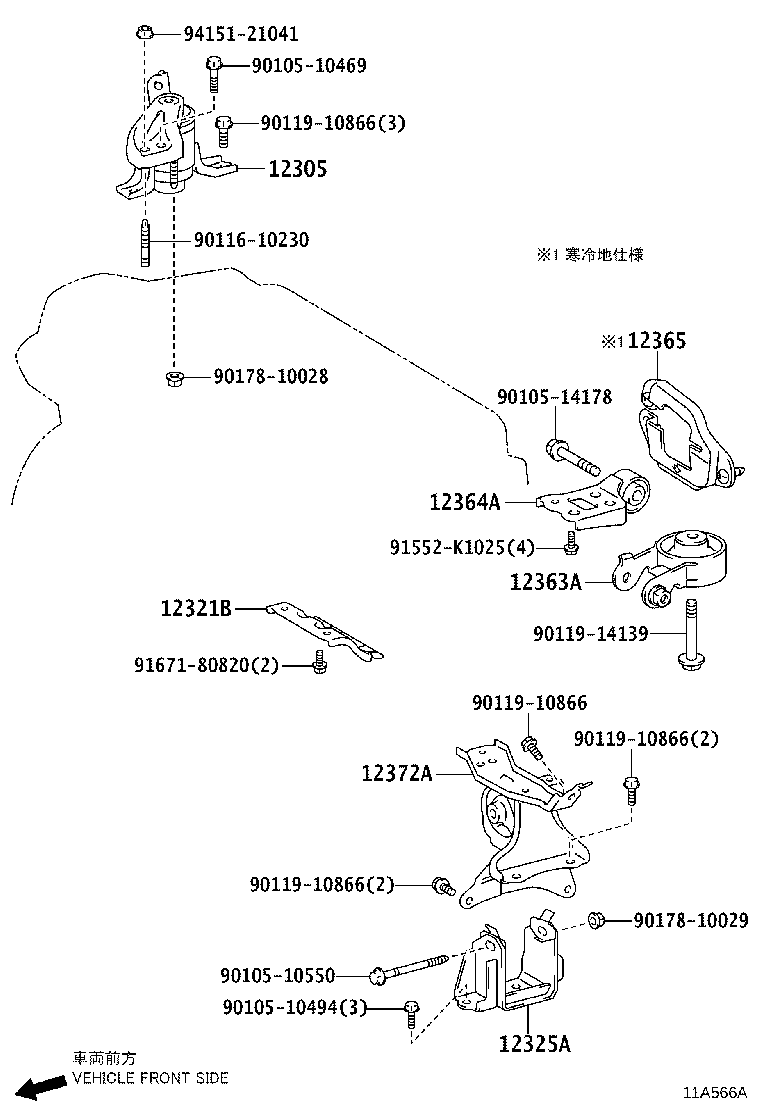

Figure 117597B 117597B 2012-07 → — Figure 117598B 117598B 2012-07 → — Figure 117599B 117599B 2012-07 → — Figure 11A566A 11A566A 2015-07 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12363A Rod, Engine Moving Control
12364A Rod, Engine Lateral Control
12364B Rod, Engine Moving Control, NO.2
12365 Cover, Engine Moving Control Rod
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
43497B Bracket, Drive Shaft Heat Insulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
