Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 4 illustrations

Illustrations

Figure 177726C

177726C 2012-07 → —

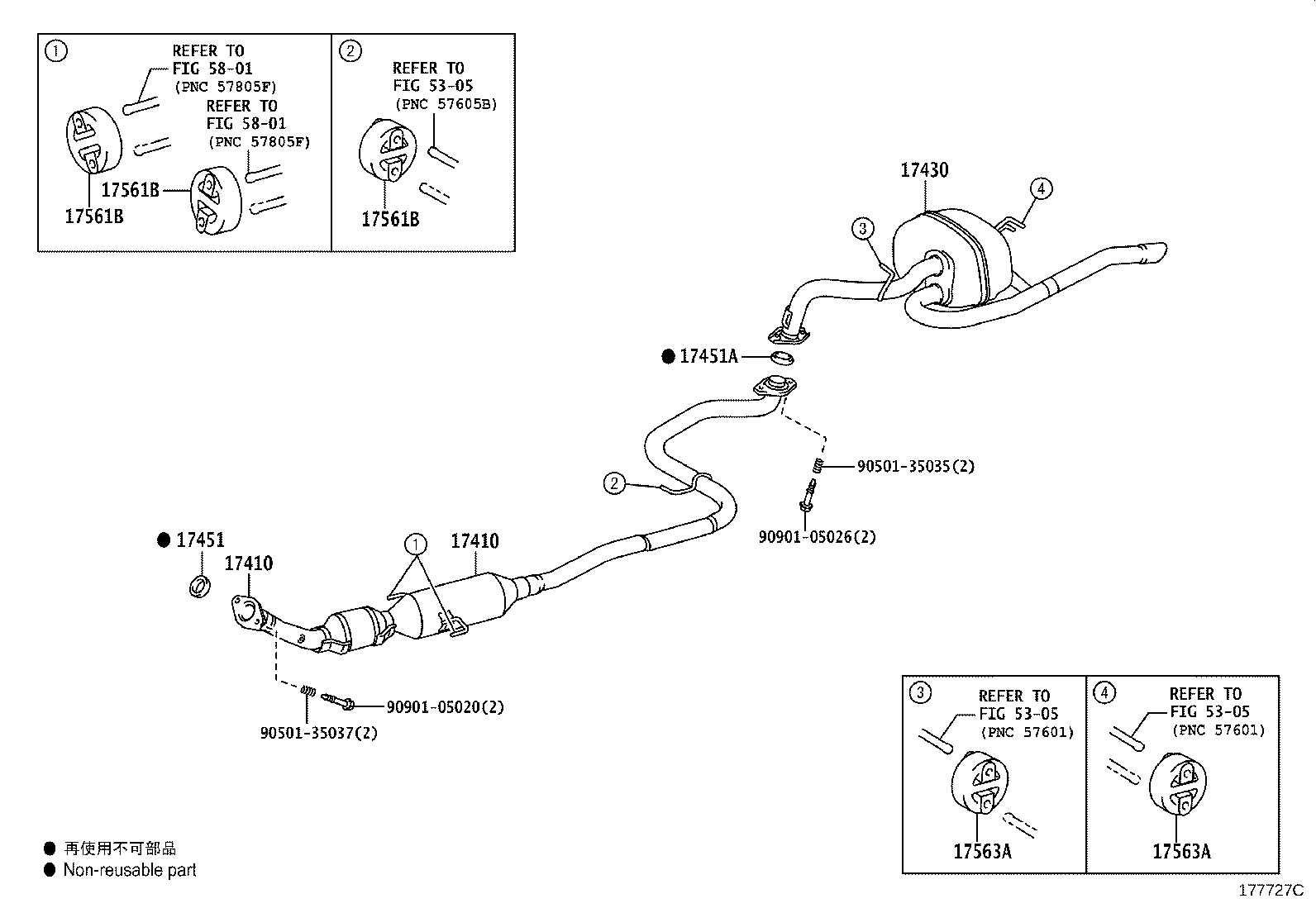

Figure 177727C

177727C 2012-07 → —

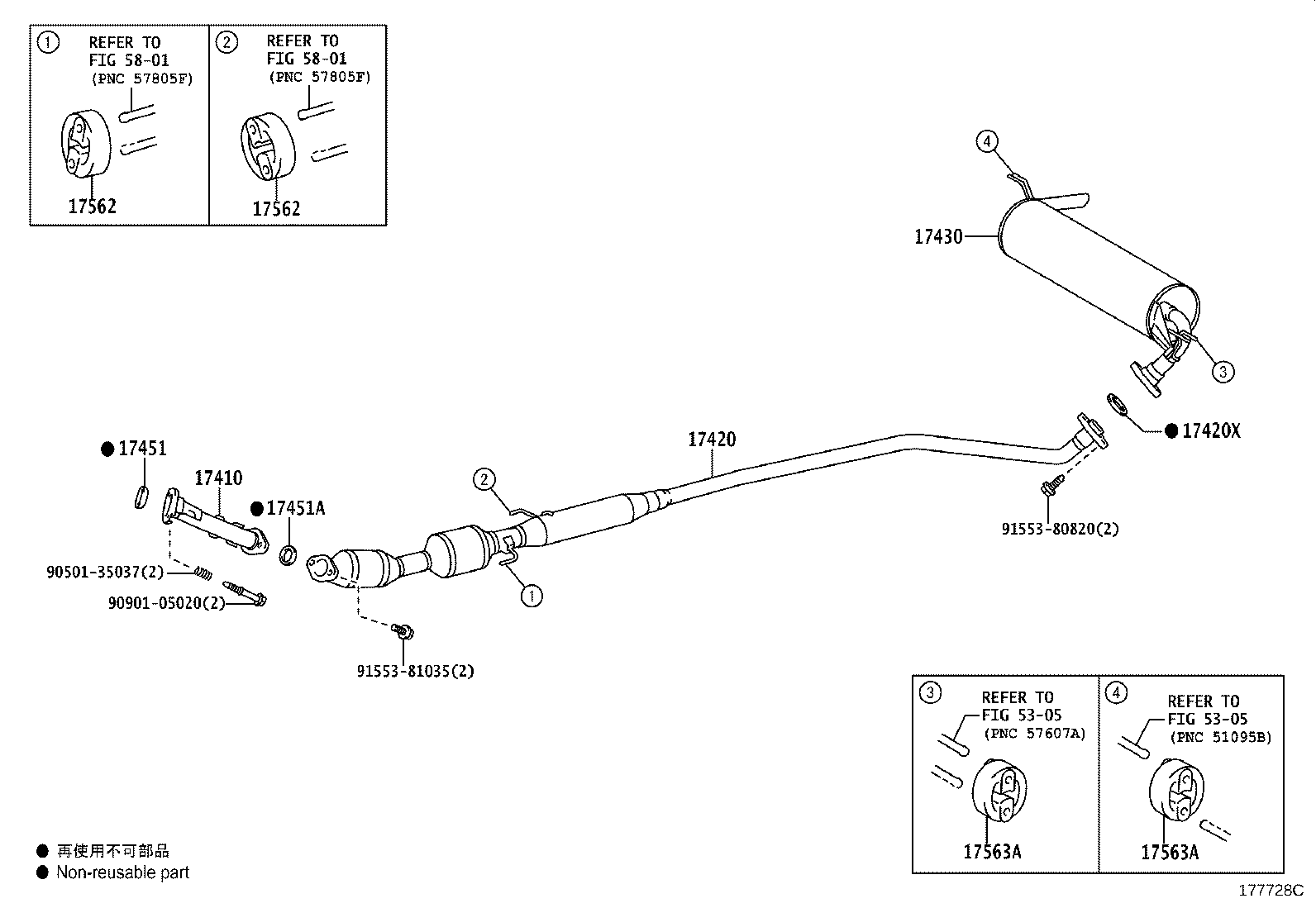

Figure 177728C

177728C 2012-07 → —

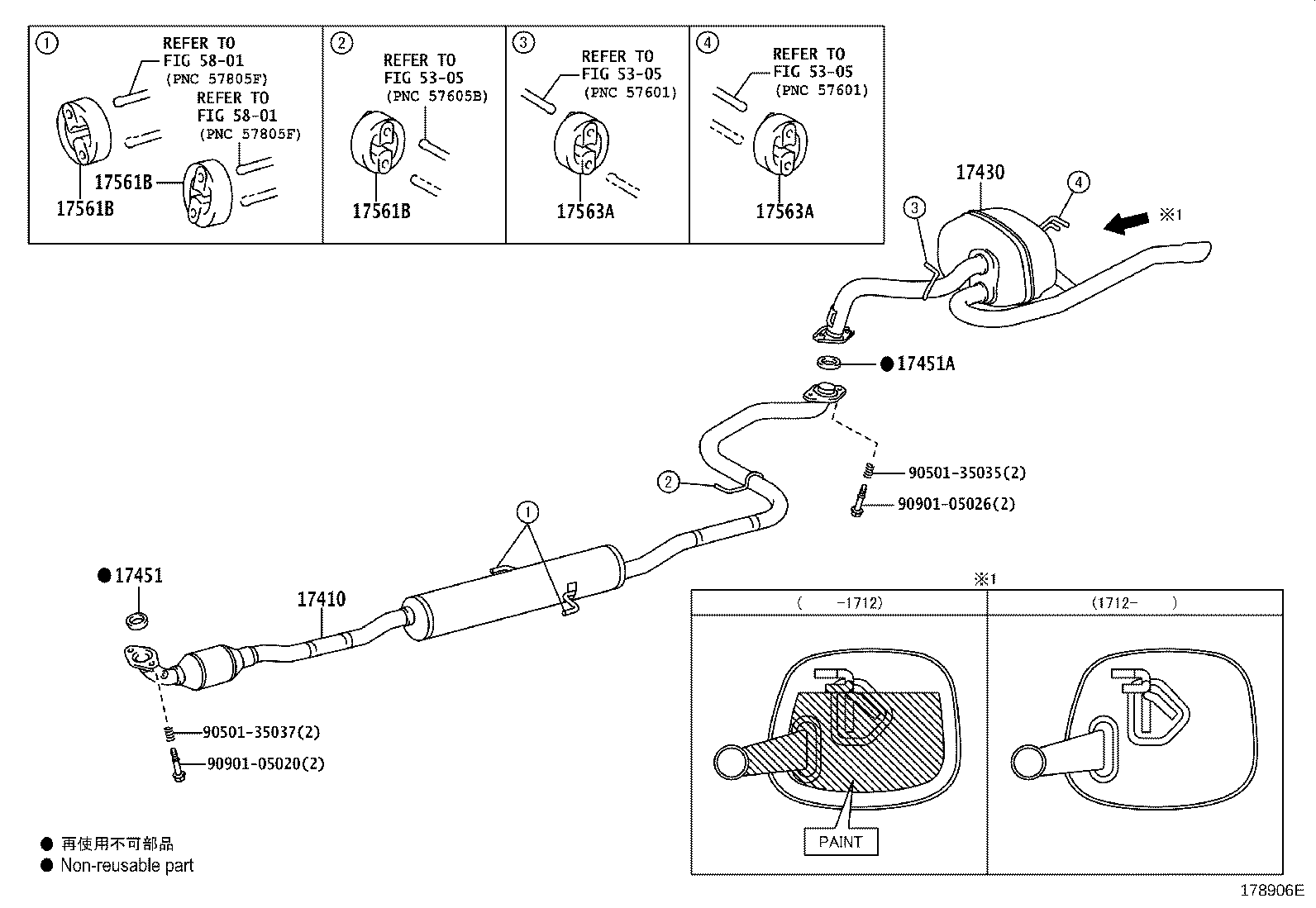

Figure 178906E

178906E 2015-07 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17420	Pipe Assy, Exhaust, Center
17420X	Gasket, Exhaust Pipe, Center
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17451A	Gasket, Exhaust Pipe, NO.2
17561B	Support, Exhaust Pipe, NO.1
17562	Support, Exhaust Pipe, NO.2
17563A	Support, Exhaust Pipe, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
