Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

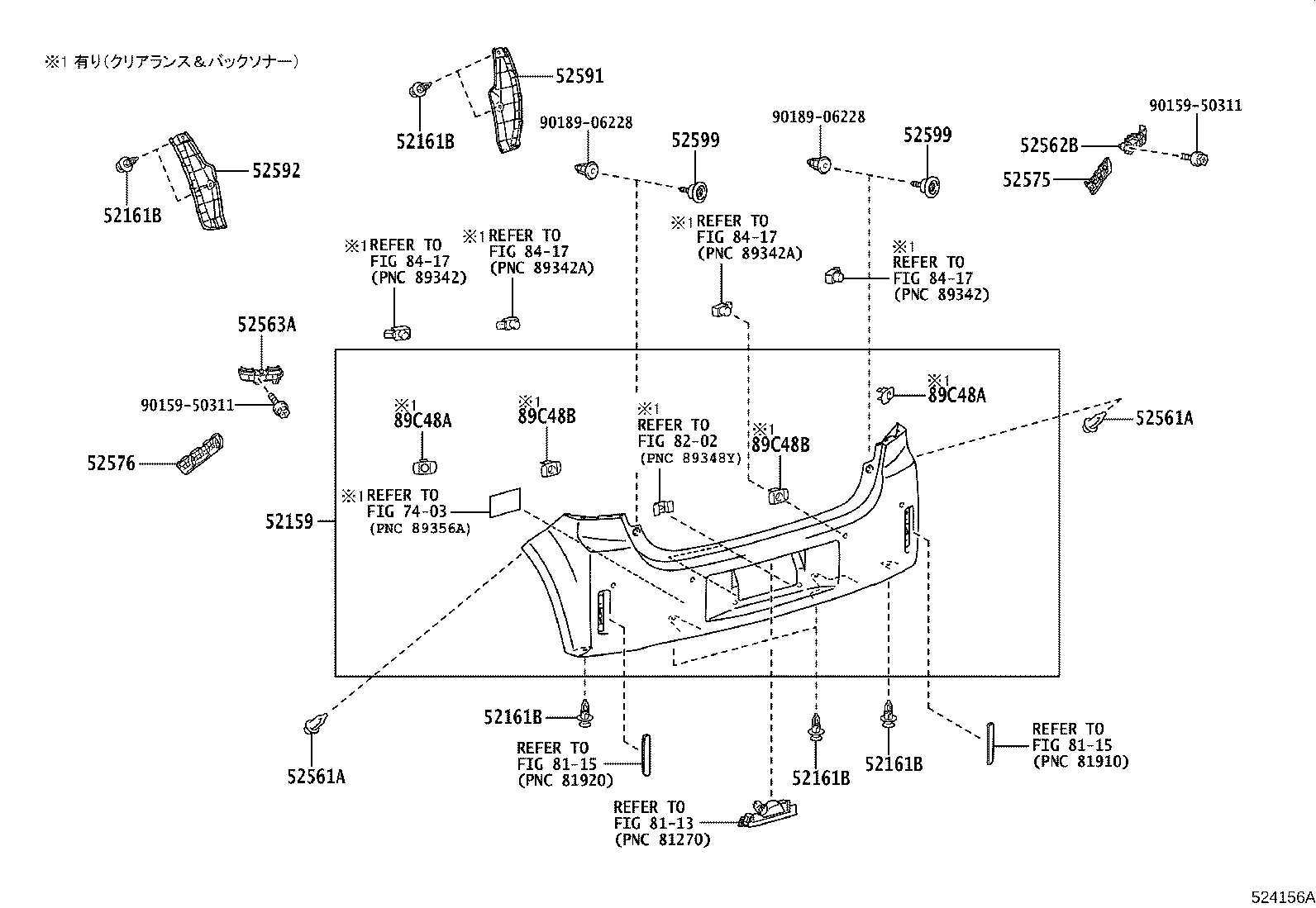

Figure 522698C 522698C 2012-07 → — Figure 524156A 524156A 2012-07 → —

Part groups

PNCDescription
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52561A Clip(FOR REAR BUMPER RETAINER)
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52599 Stopper, Rear Bumper, Upper
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
