Toyota Porte/Spade
2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan
Supported model
Data version 2022-07

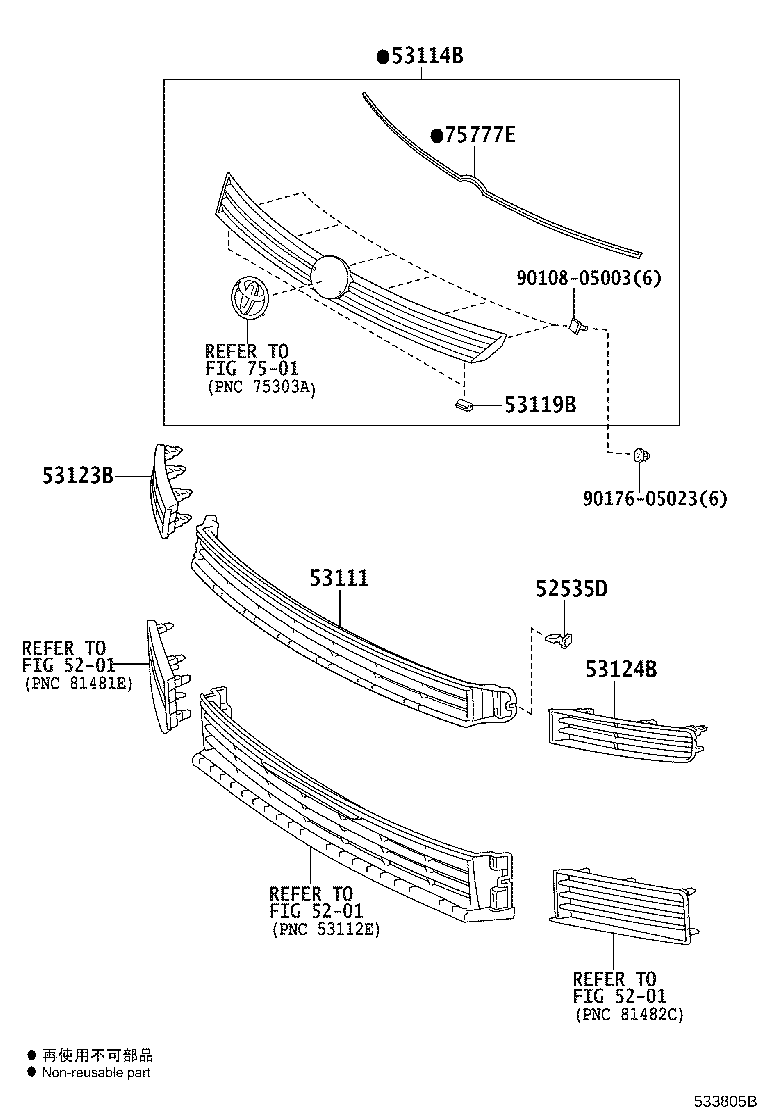

Radiator Grille
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161K | Piece, Front Bumper |
| 52535D | Retainer, Front Bumper Side |
| 53111 | Grille, Radiator |
| 53114B | Grille, Radiator, Upper |
| 53119B | Protector, Radiator Grille |
| 53123B | Moulding, Radiator Grille Side, RH |
| 53124B | Moulding, Radiator Grille Side, LH |
| 75777E | Pad, Hood Front Moulding |
| 89C48G | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
