Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

25 part groups · 8 illustrations

Illustrations

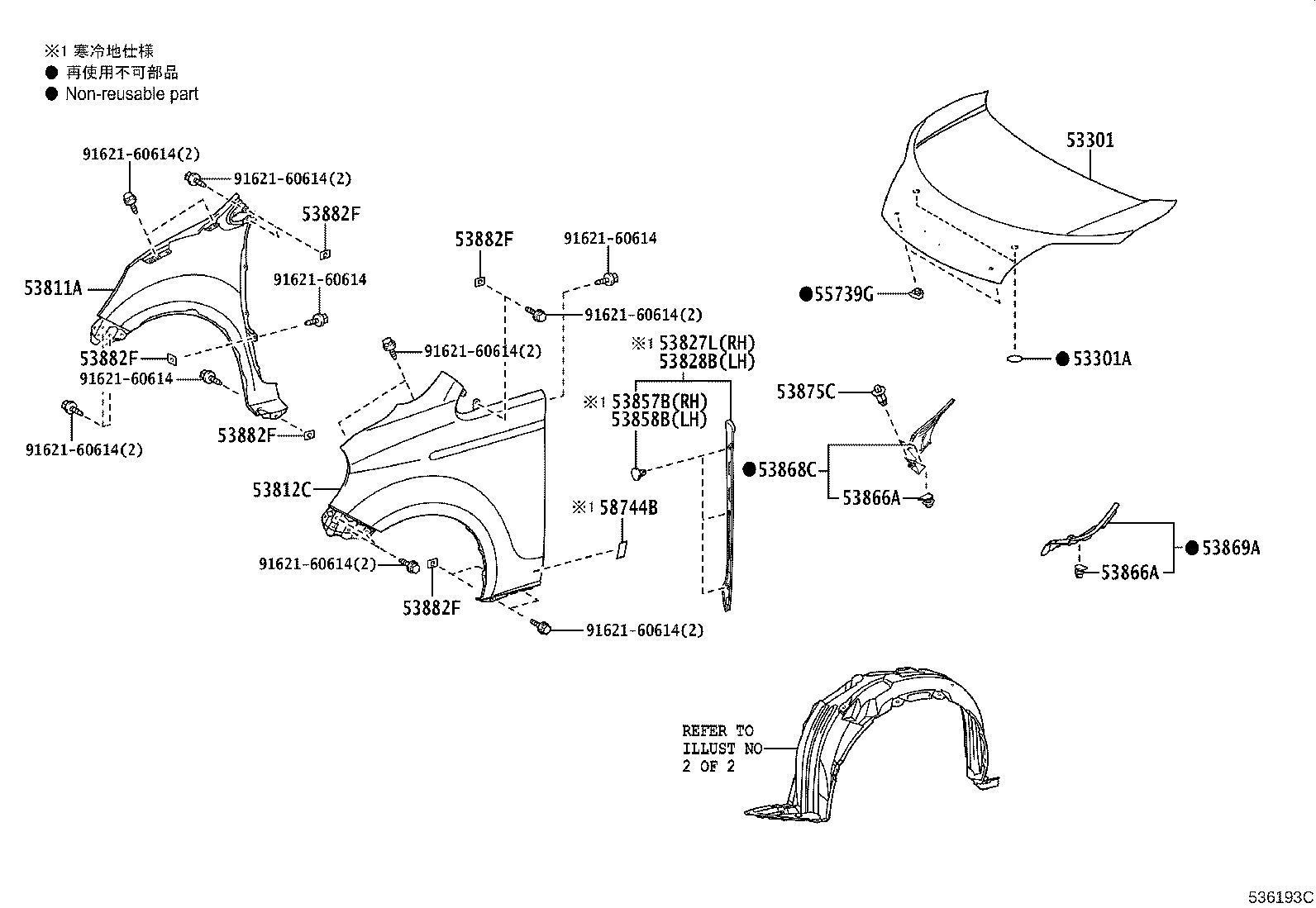

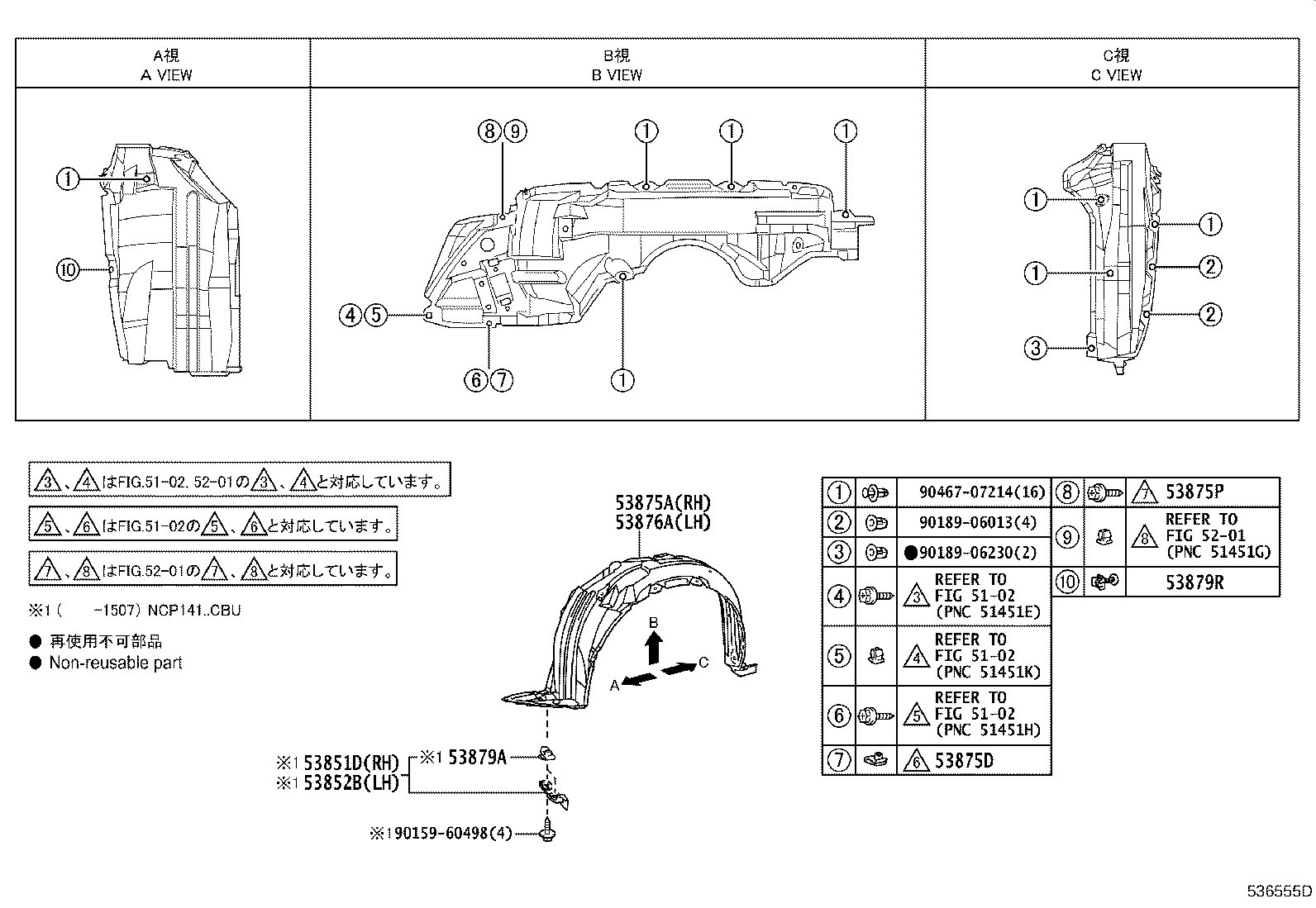

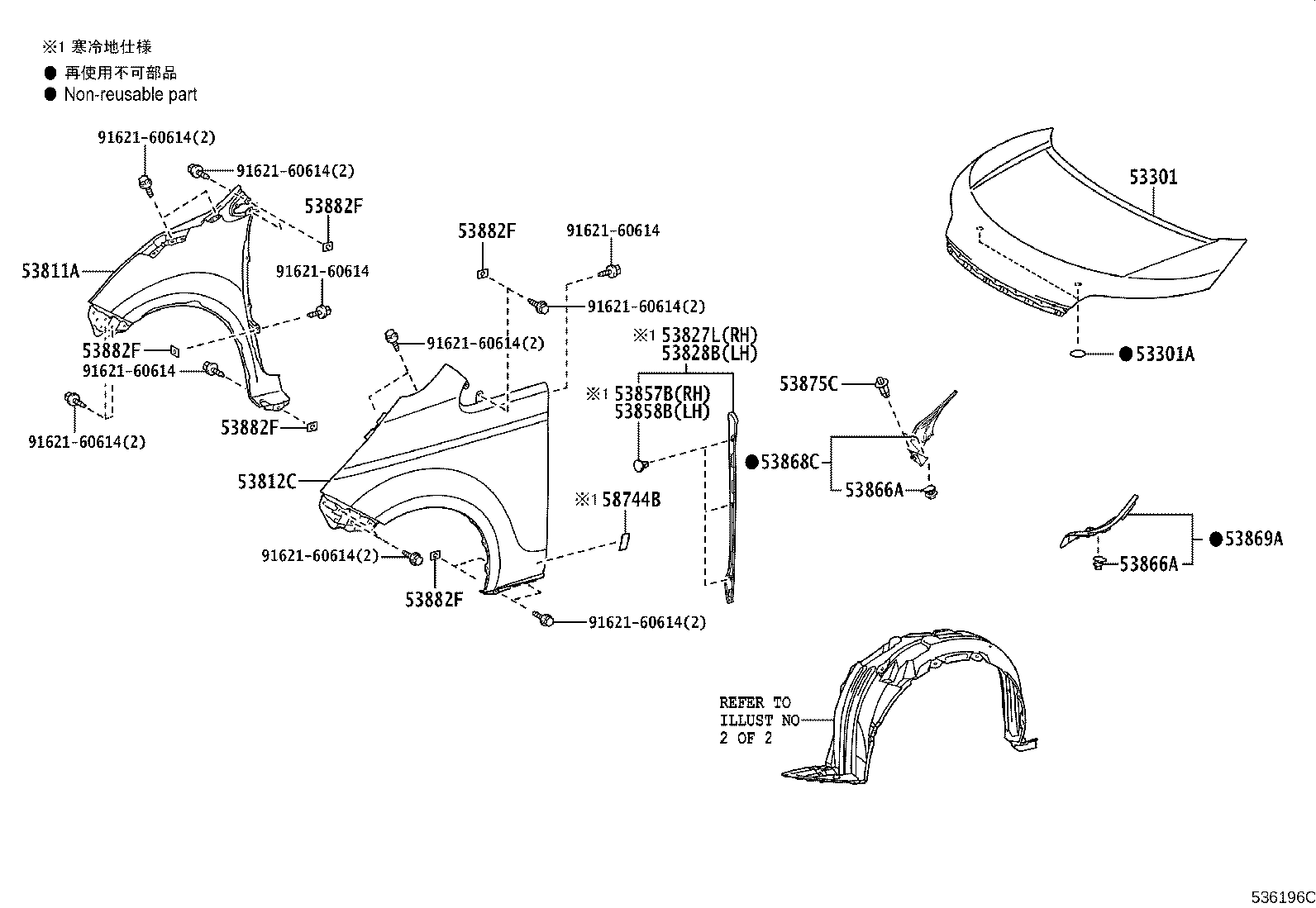

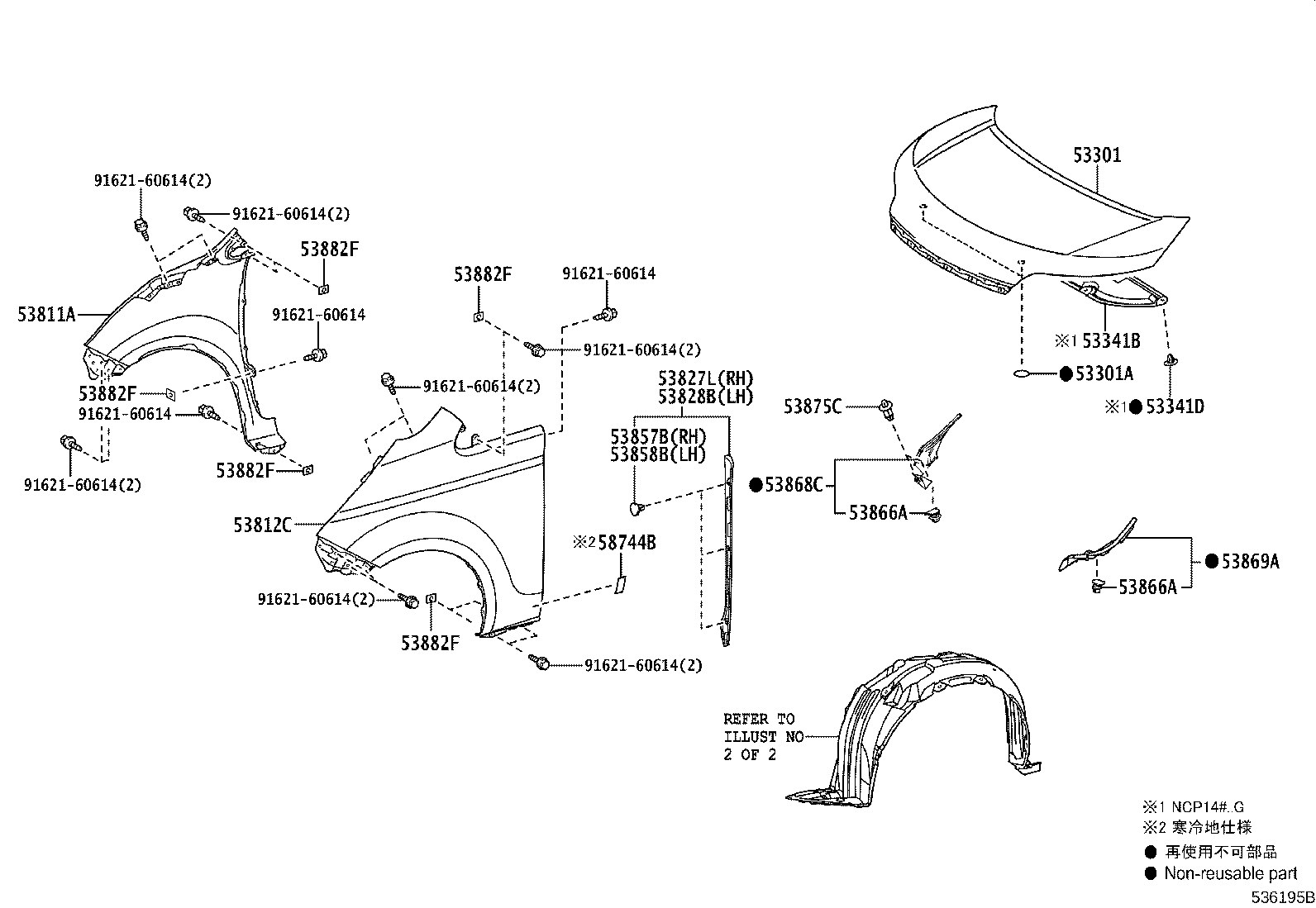

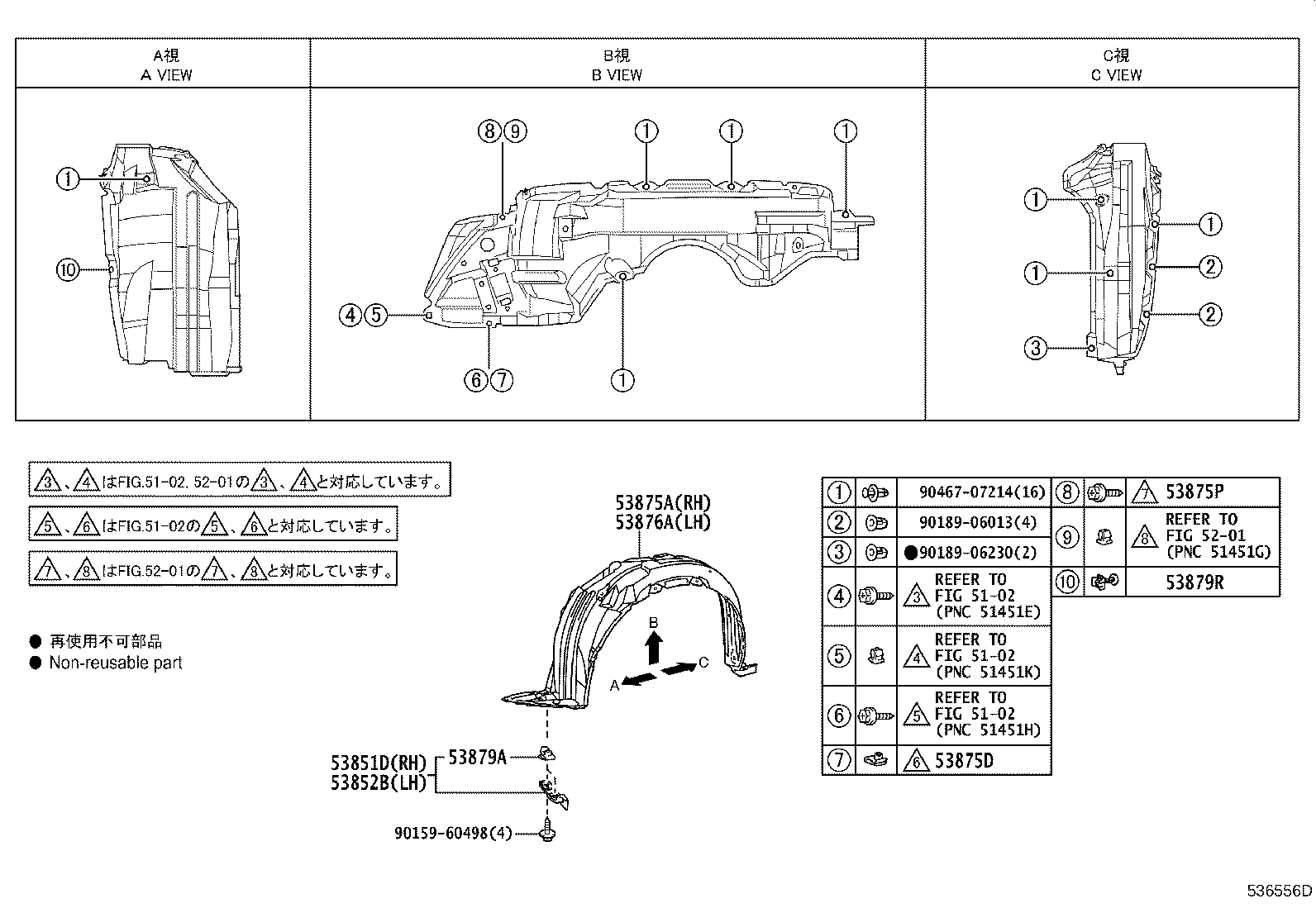

Figure 536192C 536192C 2012-07 → — Figure 536192C 536192C 2015-07 → — Figure 536193C 536193C 2012-07 → 2015-07 Figure 536195B 536195B 2012-07 → — Figure 536195B 536195B 2015-07 → — Figure 536196C 536196C 2012-07 → 2015-07 Figure 536555D 536555D 2012-07 → — Figure 536556D 536556D 2012-07 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301A Plug, Hole(FOR HOOD)
53341B Insulator, Hood
53341D Clip(FOR HOOD INSULATER)
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857B Retainer, Front Wheel Opening Extension, RH
53858B Retainer, Front Wheel Opening Extension, LH
53866A Clip(FOR FRONT FENDER TO COWL SIDE SEAL)
53868C Seal, Front Fender TO Cowl Side, NO.2 RH
53869A Seal, Front Fender TO Cowl Side, NO.2 LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53879R Retainer, Front Fender Liner
53882F Seal, Front Fender
55739G Stopper, Hood
58744B Protecter, Front Fender Panel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
