Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 3 illustrations

Illustrations

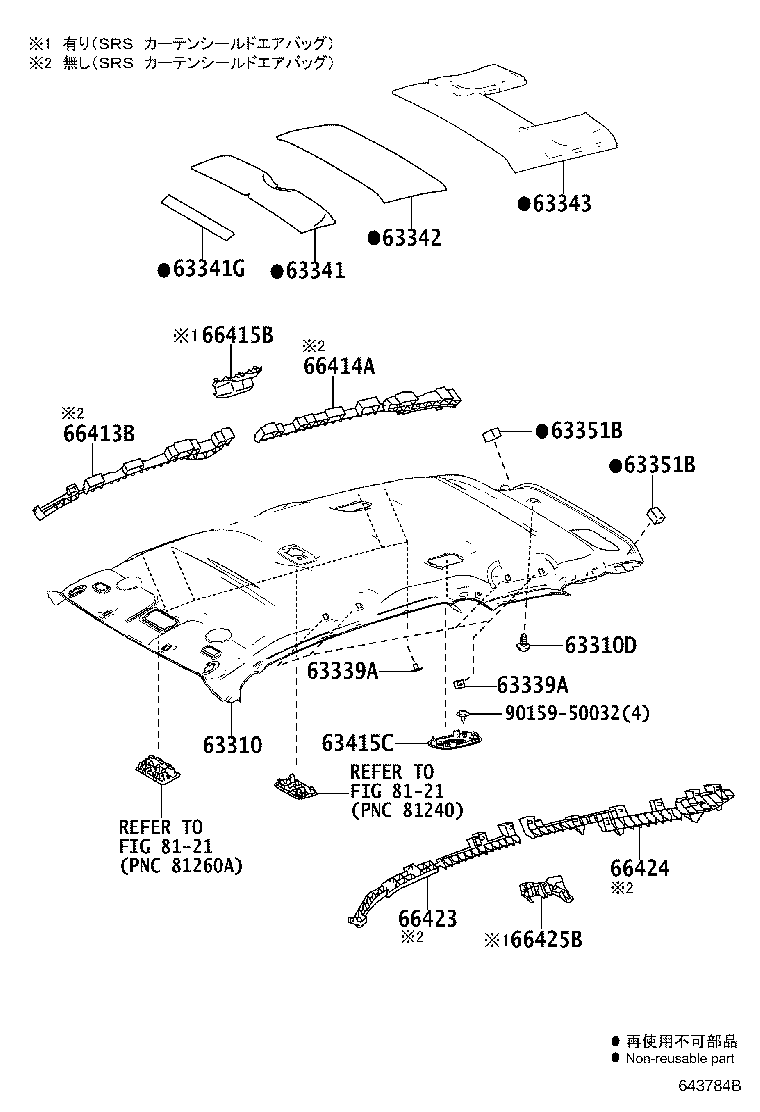

Figure 643137D 643137D 2012-07 → 2015-07 Figure 643137D 643137D 2012-07 → — Figure 643784B 643784B 2015-07 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63415C Grille, Roof Speaker, RH
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
