Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

22 part groups · 18 illustrations

Illustrations

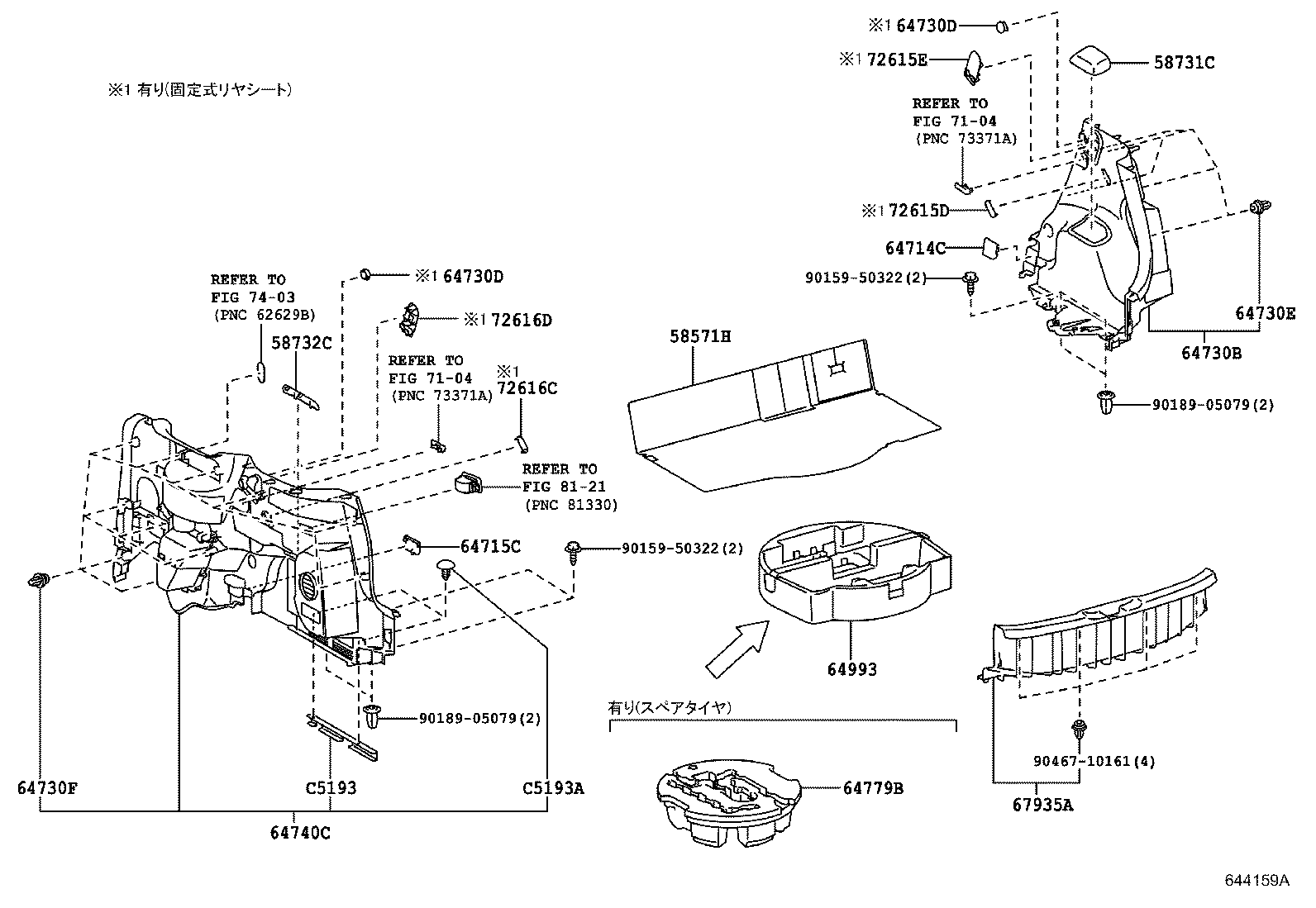

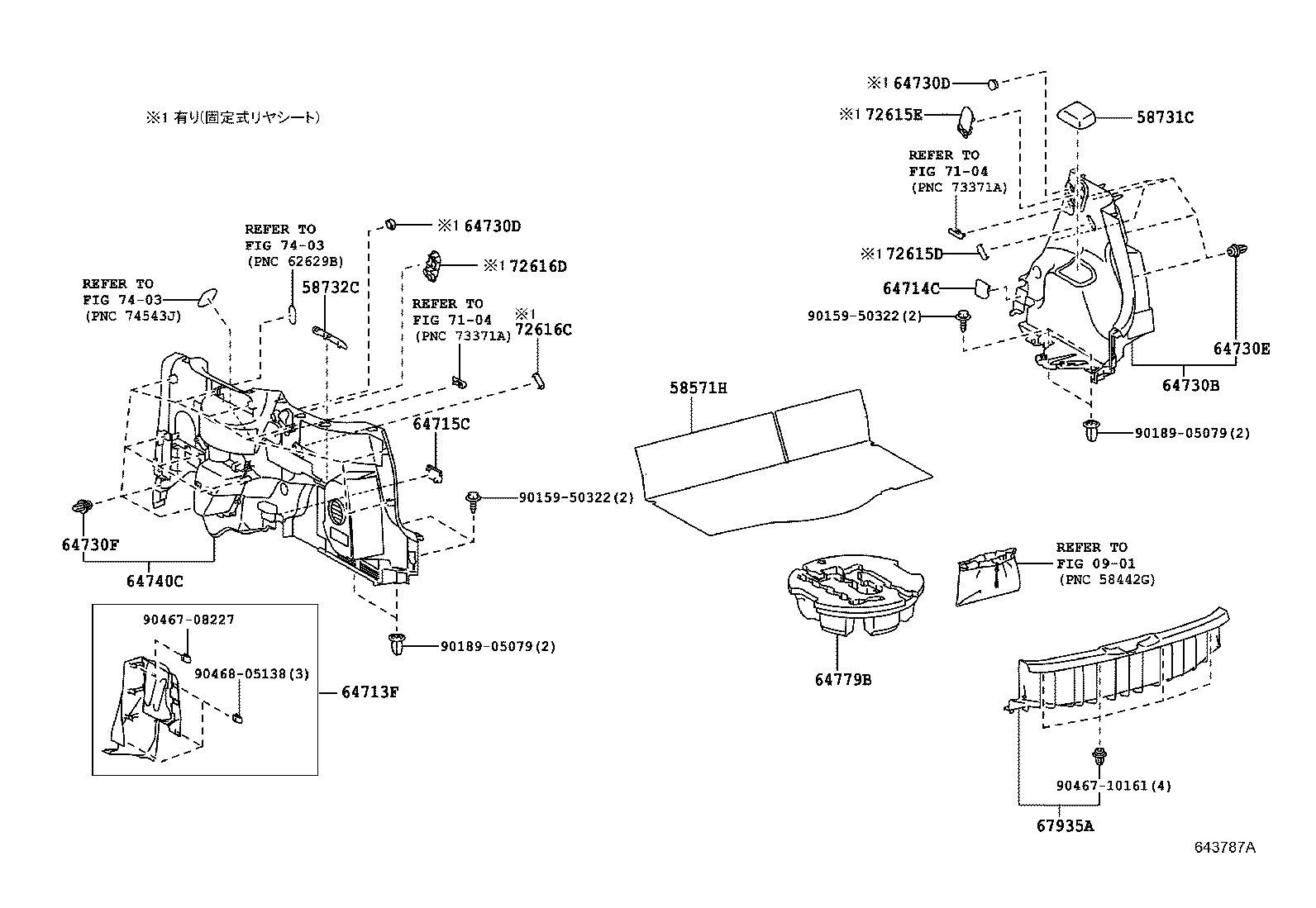

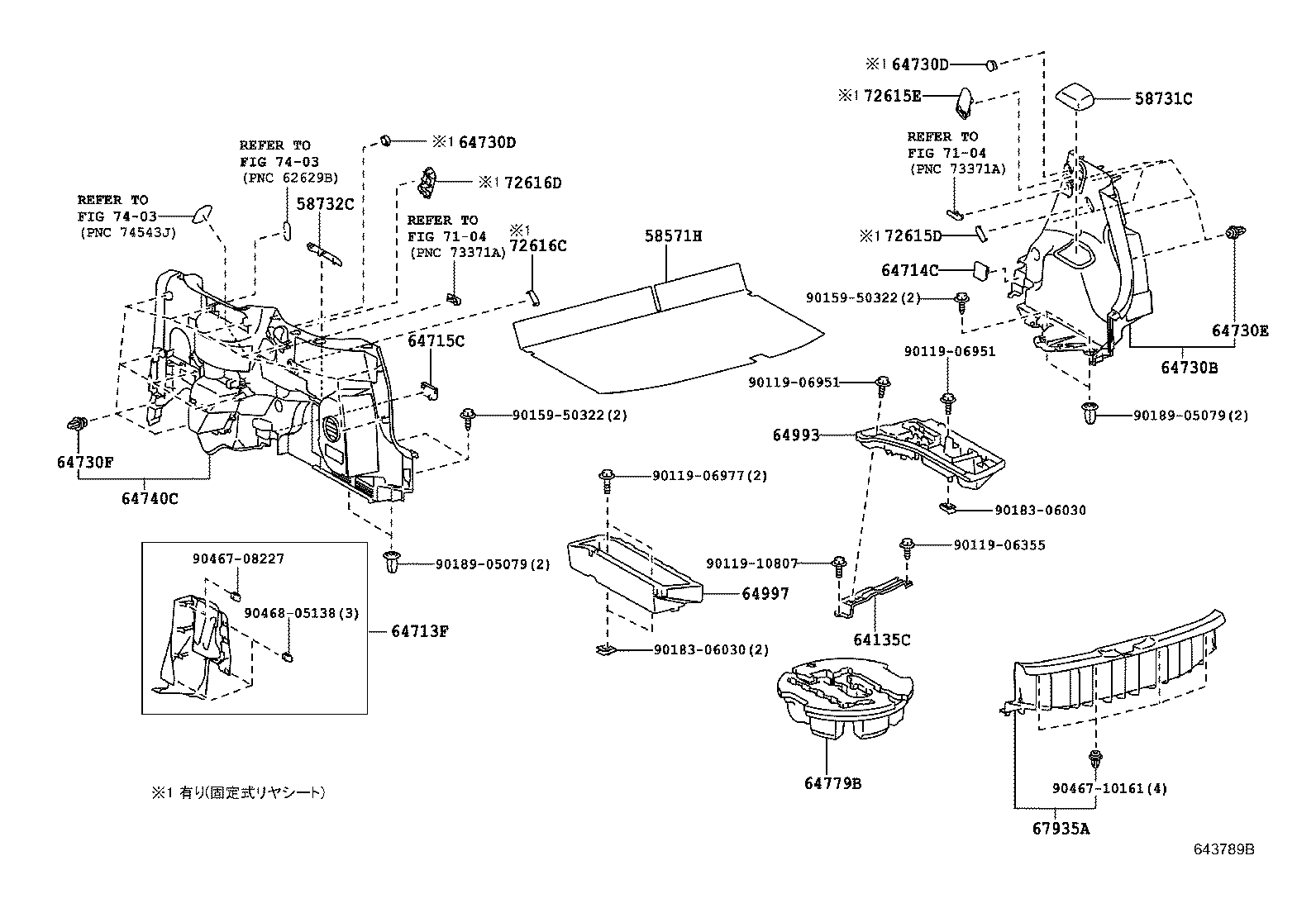

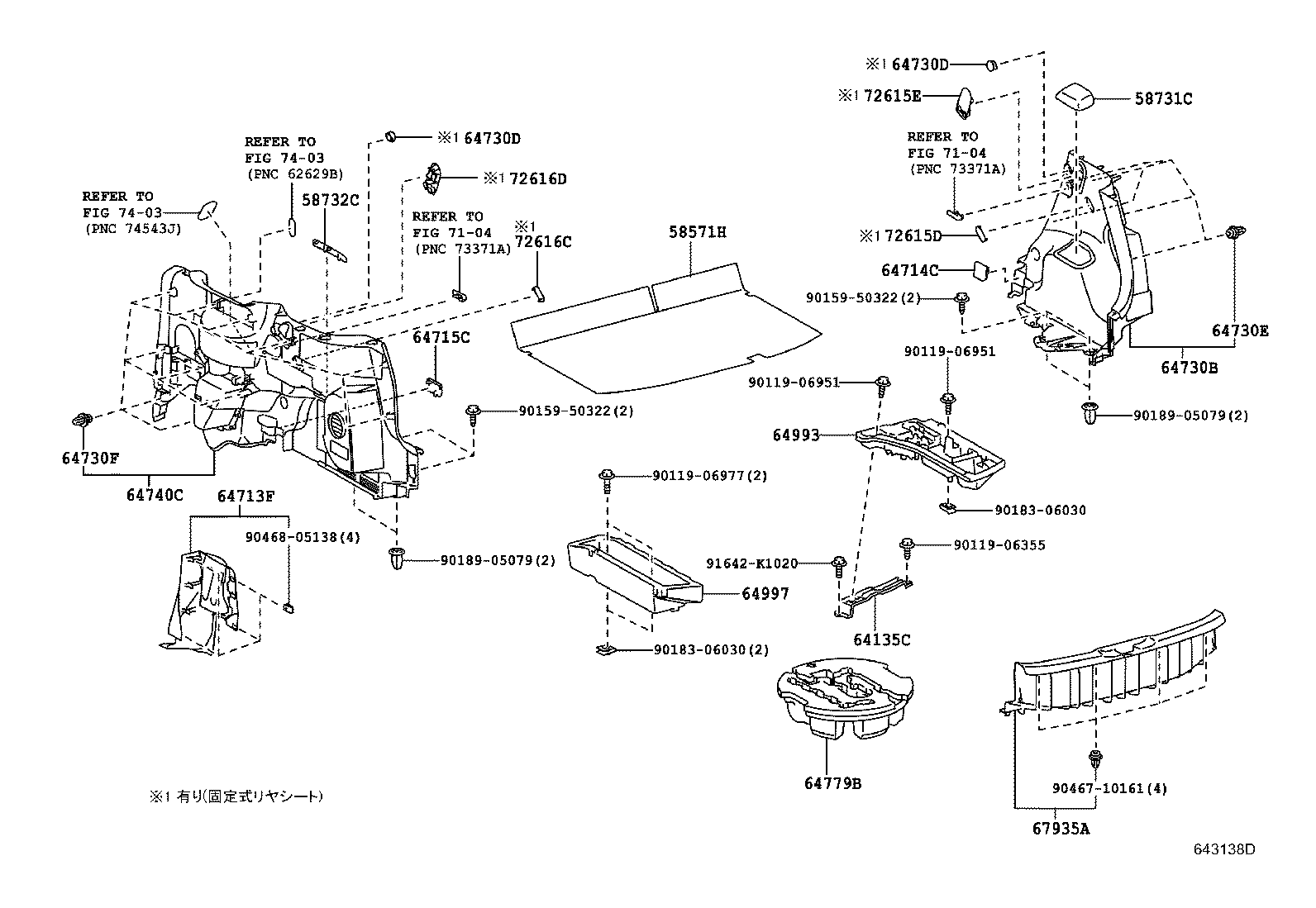

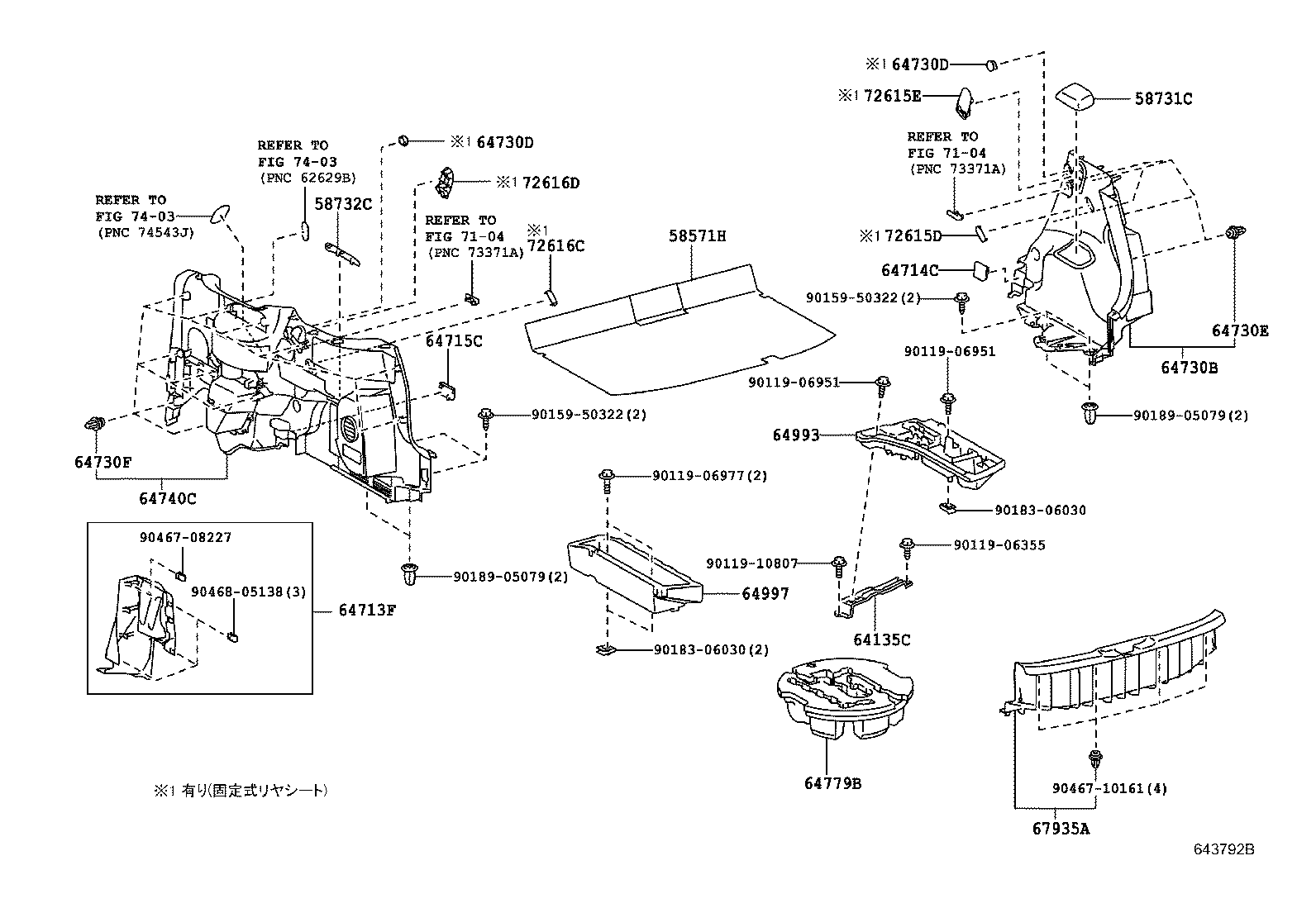

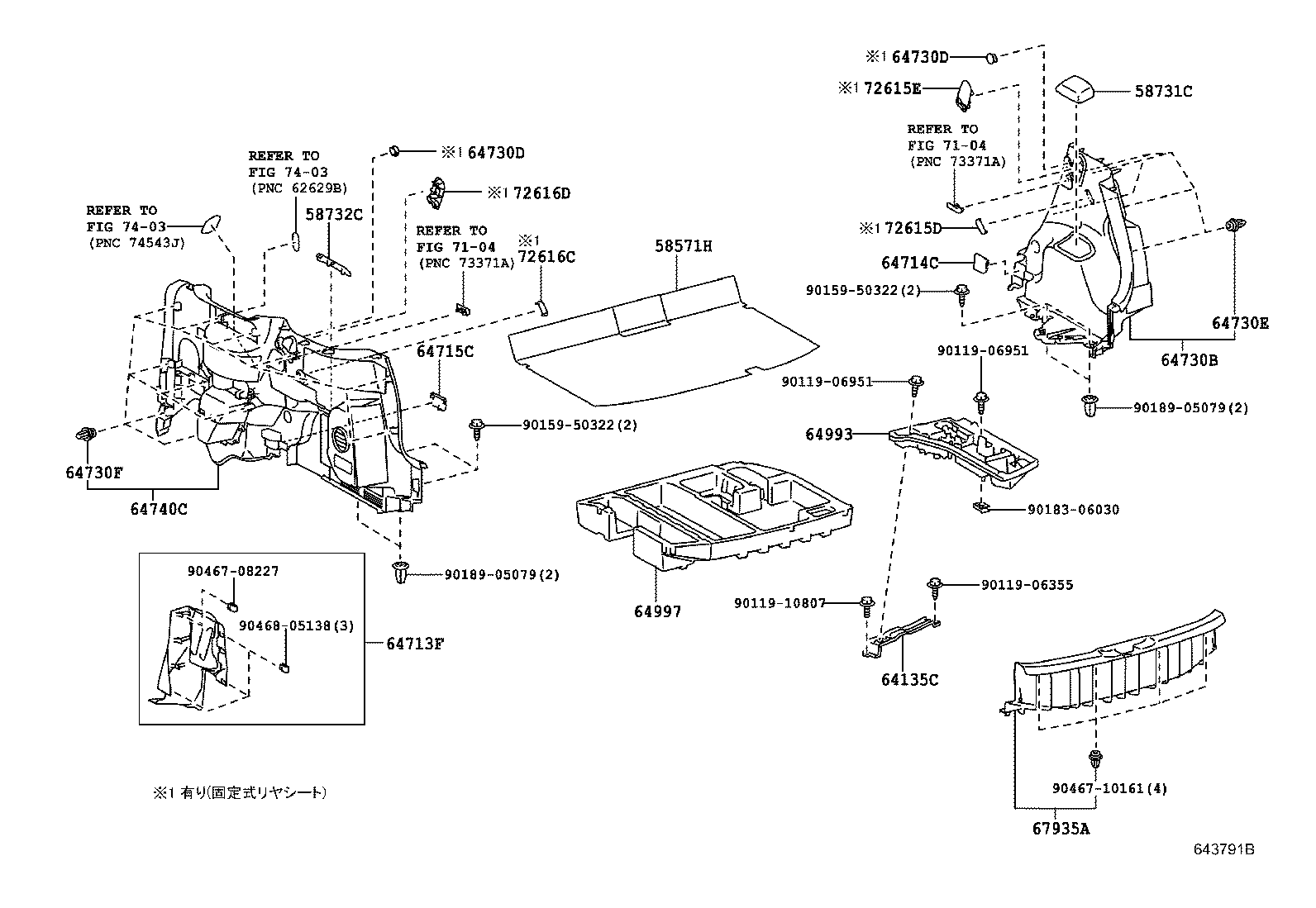

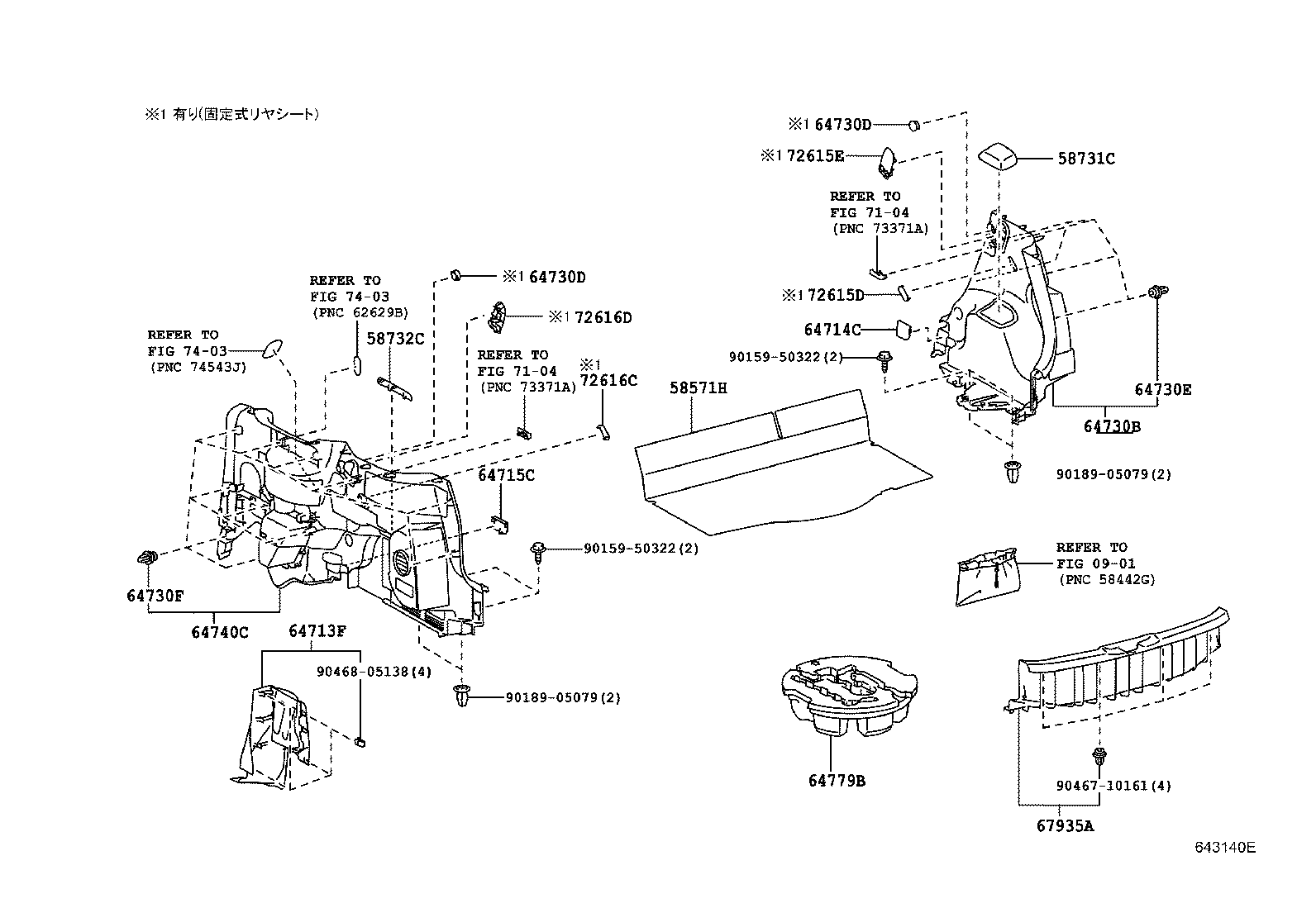

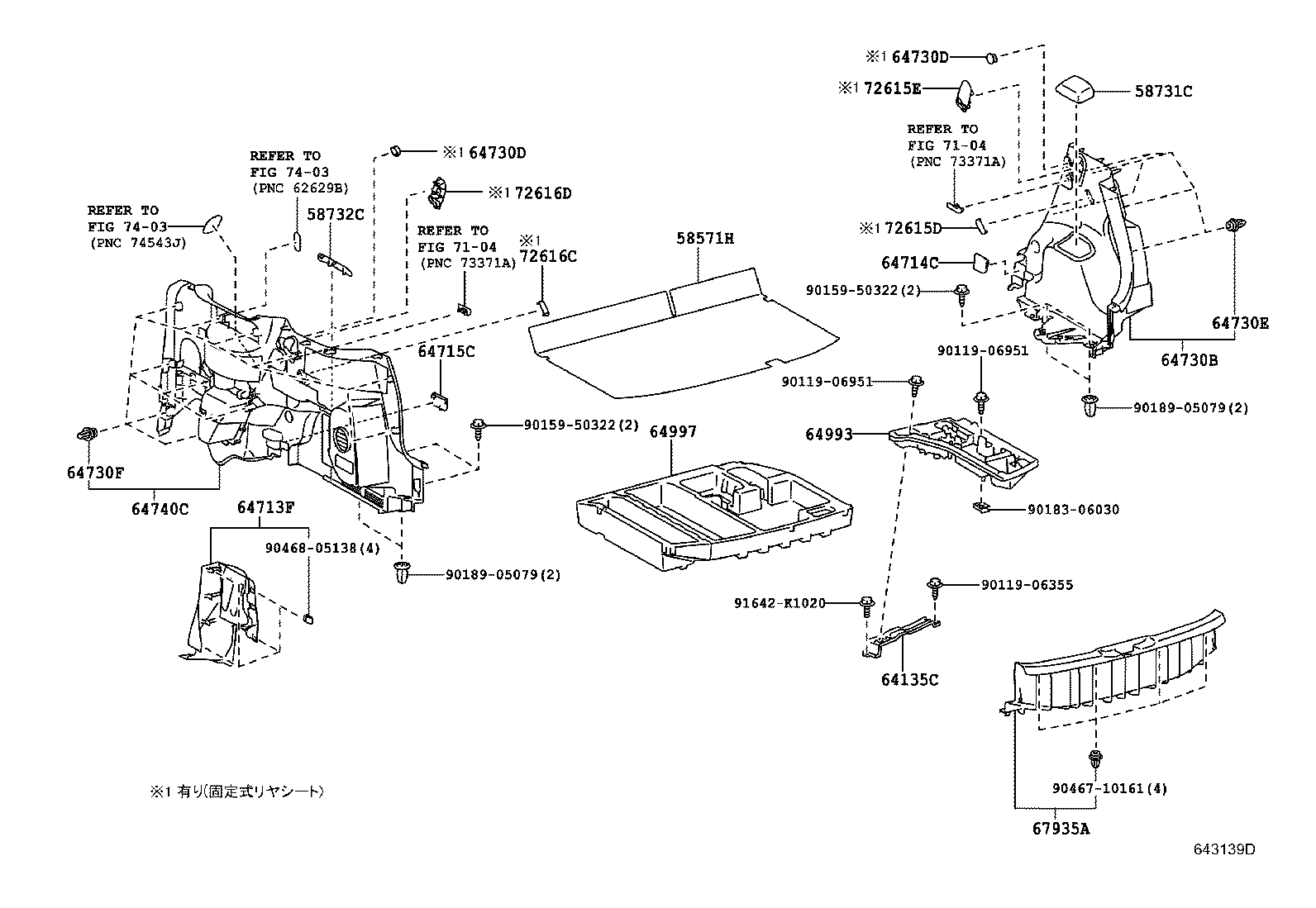

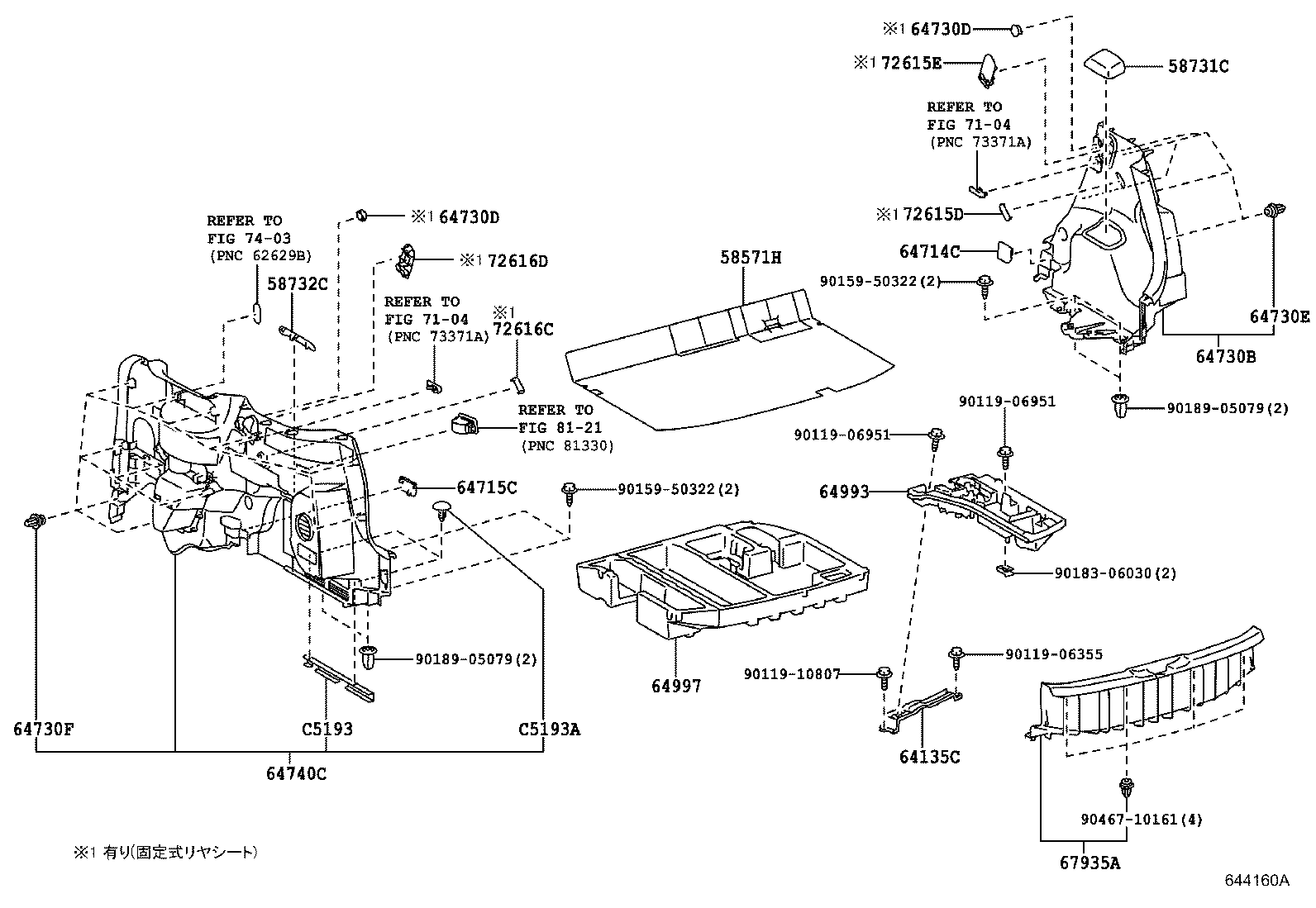

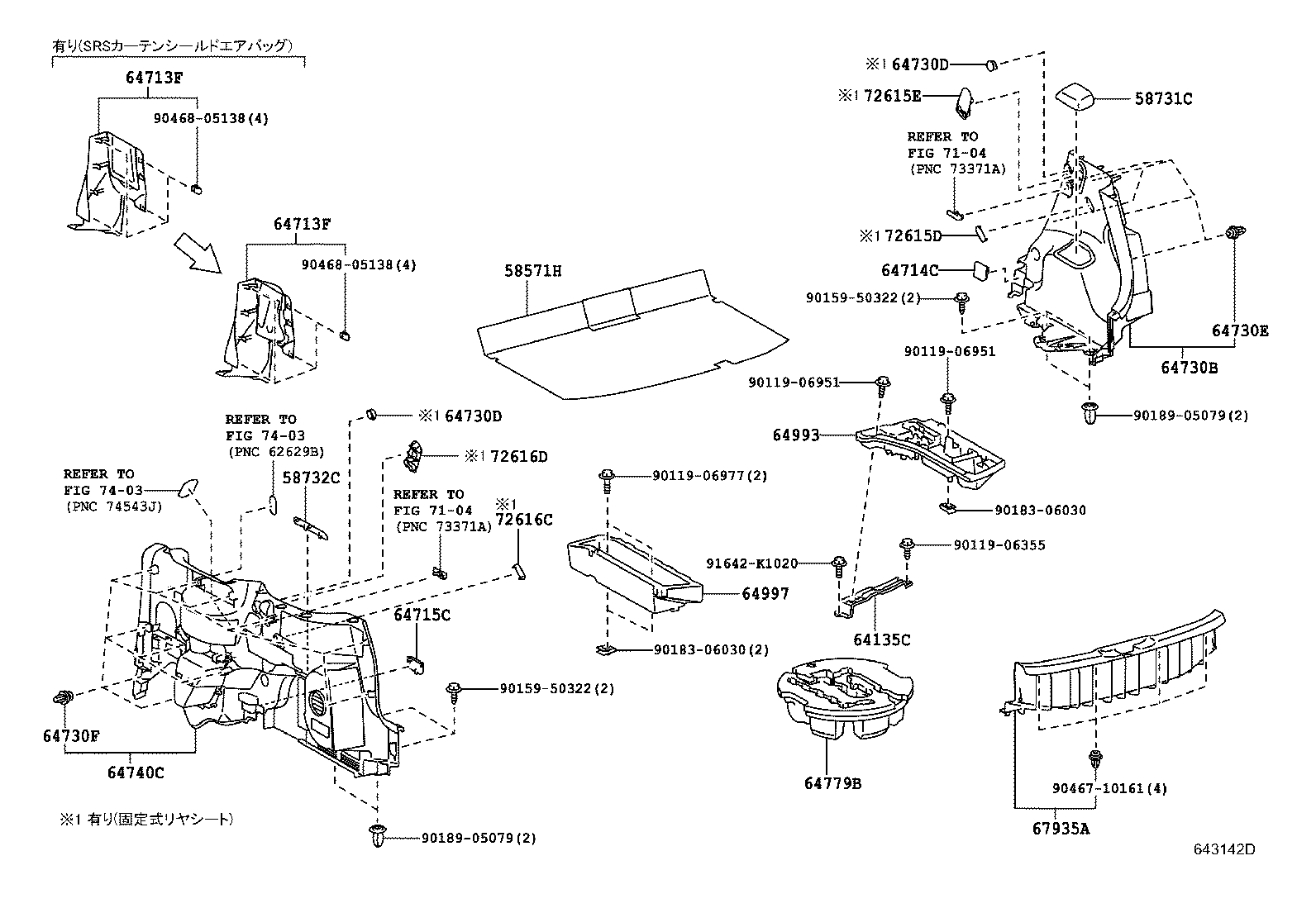

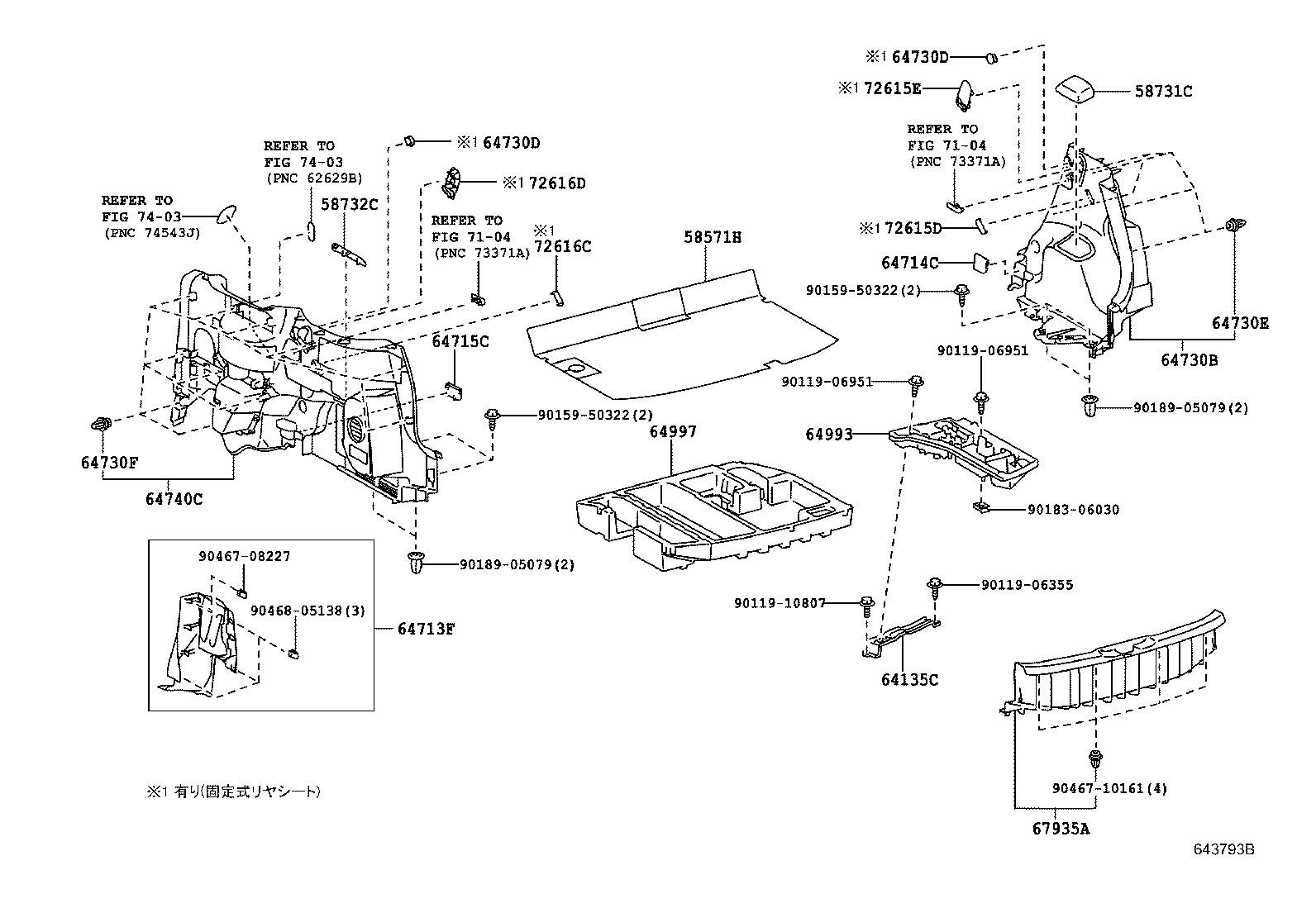

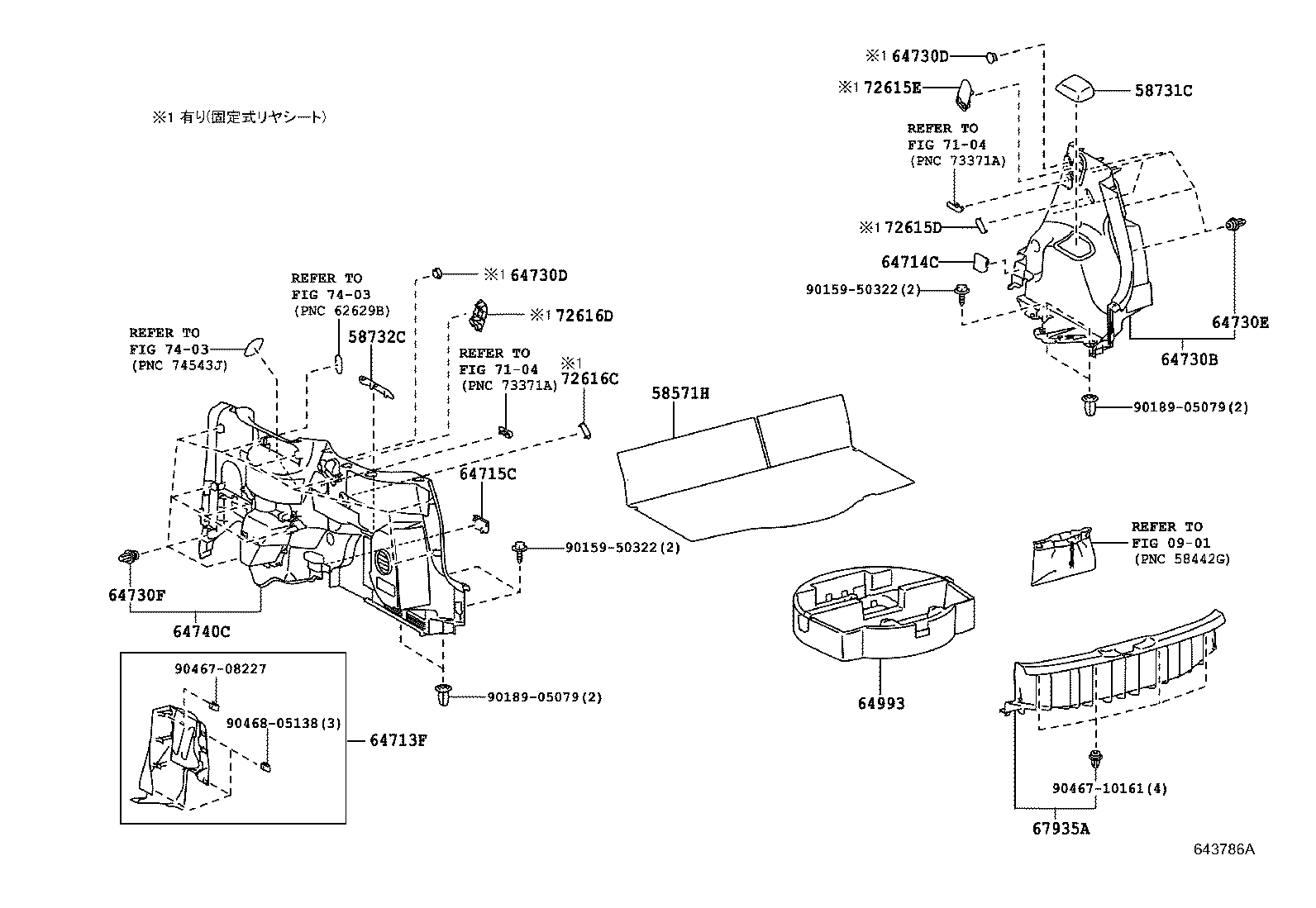

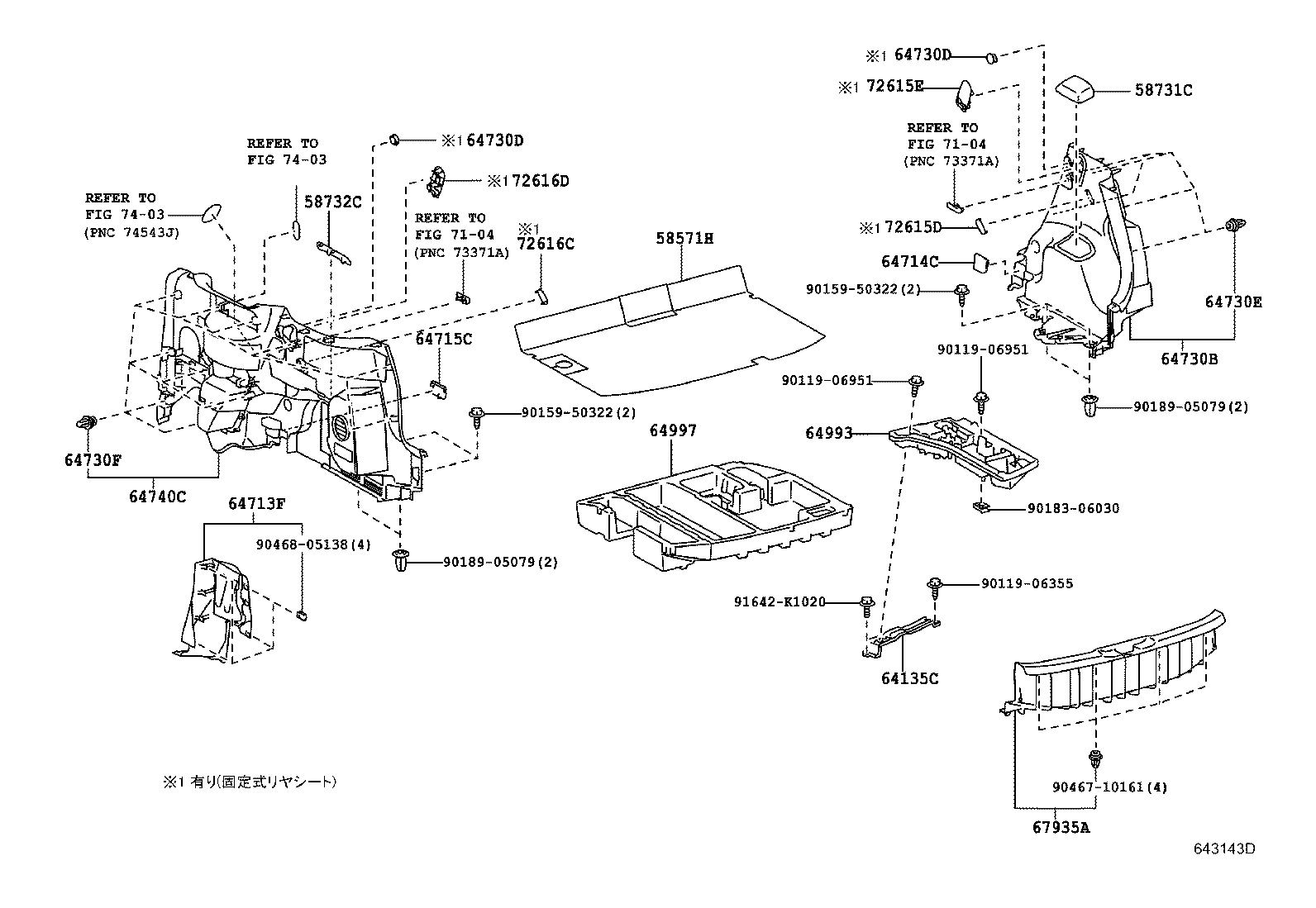

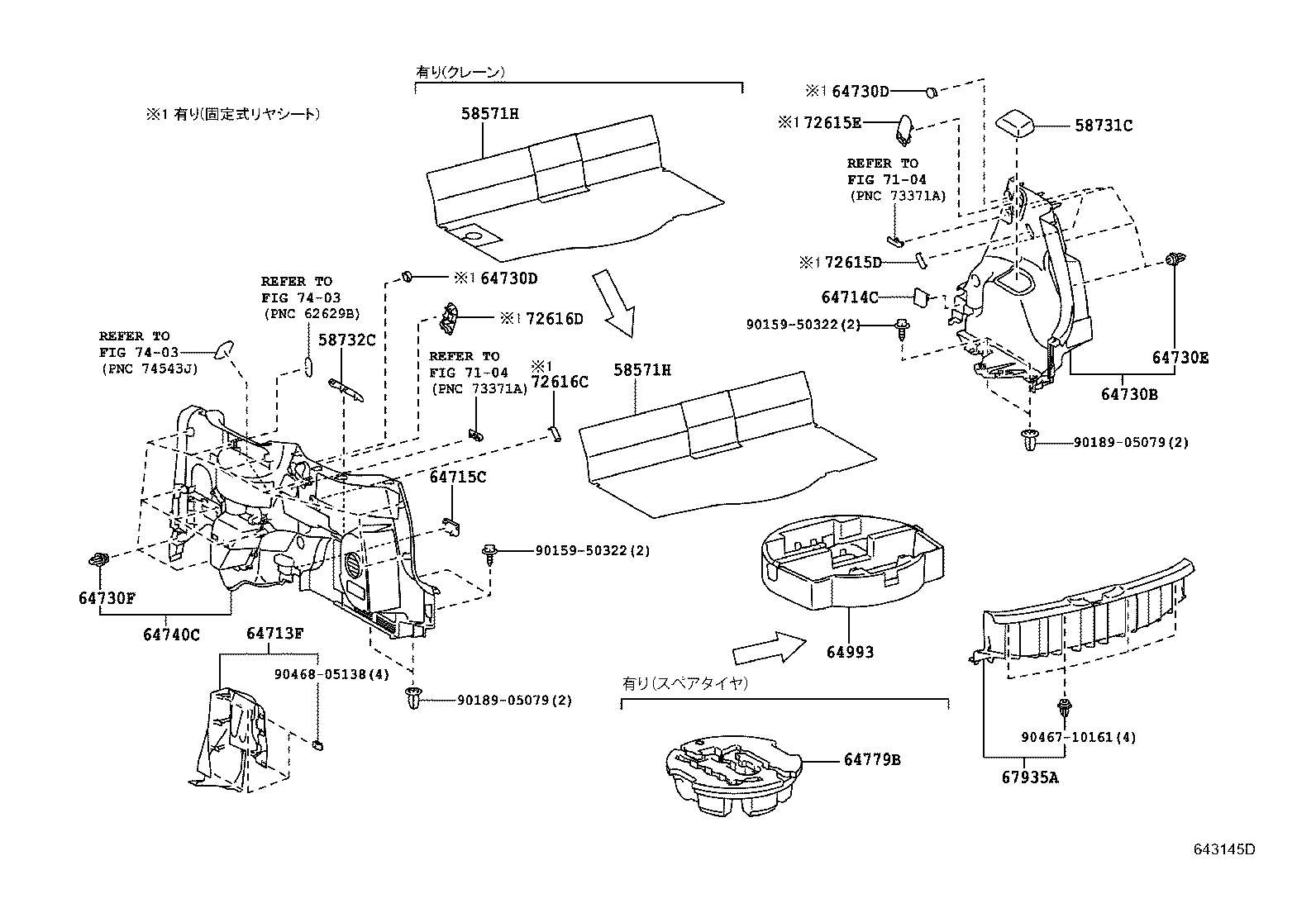

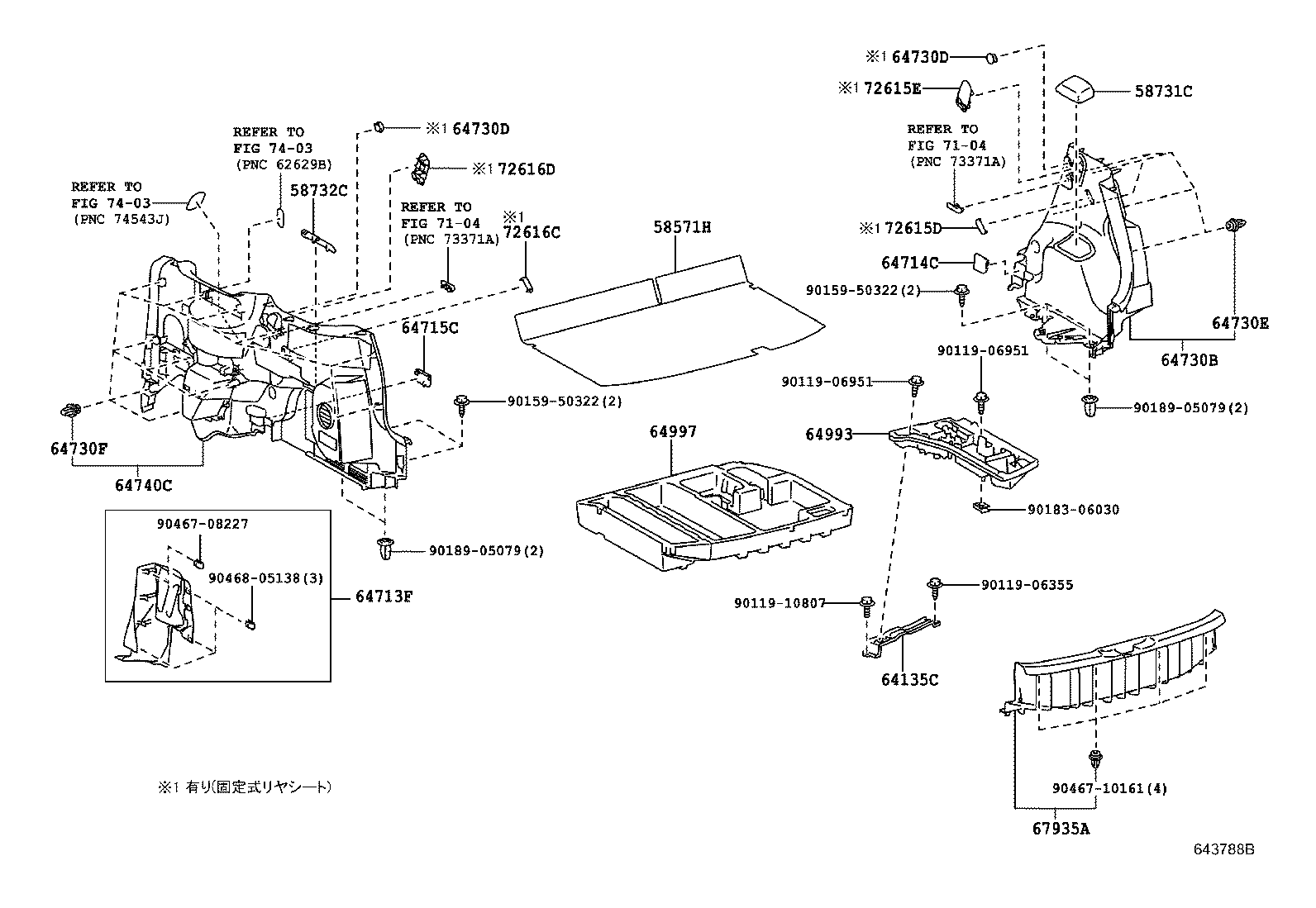

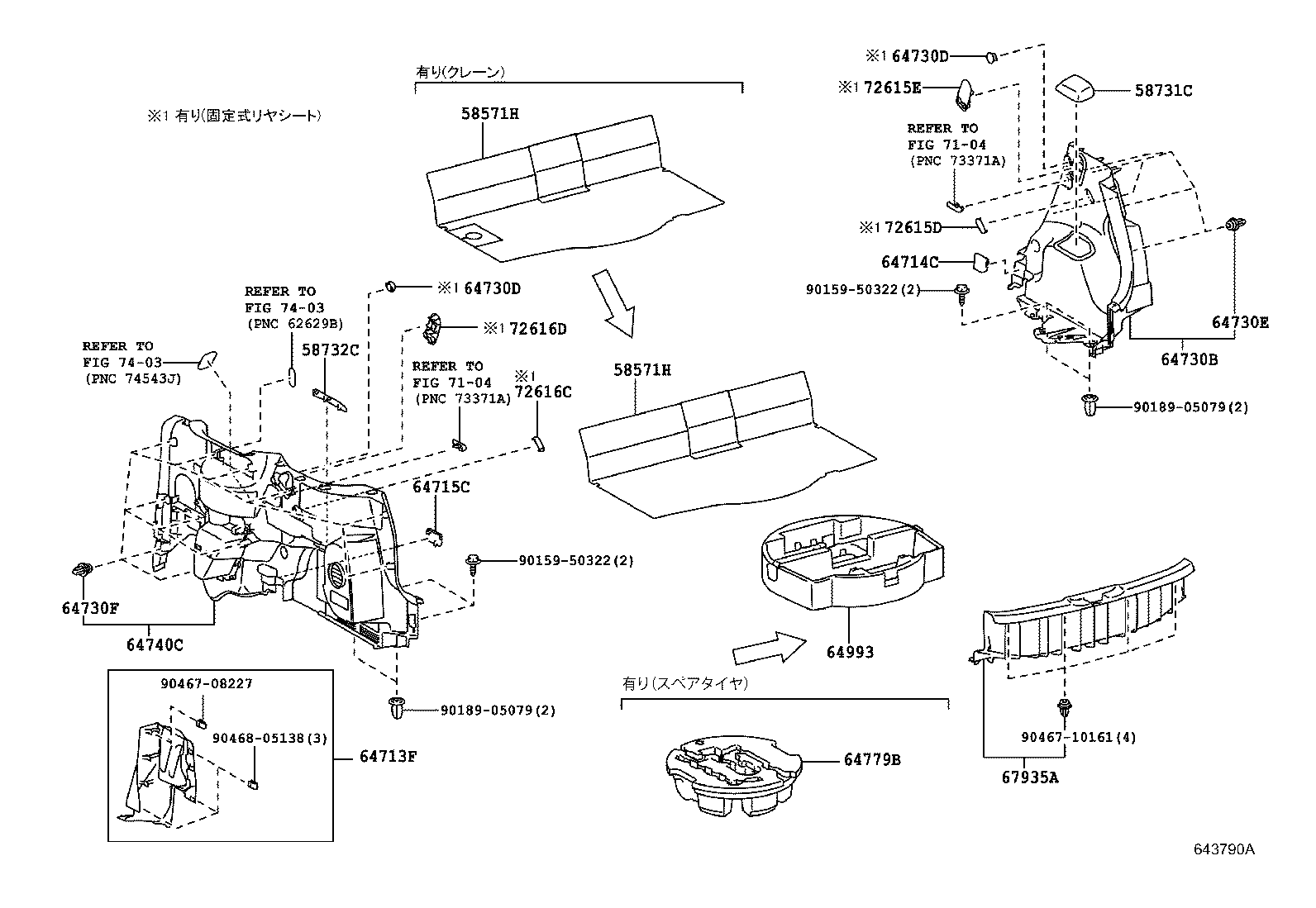

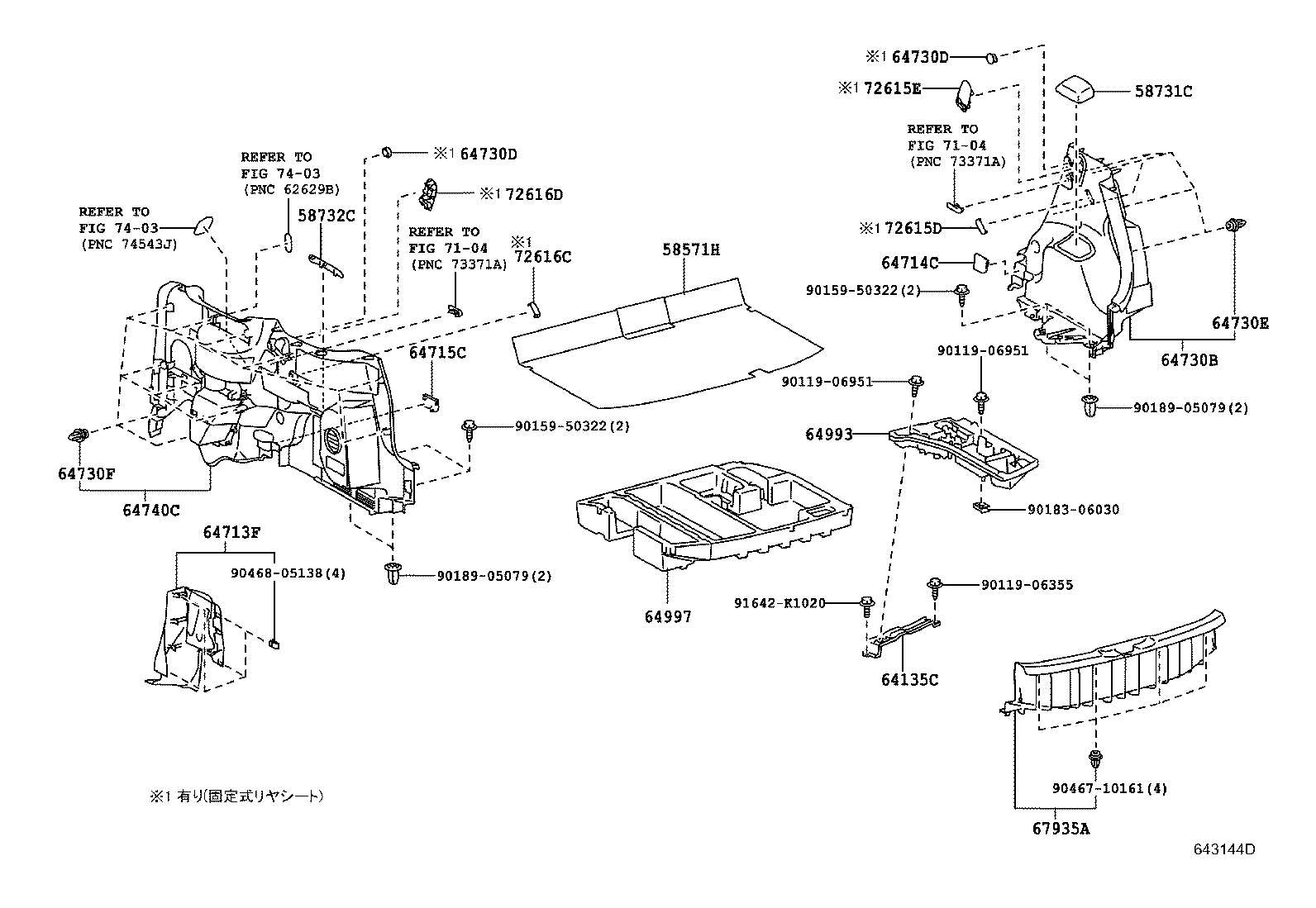

Figure 643141E 643141E 2012-07 → 2015-07 Figure 643140E 643140E 2012-07 → 2015-07 Figure 643139D 643139D 2012-07 → 2015-07 Figure 643138D 643138D 2009-07 → 2015-07 Figure 643145D 643145D 2012-07 → 2015-07 Figure 643144D 643144D 2012-07 → 2015-07 Figure 643142D 643142D 2012-07 → 2015-07 Figure 643143D 643143D 2012-07 → 2015-07 Figure 643786A 643786A 2015-07 → — Figure 643787A 643787A 2015-07 → — Figure 643788B 643788B 2015-07 → — Figure 643789B 643789B 2015-07 → — Figure 643790A 643790A 2015-07 → — Figure 643791B 643791B 2015-07 → — Figure 643792B 643792B 2015-07 → — Figure 643793B 643793B 2015-07 → 2016-07 Figure 644159A 644159A 2016-07 → — Figure 644160A 644160A 2016-07 → —

Part groups

PNCDescription
58571H Carpet, Rear Floor
58731C Cap, Rear Absorber
58732C Cap, Rear Absorber
64135C Bracket, Luggage Compartment Tray, Rear RH
64713F Cover, Deck Side Trim, Front LH
64714C Cover, Deck Side Trim, RH
64715C Cover, Deck Side Trim, LH
64730B Panel Assy, Deck Trim Side, RH
64730D Plug, Hole(FOR DECK TRIM SIDE BOARD)
64730E Clip(FOR DECK TRIM SIDE BOARD)
64730F Clamp(FOR DECK TRIM SIDE BOARD)
64740C Panel Assy, Deck Trim Side, LH
64779B Stopper, Spare Wheel Cover
64993 Box, Deck Floor, Rear
64997 Box, Deck Floor, LH
67935A Plate, Back Door Scuff
72615D Cover, Rear Seatback Lock Striker, RH
72615E Cover, Rear Seatback Lock Striker, RH
72616C Cover, Rear Seatback Lock Striker, LH
72616D Cover, Rear Seatback Lock Striker, LH
C5193 Spacer, Panel, NO.1
C5193A Clip, Panel Spacer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
