Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

34 part groups · 8 illustrations

Illustrations

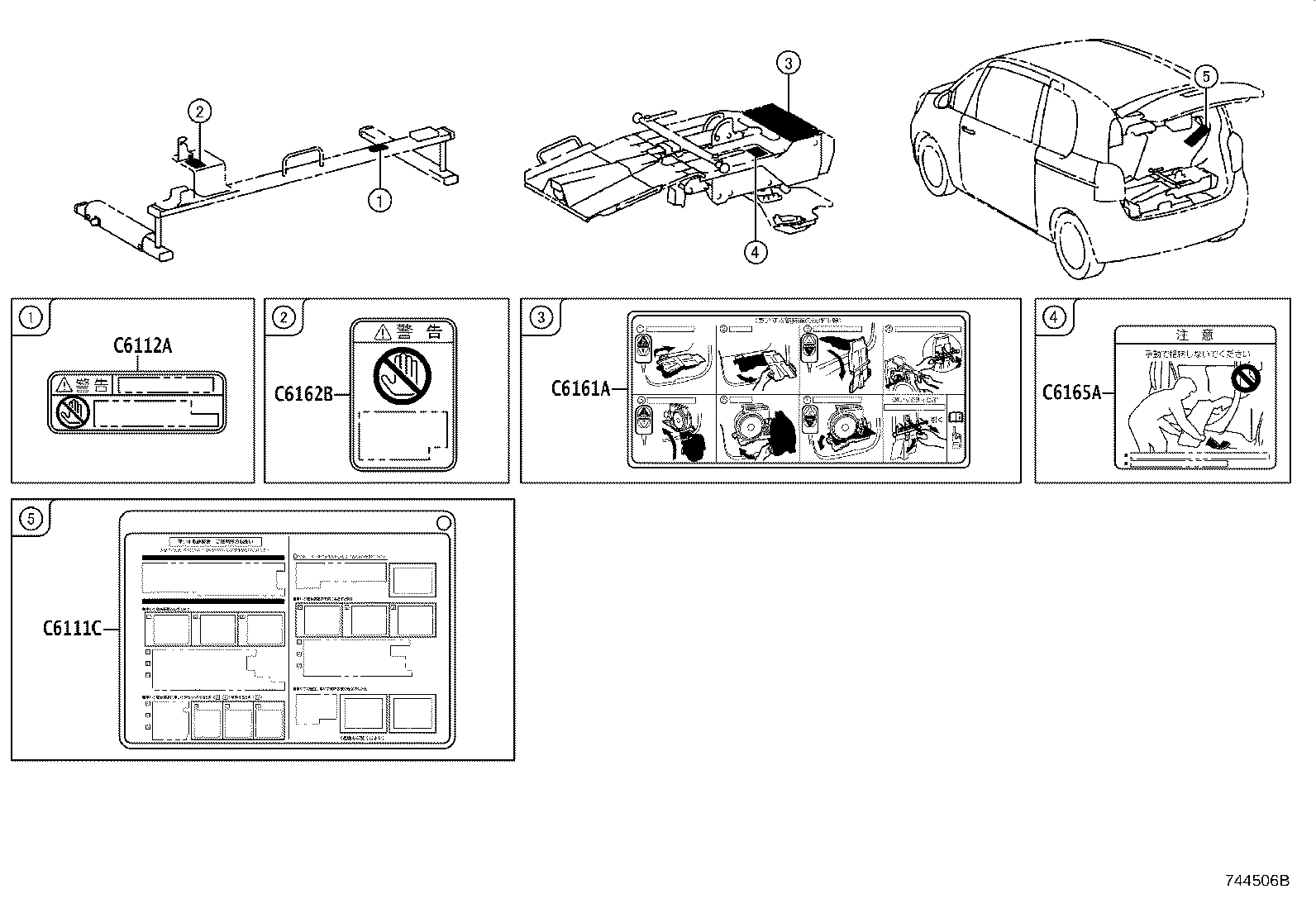

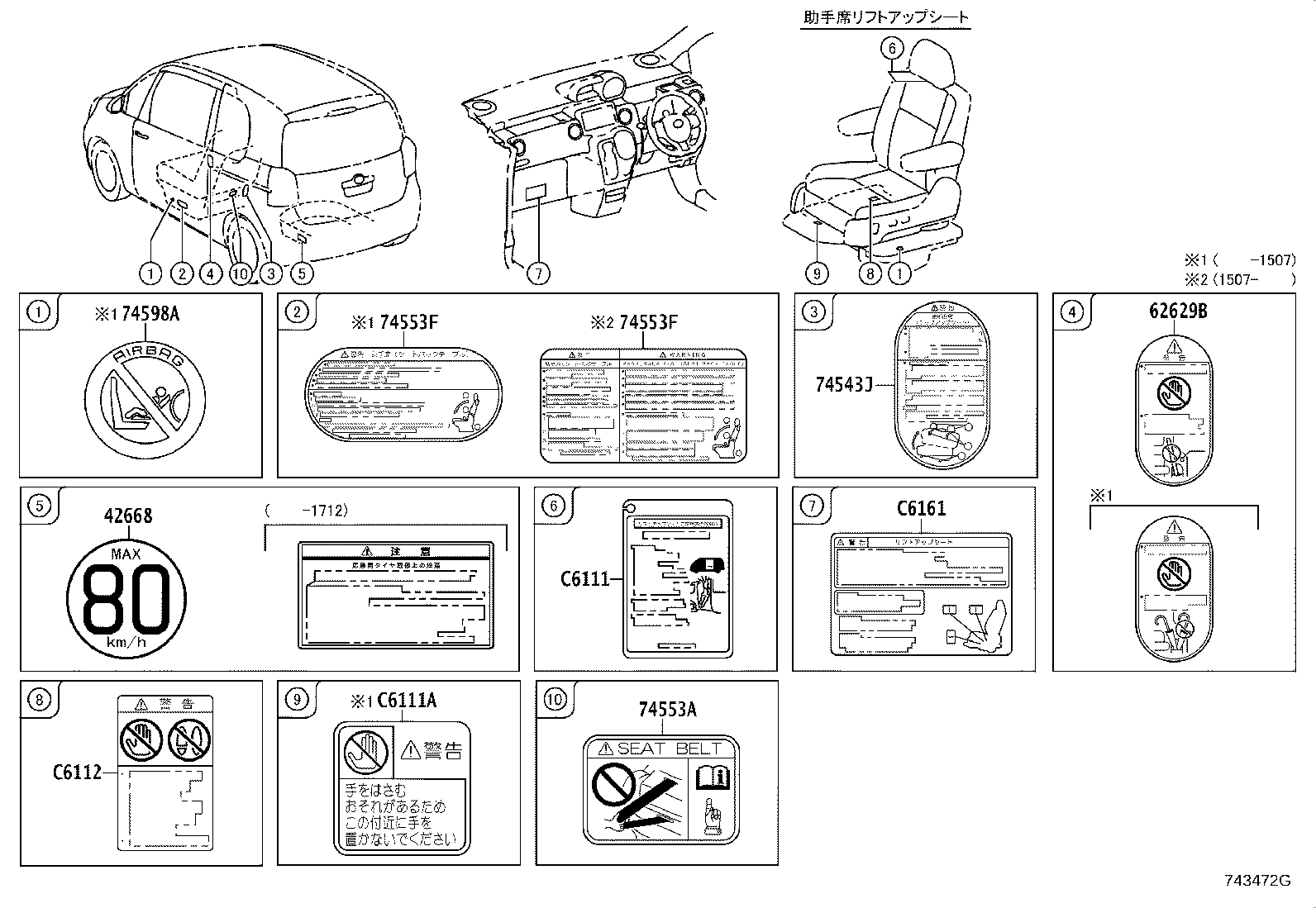

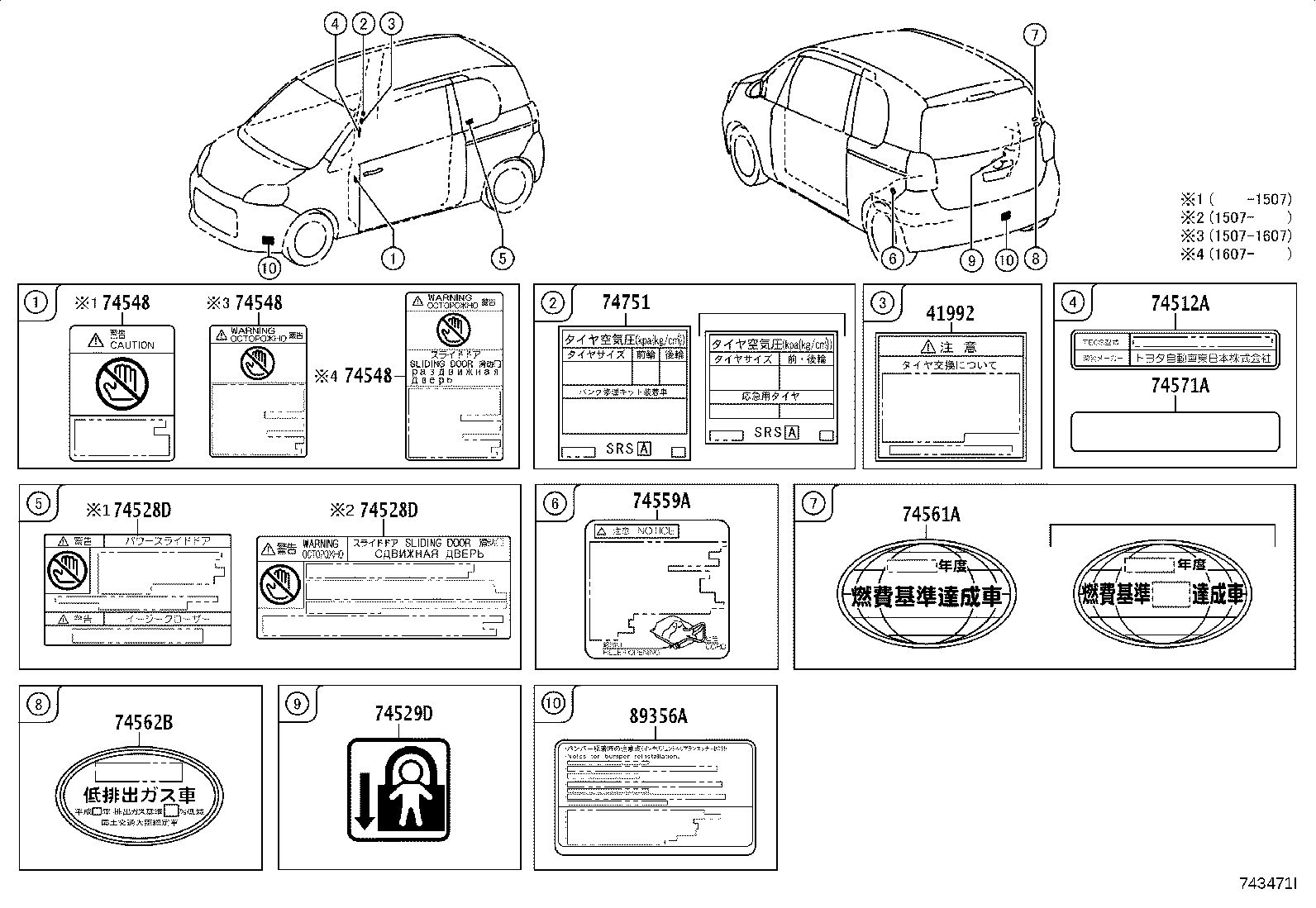

Figure 745396A 745396A 2012-07 → — Figure 743470 743470 2012-07 → — Figure 743471I 743471I 2012-07 → — Figure 745080 745080 2012-07 → — Figure 743472G 743472G 2012-07 → — Figure 744506B 744506B 2016-07 → — Figure 744941 744941 2012-07 → 2015-07 Figure 744941 744941 2015-07 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
42668 Label, Compact Spare Tire Caution
62629B Label,Quarter Trim
74511F Label, Name (IDENTIFICATION LASER LABEL)
74512A Plate, Identification Number
74528D Label, Power Slide Door Notice
74529D Plate, Child Protector Lock Caution
74541H Plate, Body Caution
74543J Label, Rear Seat Caution
74548 Plate, Body Caution
74553A Plate, Front Seat Caution
74553F Label, Front Seat Caution
74559A Plate, Fuel Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74571A Film, Label Cover
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
89356A Label, Clearance Warning Information
C6111 Plate, Safety Caution
C6111A Plate, Safety Caution
C6111C Plate, Tecs Safety Caution, NO.1
C6112 Label, Safety Information, NO.2
C6112A Label, Safety Information
C6161 Label, Power Lift Caution
C6161A Label, Power Lift Caution
C6162 Label, Power Lift Caution, NO.2
C6162B Label, Power Lift Caution, NO.3
C6165A Label, Power Lift Notice, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
