Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

6 part groups · 4 illustrations

Illustrations

Figure 817431B

817431B 2015-07 → —

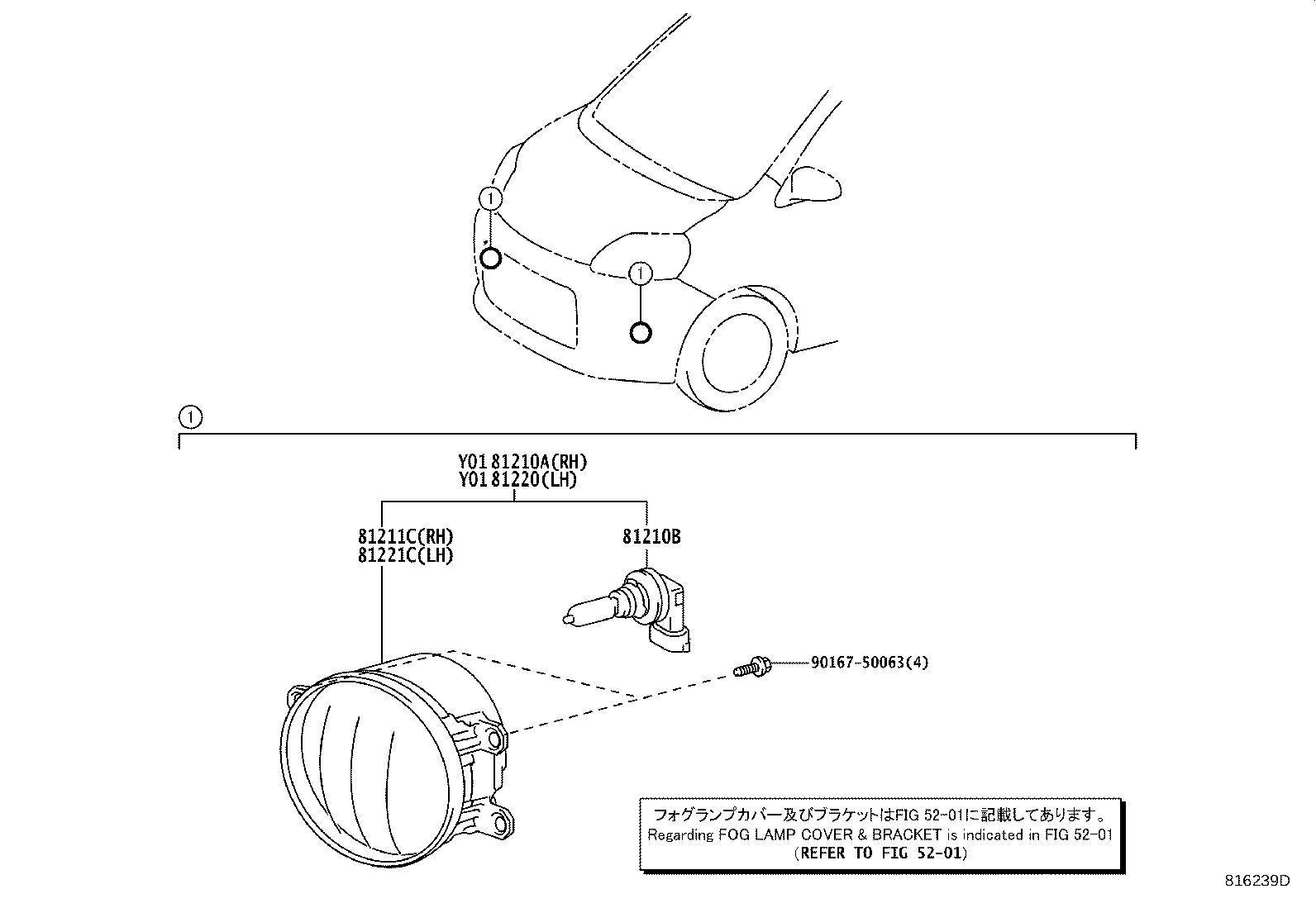

Figure 816239D

816239D 2012-07 → 2015-07

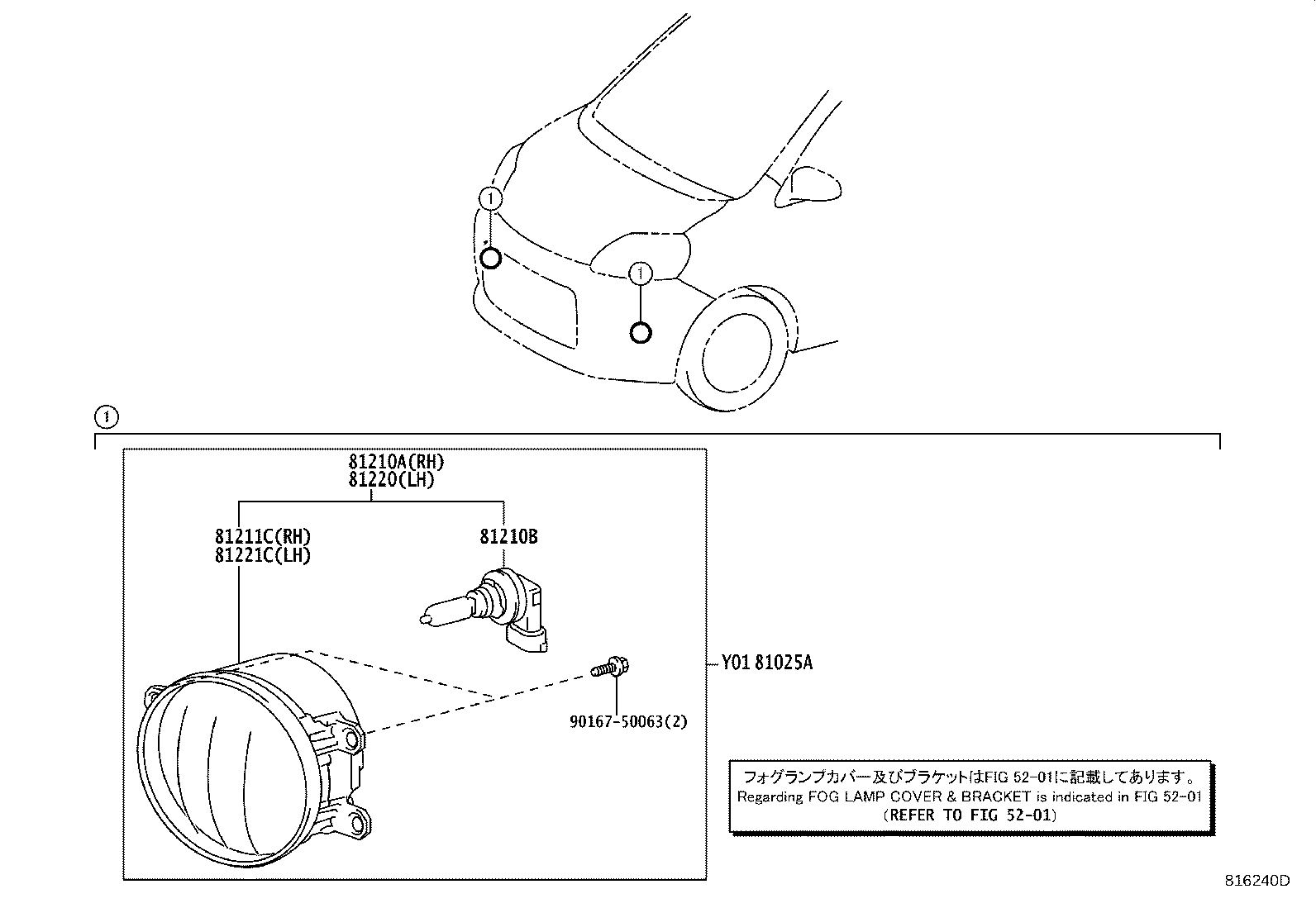

Figure 816240D

816240D 2012-07 → 2015-07

Figure 816240D

816240D 2015-07 → —

Part groups

PNC	Description
81025A	Lamp Set, Fog
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
