Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

66 part groups · 27 illustrations

Illustrations

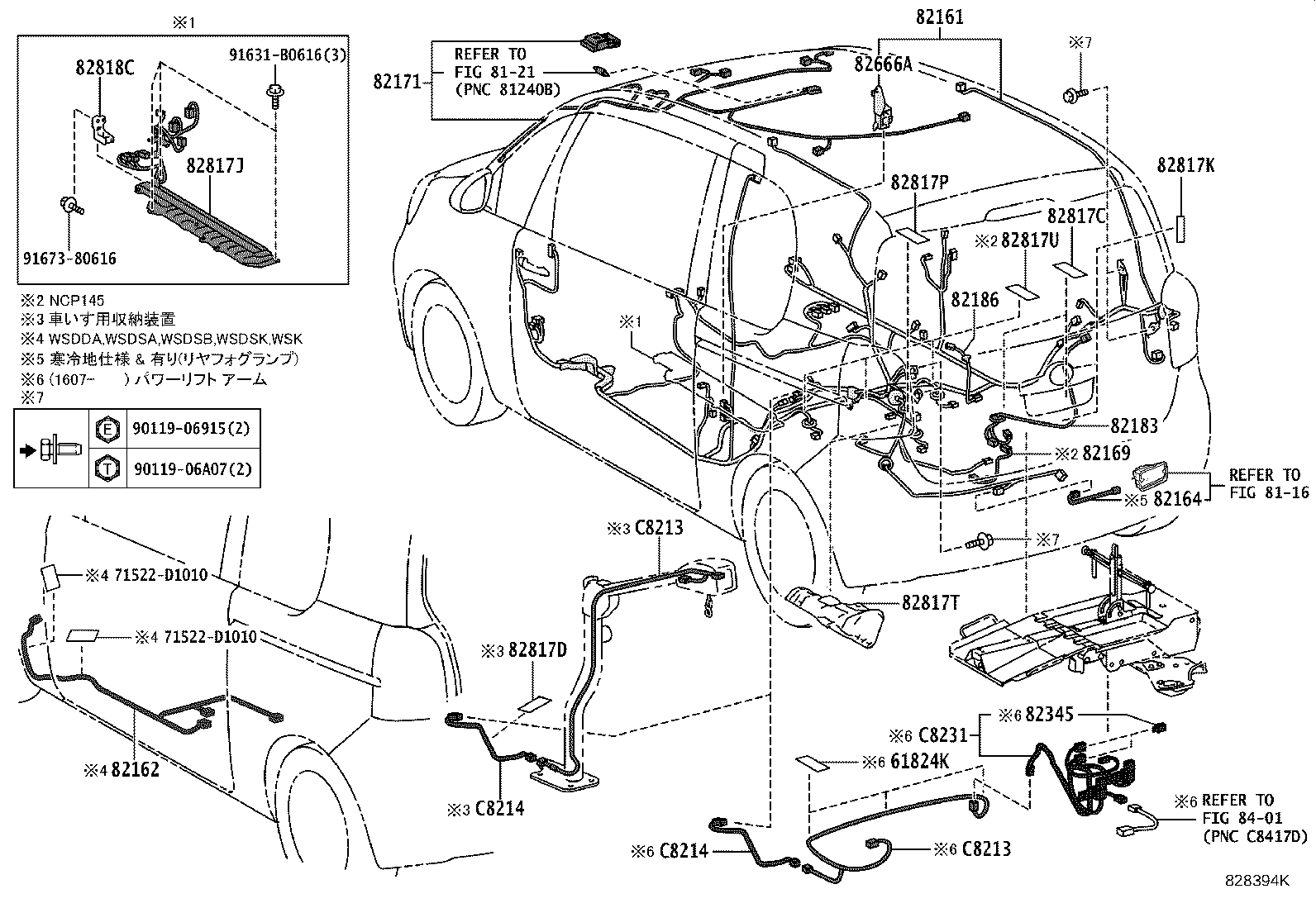

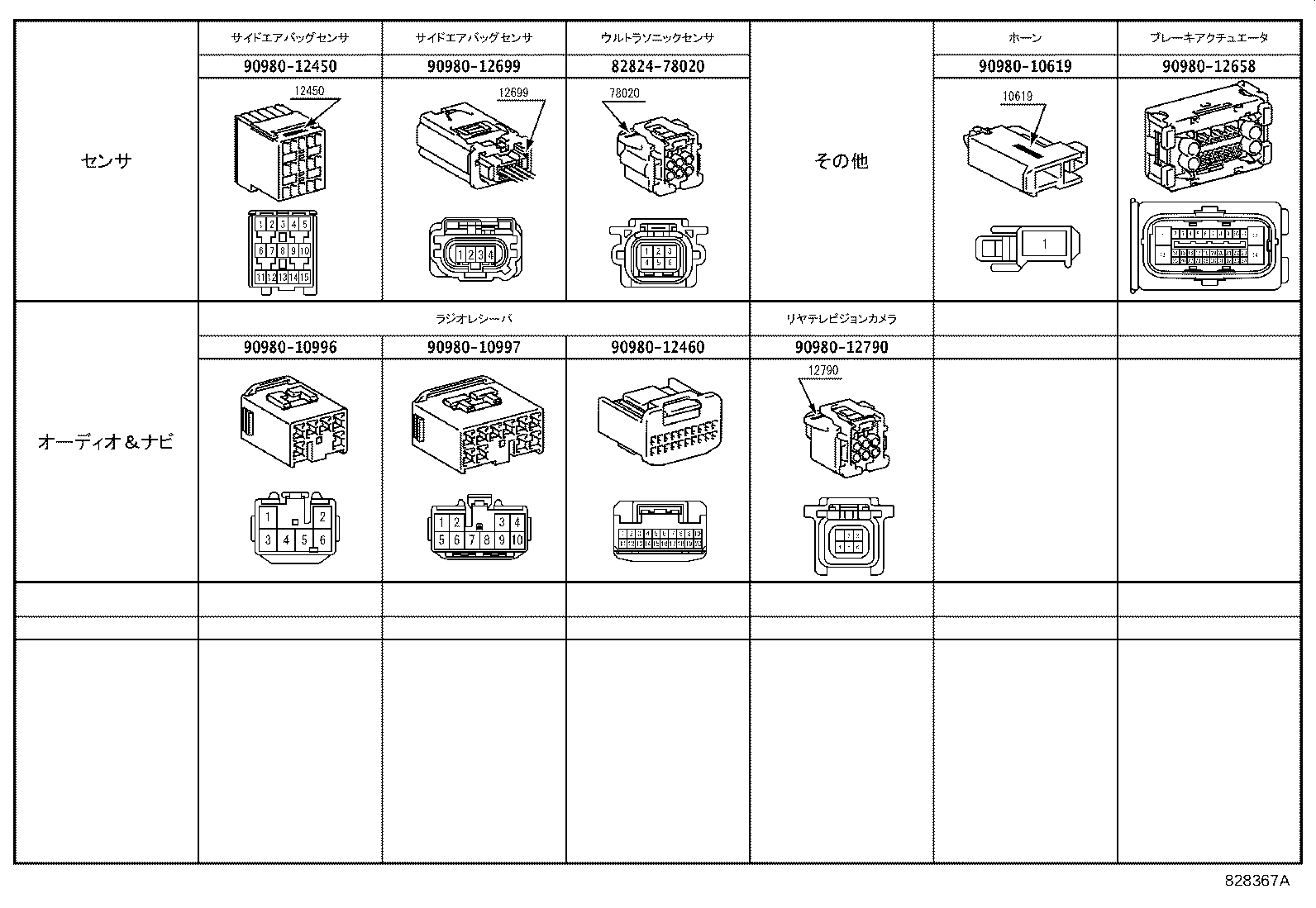

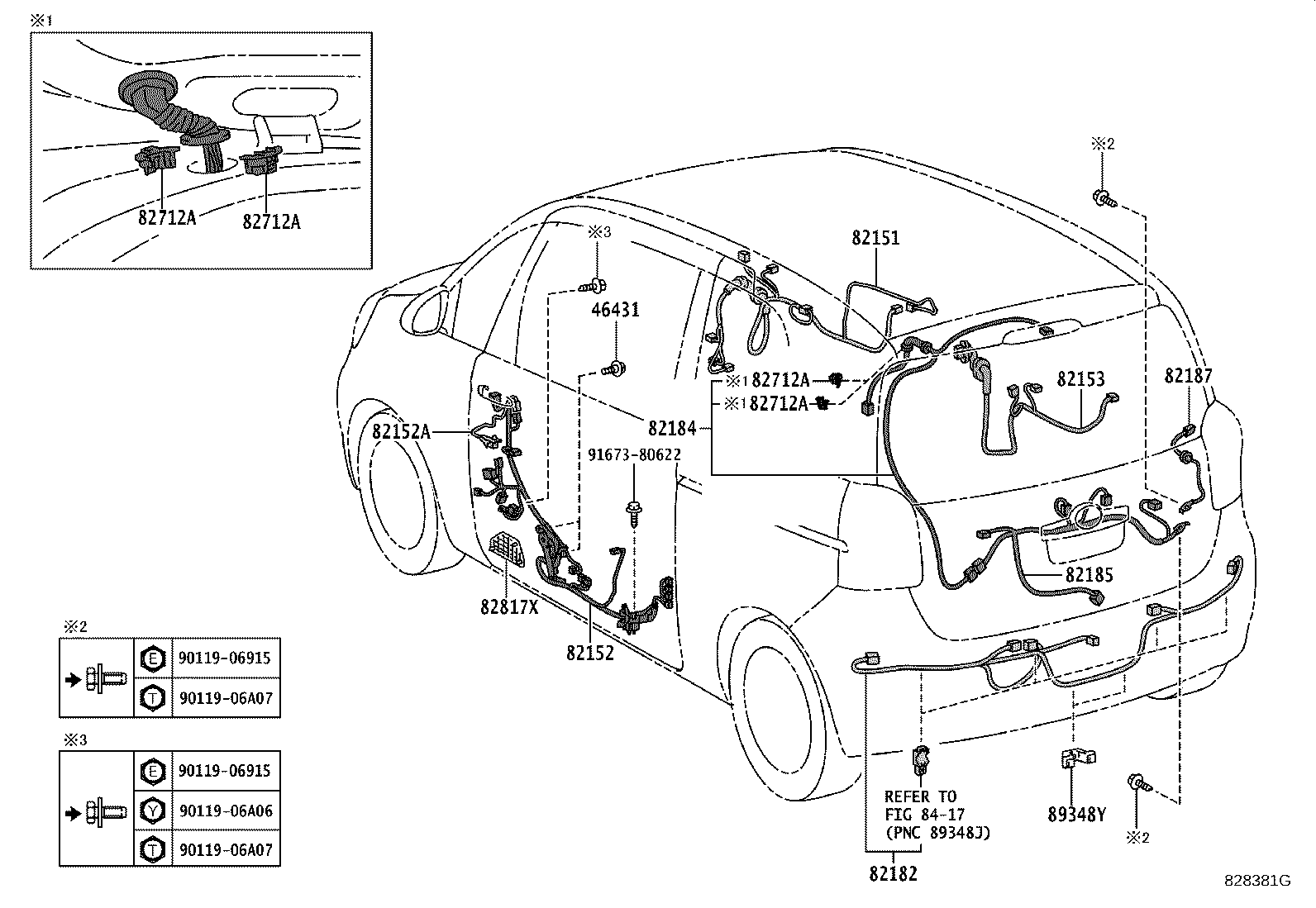

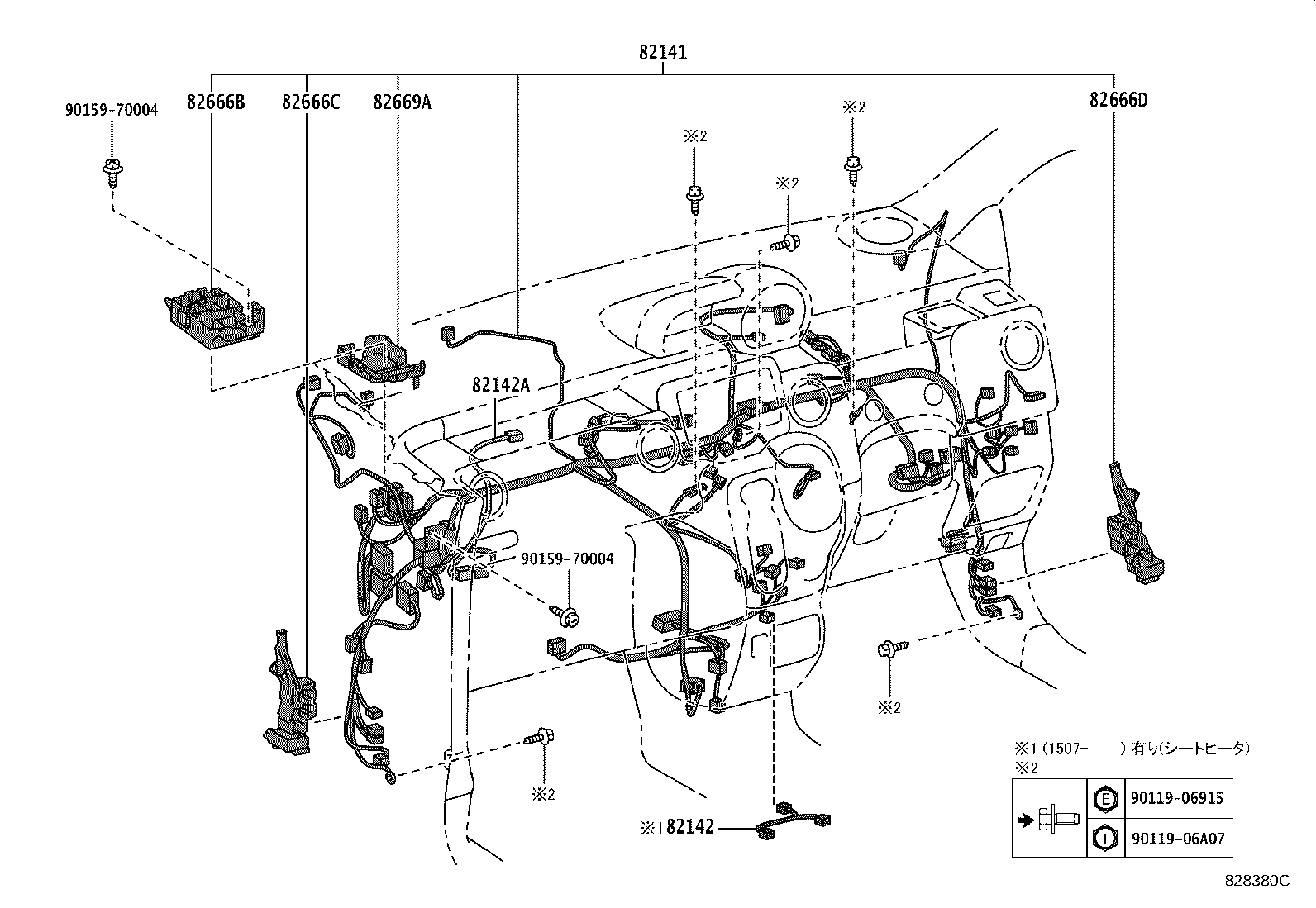

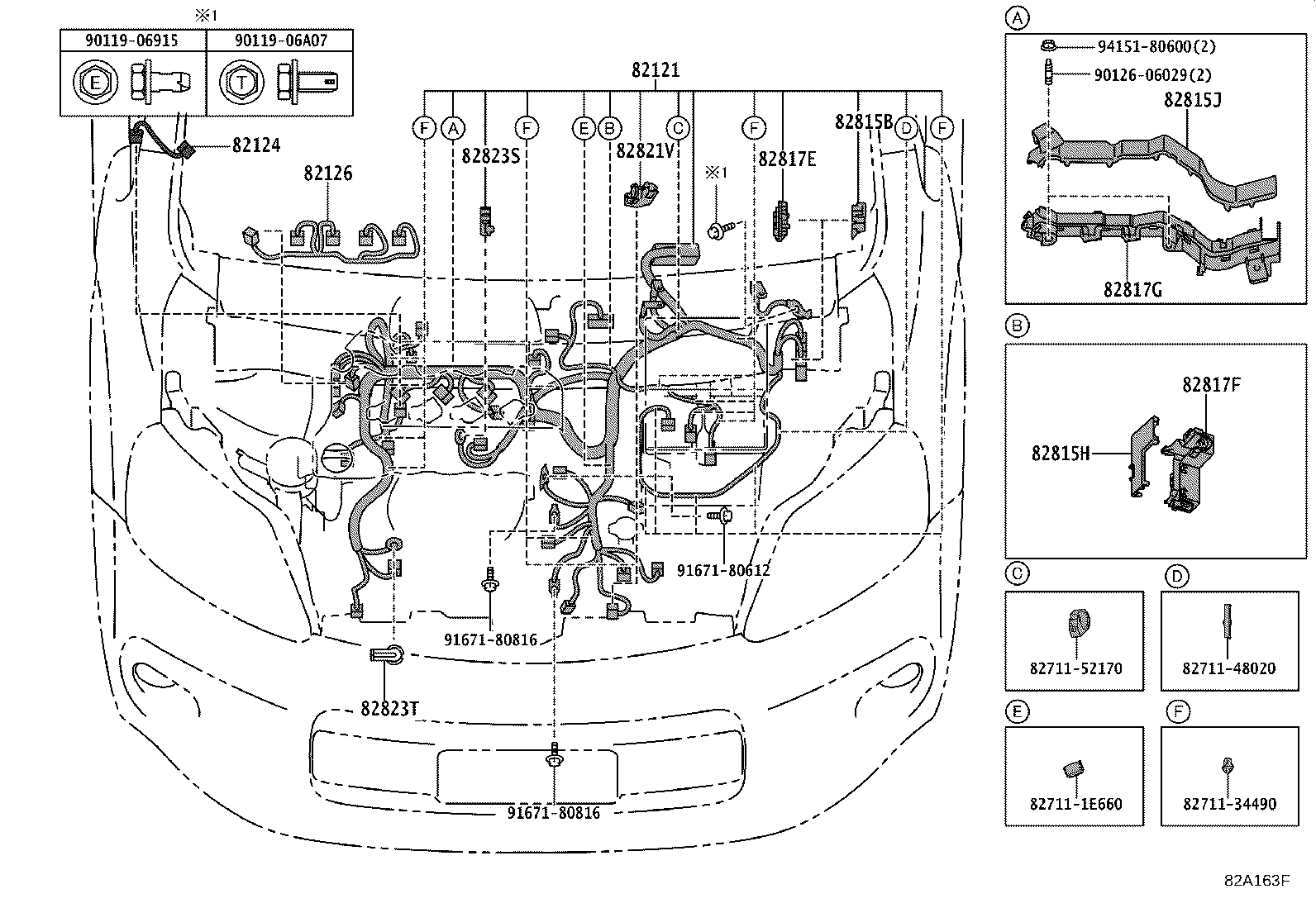

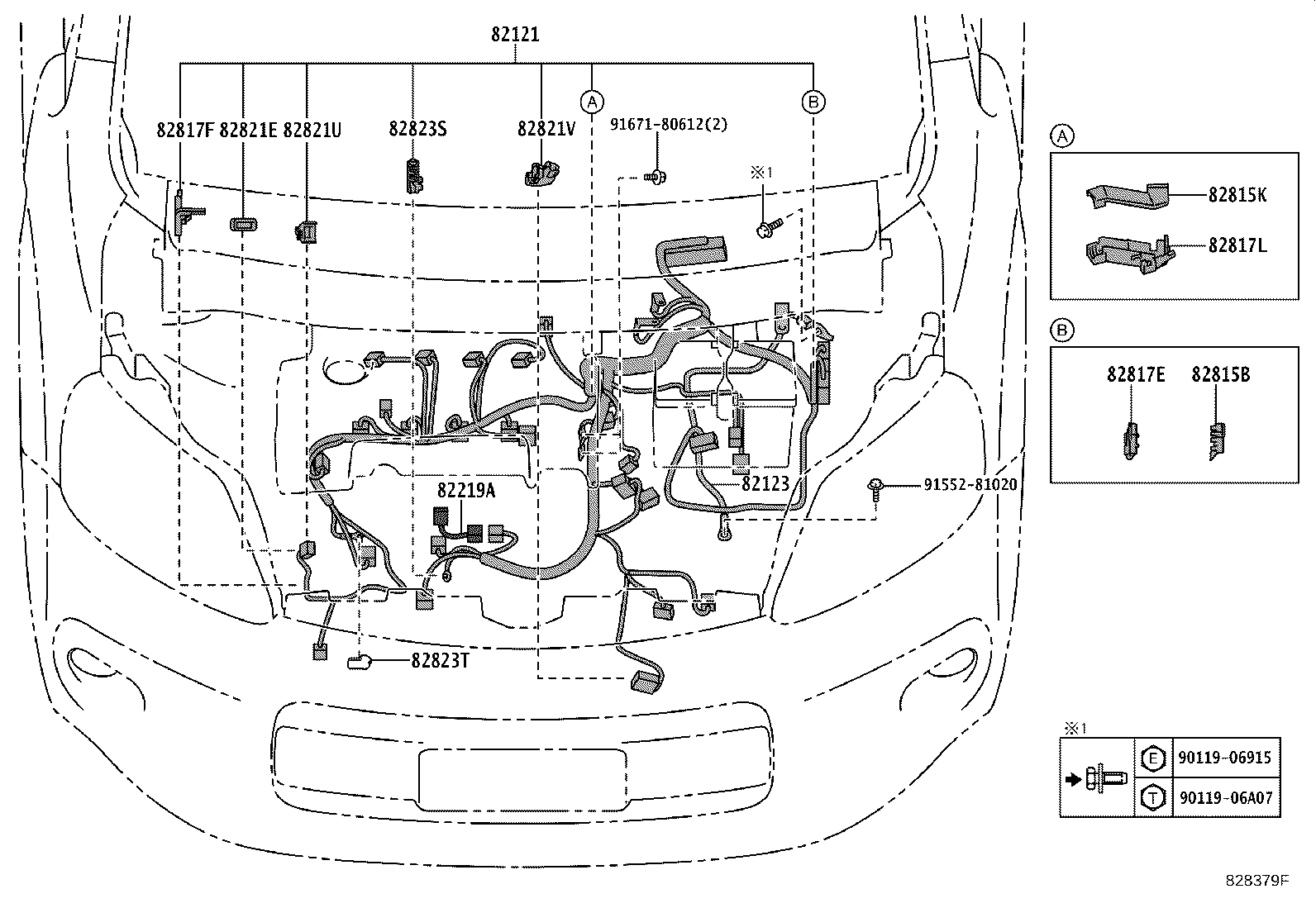

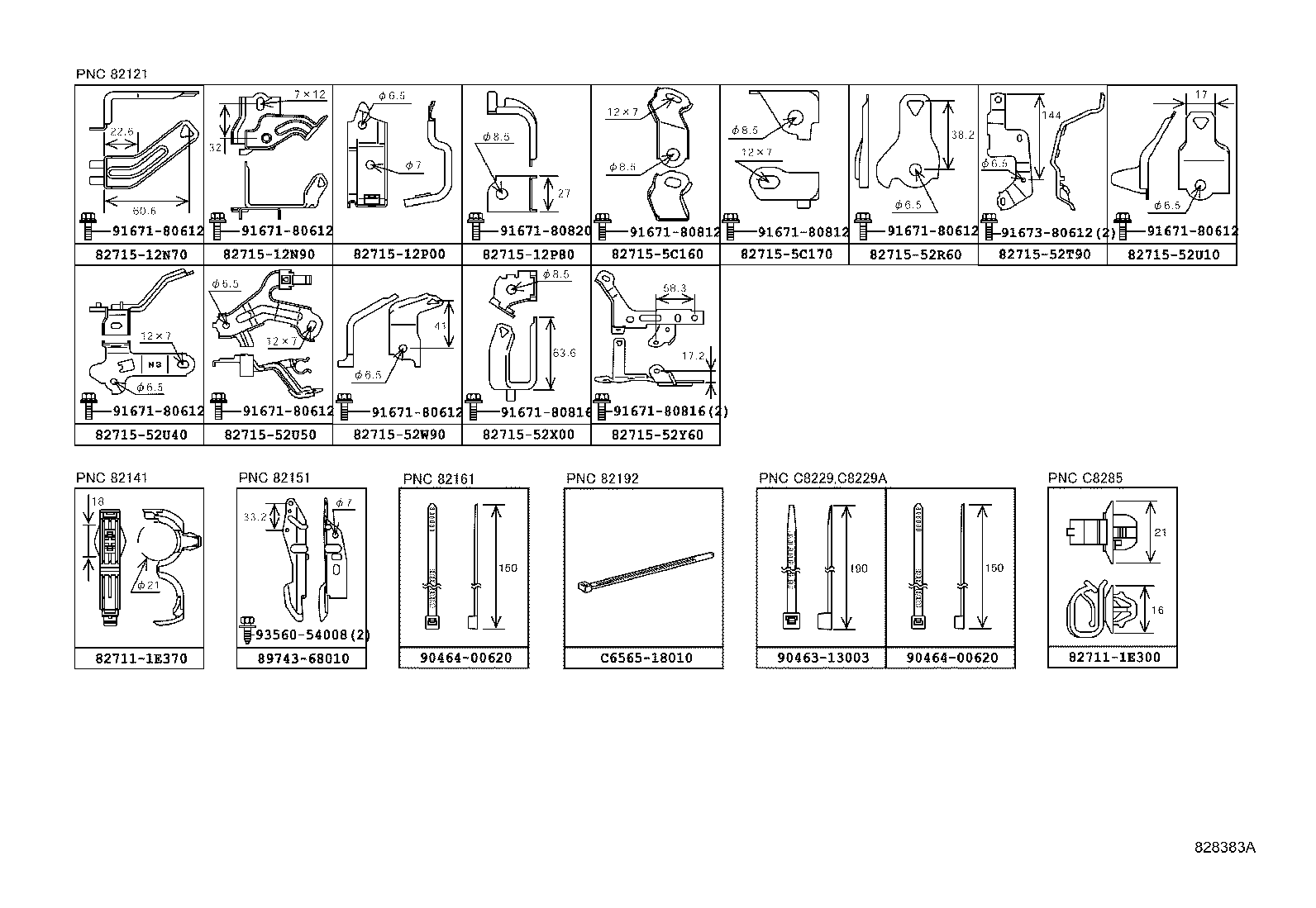

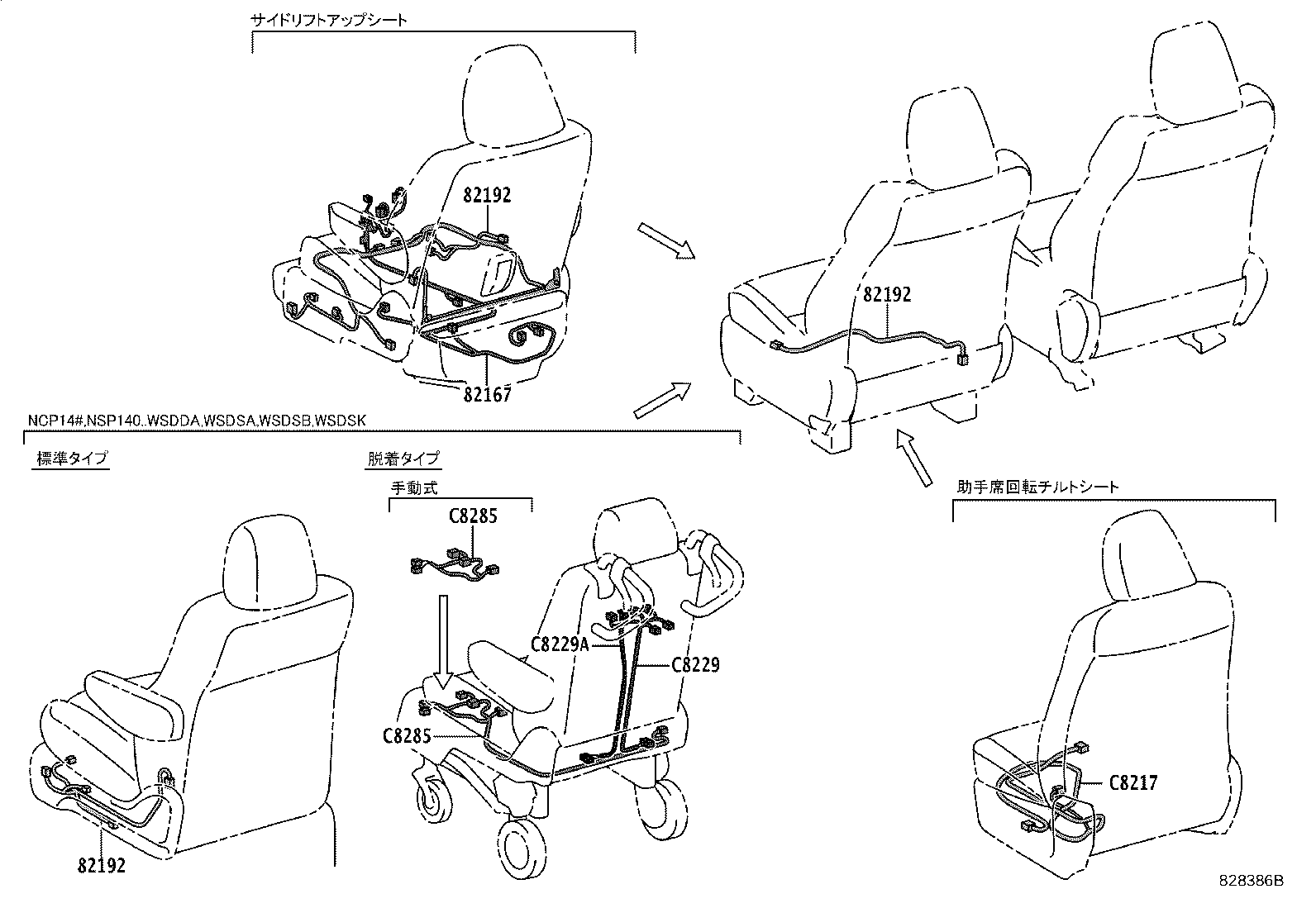

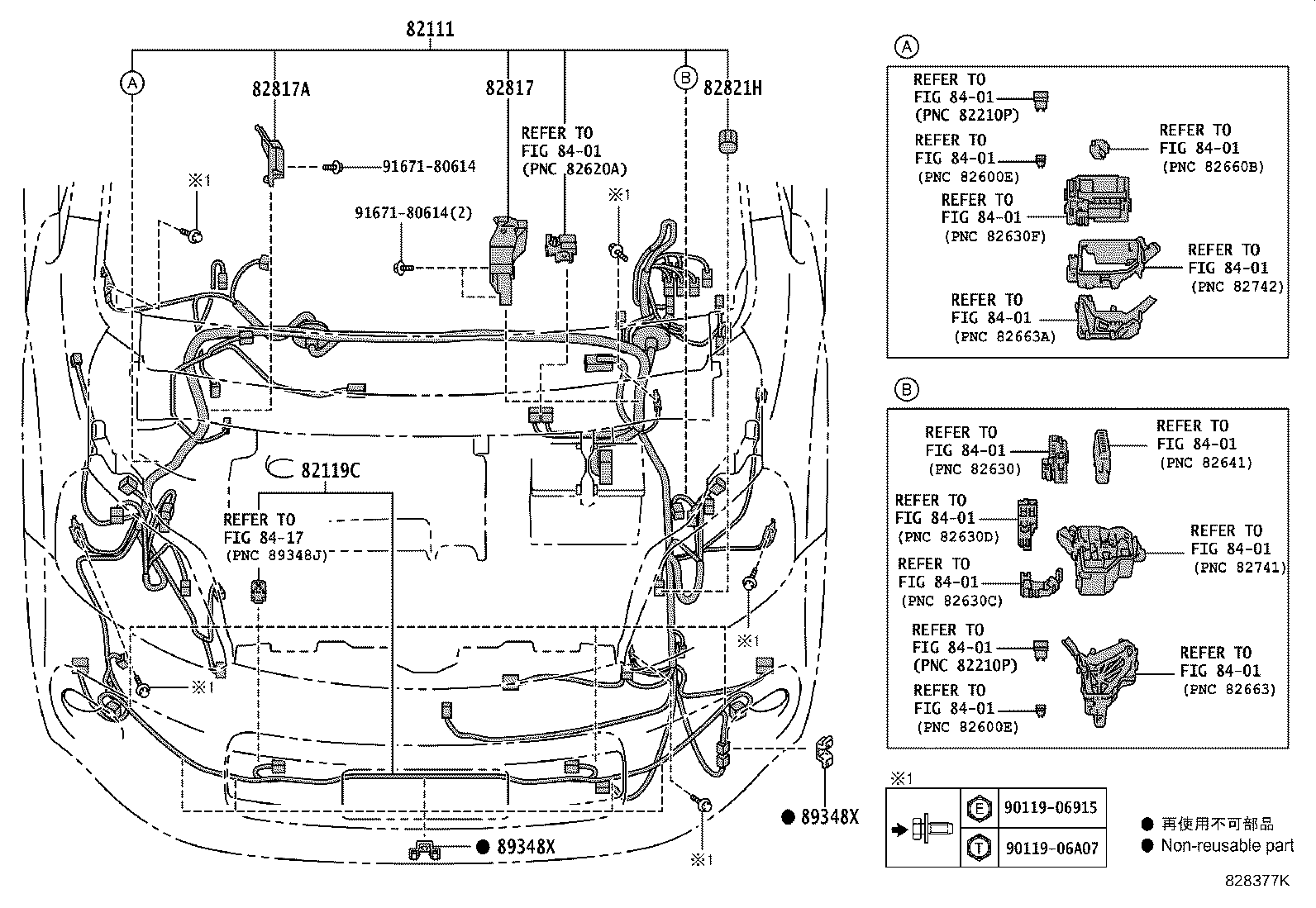

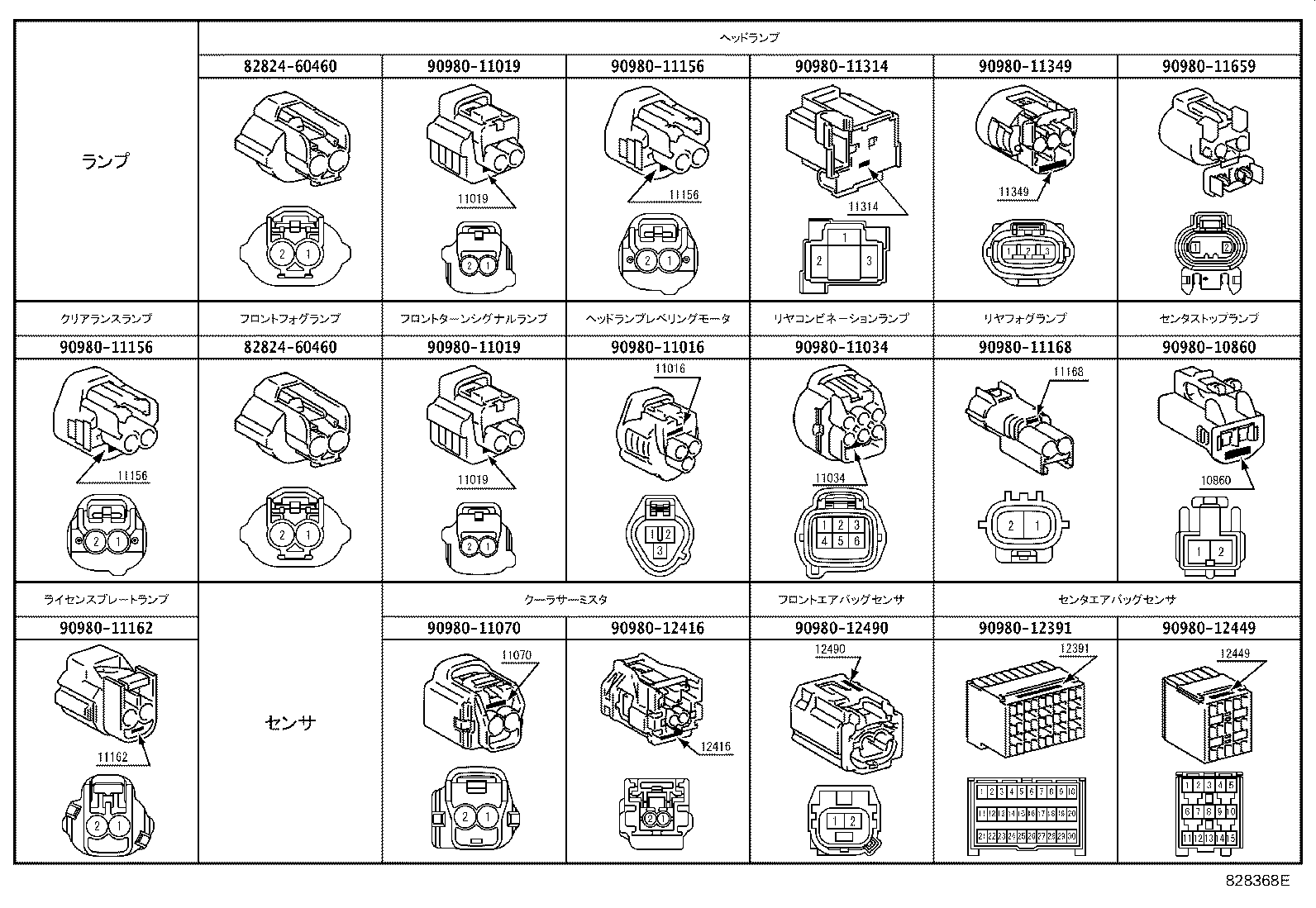

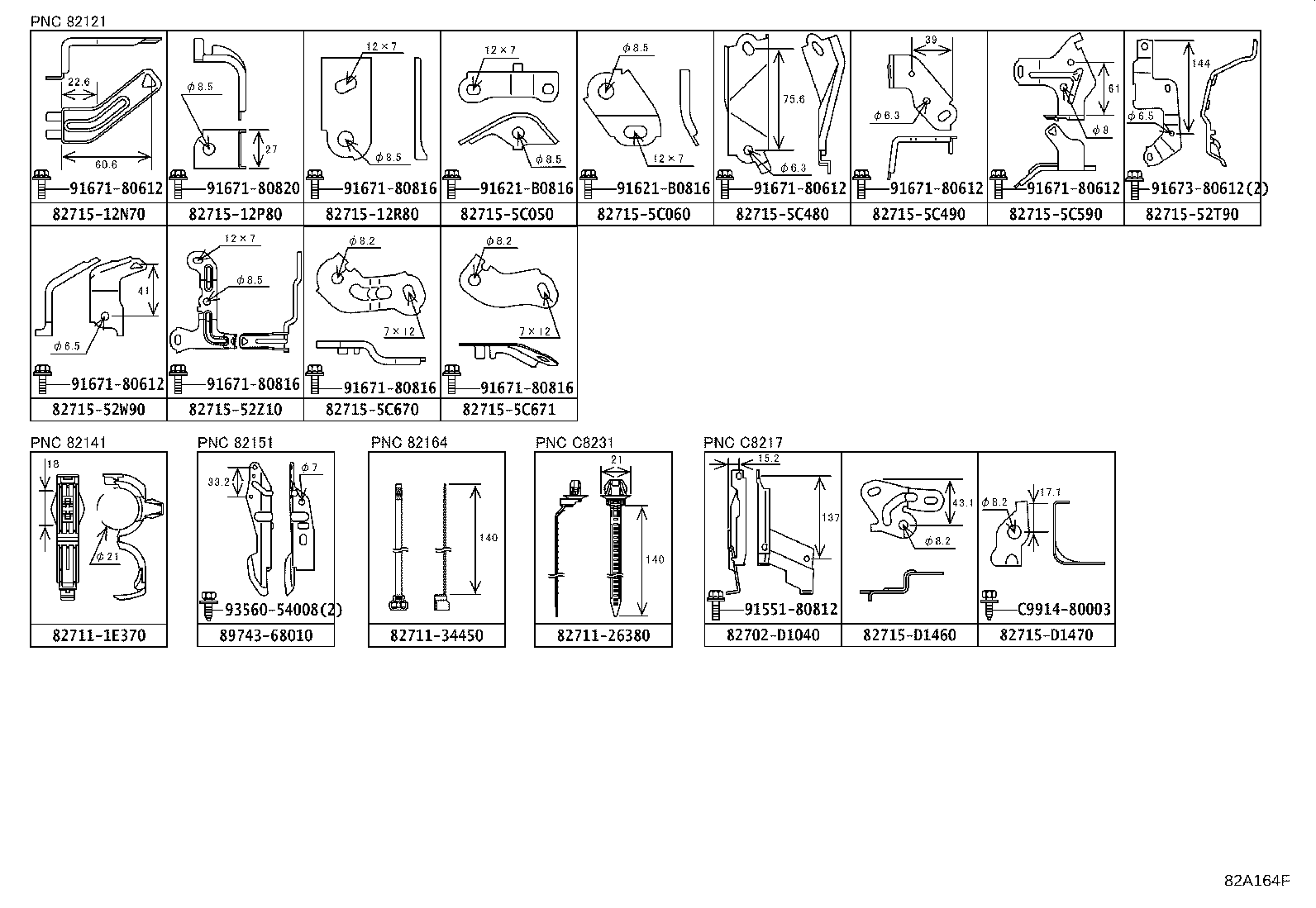

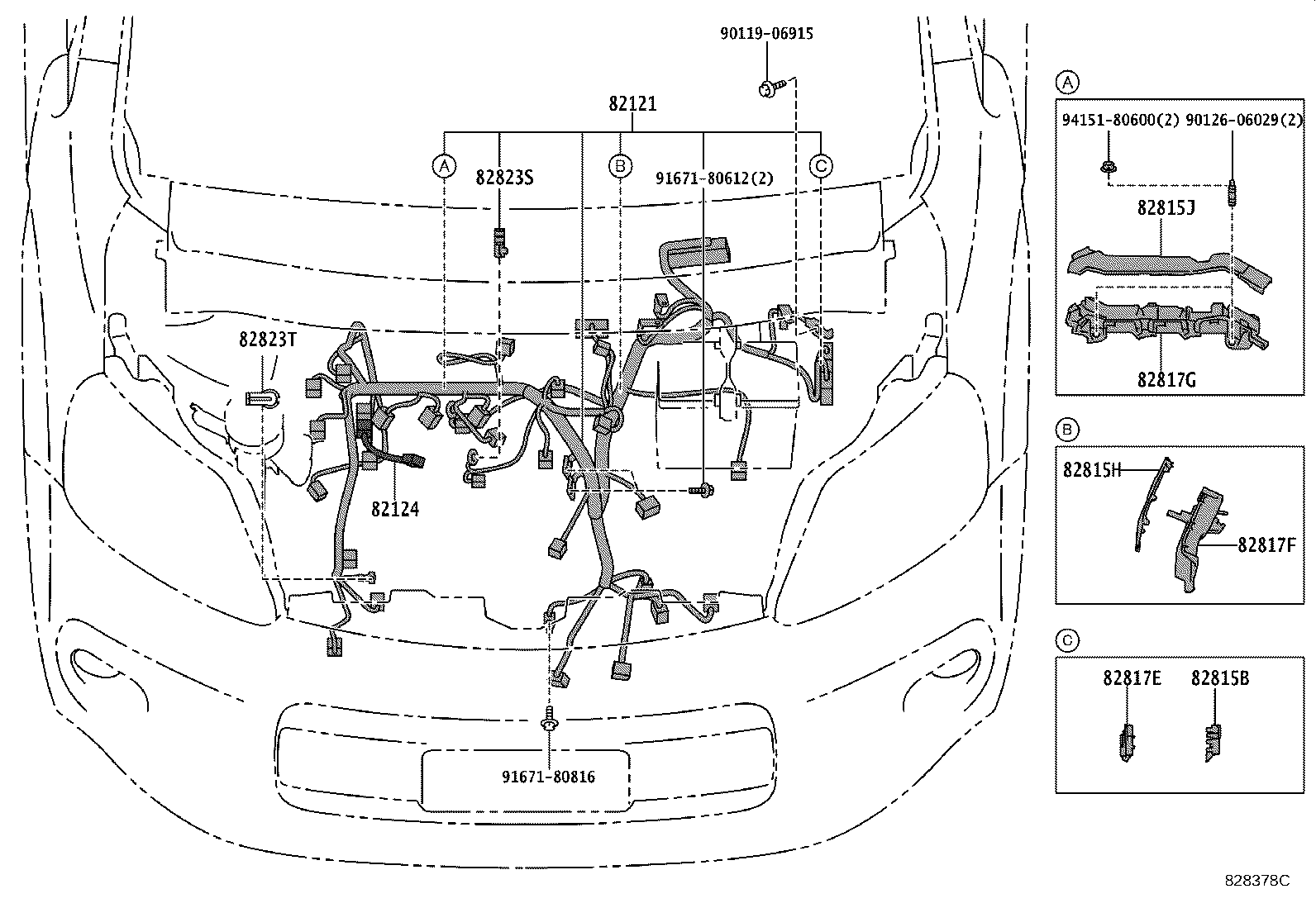

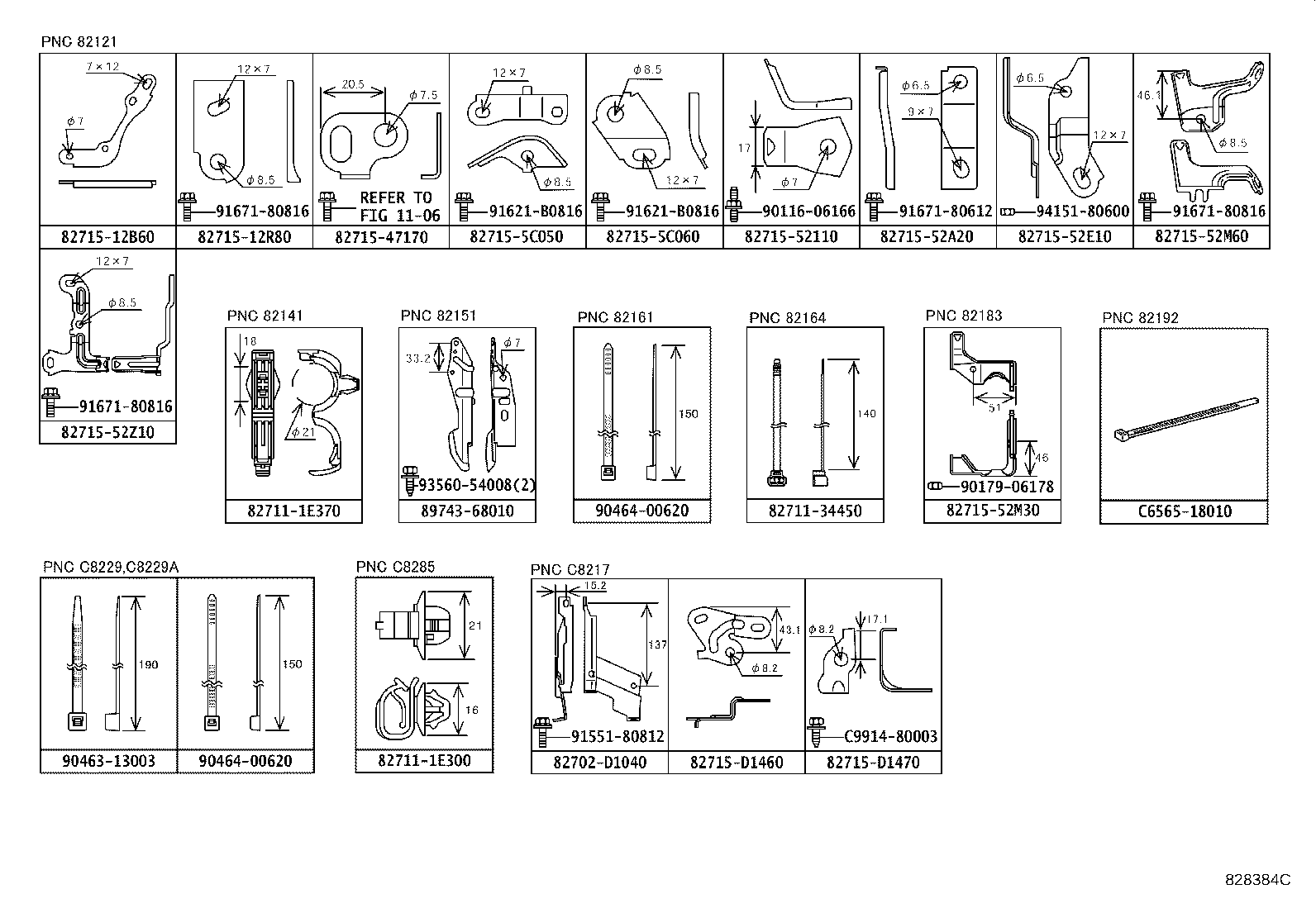

Figure 82G342 82G342 2012-07 → 2015-07 Figure 82G342 82G342 2015-07 → — Figure 828377K 828377K 2012-07 → 2015-07 Figure 828377K 828377K 2012-07 → — Figure 828378C 828378C 2012-07 → 2015-07 Figure 828379F 828379F 2012-07 → 2015-07 Figure 828379F 828379F 2012-07 → — Figure 82A163F 82A163F 2015-07 → — Figure 828380C 828380C 2012-07 → 2015-07 Figure 828380C 828380C 2012-07 → — Figure 828380C 828380C 2015-07 → — Figure 828381G 828381G 2012-07 → 2015-07 Figure 828381G 828381G 2012-07 → — Figure 828381G 828381G 2015-07 → — Figure 828394K 828394K 2012-07 → 2015-07 Figure 828394K 828394K 2012-07 → — Figure 828394K 828394K 2015-07 → — Figure 828394K 828394K 2016-07 → — Figure 828386B 828386B 2012-07 → 2015-07 Figure 828386B 828386B 2012-07 → — Figure 828386B 828386B 2015-07 → — Figure 828383A 828383A 2012-07 → 2015-07 Figure 828384C 828384C 2012-07 → 2015-07 Figure 828384C 828384C 2012-07 → — Figure 82A164F 82A164F 2015-07 → — Figure 828368E 828368E 2012-07 → — Figure 828367A 828367A 2012-07 → —

Part groups

PNCDescription
46431 Bolt, Wire
61824K Plate, Noise Control, NO.1
82111 Wire, Engine Room Main
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82164 Wire, Frame
82167 Wire, Seat, NO.1
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82669A Cover, Connector Holder Block, Lower
82712A Support, Wiring Harness
82815B Cover, Wiring Harness Protector
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818C Protector, Wiring Harness, NO.4
82821E Cover, Connector
82821H Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
89348X Clip, Ultrasonic Sensor, Front
89348Y Clip, Ultrasonic Sensor, Rear
C8213 Wire, Power Lift Motor TO Body
C8214 Wire, Power Lift Motor
C8217 Wire, Welcab Seat Main
C8231 Wire, Tecs Frame
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
